Manufacturer: Jefferson
kVA: 225.0
Primary Voltage: 480
Secondary Voltage: 240
Stock # JH-423-9297-000
Price: $9,395 USD
For Sale by Green Industrial LLC
Surplus Record Dealer Since 2004
Michael Rick
262-47...> Show Seller's Phone Number 262-476-5045 Let the seller know you found their listing on Surplus Record!
Description
***FREE SHIPPING INCLUDED TO CONTINENTAL USA ONLY***

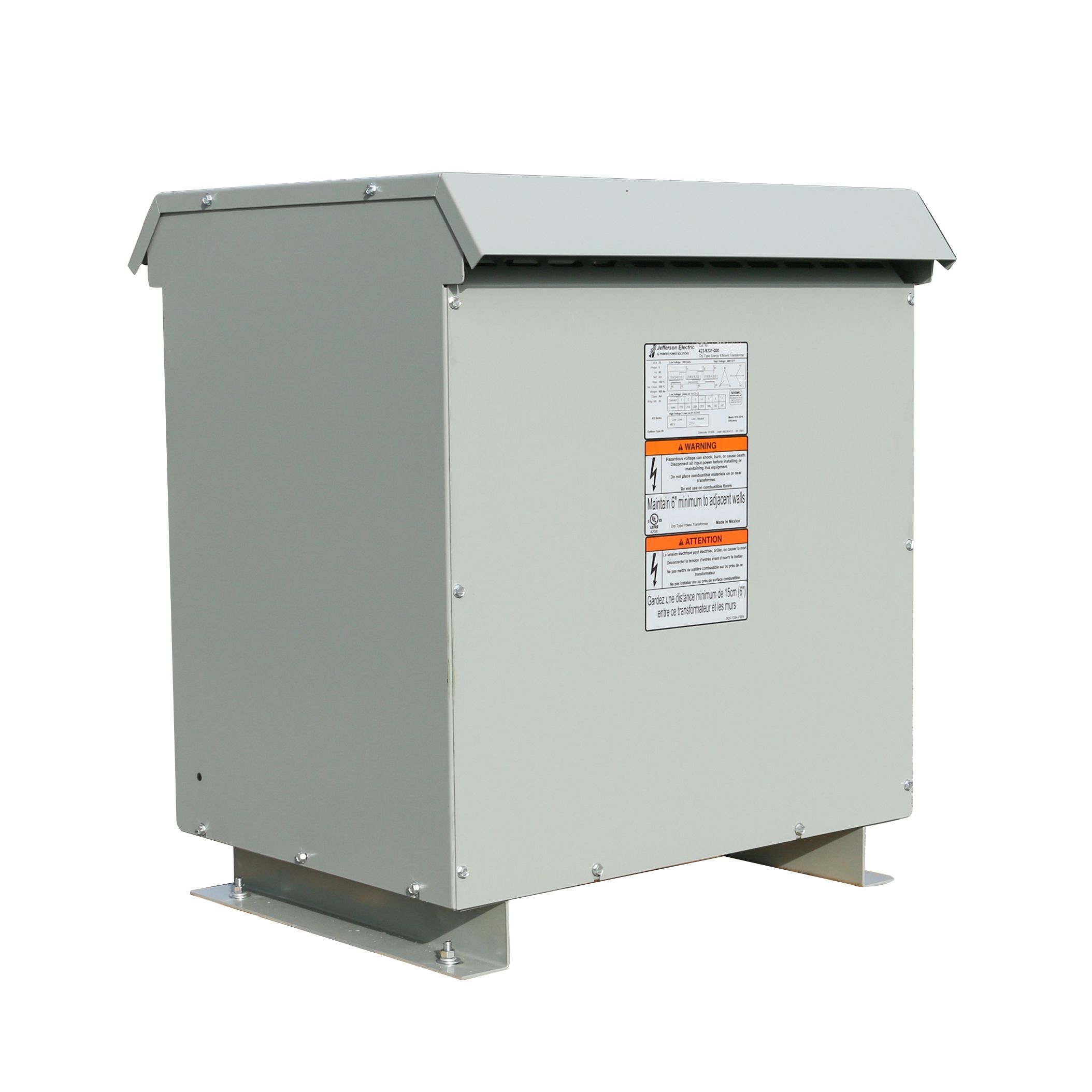

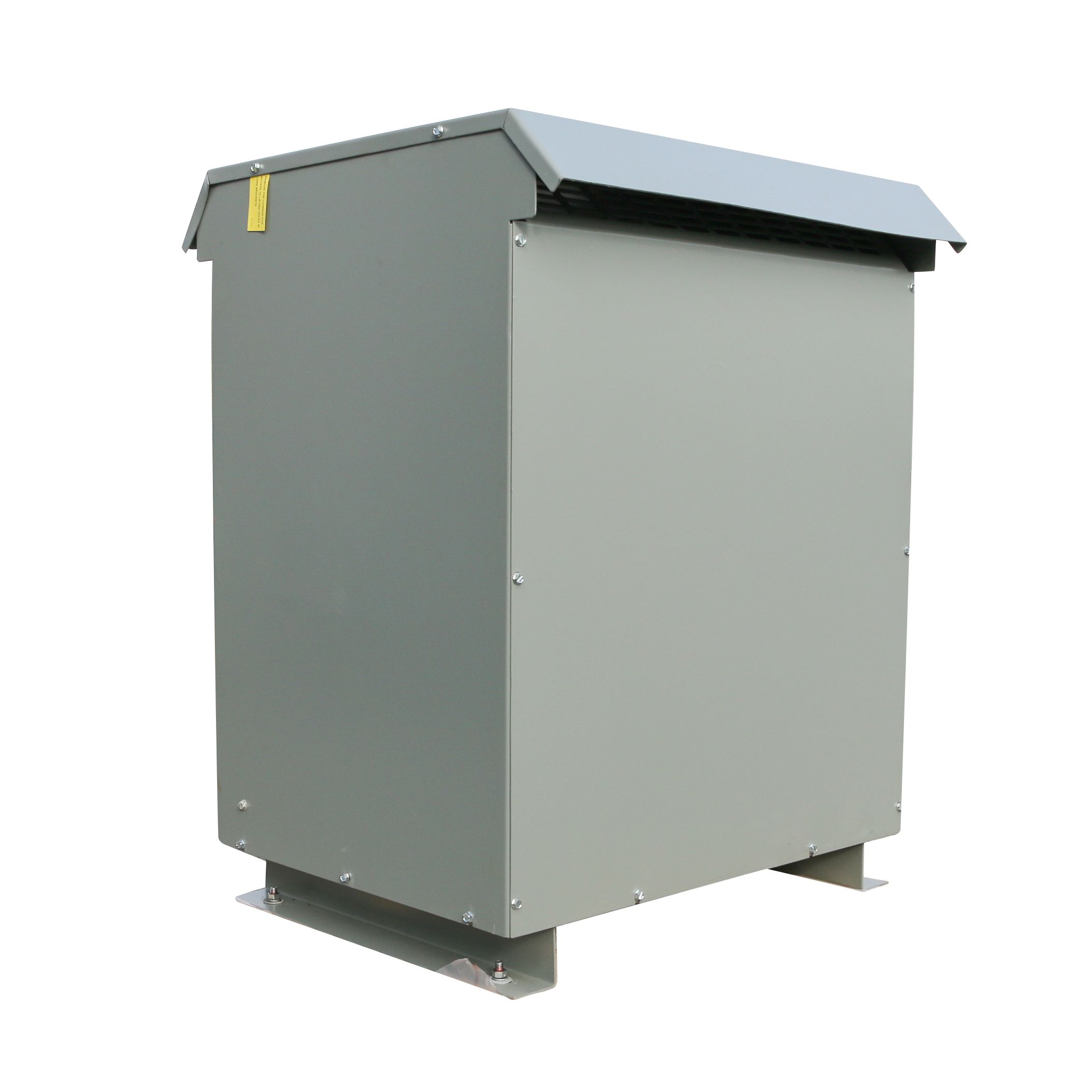

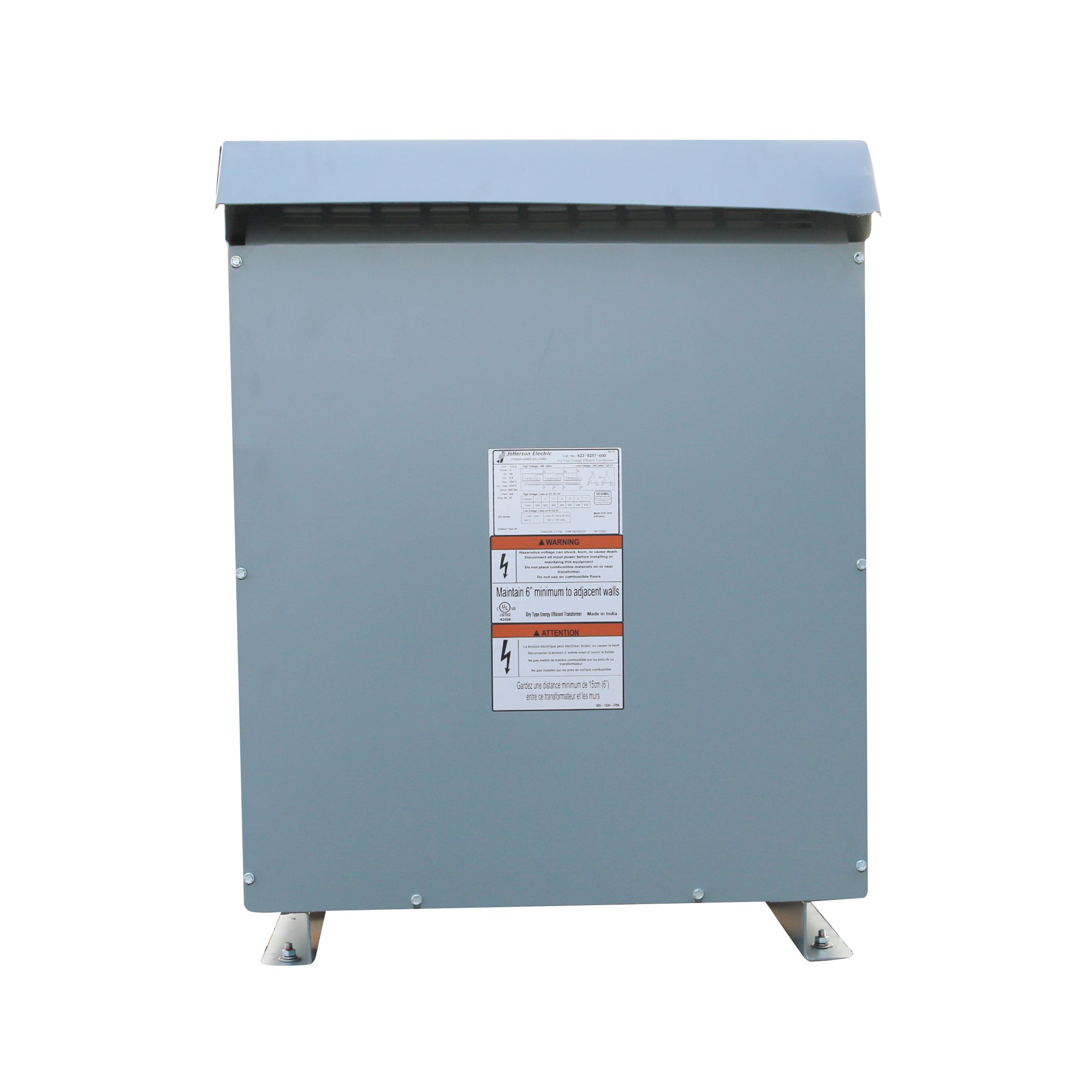

This is a FACTORY NEW Jefferson Electric dry type transformer for sale. We are a Wisconsin based authorized Jefferson dealer with many transformers IN STOCK and ready to ship!
-We can also custom order any voltage in nearly any size, just ask! We are here to help!

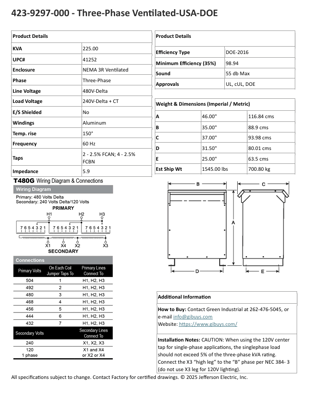

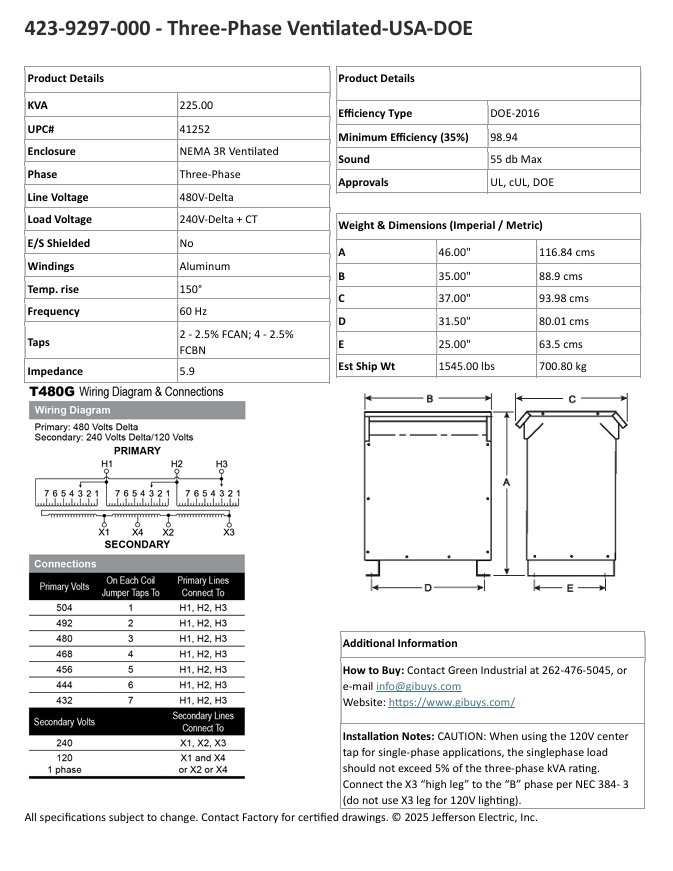

Manufacturer : Jefferson Electric
Catalog Number : 423-9297-000
KVA : 225
Phase : 3
PRIMARY VOLTAGE / INPUT / LINE SIDE : 480 Delta, 3 Wire (3 Phase)
Primary Feed Input Amps / Line Side : 271 Amps of 480 volt, 3 phase, 3 Wire
SECONDARY VOLTAGE / OUTPUT / LOAD SIDE : 240 DELTA 3 Wire / Center Tap (CT) 4 Wire (3 Phase)
Secondary Output Amps / Load Side : 541 Amps of 240 Delta CT, 3 or 4 Wire (Center Tap Delta gives you a single phase leg of 120V, not intended for use of more than 5% of total kva amount) (Using the CT, Neutral 4th wire is optional)
This means that you feed this transformer 271 Amps of 480 Delta, 3 Phase, 3 Wire and you will receive 541 amps of 240 Delta, 3 wire or 4 wire. (4 Wire using the Center Tap-Neutral 4 th wire is optional.)
Max Temp Rise : 150 Deg C
Efficiency : Meets DOE-2016 Efficiency Standards
Enclosure Type : NEMA 3R (Indoor AND Outdoor Rated)
Winding Material : AL / AL
Primary Side Taps : YES 504, 492, 480, 468, 456, 444, 432
Condition : Factory New
Warranty : 10 Year Limited Warranty
GIBUYS Item Number : JH-423-9297-000
Many of our Jefferson transformers come standard with a NEMA 3R, Rainproof outdoor enclosure allowing them to be installed both outdoors or indoors! All units come with a 10 year limited factory warranty!
Save thousands and buy NEW from Green Industrial today!
CONDITION: -Factory New Dry Type Energy Efficient Transformer
-10 YEAR LIMITED WARRANTY
***FREE Shipping to Business Addresses only*** Continental USA Only. LIFTGATE FEE is $150.00. We NEED to know if a liftgate is needed at the time of order. NO RESIDENTIAL ADDRESSES
This is a FACTORY NEW Jefferson Electric dry type transformer for sale. We are a Wisconsin based authorized Jefferson dealer with many transformers IN STOCK and ready to ship!
-We can also custom order any voltage in nearly any size, just ask! We are here to help!
Manufacturer : Jefferson Electric
Catalog Number : 423-9297-000
KVA : 225
Phase : 3
PRIMARY VOLTAGE / INPUT / LINE SIDE : 480 Delta, 3 Wire (3 Phase)
Primary Feed Input Amps / Line Side : 271 Amps of 480 volt, 3 phase, 3 Wire
SECONDARY VOLTAGE / OUTPUT / LOAD SIDE : 240 DELTA 3 Wire / Center Tap (CT) 4 Wire (3 Phase)
Secondary Output Amps / Load Side : 541 Amps of 240 Delta CT, 3 or 4 Wire (Center Tap Delta gives you a single phase leg of 120V, not intended for use of more than 5% of total kva amount) (Using the CT, Neutral 4th wire is optional)
This means that you feed this transformer 271 Amps of 480 Delta, 3 Phase, 3 Wire and you will receive 541 amps of 240 Delta, 3 wire or 4 wire. (4 Wire using the Center Tap-Neutral 4 th wire is optional.)
Max Temp Rise : 150 Deg C
Efficiency : Meets DOE-2016 Efficiency Standards
Enclosure Type : NEMA 3R (Indoor AND Outdoor Rated)
Winding Material : AL / AL
Primary Side Taps : YES 504, 492, 480, 468, 456, 444, 432
Condition : Factory New
Warranty : 10 Year Limited Warranty
GIBUYS Item Number : JH-423-9297-000
Many of our Jefferson transformers come standard with a NEMA 3R, Rainproof outdoor enclosure allowing them to be installed both outdoors or indoors! All units come with a 10 year limited factory warranty!
Save thousands and buy NEW from Green Industrial today!
CONDITION: -Factory New Dry Type Energy Efficient Transformer
-10 YEAR LIMITED WARRANTY
***FREE Shipping to Business Addresses only*** Continental USA Only. LIFTGATE FEE is $150.00. We NEED to know if a liftgate is needed at the time of order. NO RESIDENTIAL ADDRESSES
Inquire Further with Green Industrial LLC!
