Description
Description

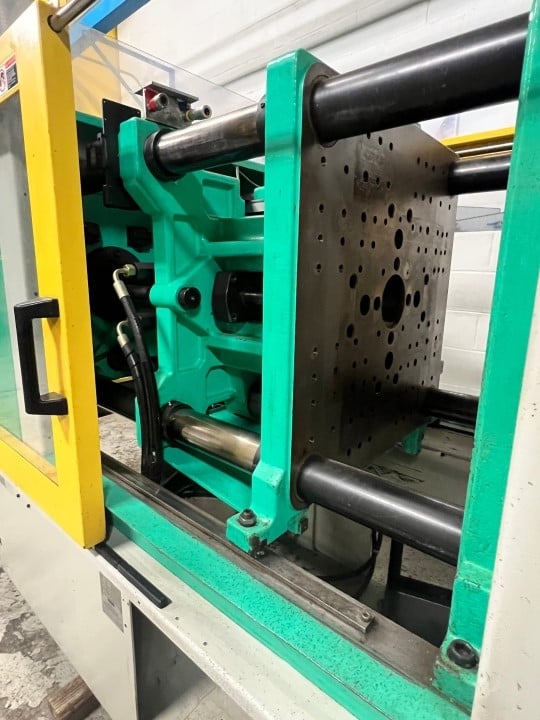

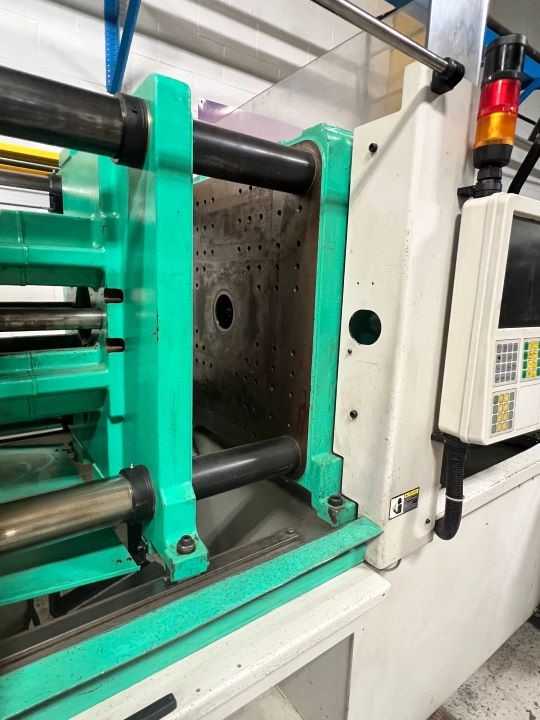

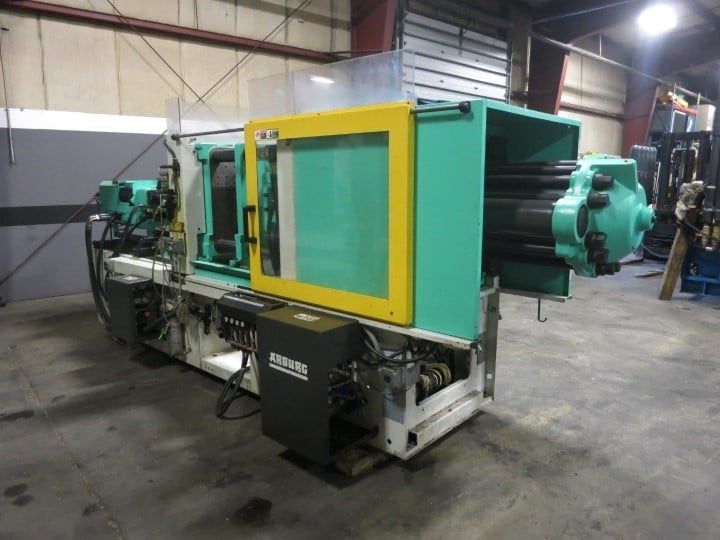

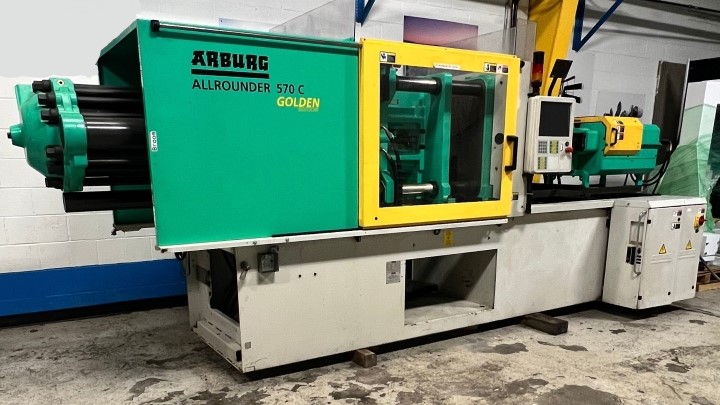

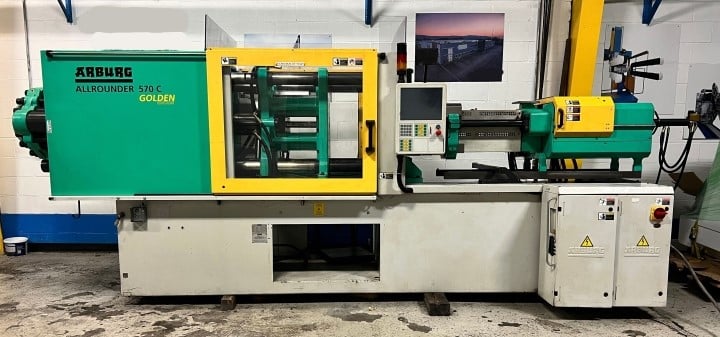

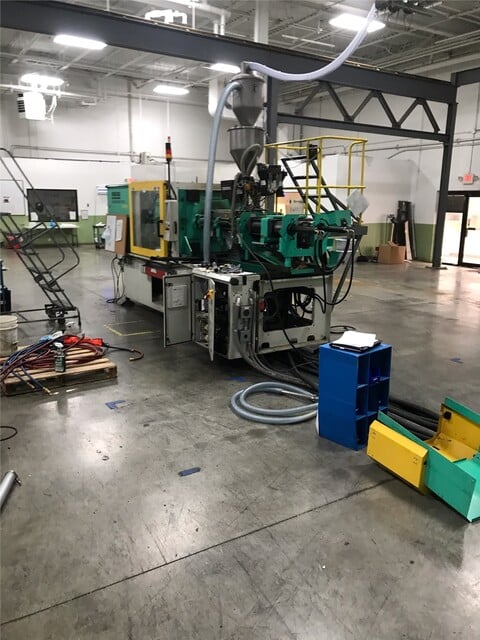

- Used 224 Ton Arburg Injection Molding Machine Model 570C 2200-800, 15.3 Oz, New In 2006
- Clamp Force...................................................224 Ton
- Screw Diameter..............................................60MM
- Shot Size........................................................15.3 Oz
- Platen Size.....................................................31.29" x 31.29"
- Tie Bar Spacing..............................................22.44" x 22.44"
- Min Mold Height..............................................11.81"
- Clamp Stroke..................................................25.59"
- Ejector Stoke..................................................8.85"
- Daylight..........................................................37.40"

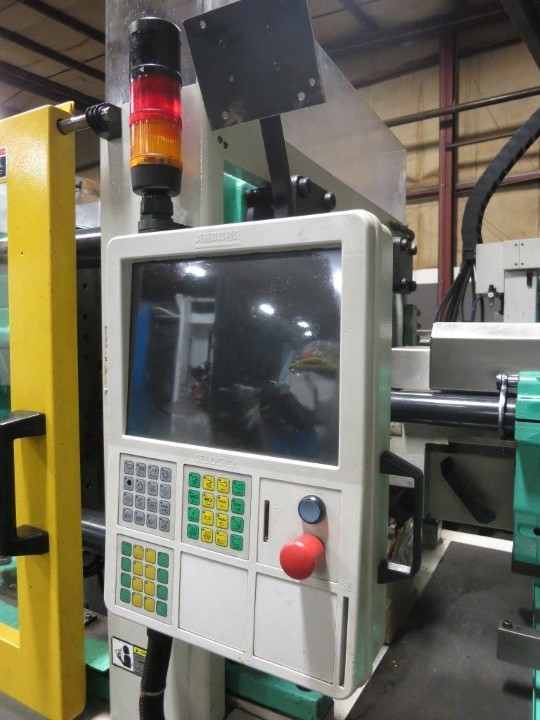

- Controller.......................................................Selogica
- Material..........................................................PP/PE
- Voltage...........................................................460V
- Options...........................................................Core Pull, Robot Interface, Air Blow
- Machine Dimensions: 18' 6" x 8' x 87" Machine Weight: 17,085 Lbs
