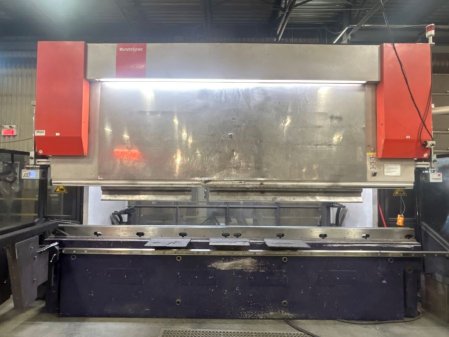

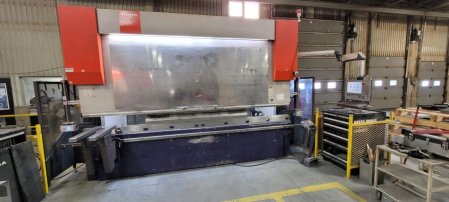

Manufacturer: Bystronic
Model: XPERT-200/4100
Year: 2011
Tons: 220.0
Overall: 13.5
Between Housings: 147.00
Stock # 12658
1 / 4
Click to zoom in
1 / 4
For Sale by Jordan Craig Machinery Intl L
Surplus Record Dealer Since 2002
Location: New City, NY
Contact Jordan Craig
Phone Number: 845...> Show Phone Number 845-402-2578
Let the seller know you found their listing on Surplus Record!
Description
Machine Specifications:
Tonnage: 220
Length: 161"
Between Housing: 147"
Standard Stroke Length: 8.5"
Optional Increase Stroke: 7.874"
Open Heights: 19.68"
Throat Depth: 2.37"
Table Width: 2.4"
Backgauge Specs:
X-Axis Travel: 24"
X-Axis Speed: 1535 in/min
R-Axis Travel: 9.84"
R-Axis Speed: 475 in/min
Z-Axis Travel: 116"
Z-Axis Speed: 3542 in/min
Z-Axis Speed (6 axes): 2840 in/min
Y Approach Speed: 449 in/min
Y Working Speed: 47 in/min
Y Return Speed: 472 in/min
Y Positioning Accuracy: 0.00016"
Crowning: hydr.
Electrical Values
Main Motor Power: 27 kW
Total Connected Load: 30 kW
Operating Voltage (V AC): 3 PH 480
Frequency: 60 Hz
Control Voltage: 24 V DC
Nominal Current Fuse: 63 A
Weight: 40,656 lbs
Equipped With:
6-Axis Backgauge
Hydraulic Clamping
Adjustable Control Arm
AC Electrical Cabinet
Get Your Price from Jordan Craig Machinery Intl L!
