220 Ton, Bussmann Simetag #HPM200, hydraulic compacting press, 7.8" lower stroke, 7.8" depth of fill, 19.6" upper stroke, 15 SPM

MODEL HPM200

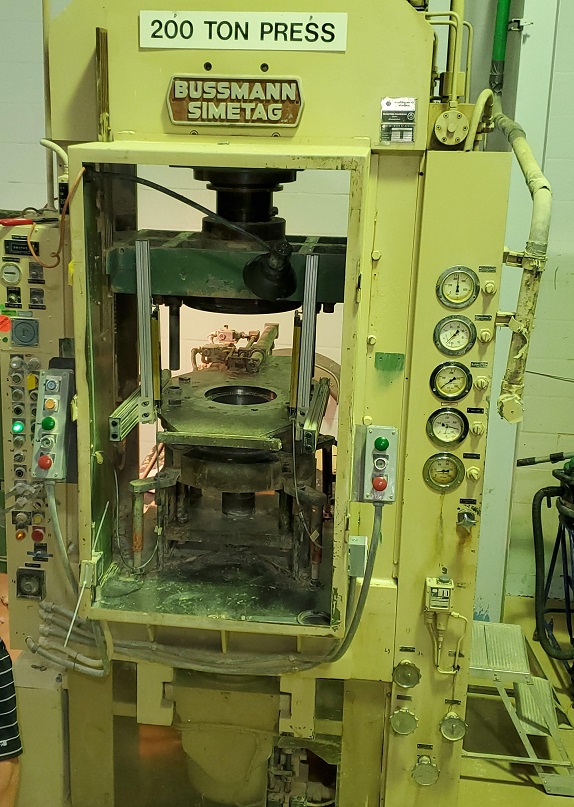

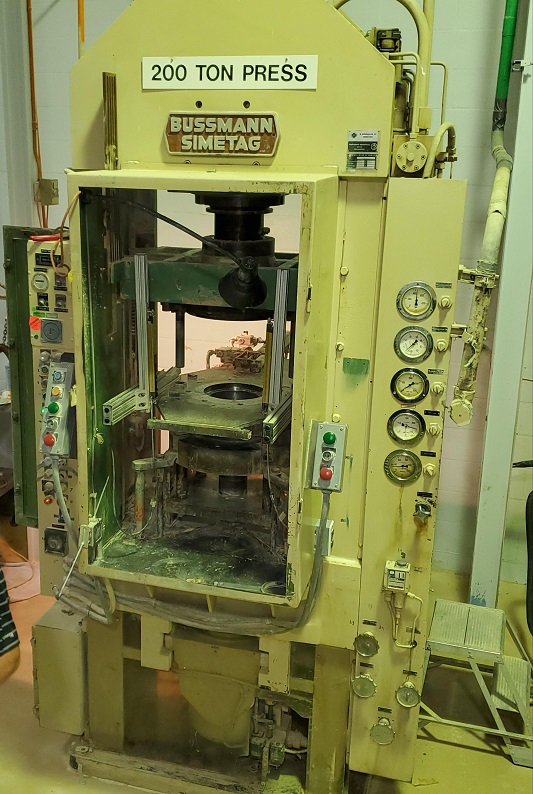

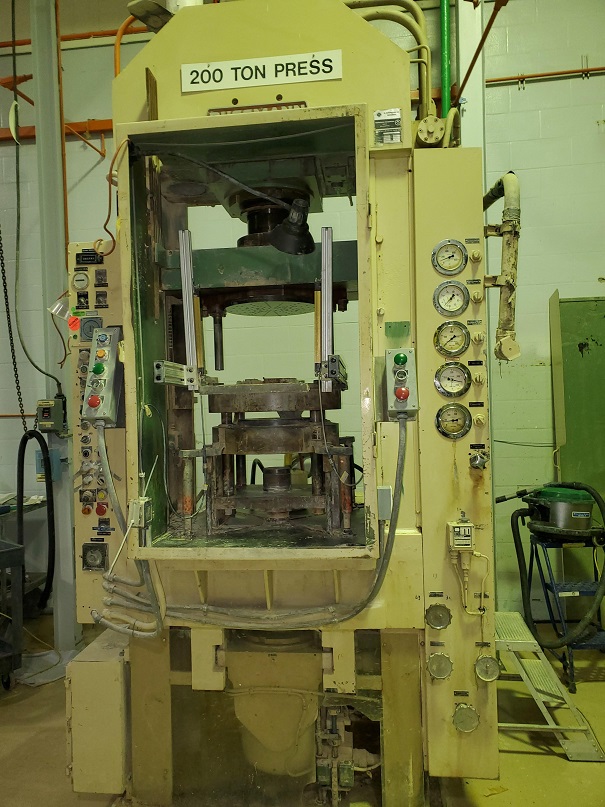

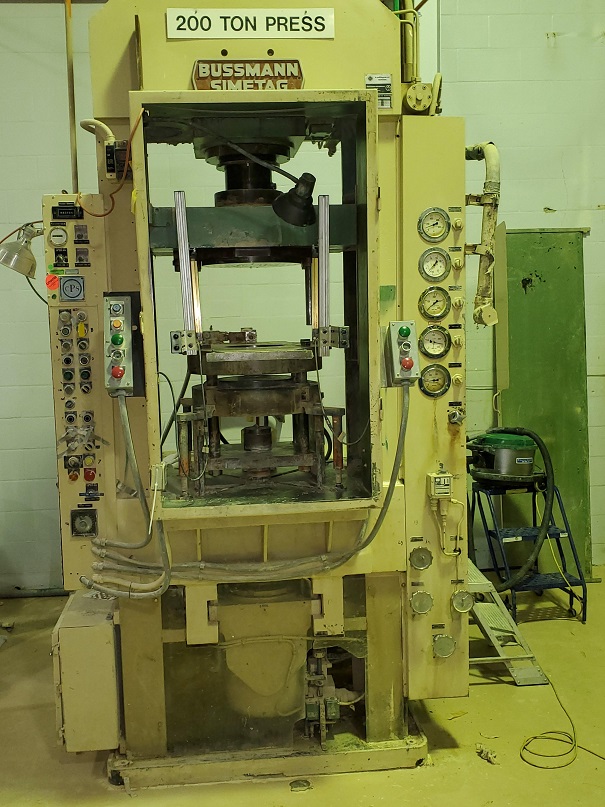

Detroit Process Machinery offers one used Bussmann Simetag Model HPM-200S 220 Ton Powder Compacting Press, Serial Number M1703 Inventory Number DPM-2349. This hydraulic press features opposed ram design, die set, 7.8″ lower ram stroke maximum, 7.8″ maximum depth of fill, 19.6″ upper ram stroke maximum, 110 ton maximum ejection force, ram controls, flow controls, high and low pressure hydraulic pump system, operator controls, shuttle feed shoe system, up to 15 strokes per minute, die bore of approximately 8″ diameter, and operating manual. Approximate Floor Space of 12’h x 6’wide x 8 1/2’deep, 15000 lbs. Unit can ship upright on double drop deck truck. Free standing design…no pit needed

STOCK NUMBER: DPM-2349
