Description

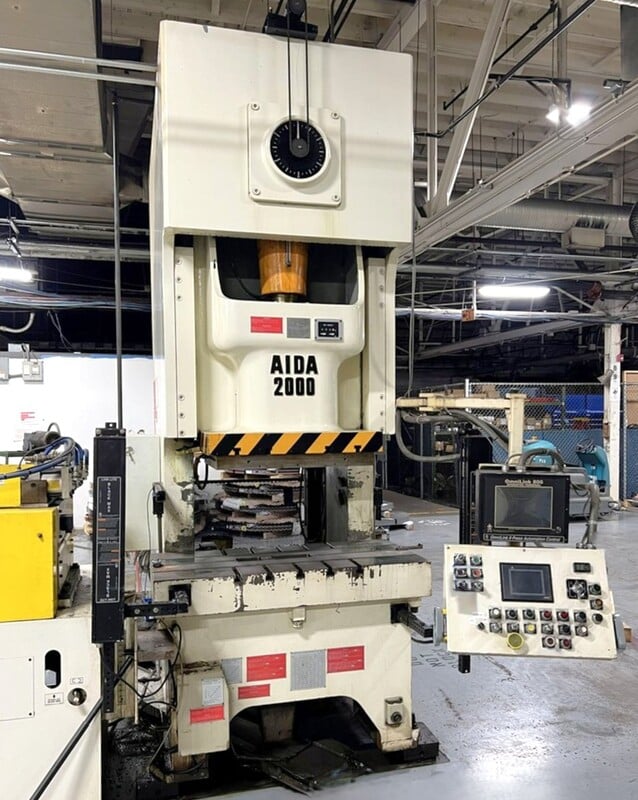

Back Geared Frame Press • Used 220 Ton Press for Sale

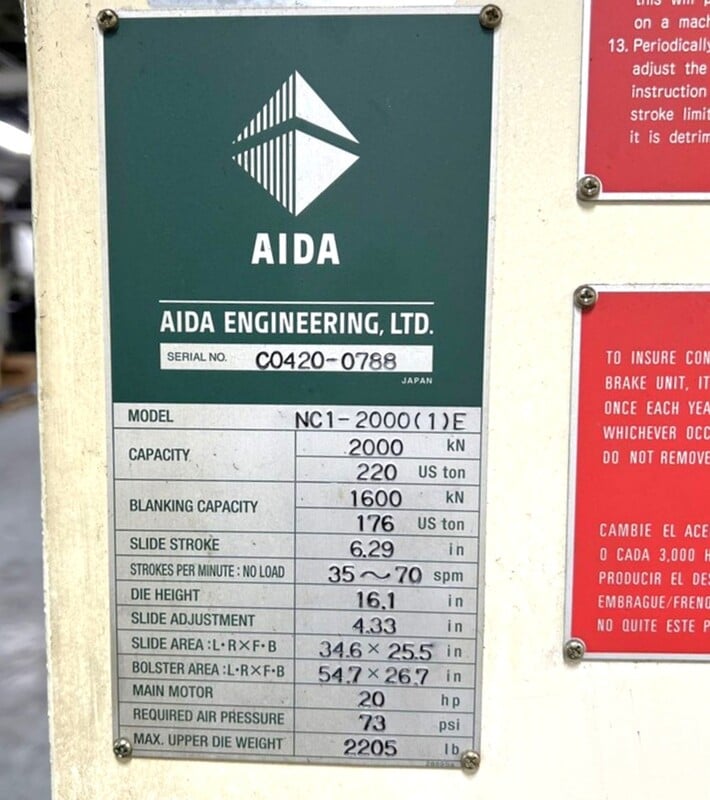

Manufacturer: Aida
Model: Aida NC1-2000(1)E Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 2014
Machine #: 8132
| CAPACITY | 220 US TONS / 176 US TON BLANKING CAPACITY |
|---|---|
| STROKE | 6.3″ |
| MAX DIE HEIGHT | 16.1″ SDAU OVER BOLSTER PLATE |
| RAM ADJUSTMENT | 4.3″ MOTORIZED |
| BED AREA | 54.7″ X 26.7″ (RL X FB) |
| BOLSTER PLATE | 54.7″ X 26.7″ (RL X FB) |
| RAM AREA | 34.6″ X 25.5″ (RL X FB) |
| SPEED | 35 – 70 STROKES PER MINUTE |
| FLOOR TO BED HEIGHT | APPROX 33″ |
| DISTANCE BETWEEN UPRIGHTS | 35.7″ |
| THROAT | 13.8″ |
| CLUTCH | AIDA AIR CLUTCH AND BRAKE COMBINATION |
| PRESS CONTROLS | AIDA CONTROLS TESTED IN INCH, JOG & CONTINUOUS |
| MOTOR | 20 HP 1750 RPM 460V-3-60 W/VFD |
| APPROX. DIMENSIONS | 13′ H X 6′ W X 8.5′ FB |
| APPROX. WEIGHT | 52,000 LBS |
| EQUIPPED WITH | FLOOR STANDING, SINGLE BACK GEARED, HIGHLY RIGID FRAME W/LOW ANGULAR DEFLECTION, FAST ACTING HYDRAULIC OVERLOAD SYSTEM, 6-POINT FULL LENGTH BRONZE GIBS, BRAKE STOP-TIME MONITOR, AUTOMATIC LUBRICATION SYSTEM FOR GIBS & CRANKSHAFT BEARINGS, AIDA SAFETY CONTROLLER, & QUILL MOUNTED FLYWHEEL W/FLYWHEEL BRAKE |
| NOTE | WE HAVE 2 IN STOCK (8134), MAX. UPPER DIE WEIGHT 2,205 LBS. |
| LOCATION | THIS USED PRESS IS LOCATED IN OUR COLUMBIA, TN WAREHOUSE |
Get Your Price from Alma Machinery Co-Columbia TN!
Buyers Who Viewed This Listing Also Viewed:
200 Ton, Aida #NC1-2000(2)E, single crank gap frame press, 54.7" x 33.1" bed, 9.84" stroke, 25-50 SPM, 4.33" ram adj, 17.7" Shut Height, air clutch & brake, 20 HP, w/ palm buttons, light curtains, 2007
Category: Gap Frame Single Crank Press Machines
Seller: D & D Industries Inc
Location: Monclova, OH
Mfr: Aida
Model: NC1-2000E
Year: 2007
9.84" STROKE, 4.33" POWERED RAM ADJUSTMENT, 19.69" SHUT HEIGHT, 25-50 SPM, 34.6" X 25.6" RAM, 54.7" X 33.1" BED, AIR CLUTCH, AIR BRAKE, AIR COUNTERBALANCE, HYDRAULIC OVERLOADS, PALM BUTTONS, LIGHT CURTIANS, CUSHION, 2007, HYDRAULIC DIE CLAMPING, 20 HP, 230/460/60/3, 72" X 96" X 144" T APROX., 44,100 LBS APROX..
200 Ton, Aida #NC1-2000(2)E, single crank gap frame press, 54.7" x 33.1" bed, 9.84" stroke, 25-50 SPM, 4.33" ram adj, 17.7" Shut Height, air clutch & brake, w/ palm buttons, light curtains, 2009
Category: Gap Frame Single Crank Press Machines
Seller: D & D Industries Inc
Location: Monclova, OH
Mfr: Aida
Model: NC1-2000E
Year: 2009
ORDER 220, 220 TON AIDA MODEL NC1-2000(2)E GAP FRAME PRESS, S/N C0420-0670, 9.84” STROKE, 4.33” RAM ADJUSTMENT, 17.72” SHUT HEIGHT, 25-50 SPM, 34.6” X 25.6” RAM, 54.7” X 33.1” BED, AIR CLUTCH AND BRAKE, AIR COUNTERBALANCE, PALM BUTTONS, LIGHT CURTIANS, HYDRAULIC OVERLOADS ...more
220 Ton, Aida #NC1-2000(1)E, gap press, 6.3" stroke, 54.7" x 26.7" bed, 35-70 SPM, air clutch, 2010
Category: Gap Frame Single Crank Press Machines
Seller: Alma Machinery Co-Columbia TN
Location: columbia, TN
Mfr: Aida
Model: NC1-2000E
Year: 2010
Gap Frame Press for Sale Manufacturer: Aida Model: Aida NC1-2000(1)E Press Condition: Very Good Location: Columbia, TN Warehouse Year: 2010 Machine #: 8134 CAPACITY 220 US TONS / 176 US TON BLANKING CAPACITY STROKE 6.3″ MAX DIE HEIGHT 16.1″ SDAU OVER BOLSTER PLATE RAM ADJUSTMENT 4.3″ MOTORIZED BED ...more
Featured

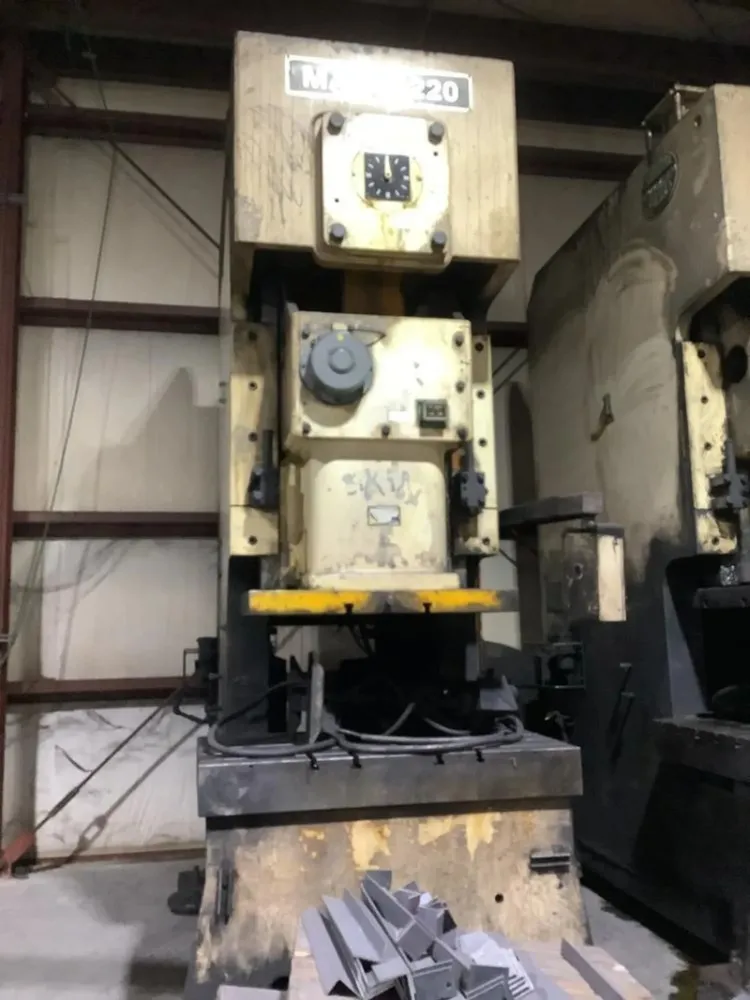

200 Ton, Sutherland #Mark-220, Gap Frame Press, 3.94" Stroke Length, 19.69" Die Height, 4.33" Slide Adj., 25 HP, 2014 (2 available)
