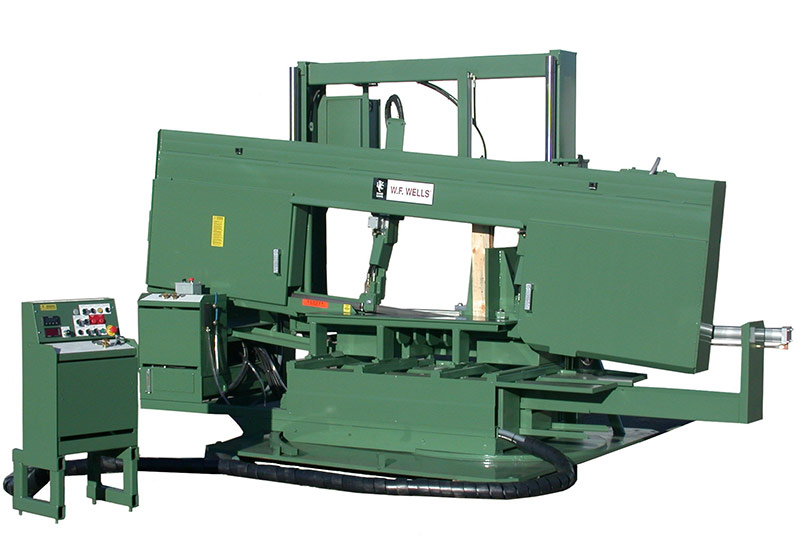

22" x 48" W.F. Wells #M-36-3, Semi-Automatic Mitering Band Saw, 15000 lbs. capacity, 342" x 2" Blade, 26" Bandwheel, 60-500 FPM, 15 HP, new

Description

W.F. Wells 22″ x 48″ Semi-Automatic Mitering Band Saw, M-36-3

Inventory # 8012

Model: M-36-3

Made in USA

Specifications:

Capacity:

Rectangular:

@ 90°: 22″ x 48″

@ -45°: 22″ x 36″

@ +45°: 22″ x 31 1/2″

Weight Capacity: 15,000 lbs.

Blade Speed: 60 – 500 FPM

Blade Size: 342″ x 2″ x .063″

Band Wheel Size: 26″

Sawing Force: 0 – 1,000 lbs.

Work Height: 34″

Outfeed Table: 7″ x 52″

Motor: 15 HP / 208v, 230v, 460v / 3ph

Standard Features:

Spring Tensioned Carbide Blocks with Idle Roller Back-up Blade Guide

Hydraulic Blade Tension

Hydraulic Vise

15 Gallon Coolant Capacity

20 Gallon Hydraulic Capacity

5 HP Hydraulic Drive Motor

Hydraulic Positioned Guide Arm

Hydraulic Powered Blade Brush

Hydraulic Hold Down, Saw Vise

Hydraulic Swivel Base with Miter Vise

Digital Angle Display

In Feed Roller

Free Standing Control Console

Blade Break/Stall Switch

Electronic Door Interlocks

Electrics Wired to NFPA 79 Machine Tool Standards

Mechanical Specifications:

Dimensions: 200″ x 98″ x 105″ H

Shipping Dimensions: approx. 12,000 lbs.

FOB Factory – Contact us for Pricing and Availability
