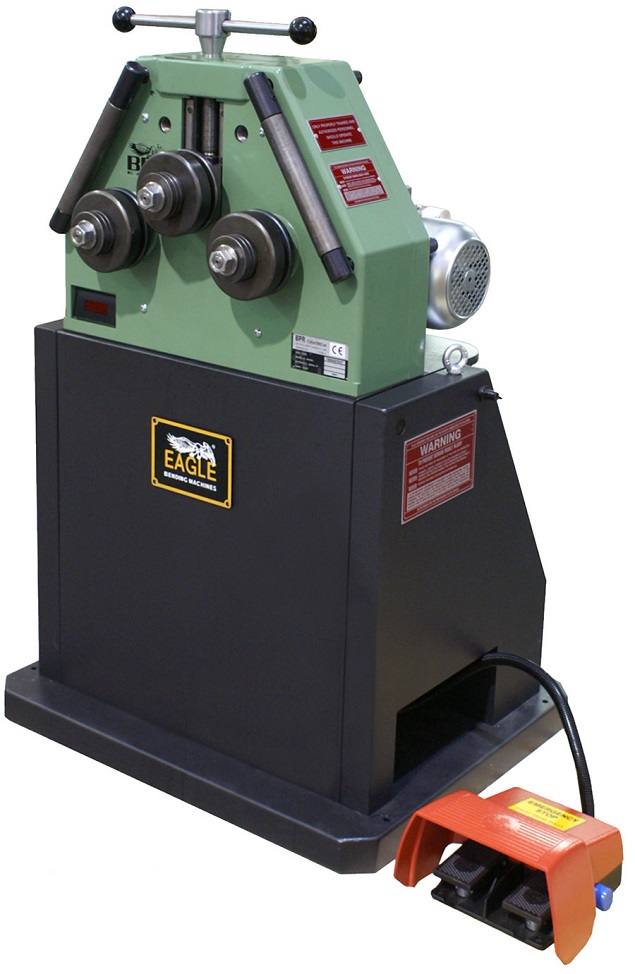

22" x 1.5" x 3/16" Eagle #CP30-PRM, Universal Roll Bender w/LED Readout, 1.2" outside dimension Shaft, 5.4" outside dimension Roll, (2) Lower Drive Rolls, 1.5/1.2 HP, 220 V, new

Description

Eagle Universal Roll Bender with LED Readout, CP30-PRM

Inventory # 6473

Model: CP30-PRM

Description:

Universal roll benders are the most widely used and highest quality benders available. They incorporate over 30 years of innovation and engineering

Specifications:

Capacities:

Angle Iron: 1 1/2″ x 3/16″, 22″ Min. Diameter

Pipe: 1 1/2″, 20″ Min. Diameter

Tubing Round: 2 3/8″ x 1/16″, 40″ Min. Diameter

Tubing Square: 1 1/2″ x 1/8″, 40″ Min. Diameter

Solid Round: 1 1/2″, 24″ Min. Diameter

Solid Square: 1 1/8″, 24″ Min. Diameter

Flat Bar, Easy Way: 3″ x 5/8″, 16″ Min. Diameter

Flat Bar, Hard Way: 22″ x 3/8″, 16″ Min. Diameter

Shaft OD’s: 1 3/16″

Roll OD’s: 5 3/8″

Drive Rolls: 2 Lower

Motor: 1.5 HP / 220v / 1ph OR 1.2 HP / 220v / 3ph (Please Specifiy Desired Motor at Time of Order)

Standard Features:

Rugged solid steel frame, CNC machined from 1.77″ steel plate

No castings, all components are solid steel

Unconditional lifetime main frame warranty against stress fracture

Shafts in high strength solid steel alloy, shafts journaled in dual roller bearings

Forming roll moves on adjustable hardened guides and ways

Large, bright, flush mount LED digital readout for precision positioning of top roll

Heavy duty lateral material guides, adjustable in thrust, tilt and rake angle

Universal modular rolls hardened 55 HRC with 18 components and calibrating spacers

Lower rolls driven in rotation on precision knurled for traction on heavier profiles

Flush faced design allows unobstructed working zone under the rolls, unique in its class

Integral flush electrical cabinets are safer and cannot be damaged by shop activities

Heavy duty cast metal foot pedals, retractable lead nests neatly inside the base when not in use

Controls in low voltage 24-VAC include magnetic cut-out and overload protection

Fully illustrated 80 page operating/maintenance manual and service tool kit

Mechanical Specifications:

Dimensions: 30″ x 54″ x 28″ H

Shipping Weight: approx. 500 lbs.

FOB Factory – Contact us for Pricing and Availability
