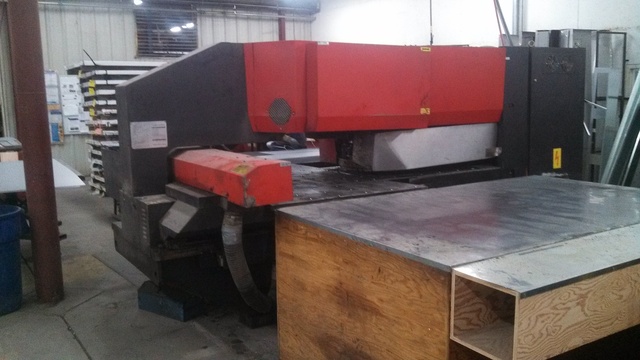

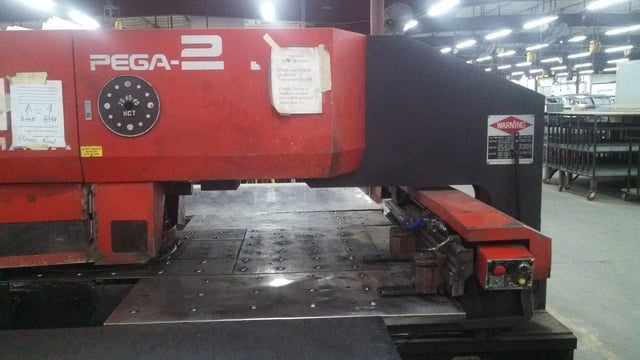

22 Ton, Amada #Pega-244, CNC Turret Punch, 40" x 100" Sheet Size, 350 HPM, 30 RPM, 80 PSI, GE Fanuc 04 PC Control, 1990

Pre Owned 1990 Amada Pega 244 CNC Turret Punch
Serial Number AP440149
GENERAL SPECIFICATIONS
Press Capacity 22 Tons
Maximum Traverse 40” X 40”
Maximum Sheet Size (With Repositioning) 40” X 100”
Maximum Hits Per Minute 350
Maximum Sheet Weight 231 LBS
Maximum Positioning Speed 2559 Inches Per Minute
Total Tool Stations in Turret 44
Turret Configuration- H-Type Thick Turret
18 @ 1/2" Dia
16 @ 1-1/4" Dia.
4 @ 2" Dia.
2 @ 3-1/2" Dia.
2 @ 4-1/2' Dia.
2 @ Auto ndex (1-1/4" DIA.)
auto index configuration
Angular Increment 0.01 Degree
Maximum Nibbling Angle 8 Degree
B—Directional Rotation
AC Servo Drive
60 RPM
Turret Speed 30 RPM
Air Requirement 80 PSI
Main Motor Horsepower 5.5 kW
EQUIPPED WITH
GE Fanuc 04 PC Control
Auto Repositioning
Hydraulic Clutch & Brake
Ball Transfer TableApproximate Overall Dimensions 100” W X 81’H X 198’ L
Approximate Overall Weight 17,000 LBS
