22 Stand, Tishken #24HW S3-1/2, Roll Forming Line, 3-1/2' ' spindle diameter, 20" roll space, 14" horizontal center, 9" vertical center

22 STAND ON 24 STAND BASE X 3-1/2" ROLL FORMING LINE
CONSISTING OF:

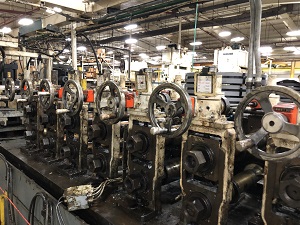

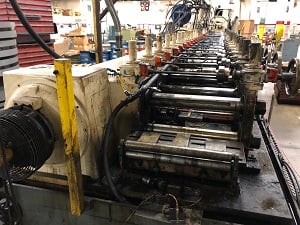

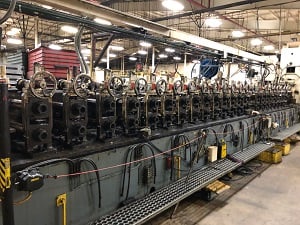

TISHKEN MODEL 24HW S3-1/2 ROLL FORMING LINE
Line Direction............ Left to Right
# of Stands............... 22 Stands on a 24 Stand B
Spindle Diameter.......... 3-1/2"
Roll Space................ 20"
Horizontal Centers........ 14"
Vertical Centers.......... 7-1/2" to 9"
Main Motor Drive.......... 75 HP, 500 volt, DC, Quantum III Motor Drive
Equipped with: Air Clutch , Single Point Adjustment, Coolant System
Serial #.................. 21939-299
Allen Bradley PLC, SLC 500
LINE CONFIGURATION
BRADBURY UNCOILER MODEL DE Double End Stock Reel
Serial # 26081, 1993
Coil Weight Capacity: 6000 lbs per side
Coil Width : 24"
Coil O.D.: 60"
Hydraulic Expansion
KENT MODEL 10-135PM-P14A SHEAR END WELDER
Serial # 319052
Material Width (Max)......... 10"
Welder....................... Lincoln TIG 200 Square Wave

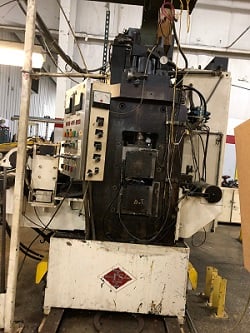

I2S 2 HI ROLLING MILL, SIZING MATERIAL
ROLL DIMENTSOION...........10" Dia x 12" Face
Equipped with:
Automatic Gauge Control (AGC)
I2S Material Thickness Gauging
Hydraulic Screw down
Entry Material Guide
Universal Connection Drive
Frame Uprights..........6" x 8"
WADDINGTON "Sona-Trol" Edge Guide

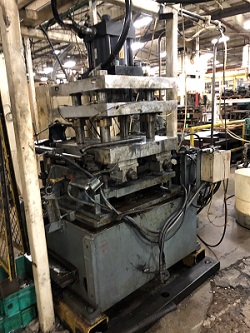

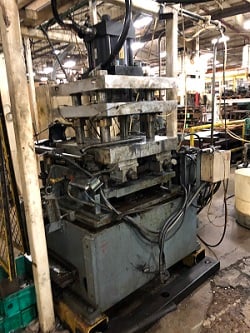

4 POST HYDRAULIC PRESS, PRE-PUNCH
Die Accelerator

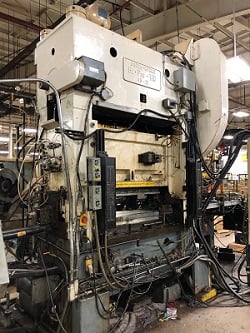

BROWN & BOGGS "HI PRO" - 110 STRAIGHT SIDE HI SPEED PRESS (CUT-OFF)
Serial # 93108
Bed Area................... 48" X 31"
Ram Area.................... 48" x 18"
Stroke...................... 1-1/2"
Shut Height................. 18"
Adjustment.................. 4"
Speed....................... 70 SPM
Weight...................... 16,500 #

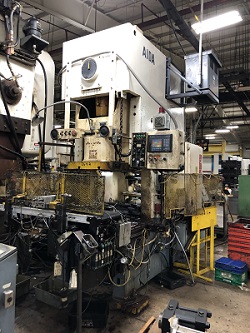

AIDA MODEL NC1-150 GAP FRAME SINGLE CRANK PRESS
Serial # 10215-8254
Rated Capacity.................. 150 tons
Blanking Capacity............... 120 tons
Bed Area ....................... 46" x 29.9"
Slide Area...................... 27.5" x 22.8"
Stroke.......................... 7.87"
Shut Height..................... 15.74"
Adjustment...................... 3.93"
Speed........................... 30 - 55 SPM
COMPLETE WITH OPERATOR CONTROL PANELS AND PULPITS, HYDRAULIC SYSTEMS
