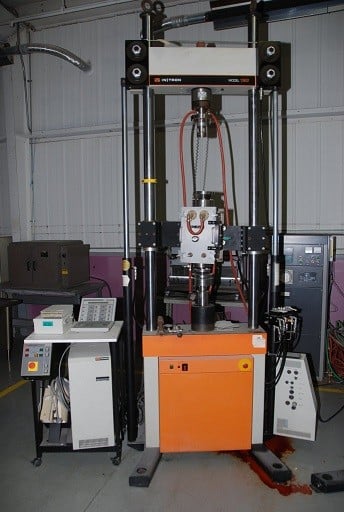

22 KIP, Instron #1362, 2-column testing system

(1) USED 22 KIP Capacity Instron, Model 1362, Two-Column Material Low Rate Electromechanical Testing System.

LOAD FRAME SPECIFICATIONS:

Model Number/Serial Number: AW 2400-1/1332-098

Capacity (KIP): 55

Number Of Columns: 2

Distance Between Columns: 26"

Test Specimen Max. Length: 60"

Table Size (W x D): 26" x 12"

Approximate Overall Dimensions (W x D x H): 48" x 42" x 124"

Weight (lbs.): 2,200

EQUIPPED WITH:

• Hydraulic Lifts and Locks
• Instron 22 KIP Electromechanical Actuator, +/-2" Stroke, Maximum Velocity 360mm/min (14in/min), Minimum Velocity 1.0 Micrometer/hour, Maximum Dynamic Performance +/- .5mm @ 1.0 Hz
• Instron 22 KIP Fatigue Rated Load Cell
• Dell OpiPlex 3010, Intel i3-3220 Processor (Dual Core, 3.3GHz) 250GB HD, 4.0GB 1600MHz Ram, Dell Quiet Key Keyboard & Dell Mouse.
• Dell, 22" Flat Screen Color Monitor or better & Manual
• HP, DeskJet Color Printer (or similar) with printer Cable & Manual.
• Microsoft Windows 7 Pro, Workstation.
• MTESTQuattro, Material Testing Software for Data Acquisition (load, position & 2 strain), Analysis and Computer Controlled Testing with Manual.
• MTESTQuattro, Micro console for sensor excitation and analog/digital signal processing with USB cable.
• Electronic Material Testing Control System in custom Cabinet/Desk with PC/Manual Controls.
• New Electronic Solid State Drive Controller
• New Actuator Up/Down Jog Pendant

FOB WARREN, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
