440 Ton, U.S. Industrial #USHB, CNC hydraulic press brake, 4' -13' overall, new, #14304-14320 (18 available)

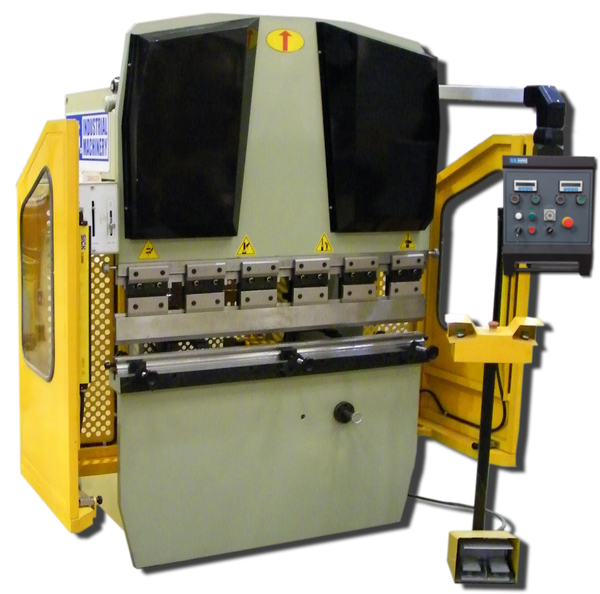

NEW 22 TON x 4" US INDUSTRIAL MODEL USHB22-4S CNC HYDRAULIC PRESS BRAKE

BASE PRICE: POR


STANDARD EQUIPMENT

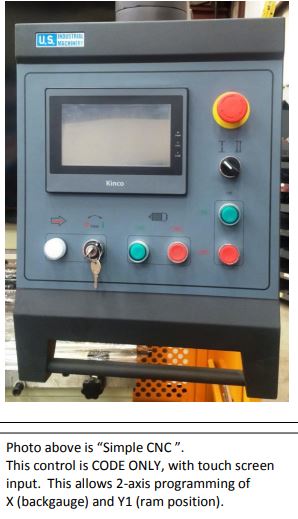

2-Axis "Simple CNC" For Backgauge & Ram Programming
Power Front Operated Back Gauge, Motorized With Fine Adjustment Hand Wheel
Power Ram Depth Control, Motorized With Fine Adjustment Hand Wheel
Digital Displays For Backgauge Position & Ram Positioning
All Steel Construction
SICK deTec2 Core Light Curtain
Ram Accepts Standard American Tang Tooling, 1/2" x 5/8"
Space Between Ram Tool Clamps Allow For Deep Box Bending
Bed Has Slot For Standard American Tang Tooling
Bed Also Has Capture Clamps For Tooling Without Tang
Free Gooseneck Punch & Multi-Opening Die For Up To 90 Forming In 10 Gauge Mild Steel


OPTIONAL EQUIPMENT
2-Axis Color Graphic CNC Back Gauge & Light Curtain Upgrade $5,995.00
Controls BOTH Bend Angle and Backgauge Position. Comes with 6 Color LCD touch screen. Codeand Graphic programming included.
Graphic allows 10 bends per program/cross-section. Controls featuresa Tool library, Metric/Inch switchable, Auto bend sequence,
Auto retract of backgauge, Spread length,Interference bend alert, Calculated bend allowance,
Programmable ram dwell and much more. Control storesthousands of programs with USB Port, Ethernet and RS232 for program backup.

On Site Training (Less Than 300 Miles From Memphis, TN) $2,995.00

On Site Training (More Than 300 Miles From Memphis, TN) $3,995.00

On Site Training (Outside Continental USA) POR

Training At US Industrial (Memphis, TN) No Charge


SPECIFICATIONS

Working Pressure	22 Tons
Overall Length Of Table	51.9"
Distance Between Housing	40.1"
Throat Depth	7.8"
Stroke Adjustment Of Ram	2.75"
Ram Travel	3.14"
Open Height	9.64"
Rapid Ram Travel Speed	2.4"/Sec
Rapid Ram Retreat Speed	2.0"/Sec
Pressing Speed	Dependent On Tool Load
Backgauge Travel	24"
Motor Horsepower	7.5 HP
Hydraulic Oil Capacity	21 Gal
Approx. Overall Weight	4400 Lbs
Approx. Dimensions	73" x 56" x 77"H

Warranty: 1 Year Parts & Labor


Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be usedfor training only. Precision tooling should be purchased to meet your specific needs. The punch is segmentedand it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NOwarranty on these items.
