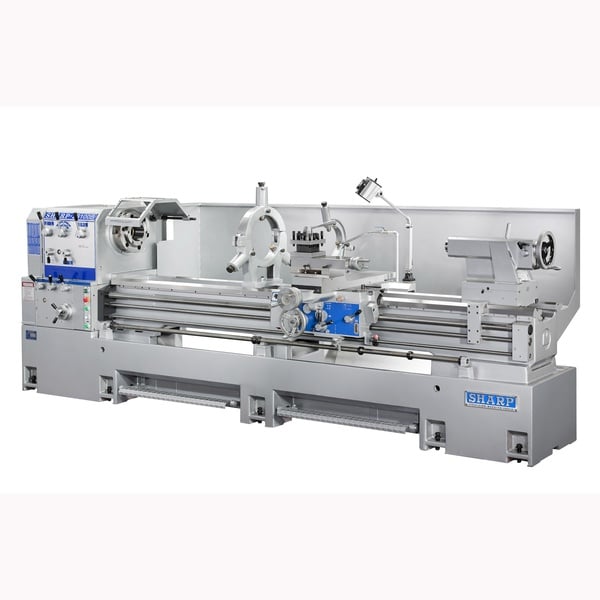

22” Swing (31” with Gap Removed) X 80” Manual Gap-Bed Engine Lathe with 4.5” D1-11 Camlock Spindle Bore, 15HP Drive Motor, 12 Speed Gear Drive (Digital Variable Speed Drive Available), Tailstock, Follower Rest, 13.2” Swing Over Cross-Slide, 4 Jaw 16” Chuck, Coolant System and Splash Guarding, Face Plate, Steady Rest, 4-Way Tool Post, Halogen Work Light and Tool Kit Included.
STANDARD EQUIPMENT:
16” 4-Jaw Chuck
Coolant System
4 Way Tool Post
20” Face Plate
Steady Rest (4”-11.5”)
4-Way Carriage Stop
Splash Guard
16” Chuck Guard
Tailstock
Follower Rest
220V or 440V Power Source (Please Specify)
Tool Kit - Including: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of Allen wrenches, Phillips Screwdriver, Flat Head Screwdriver, Oil can, Grease Gun, Rear Way Cover Bracket, Pin for Indicator and Can of Paint
FEATURES:
- D1-11 Camlock
- 4.5” Spindle Bore
- Direct Selection For Inch/Metric Threads
- One Piece Cast Meehanite Bed
- Quick Change Gearbox
- 15 HP Motor
- 12-Speed Gear Head (10-1,000 RPM)
SPECIFICATIONS:
Swing Over Bed: 22”
Swing Over Cross Slide: 13.2”
Center Height: 11”
Swing Over Gap: 31”
Distance Between Centers: 80”
Headstock
- Spindle Nose Type D1-11 Camlock
- Spindle Bore 4.5”
- Spindle Speeds (12 Speed) 10-1,000 RPM
- Taper of Spindle Bore MT#7
- Taper of Center MT#5
- Threads and Feeds
- Longitudinal Feeds – in/rev (18) 0.002 - 0.032”
- Cross Feeds – in /rev: 0.0001 –0.0094”
- Inch Threads (#): 2-56 tpi
- Metric and Module Threads: 0.5-14mm
- D.P. Threads (36): 4-56 mm
- Leadscrew Pitch, Diameter: 4 tpi, 1-1/2”
Carriage
- Cross Slide Travel: 14.75”
- Compound Rest Travel: 8”
- Compound Width: 6”
Bed
- Bed Length: 103.5”
- Bed Width: 15-3/4”
Tailstock
- Quill Travel (graduated): 6-1/2”
- Quill Diameter: 3.0”
- Quill Taper: MT#5
GENERAL
Spindle Motor (220V or 440V, 60, 3) 15 HP
Net Weight (approx.) 6,380 LBS
Dimensions ( L X W X H) 136.6” X 40.5” X 49.6”
Standard Color Gray
Electrical:
Voltage: 230V & 460V
Phase: 3 phase
Total Power Consumptions
230V: 16KVA/45 amps
460V: 16KVA/22.5 amps
***All Price, Location and Specifications Subject to Change without Notice***
MANY OPTIONS AVAILABLE TO CUSTOMIZE YOUR MACHINE - CALL FOR COMPLETE QUOTATION LISTING ALL AVAILABLE OPTIONS.
