For Sale by Liberty Machinery Co
Surplus Record Dealer Since 1996
Location: Lincolnshire, IL
Contact Peter Sonneborn
Phone Number: 847...> Show Phone Number 847-276-2761
Let the seller know you found their listing on Surplus Record!

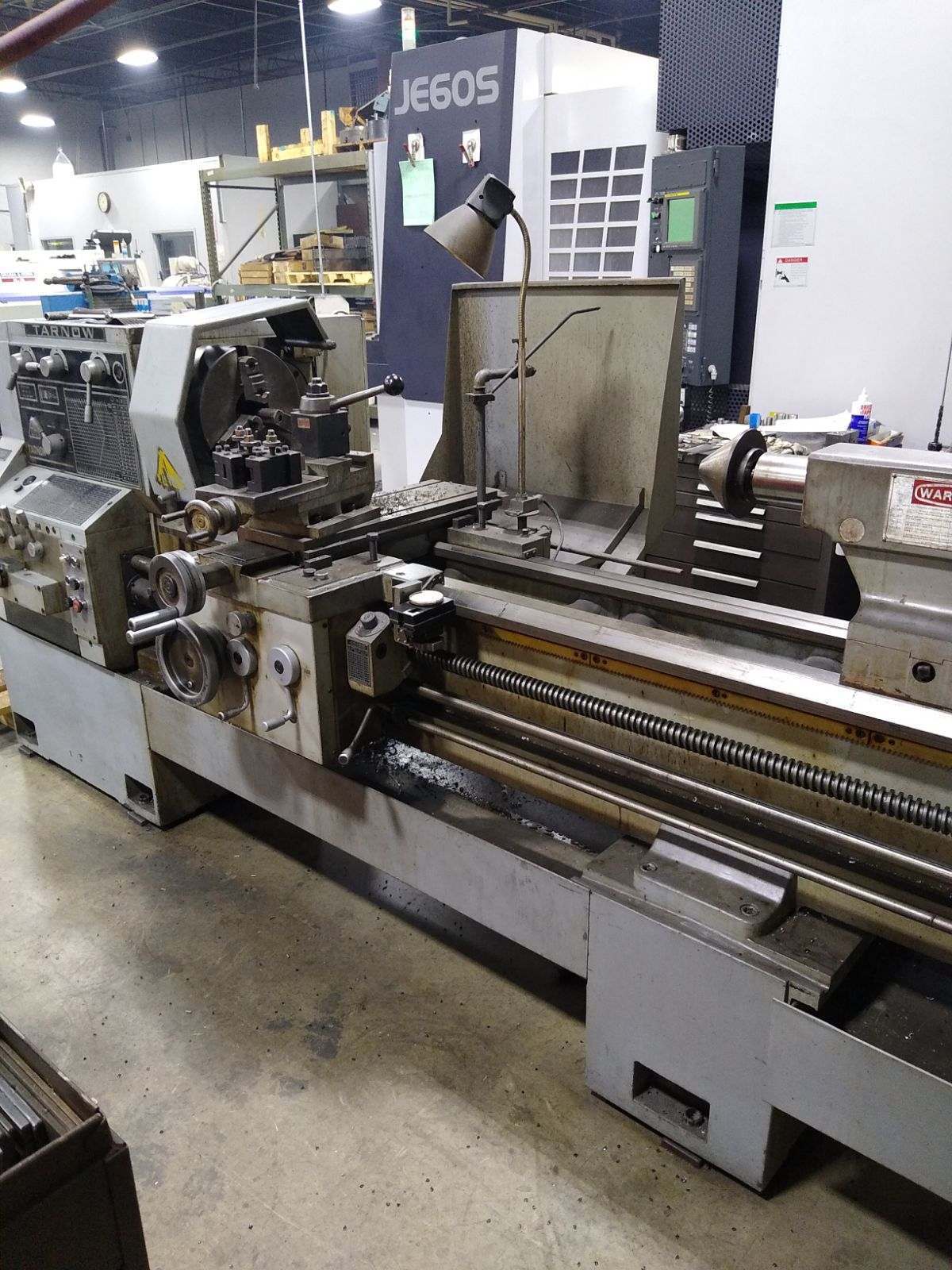

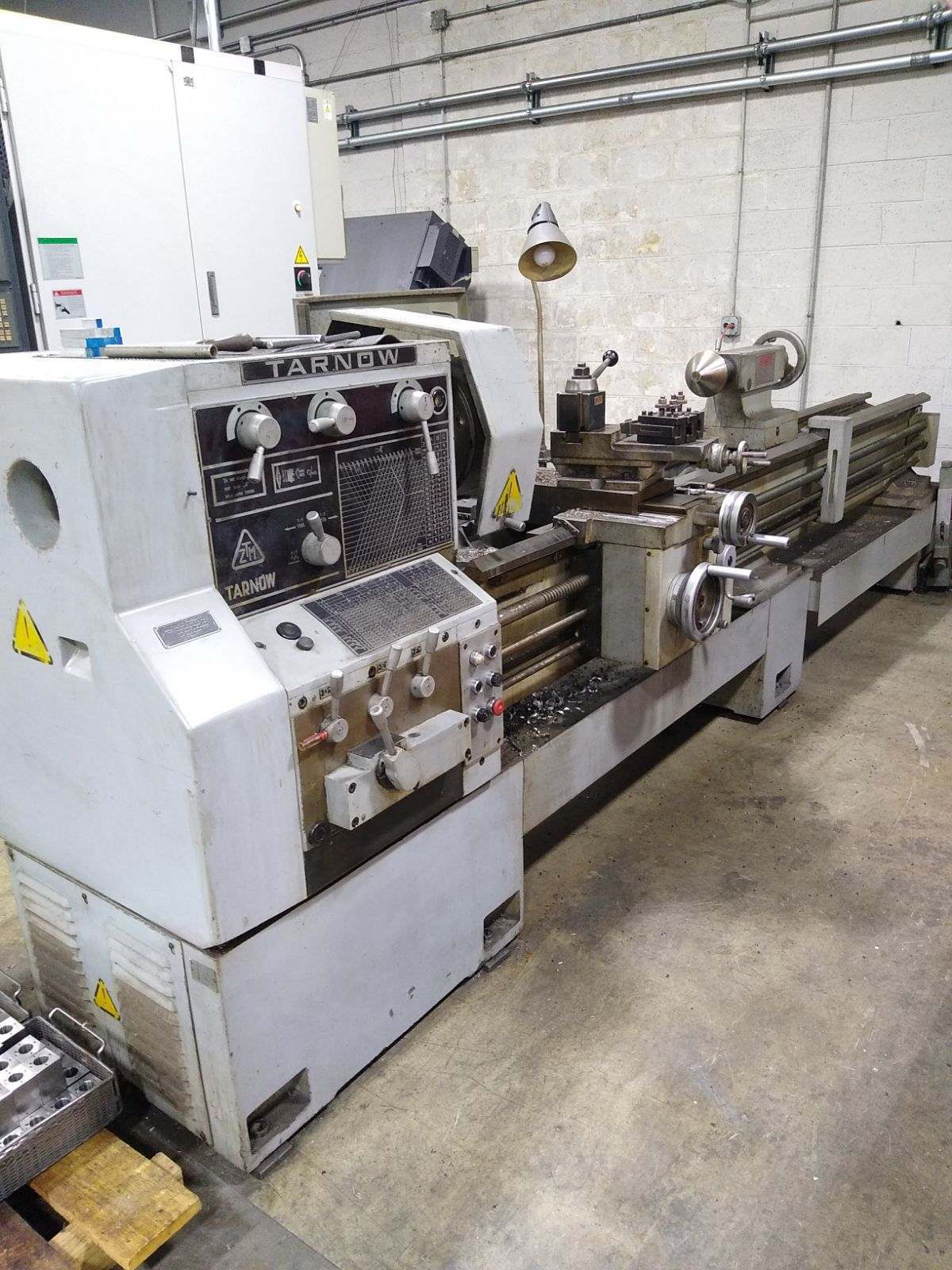

Description
SPECIFICATIONS:
Capacity:
- Swing over bed............22"
- Swing in removable gap..............31-1/2"
- Swing over carriage............14-1/2"
- Available distance between centers............120"
Headstock:
- 18 spindle speeds............20-1,600 RPM
- Main drive motor - 7 belt drive............15 HP
- Spindle bore............3-1/2" (D1-11 camlock)
- Headstock length bearing on bed..............27"
- Width of headstock (depth)............23"
Carriage & Apron:
- Cross slide travel............13"
- Top slide travel............8"
- 98 feeds - longitudinal range............0.0007-0.72 IPR
- 98 feeds - cross range............0.0004-0.36 IPR
- 60 metric threads - range............0.5-112mm/rev.
- 70 inch threads - range............1/4-56 TPI
Tailstock:
- Quill diameter............3-1/8" (MT5)
- Quill travel............5"
EQUIPPED WITH:
Inch/metric threading
12" 3-Jaw chuck
Compound cross slide
Tool post
Steady rest
Splash guard
* Preliminary Specifications Subject to Verification
Capacity:
- Swing over bed............22"
- Swing in removable gap..............31-1/2"
- Swing over carriage............14-1/2"
- Available distance between centers............120"
Headstock:
- 18 spindle speeds............20-1,600 RPM
- Main drive motor - 7 belt drive............15 HP
- Spindle bore............3-1/2" (D1-11 camlock)
- Headstock length bearing on bed..............27"
- Width of headstock (depth)............23"
Carriage & Apron:
- Cross slide travel............13"
- Top slide travel............8"
- 98 feeds - longitudinal range............0.0007-0.72 IPR
- 98 feeds - cross range............0.0004-0.36 IPR
- 60 metric threads - range............0.5-112mm/rev.
- 70 inch threads - range............1/4-56 TPI
Tailstock:
- Quill diameter............3-1/8" (MT5)
- Quill travel............5"
EQUIPPED WITH:
Inch/metric threading
12" 3-Jaw chuck
Compound cross slide
Tool post
Steady rest
Splash guard
* Preliminary Specifications Subject to Verification
