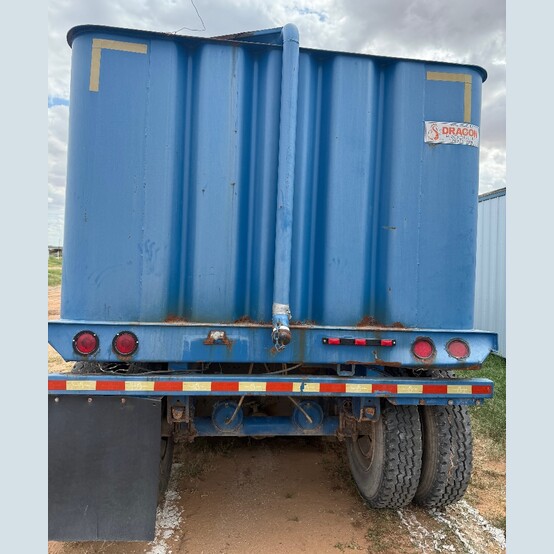

21,000 Gallon Dragon #Model 500, Portable Frac Tanks, Closed Top, Single Axle, 500 BBL, 2007-2013 (3 available), N

21,000 Gallon Dragon Portable Frac Tanks

Quantity: (3) Units Available

• Capacity: 500 Barrel / 21,000 Gallon / 80,000 Liters

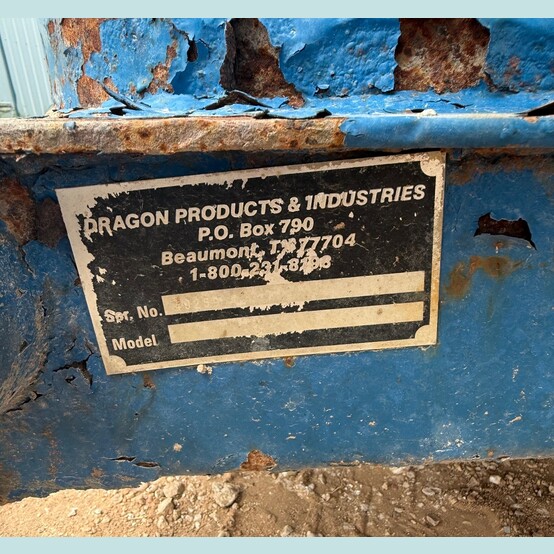

• Make: Dragon Tanks
• Model: Model 500
• Type: Frac Tanks
• Manufacture Date: 2007-2013
• Condition: Used Condition
• Open/Closed Top: Closed

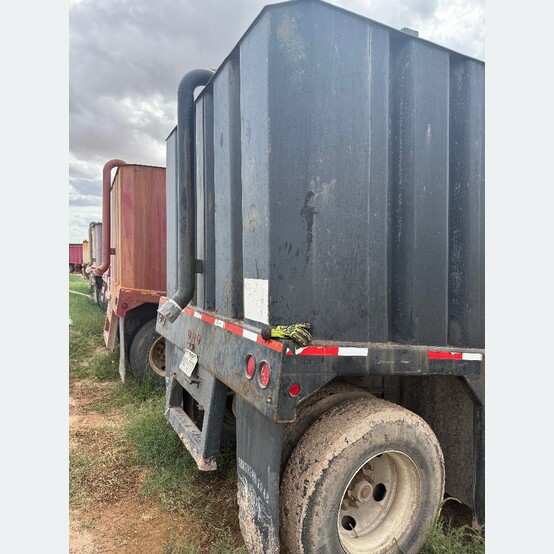

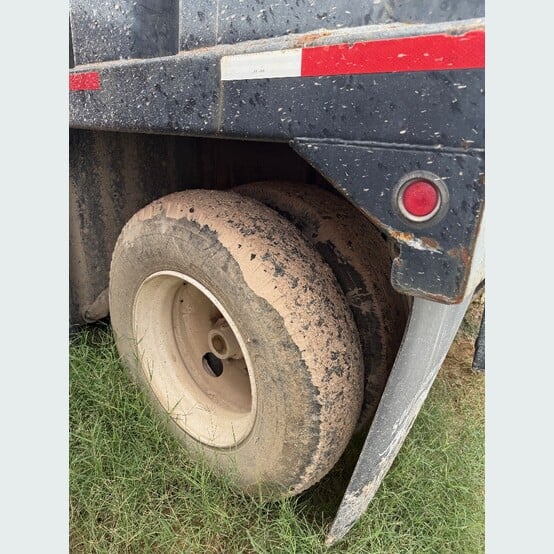

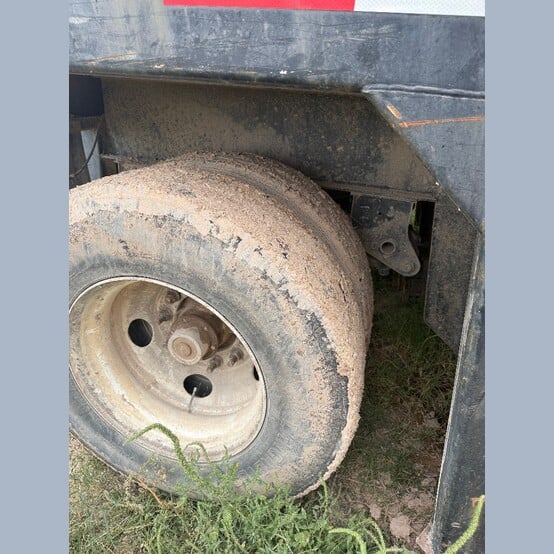

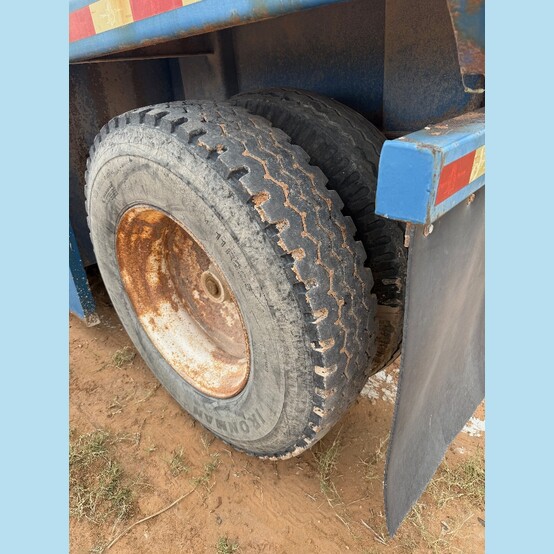

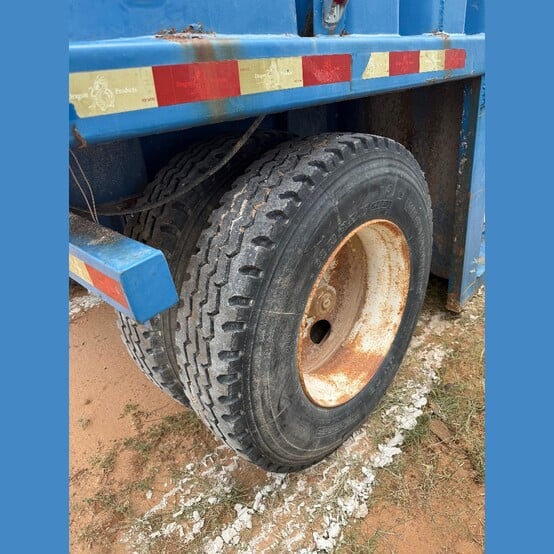

• Portable - Trailer Style: Single Axle

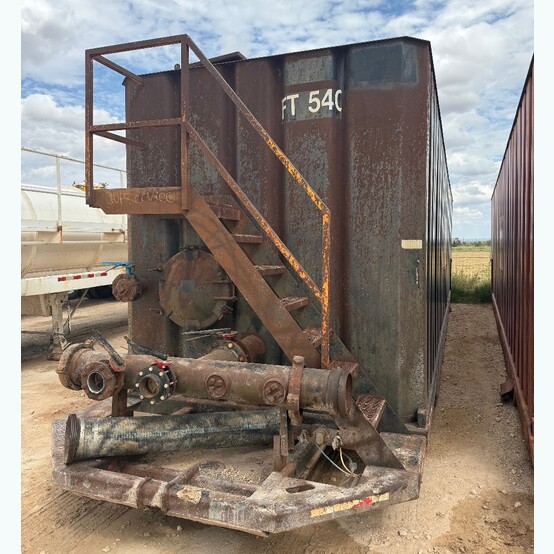

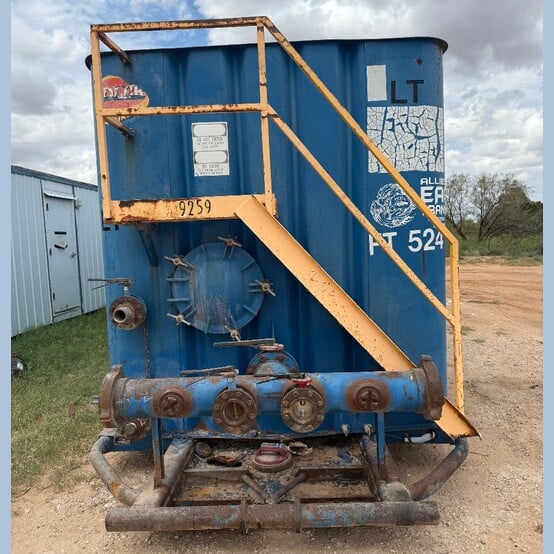

• Stairs and Platform at Front of Tank

• General Model Specs:
  • 1/4 Inch Heavy-Duty Corrugated Steel Construction
  • Steel Shot Blasted
  • Most Durable Paint and Lining in the Industry
  • 20mil DFT Chemical Resistant Liners
  • Walls: 1/4 PL Solid Welded, Corrugated Steel, Corrugations 15in on Center
  • Roof: Flat Top, 1/4 PL Solid Welded with Channel Supports Outside
  • Floor: Structure Undercoated, 1/4 PL, V-Bottom with Integral Formed Side Channels
  • Floor Support: 10in Channel Longitudinal Runners with Formed 1/4 PL Cross-Members
  • Front/Rear: 1/4 PL Solid Welded, Corrugated Steel, 10in Radius at Vertical Outside Corners
  • Drain/Fill:
    • 4in Floor Drain at Rear End
    • 3in Fill Pipe to Roof at Rear
    • 4in Suction Line Connection at Front

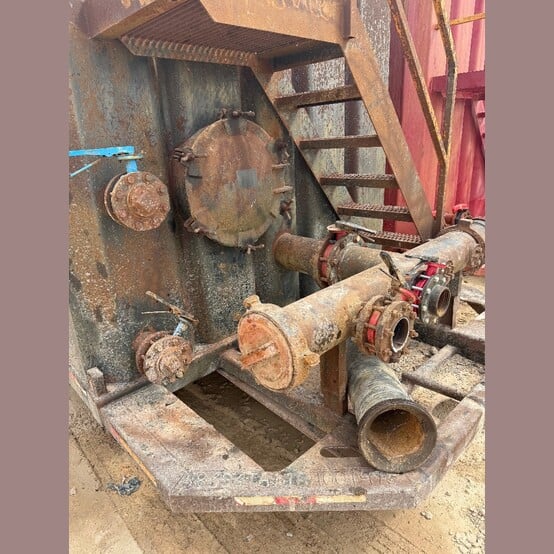

    • 8in Flanged Front Manifold Connection with Turn Down to Floor
    • 8in Exterior Manifold with (4) 4in Couplings and Plugs, Hammer Union Sub, Nut, and Caps on End
  • Gel Line: 4in Mid High Connection on Curb Side, 4in Internal Pipe with 0.75in Holes Located on 12in Centers Towards Floor Center, Capped on Rear End (End Near Side Manway)
  • Manway: 21in Manway on Front and Side, (2) Non-Sealed Hatches on Roof
  • Pick Up: Standard 5th-Wheel King Pin
  • Welds: All Welds Continuous Except Substructure Crossmembers

• Location: South Central USA
