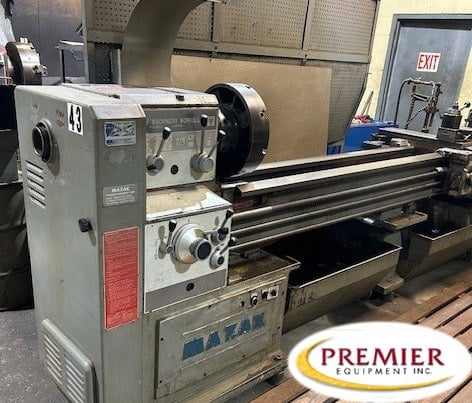

21" x 80" Mazak, manual engine lathe, 11-51/64" swing over cross slide, fine & coarse feed settihngs, in/mm/diametric & module threading

Mazak 21 x 80 Manual Engine lathe

SPECIFICATIONS:
SWING OVER BED WAYS …………….. 21″
SWING IN REMOVABLE GAP ………….. 27-31/32″
SWING OVER CROSS SLIDE ………….. 11-51/64″
DISTANCE BETWEEN CENTERS ………… 80″
HOLE THRU SPINDLE ………………. 3-1/8″
SPINDLE NOSE …………………… D1-8″ CAMLOCK
WIDTH OF BED …………………… 16-17/32″
SPINDLE SPEED RANGE (16) ………… 15 – 1500 RPM
LONGITUDINAL FEED RANGE (80) …….. .0022″ – .040″ IPR
CROSS FEED RANGE HALF OF LONGITUDINAL SETTING
INCH THREADING RANGE (40) ……….. 4 – 56 TPI
METRIC THREADING RANGE (23) ……… .5 – 7 mm
TAILSTOCK SPINDLE TRAVEL ………… 7-7/8″
TAILSTOCK SPINDLE TAPER …………. #5MT
APPROXIMATE FLOOR SPACE …………. 133″L x 49″W
APPROXIMATE WEIGHT ……………… 6,000 LBS

EQUIPPED WITH:
INCH, METRIC, DIAMETRIC & MODULE THREADING
FINE & COARSE FEED SETTINGS
Tool Post
Tailstock
