2026 Conveyor Engineering & Manufacturing 9" x 36' Screw Conveyor

Condition: New / Never Installed | Factory Tested
Equipment Location: Somerset, Wisconsin
Asking Price: $31,600
Availability: Available Immediately

Manufacturer: Conveyor Engineering & Manufacturing Co.
Equipment Type: Enclosed Screw / Auger Conveyor
Year: 2026
Nominal Screw Diameter: 9"
Conveyor Length: 36'
Approx. Overall Length Including Motor & Gearbox: 39.6'
Construction: Carbon Steel
Trough Material: 3/16" AR400
Screw Flight Material: 3/16" AR400
Screw Direction: Right Hand
Screw Pitch: 4-1/2"
Screw Pipe: 5" Schedule 40
Shaft Size: 2-7/16"
Covers: Sealed and Gasketed Removable Covers
Approx. Shipping Weight: 3,000 lb
Current Transport Configuration: Approx. 20' Sections

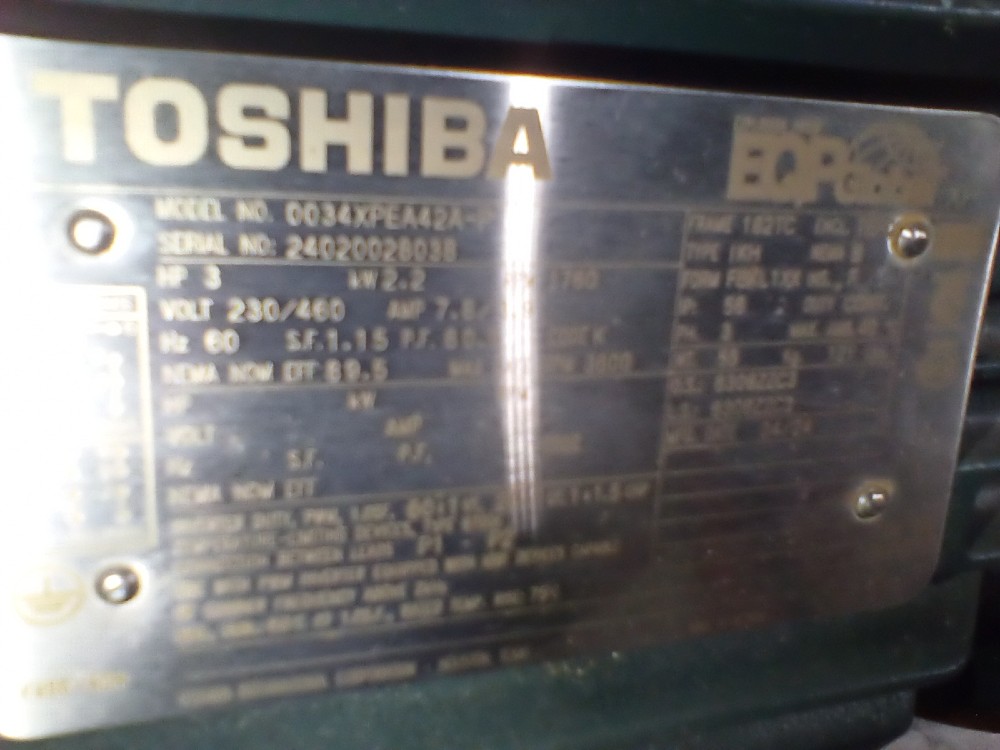

Motor Manufacturer: Toshiba
Motor Series: EQP Global XP
Motor Model: 0034XPEA42A-P
Motor Type: Explosion Proof / TEFC
Motor Horsepower: 3 HP
Motor Voltage: 230/460 V
Motor Phase: 3 Phase
Frequency: 60 Hz
Motor Speed: Approx. 1760 RPM Full Load
Motor Frame: 182TC
Motor Amps: 8.0 / 4.0 A
Insulation Class: F

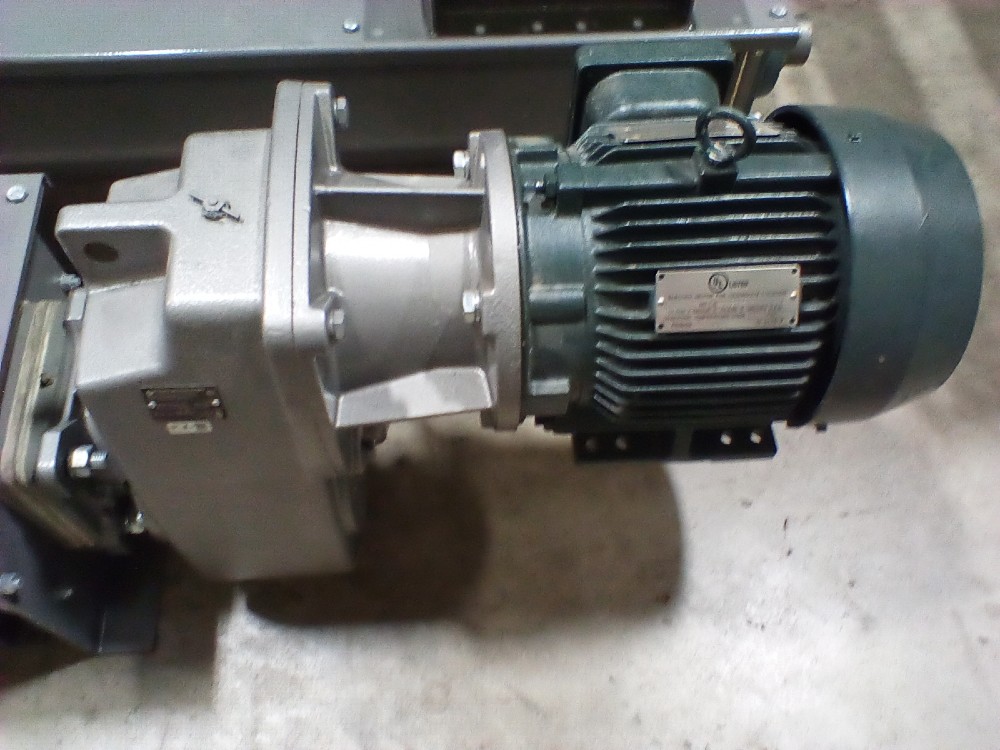

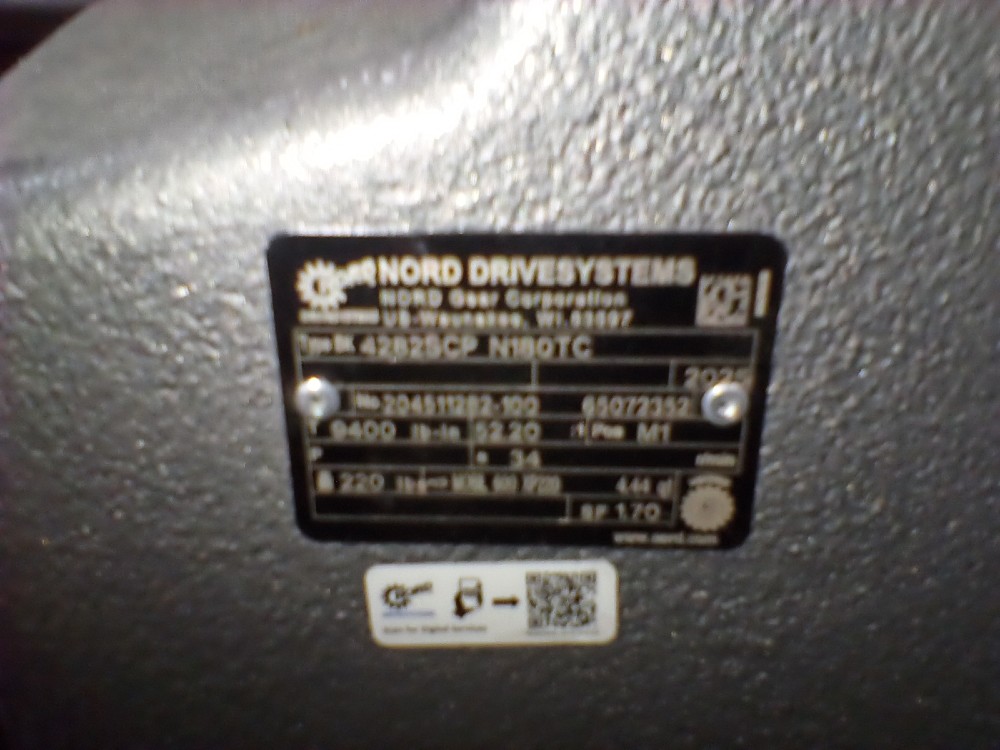

Gear Reducer Manufacturer: NORD Drivesystems
Gear Reducer Model: SK 4282SCP-180TC
Drive Output Speed: 34 RPM
Drive Location: Discharge End

Original Design Capacity: Approx. 1,200 lb/hr
Original Design Material: 28 lb/ft³ Fiberglass
Original Design Incline: 22 Degrees
Original Design Trough Loading: Approx. 30% Under Inlet

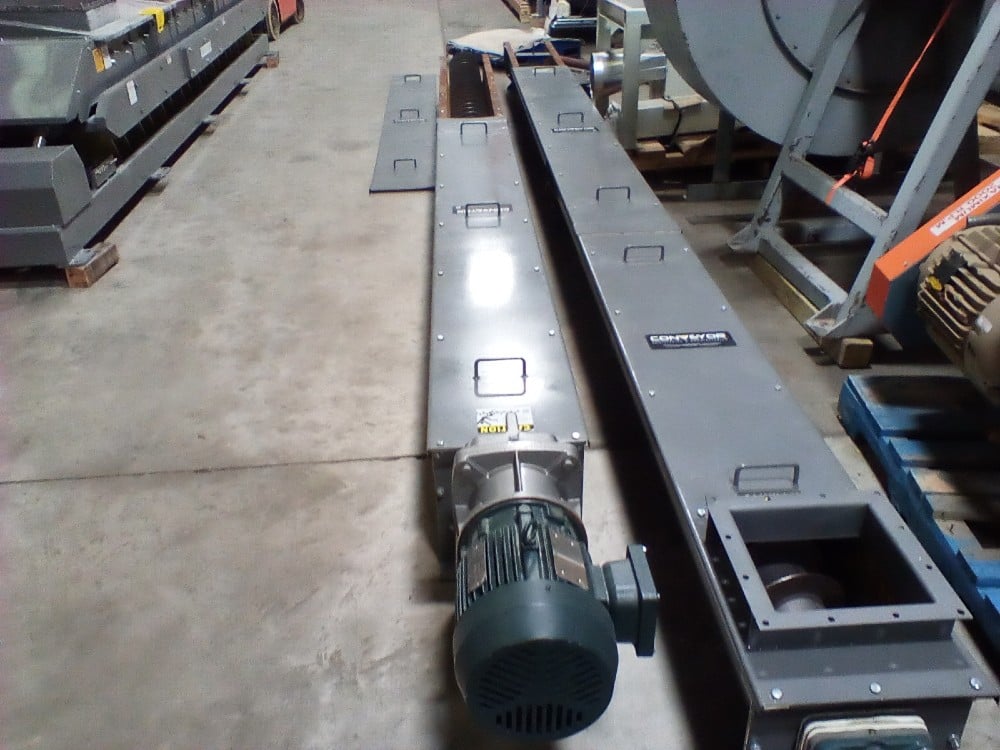

New, never-installed Conveyor Engineering & Manufacturing enclosed screw conveyor. The unit was assembled and tested for operation at the factory but has never been installed or placed into production service.

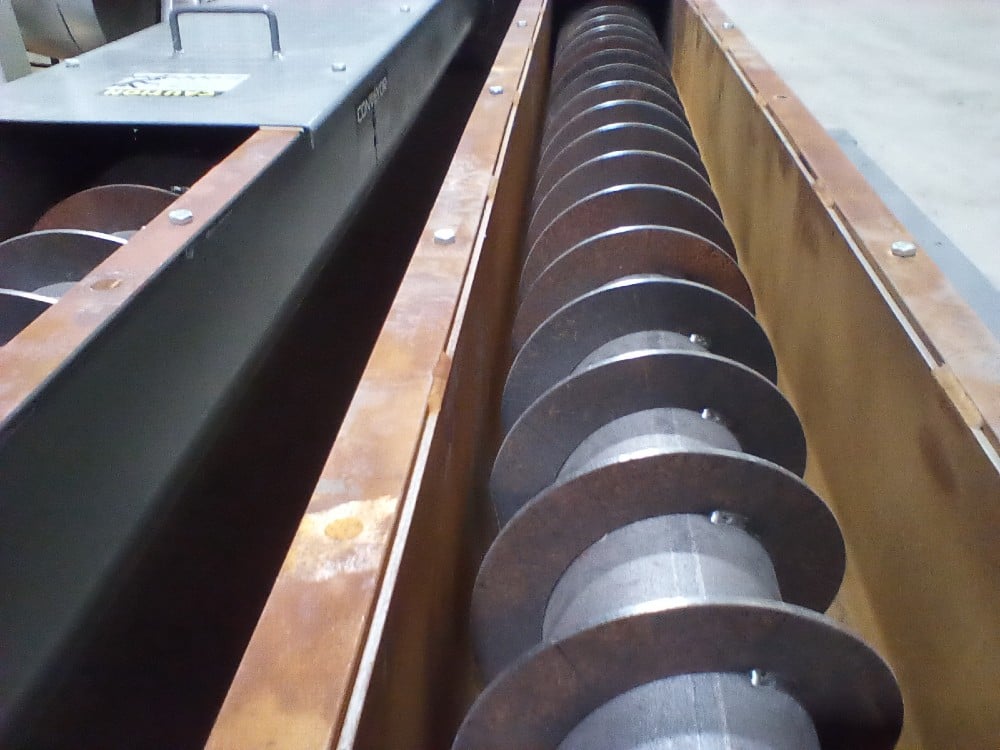

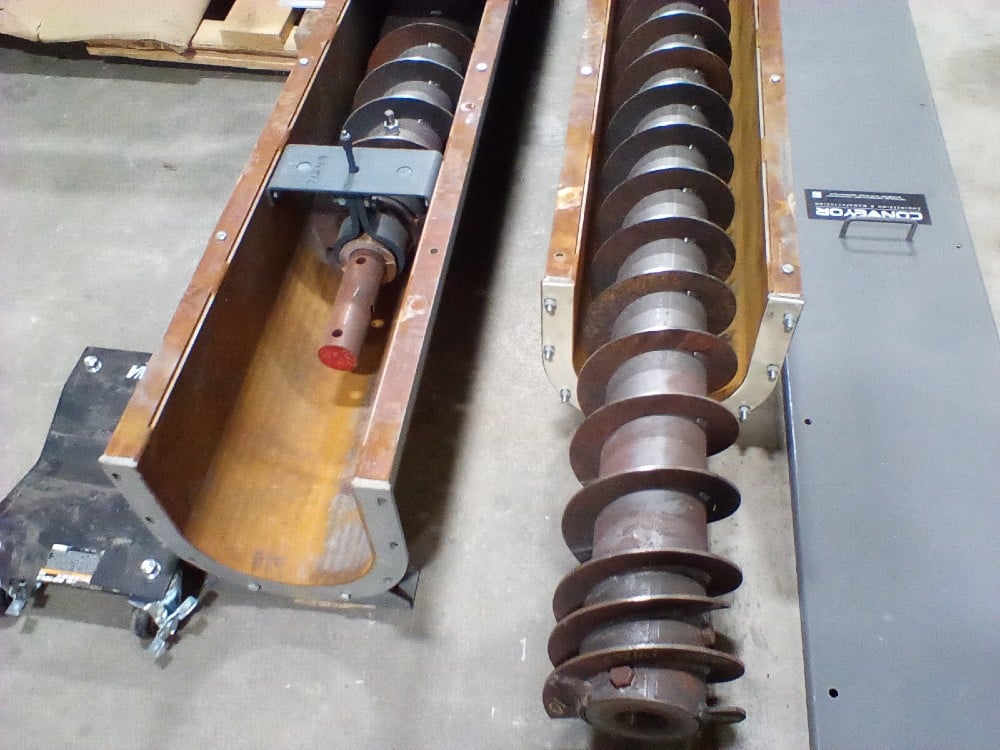

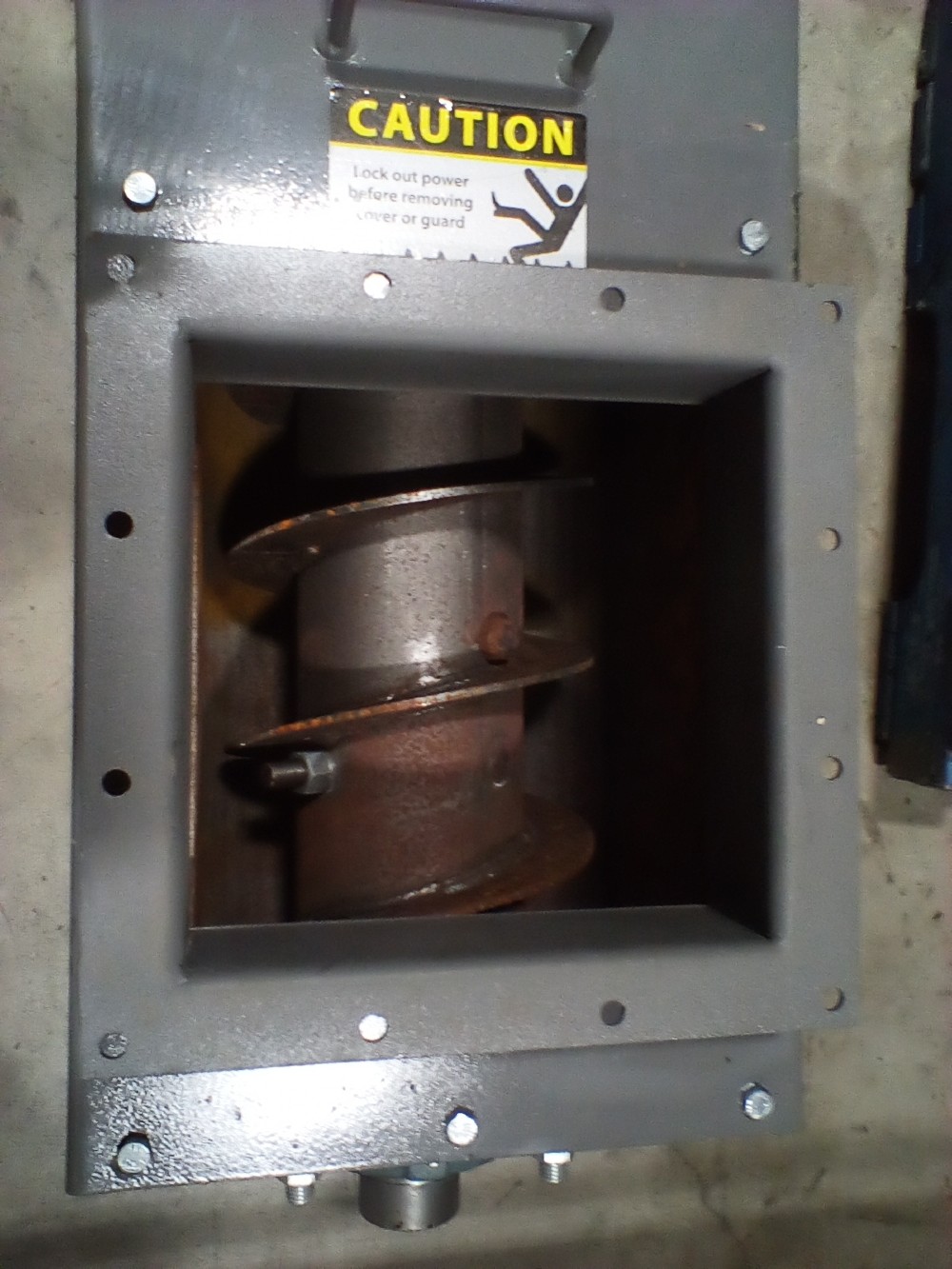

Heavy-duty construction includes 3/16" AR400 U-trough sections and 3/16" AR400 sectional screw flights. The right-hand screw uses a 4-1/2" pitch, 5" Schedule 40 center pipe and 2-7/16" shafting.

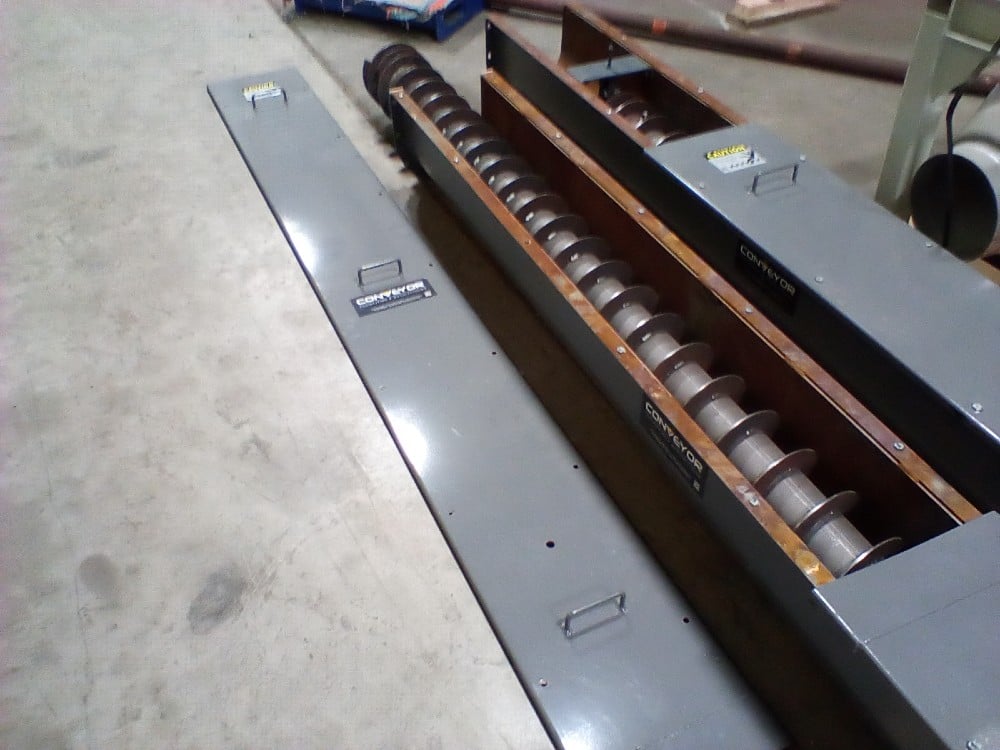

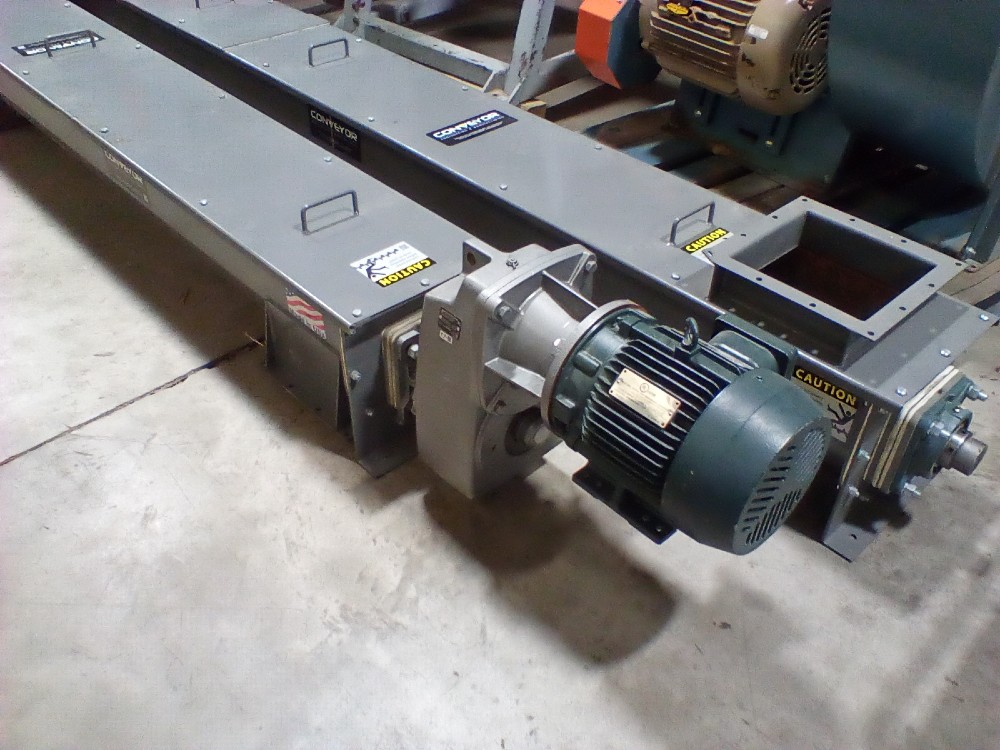

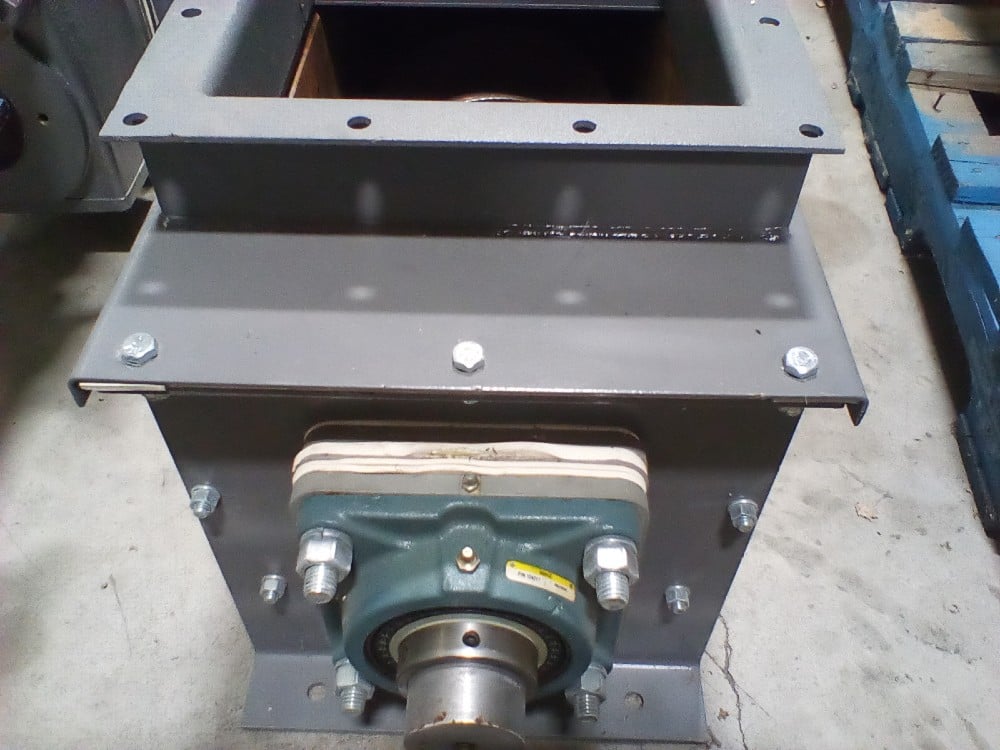

The conveyor includes sealed and gasketed removable covers, mounted inlet and discharge, intermediate hanger and bearing, Dodge end bearing, Guardian grease-purged shaft seals, NORD screw conveyor gear reducer and 3 HP Toshiba explosion-proof motor.

The original manufacturer design basis was approximately 1,200 lb/hr of 28 lb/ft³ fiberglass at a 22 degree incline. This capacity is specific to the original engineered application and should not be considered a universal throughput rating. Actual capacity with another material will depend on bulk density, particle size, flow characteristics, abrasiveness, moisture, incline, fill level and other operating conditions.

Condition Details: Never installed or placed into production service. Factory assembled and tested for operation. No cosmetic damage has been reported. Light surface flash rust is present on portions of the screw and trough from storage humidity.

Electrical VFD / Drive: Not Included
Starter / Electrical Controls: Not Included
Used Drives and Starters: May Be Available Separately

Current Shipping Configuration: Approximately 20' transport sections
Approx. Shipping Weight: 3,000 lb
Loading / Freight Assistance: Contact Kinsman Separation Service

Original Conveyor Engineering & Manufacturing build documentation is available for review.

Additional equipment testing can be arranged upon request or as part of a pending sale.

Kinsman Separation Service can also help evaluate material compatibility and process requirements for potential applications.
