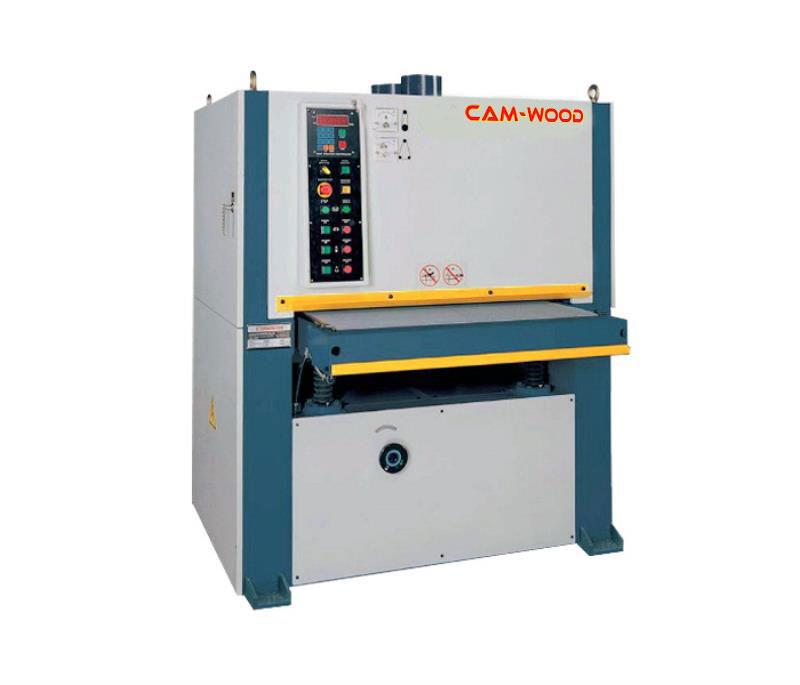

37" x 60" Cam-wood WS-DA3760X, wide belt sander 2-heads, 5" thickness, 4 heavy-duty jackscrews power conveyor table elevation, 2026, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

CAM-WOOD WS-DA3760 Wide Belt Sander, (2) HeadsWith the two-head wide belt sander, you can accurately, and heavily sand your stock with the first drum head, and with the second combination head, you can give an unlimited fine finish.Application: -- Rugged heavy-duty sheet metal construction designed for durability usage. -- Powerful industrial motors drive sanding and auto infeed smoothly. -- Infeed and outfeed have spring-loaded hold-down rollers to ensure positive feeding without sanding marks. -- Combination platen & drum sanding head for best sanding choice such as: --With the platen up, the sander functions as a drum-only machine, for sanding with a 40 ~ 100 grit belt. -- With the platen and drum same level, intermediate and final finishing is possible, using a grit of 120 ~ 180. -- With the platen down (below the drum), used for the fine finishing or lacquer sealer sanding, with 180 ~ 600 grit.Head Configuration:1st Head : 20 HP Drum2nd Head : 15 HP Combination HeadSpecifications: -- Max. Working Width 37" Max. -- Working Thickness 5". -- Min Working Length 12½". -- Sanding Belt Dimensions (W x L) 37" x 60". -- Dust Collection Hood (Dia x Holes) 6" x 2. -- Main Motors 20 and 15 HP. -- Conveyor bed Feed Motor 2 HP. --Table Raising / Lowering Motor 1/2 HP -- Variable Feed Speed 20 - 80 FPM. -- Working Air Pressure 6 CFM. -- Exhaust Volume Require 2,400 CFM. -- N.W. weight 5,100 Lbs.Equipped with and Features: -- Sanding platen with a quick release and lock down design for easy removal or loading of graphite platen. -- Computerized thickness adjustment control with accurate digital readout; key in the size desired and automatic table movement for sanding thickness within 0.005"; accuracy -- Large size diameter contact drum is dynamically balanced, rubber-covered spiral grooves designed to provide considerable advantages for the effective removal of material. -- Special rubber feed belt for safe non-slipping, transporting the workpieces. -- The abrasive belts are tracked by oscillating cylinders linked to the upper roller. The edge of the belt is detected by an electric eye sensor, which in turn controls the air supply to the position via solenoid value. Also, one limit switch is located on each end of the top roller of the sandpaper for quick stop in case of belt breakage. -- The main table is designed with the convenient leveling adjustment which ensures greater stability with excellent tolerance providing a variable from 0"; ~ 5"; range sanding thickness. -- (4) Heavy-duty jackscrews power conveyor table elevation.
