Name: Satec Instron #200HVL, 200k (1000kN) Tensile Tester, 20" tension testing opening, 22" x 24" table, 6" testing stroke, 230 Volts, 3PH
Brand: Satec
Availability: InStock

Manufacturer: Satec

Model: 200HVL

Stock # Satec-200K-HVL-(HG)

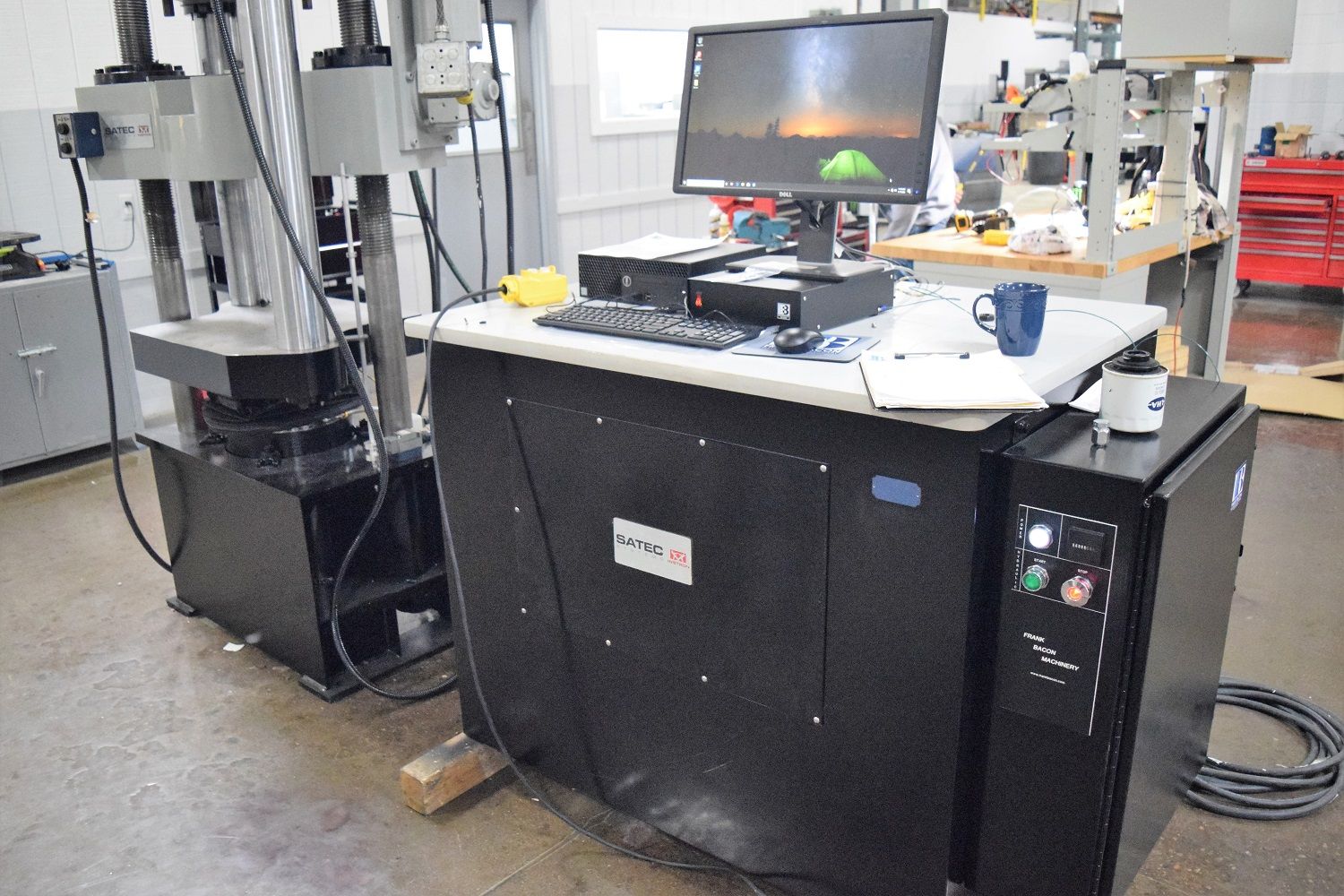

Satec Instron #200HVL, 200k (1000kN) Tensile Tester, 20" tension testing opening, 22" x 24" table, 6" testing - Image 1

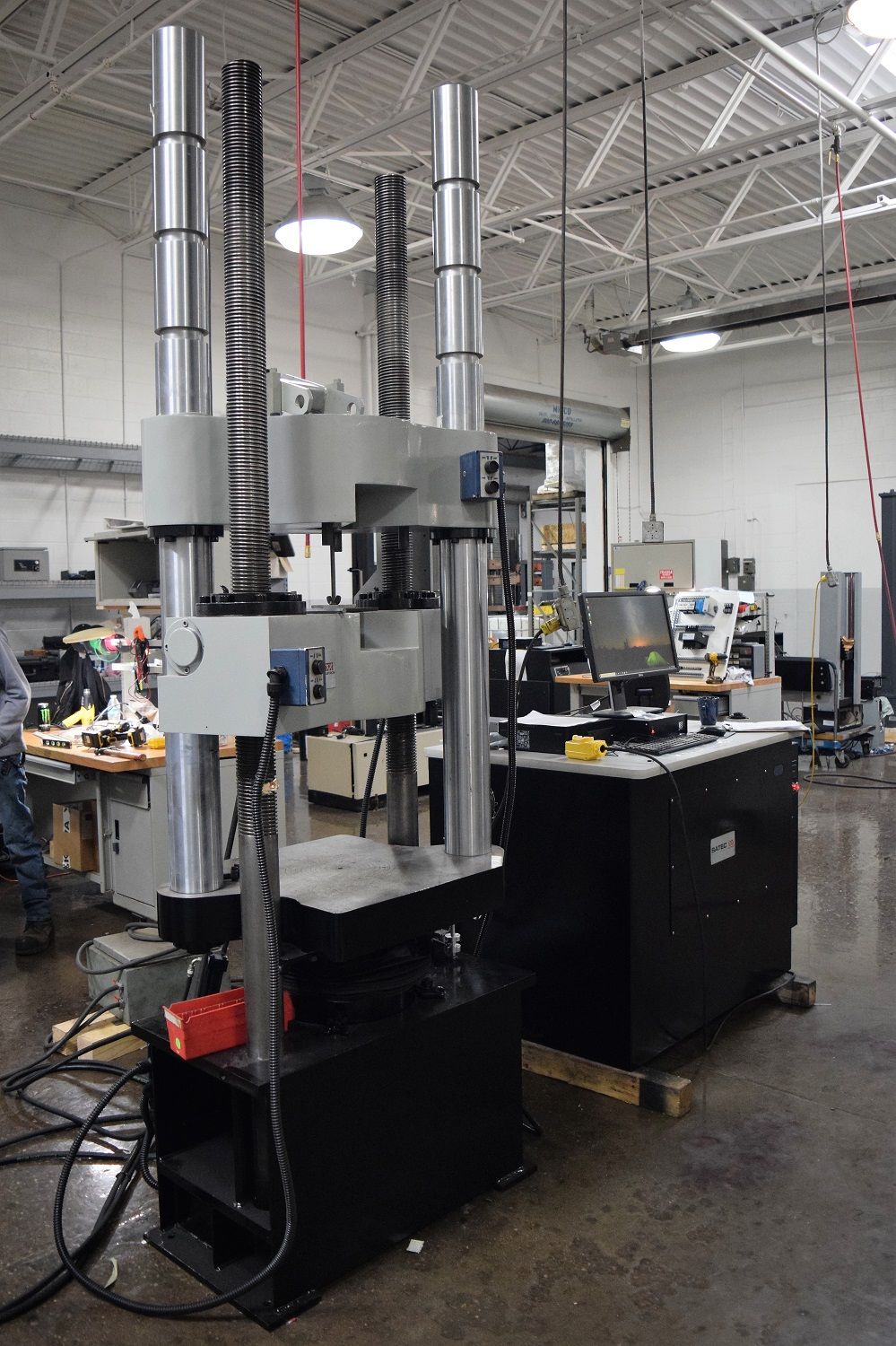

Satec Instron #200HVL, 200k (1000kN) Tensile Tester, 20" tension testing opening, 22" x 24" table, 6" testing - Image 2

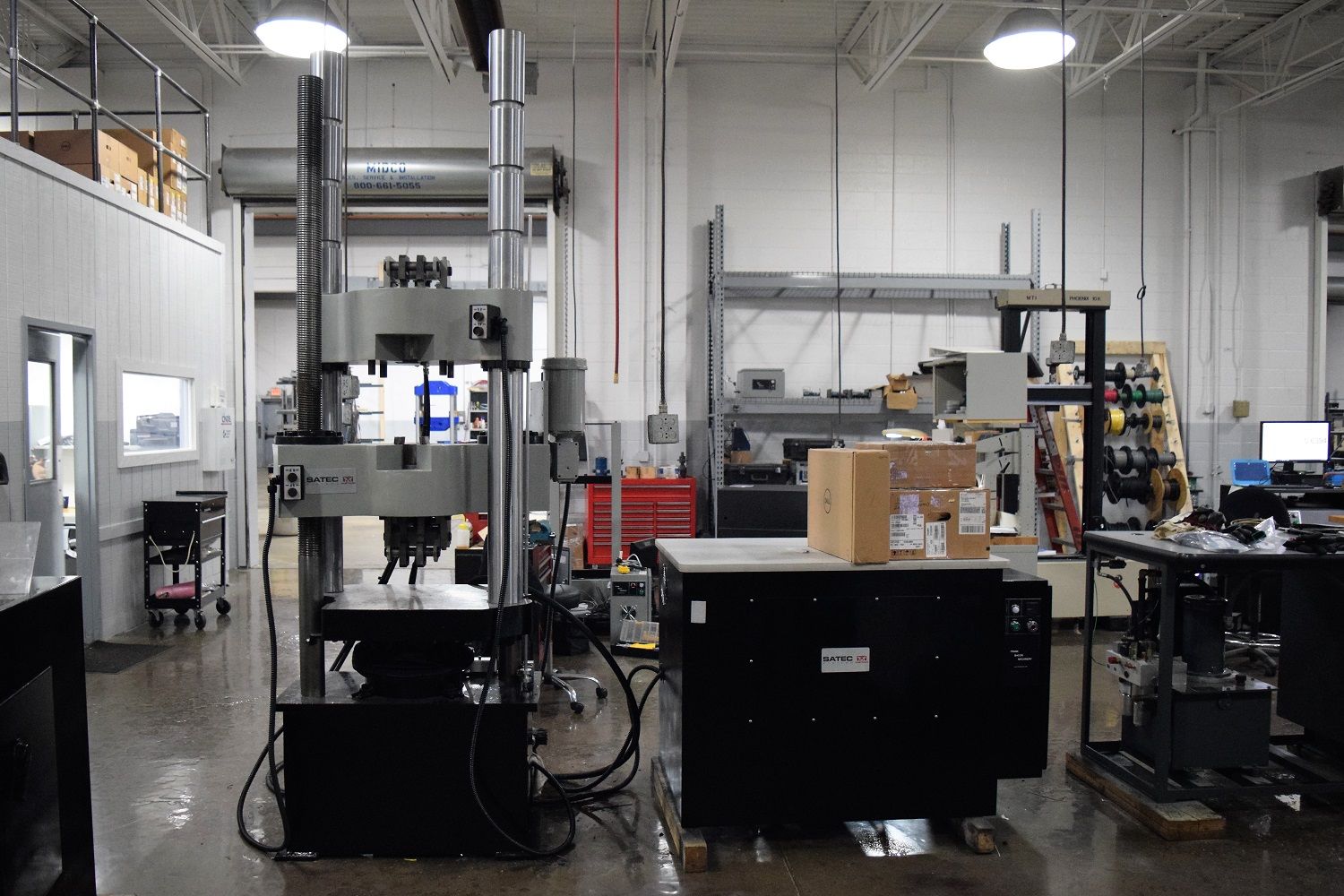

Satec Instron #200HVL, 200k (1000kN) Tensile Tester, 20" tension testing opening, 22" x 24" table, 6" testing - Image 3

3

For Sale by Frank Bacon Machinery Sales

Surplus Record Dealer Since 1956

Warren, MI

Sales Team

586-75...> Show Seller's Phone Number 586-756-4280 Let the seller know you found their listing on Surplus Record!

View More Frank Bacon Machinery Sales ' Listings

Description

200K (1000kN) Satec Instron Model 200HVL

Satec Model HVL

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 20"

Compression Testing Opening (Less Tooling): 20"

Distance Between Columns/Screws: 22"

Testing Stroke: 6"

Table Size (W x D): 22" x 24"

Testing Speed (IPM): 0 – 3

Approximate Overall Dimensions:

Servo Console (W x D x H): 45" x 30" x 40"

Load Frame (W x D x H): 38" x 28" x 93"

Weight (lbs.): 7,500

Electrical Requirements (V,Hz,PH): 230, 60, 3

EQUIPPED WITH:

Computer System with Keyboard & Mouse
24" LED-Backlit LCD Color Monitor
Microsoft Windows 11 Professional, Workstation
MTGenius, Material Testing Software for Data Acquisition (Load, Position, 2 Strain & Aux), Analysis and Computer Controlled Testing with Manual.
MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB Cable.
Celesco, High Resolution TTL compatible incremental quadrature Encoder for position and testing speed values with signal cable and mounting hardware.
Reconditioned Satec Servo Pump for Closed Loop Computer Controlled Testing
Hydraulic Gripping System

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty

Representative Images After Reconditioning

| Satec 200K HVL (HG)
