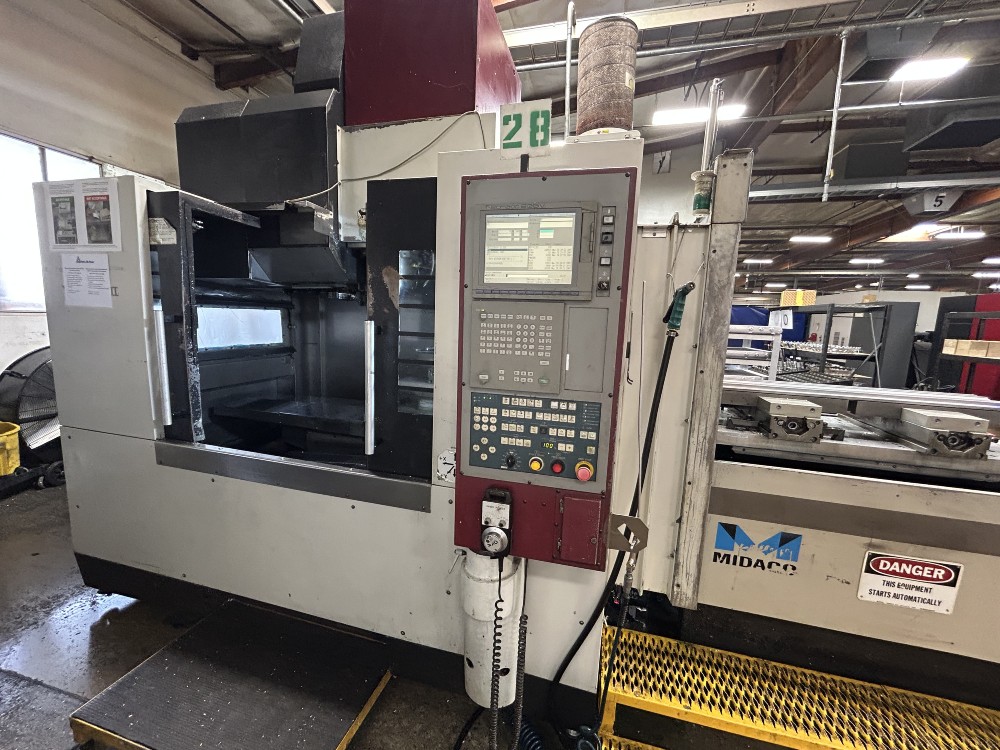

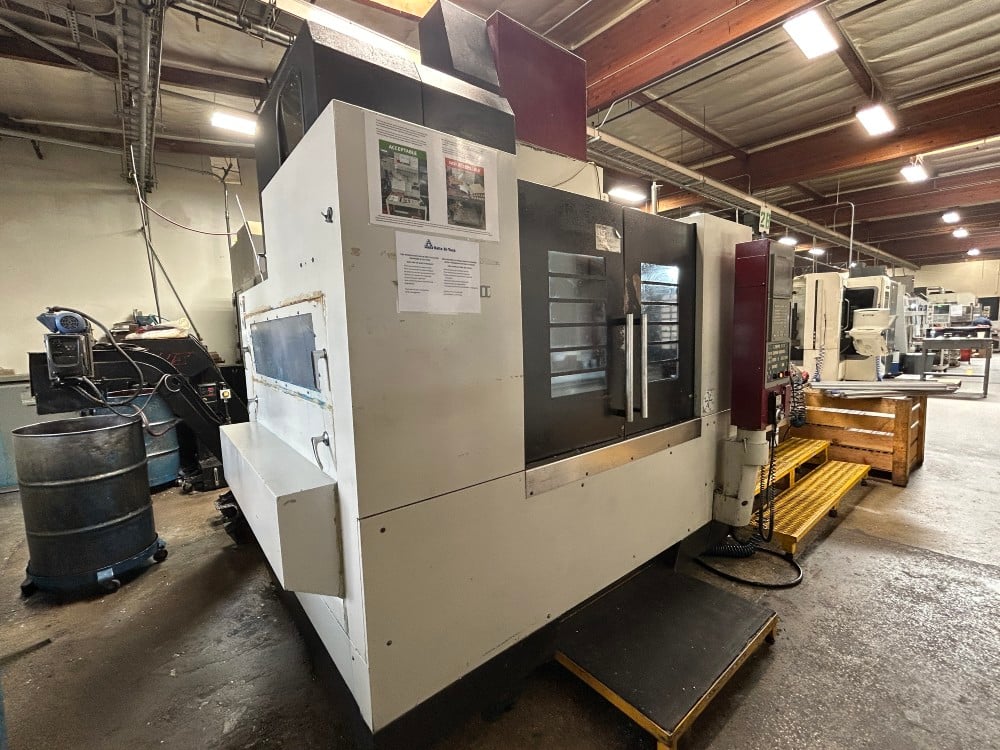

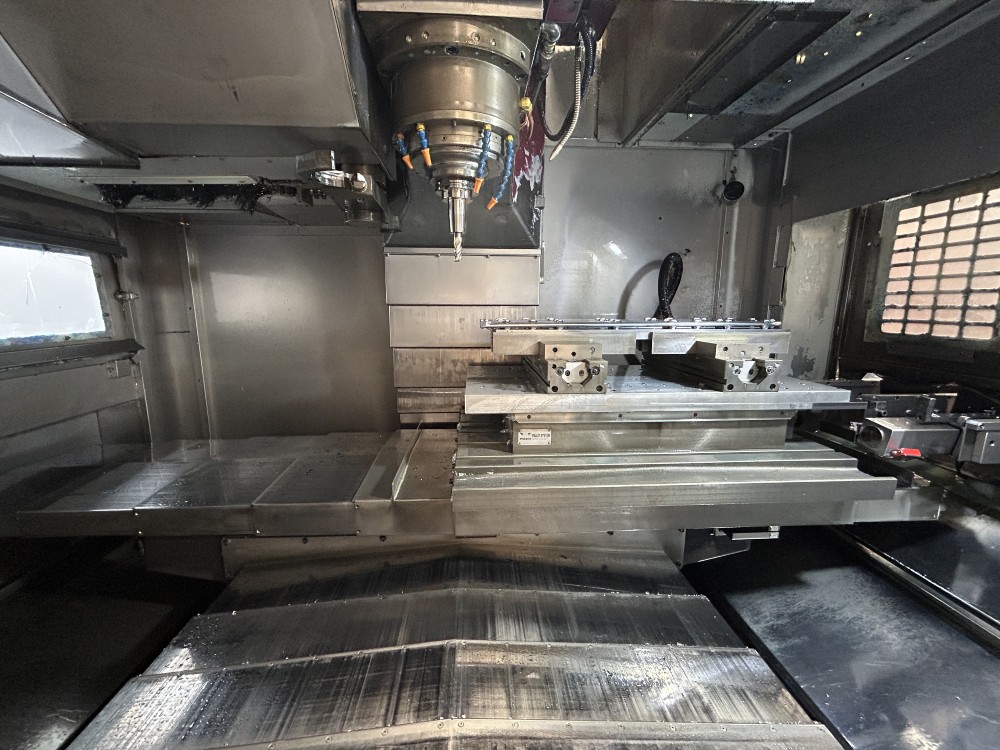

2009 OKK VM5 III CNC Vertical Machining Center w/ Midaco A40SD Pallet Changer
For sale is a 2009 OKK VM5 III Vertical Machining Center equipped with a Mitsubishi Neomatic 635V 4-Axis CNC Control and a Midaco A40SD Automatic Pallet Changer. This is a heavy-duty, Japanese-built production machining center known for its rigid box-way construction, geared-head spindle, and high-performance cutting capabilities.
The machine is under power and available for inspection by appointment.
Specifications

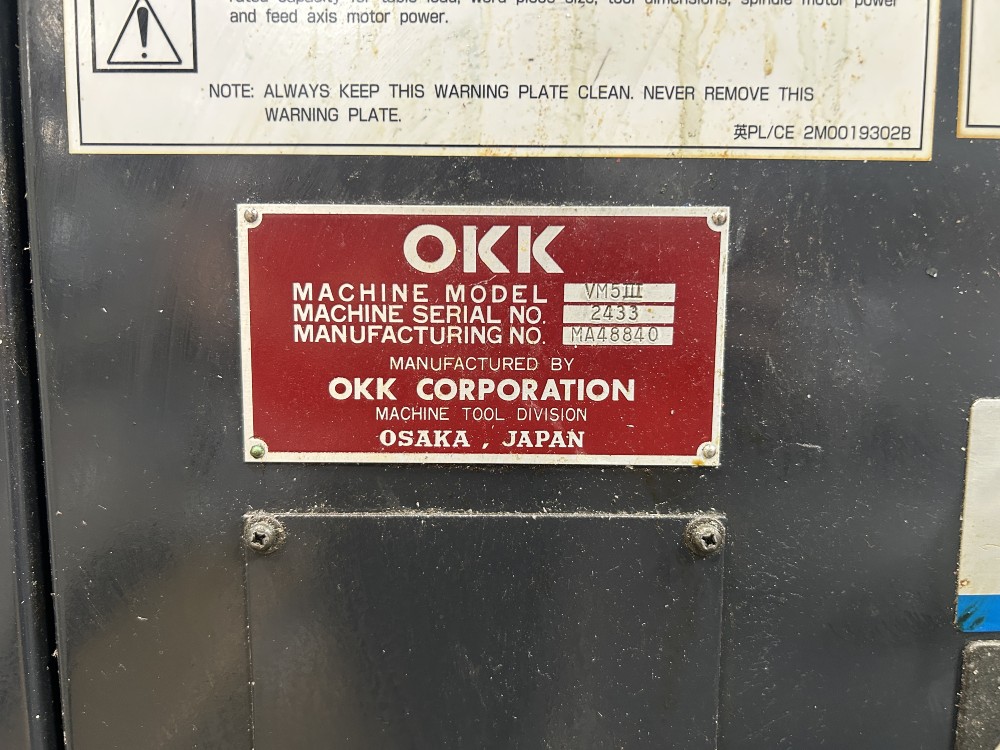

Manufacturer: OKK
Model: VM5 III
Year: 2009
CNC Control: Mitsubishi Neomatic 635V (4-Axis)

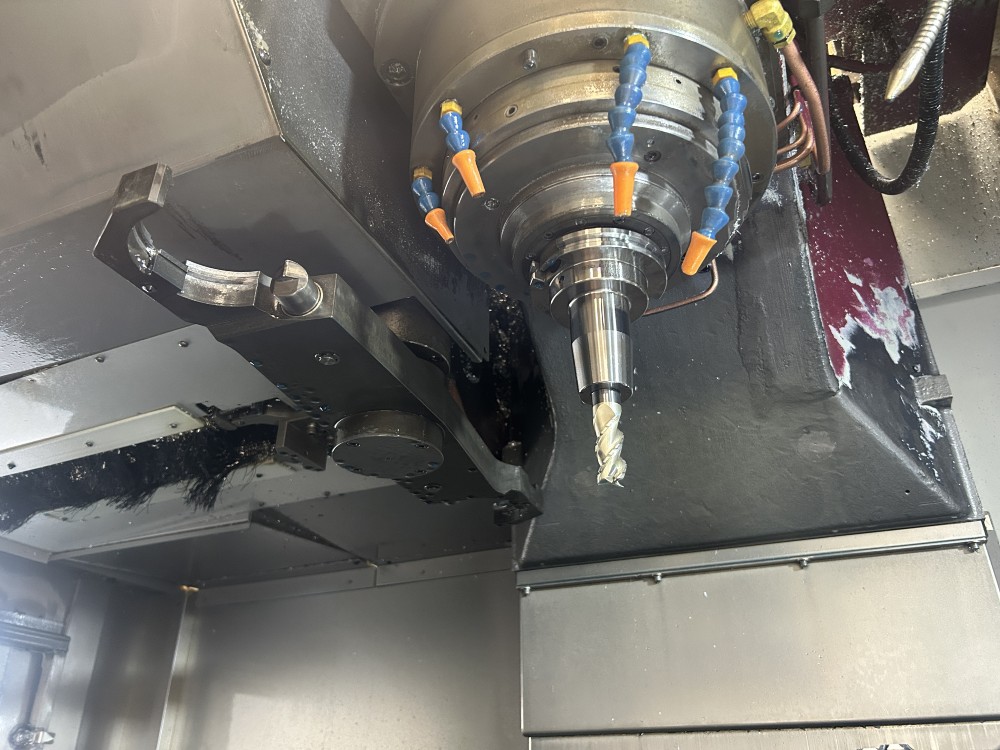

Spindle Taper: CAT 50
Spindle Speed: 13,000 RPM
Main Spindle Motor: 40 HP
Geared Head, 2-Speed Transmission

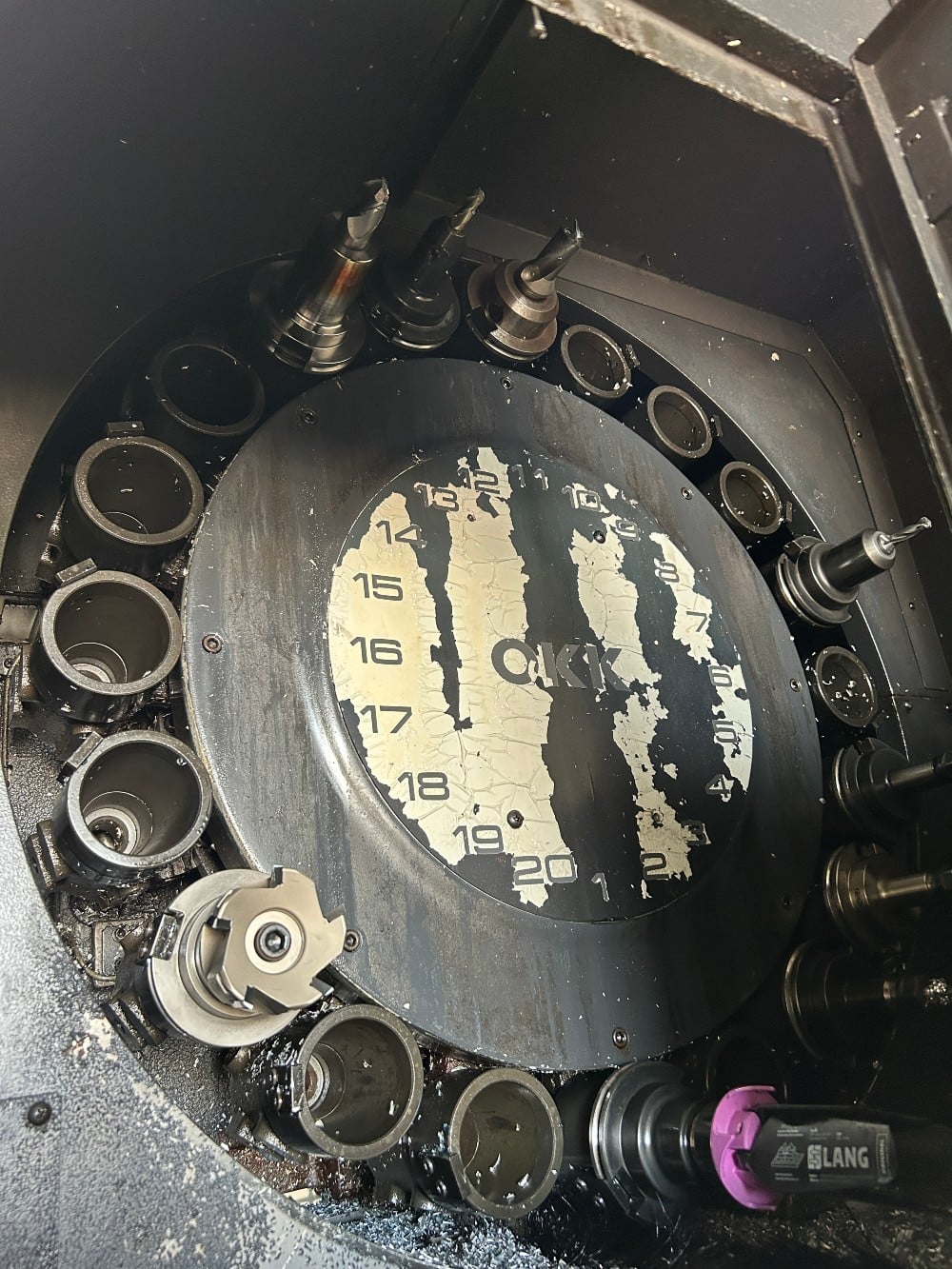

Automatic Tool Changer: 20 Tools
Table Size: 22.05" x 41.34"
Table Capacity: 1,760 lbs
X-Axis Travel: 40.15"
Y-Axis Travel: 20.08"
Z-Axis Travel: 20.08"
Rapid Traverse:
X: 1,417 IPM
Y: 1,417 IPM
Z: 1,181 IPM
Cutting Feed Rate: 787 IPM
Machine Weight: Approximately 17,400 lbs
Equipped With

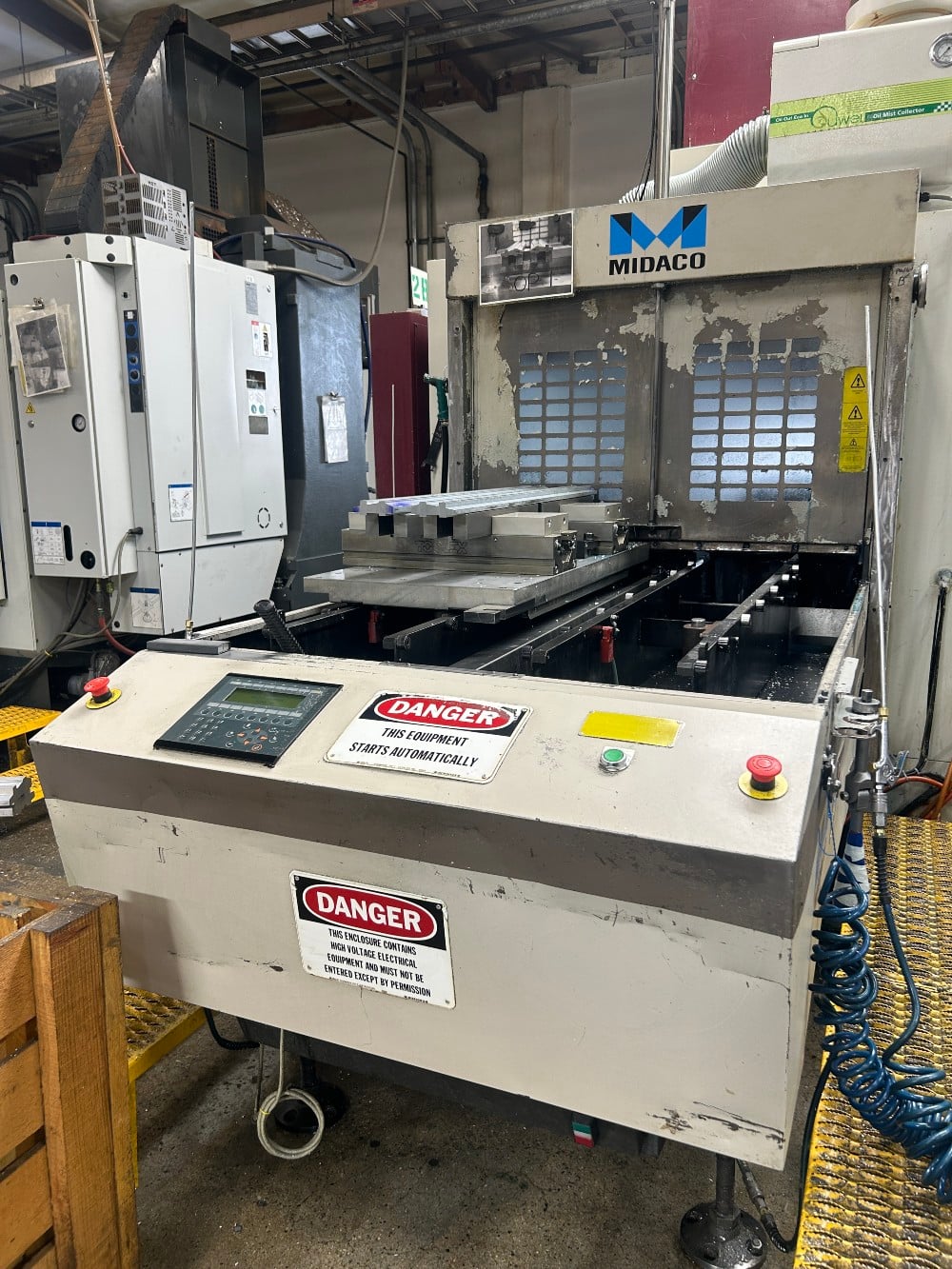

Midaco A40SD Automatic Pallet Changer
Coolant Through Spindle

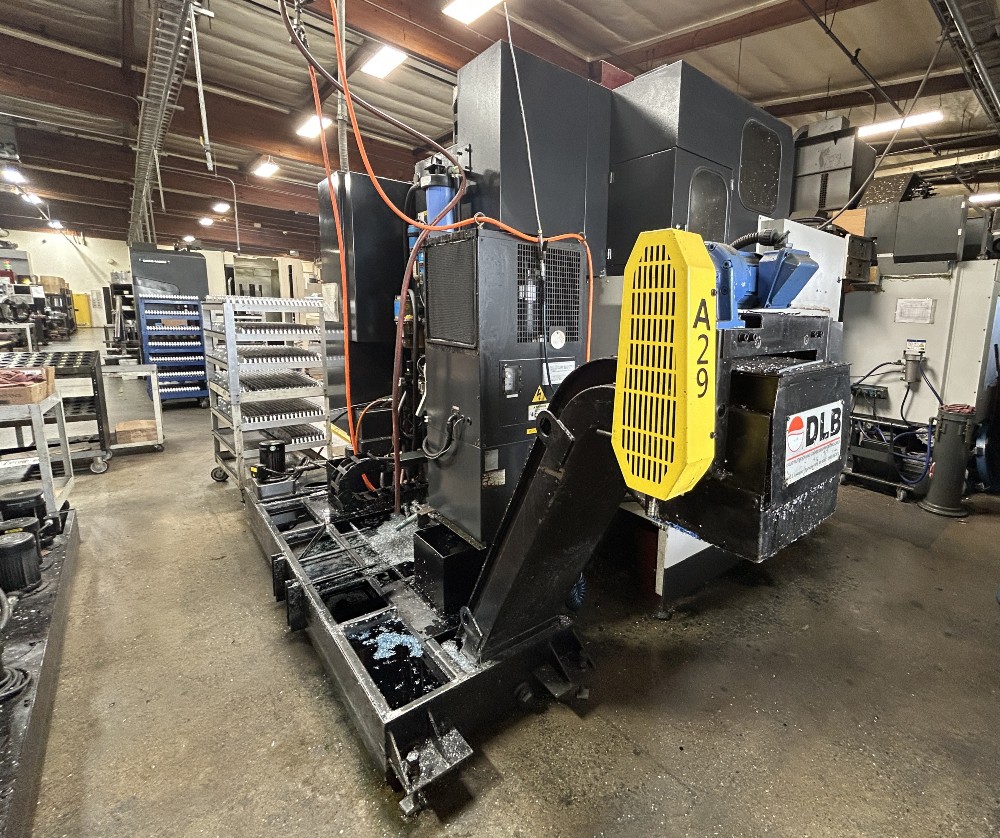

Dual Chip Augers

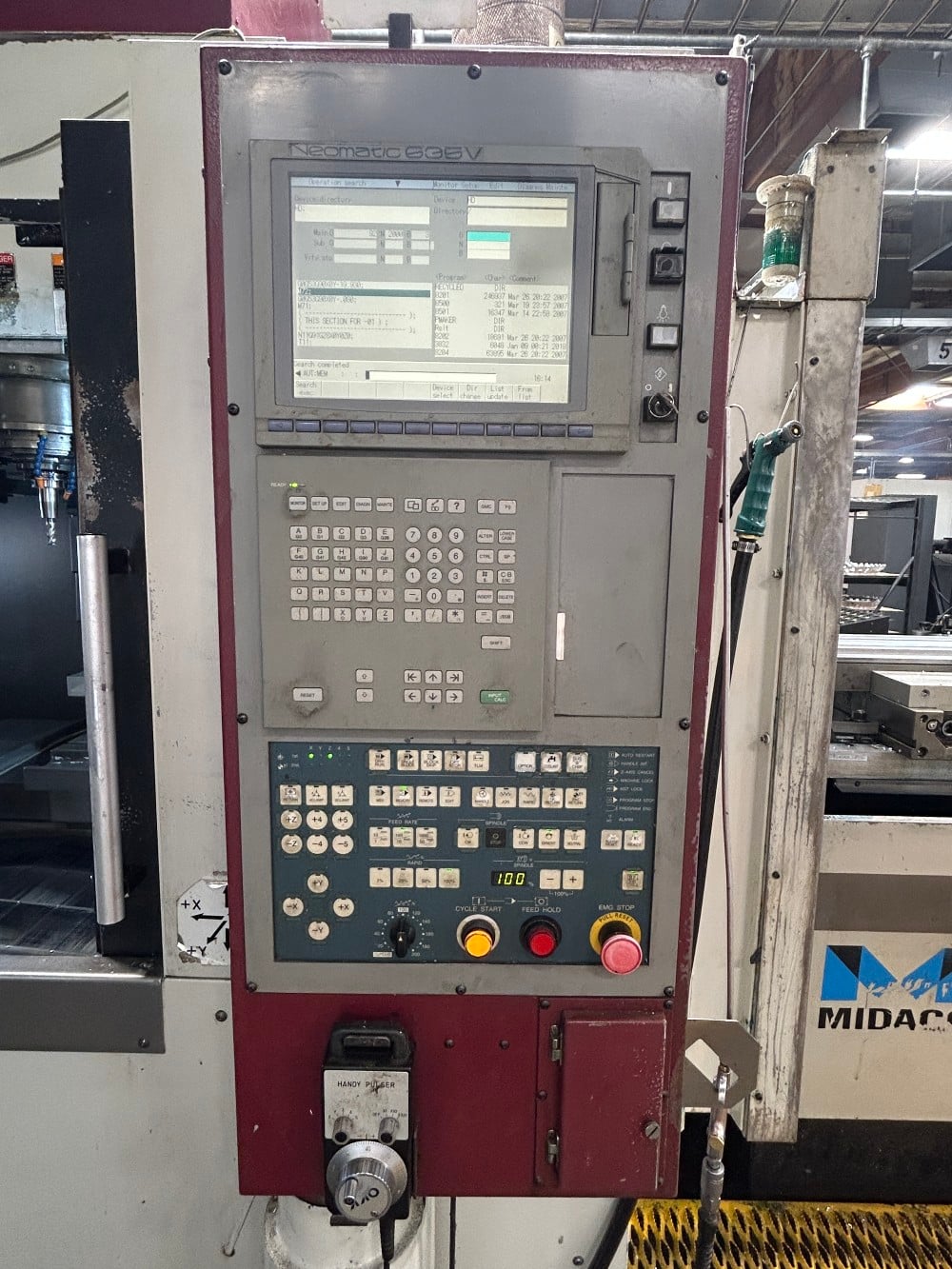

Mitsubishi Neomatic 635V 4-Axis CNC Control
Remote MPG (Electronic Handwheel)
Spindle Chiller
Mist Collector
Manuals
Shipping
Buyer is responsible for shipping.
Rigging and freight are at the buyer's expense.
Machine is located in Chatsworth, California 91311.
