2000 KW Caterpillar #XQ2280, 480 Volts, 3-phase, 60Hz, 371 hours, warranty, 2024

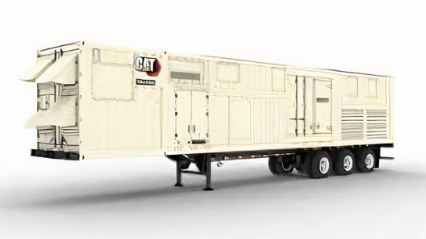

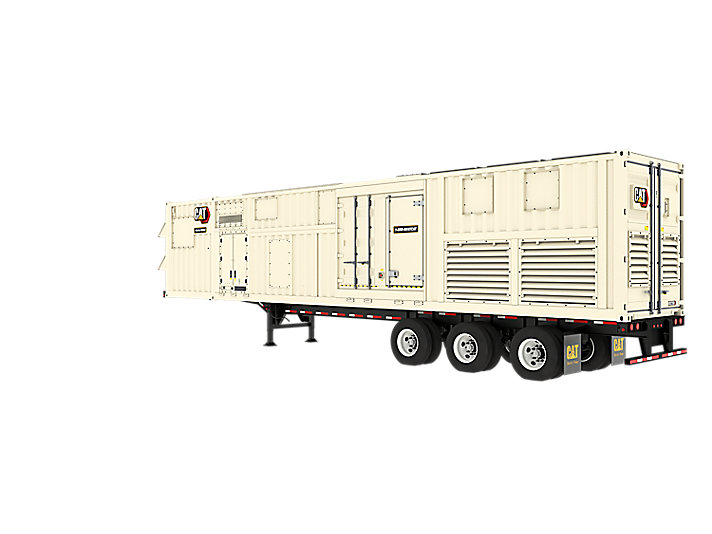

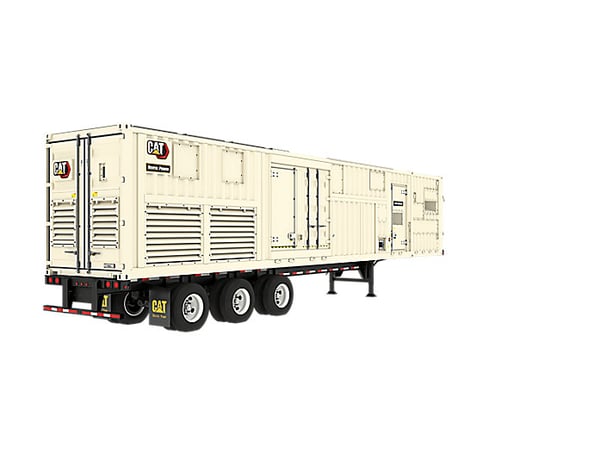

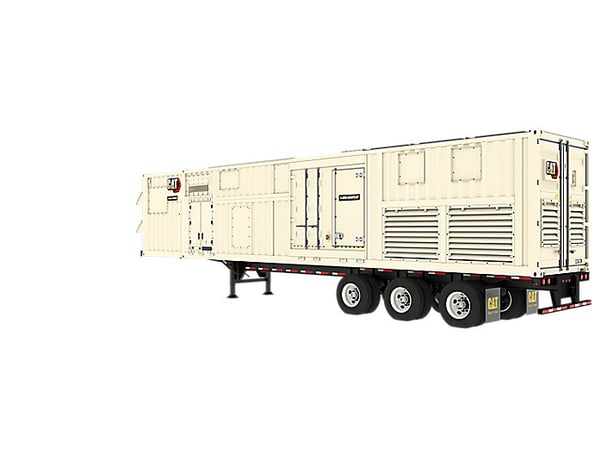

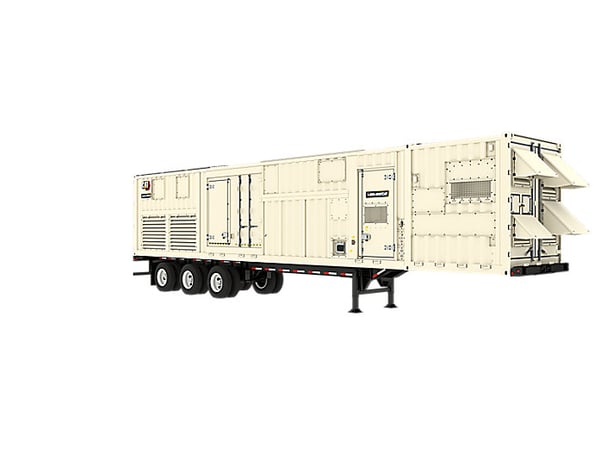

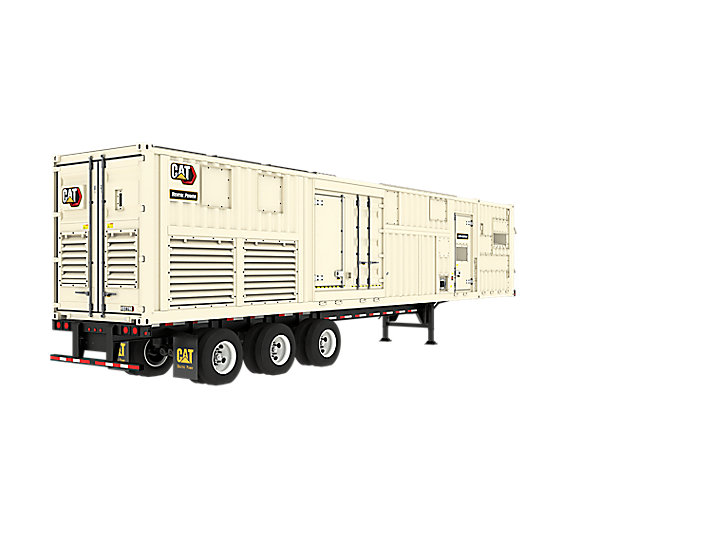

Cat XQ2280 power module provides (NEW 2024 345 HOURS) up to 2 MW of standby power or 1825 kW of prime power. 277/480V, 60Hz, 3 Phase, @1800RPM. Includes: EMCP 4.4 Digital Controller, 4000Amp Circuit Breaker, Heavy Duty Air Cleaner, Turbocharger, Battery Charger, Charging Alternator, 1050 Gallon Double Walled Fuel Tank, in a Factory installed 48ft ISO High Cube Sound Attenuated Enclosure on a Tri-Axle Trailer.

The Cat XQ2280 is ideal for data centers, healthcare facilities, municipal infrastructure, wastewater treatment plants and other u

• XQ2280 Technical Data

  Frequency	Voltage	Standby kW (kVA)	Prime kW (kVA)	Speed rpm
  60 Hz	480/277V	2000 (2500)	1825 (2280)	1800
  Cat® 3516C Tier 4 Diesel Engine	Metric	Imperial (English)
  Number of Cylinders	16
  Bore	170 mm	6.7 in
  Stroke	215 mm	8.5 in
  Displacement	78.08 L	4764 in3
  Aspiration	Turbocharged Aftercooled
  Compression Ratio	14.7:1
  Engine Speed	1800 rpm
  Fuel system	EUI
  Governor Type	ADEM™ A4 Control System
  Fuel	Requires Ultra Low Sulfur Diesel (ULSD)

  Features & Benefits

  Fuel/Emissions Strategy

  • Meets U.S. EPA Tier 4 Final emission standards and CARB certified for non-road mobile applications at all 60 Hz ratings

  Design Criteria

  • Conforms to ISO 8528 “G2” load acceptance requirements

  Single-source Supplier

  • Package is factory designed and production tested
  • Manufactured in ISO 9001:2015 facility

  Cat® 3516C Diesel Engine

  • Turbocharged-aftercooled, four-stroke diesel engine
  • Reliable, rugged, durable, fuel efficient
  • Combines consistent performance and excellent fuel economy with minimum weight
  • Electronic ADEM A4 engine control
  • Electronic differential pressure monitoring of filters

  Cat Clean Emissions Modules (CEM)

  • Aftertreatment module consists of Caterpillar

  Diesel Oxidation Catalyst (DOC), Selective

  Catalytic Reduction (SCR), and Ammonia

  Oxidation Catalyst (AMOX)

  • Removable insulation blankets to maintain exhaust temperatures for aftertreatment health
  • Integrated sound attenuation chambers
  • Closed-loop NOx control

  Pump Electronic Tank Unit (PETU)

  • Stainless steel DEF tank with on-tank fill and remote fill
  • Equipped with dosing pump and level sensor to display the Diesel Exhaust Fluid (DEF) level in EMCP & HMI panel
  • Integrated heating elements and filter

  Cat SR5 Series Generator

  • Designed to match the performance and output characteristics of Cat diesel engines
  • Class H insulation operating at Class F temperature for extended life
  • Coastal insulation protection and anticondensation space heaters for extended life and increased reliability

  Cat EMCP 4.4 Control Panel

  • Fully featured power metering, protective relaying engine/generator control and monitoring
  • Simple user-friendly interface and navigation

  HMI Exterior Controls

  • Allows for external operation, including start / stop, after EMCP is placed in Auto

  Cat Integrated Voltage Regulator (Cat IVR)

  • Three-phase sensing
  • Adjustable volts-per-hertz regulation
  • Provides precise control, excellent block loading, and constant voltage in the normal operating range

  Sound Attenuated Container

  • Provides ease of transportation and protection
  • Sound level is 81 dB(A) at 7 meters per SAE J1074 measured at 75% prime load and 75% fan speed

  Reduced Environmental Impact

  • 110% spill containment of onboard engine compartment fluids
  • Variable frequency fan drive with smart fan control to prevent overcooling in low ambient temperature conditions and reduced sound at partial loads

  Asset Monitoring and Management

  • Equipped with Cat Connect PLE743 hardware
  • Provides cellular connectivity for remote asset monitoring

  Factory-Installed Standard Equipment

  Cat 3516C Diesel Engine

  • Turbocharged, air-to-water aftercooler
  • Electronic ADEM A4 engine control

  Air Inlet

  • Heavy-duty air element, canister type

  Aftertreatment

  • Air-assisted DEF delivery ensures proper mixing with exhaust gases and optimal NOx reduction

  DEF System

  • 78-gallon stainless steel DEF tank provides capacity to meet or exceed fuel tank runtime

  @ 75% prime

  • Electrically heated lines from tank to CEM
  • Equipped with electric heaters to prevent freezing when genset is running or connected to shore power
  • Equipped with low and critically low-level alarms with a
  • critically low shutdown

  Factory-Installed Standard Equipment

  Containerized Module

  • 48' ISO high cube container

tilities, mining and quarry sites, and other large-scale applications.
