200000 lbf. (1000kN) Frank Bacon #FB-1000H, hydraulic tension & compression testing, hydraulic gripping system

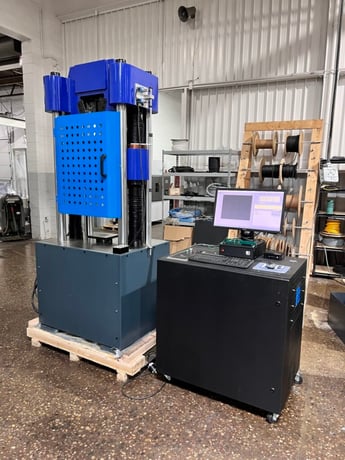

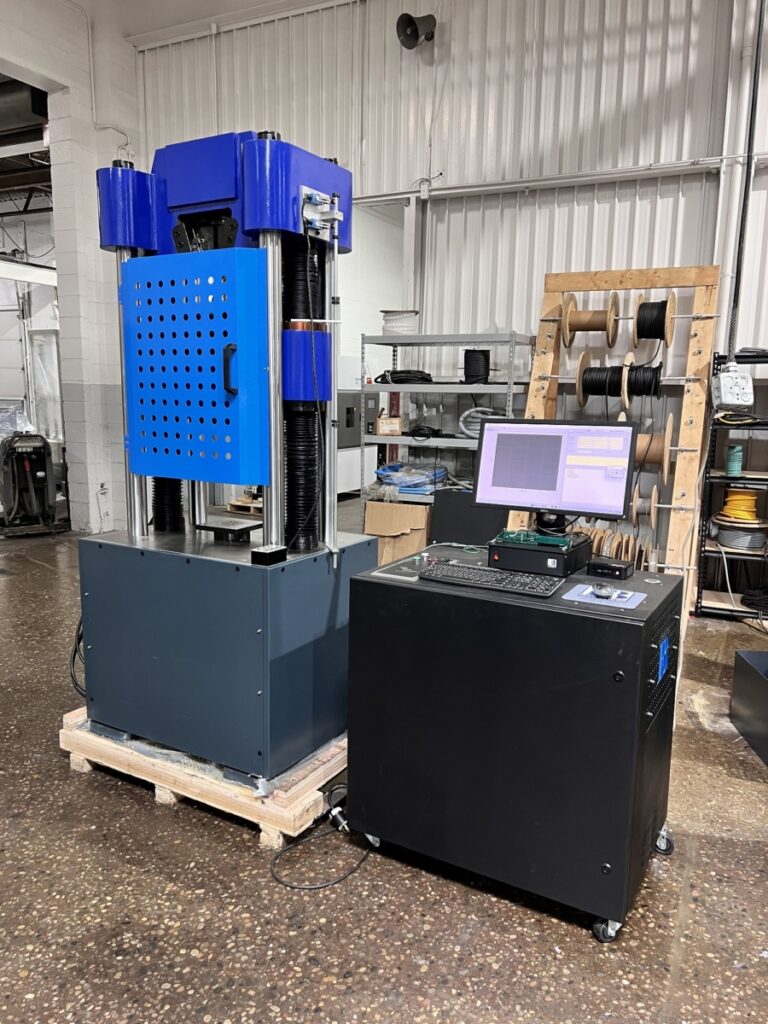

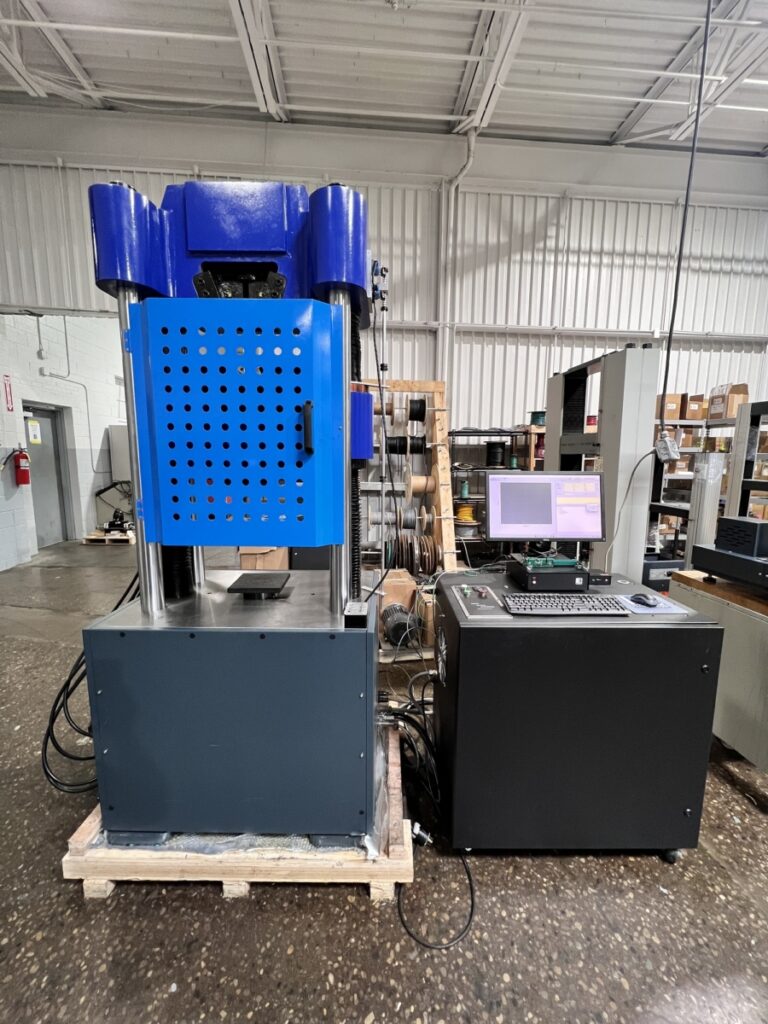

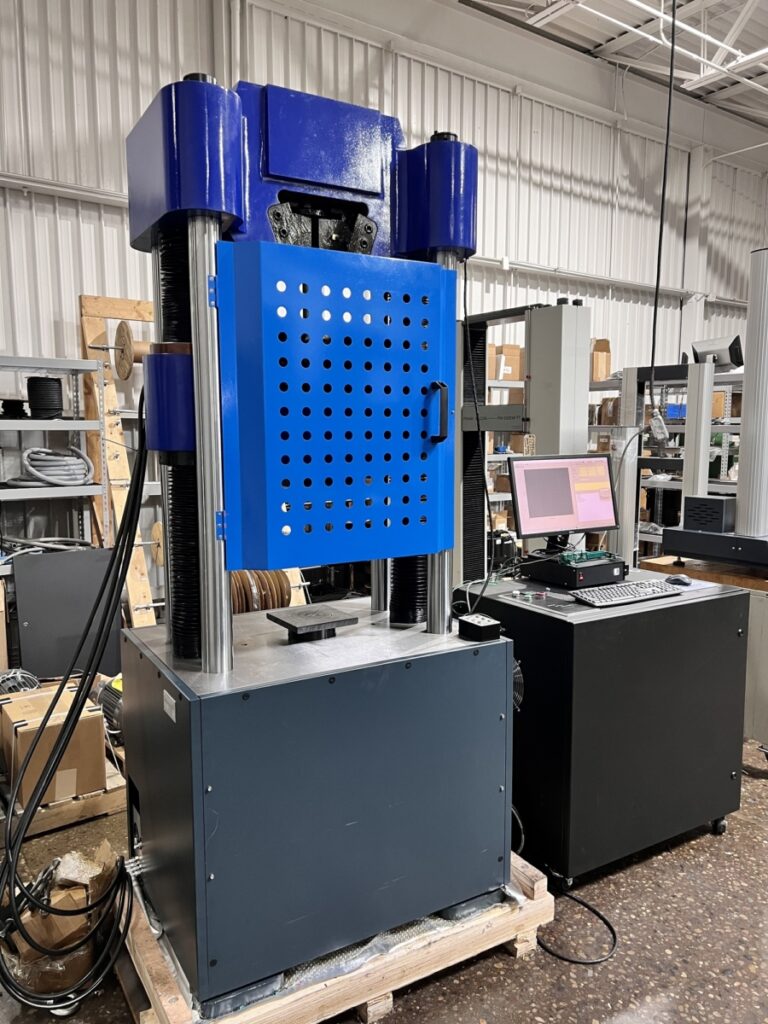

New 225,000 lbf (1000 kN) Frank Bacon, FB-1000H, Hydraulic Tension and Compression Testing Machine with
Hydraulic Gripping System.
Frank Bacon FB-1000H

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 24"
Compression Testing Opening (Less Tooling): 20"
Distance Between Columns/Screws: 21"
Testing Stroke: 7"
Table Size (W x D): 21" x 24"
Testing Speed (IPM): 0 – 3
Approximate Overall Dimensions:
Console (W x D x H): 38" x 27" x 38"
Load Frame (W x D x H): 39" x 33" x 93"
Approximate Weight (lbs.): 6,500 lbs.
Electrical Requirements (V,Hz, PH): 220, 60, 3
Accuracy Grade: Grade 1
Measurable Load Range: 1-100% FS
Measured Load Accuracy: +-1%FS
Measured Load Resolution: 1/300000 FS
Displacement Measurement Resolution mm:
Load Measurement Repeatability: 1%
Load Measurement Hysteresis: 1.5%
Load Measurement Error at Zero: +-.1%

EQUIPPED WITH:

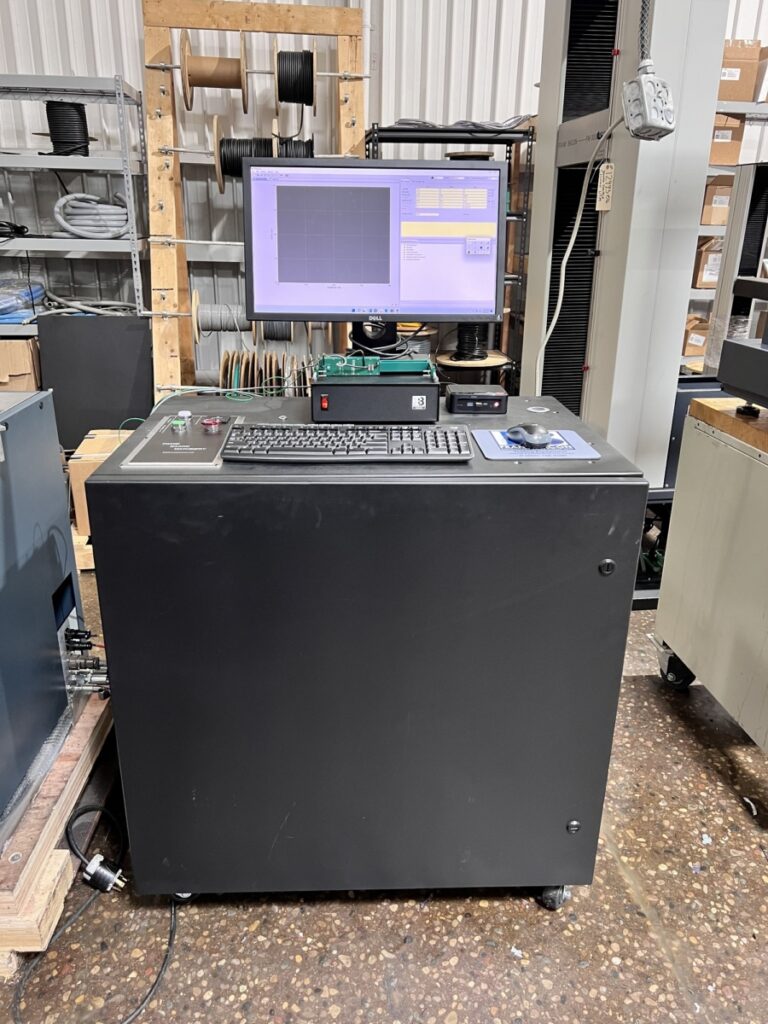

• Computer System with Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 11 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position, 2 Strain & AUX), Analysis and
Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.

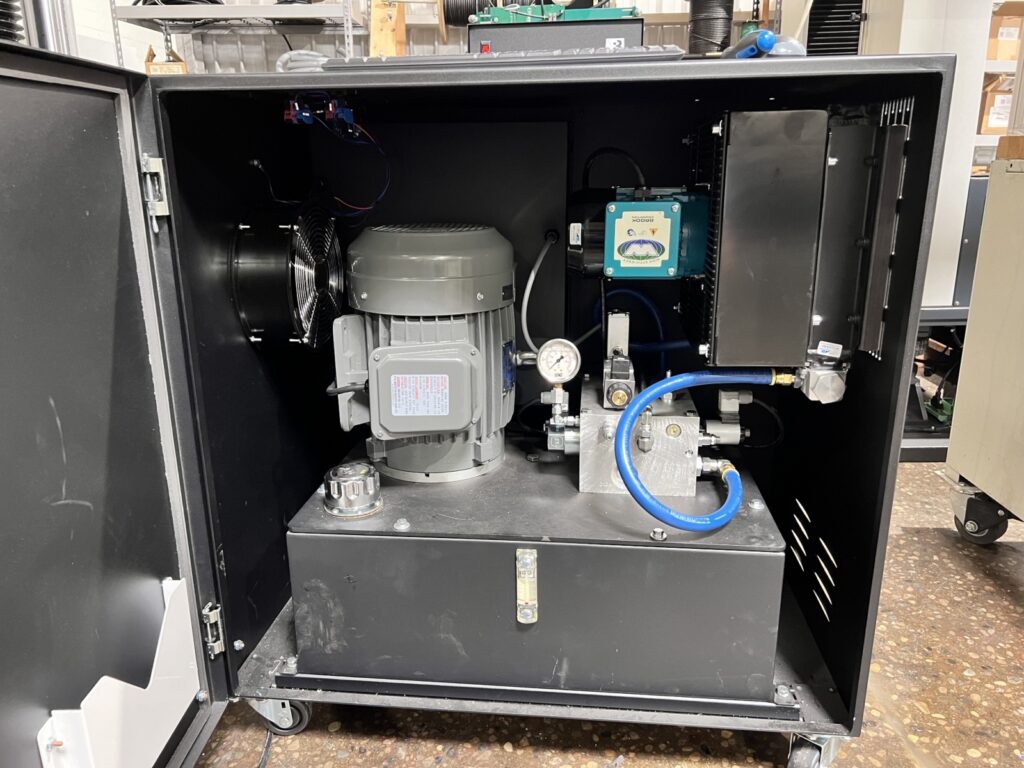

• New Closed Loop Hydraulic Pumping System in Custom "Silent" Console with: 23 gal. Hydraulic Reservoir,
Submerged Bosch Pump, Vickers P. Valve, Sun Hydraulics Custom Aluminum Hydraulic Circuit Manifold,
Motor, Heat Exchanger, PC Controls & More.
• 1000kN Precision Load Cell Indicating System

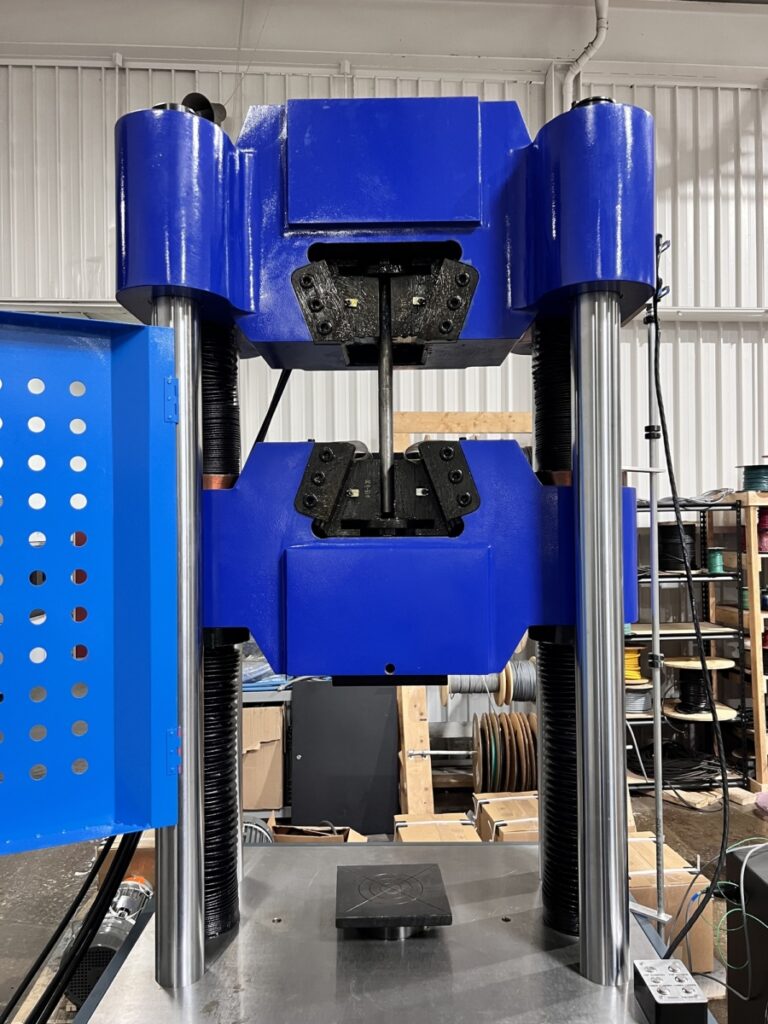

• Hydraulic Gripping System with Faces:
• 0-15mm & 15-30mm Flat Grip Faces
• 6-13mm, 13-26mm & 26-40mm Round Grip Faces

FOB Warren, MI
Industry Leading 2 Year Parts and Labor Warranty

30 Day Satisfaction Guarantee Return Privilege
ISO 17025 Accredited Certification

Hundreds of Grips, Fixtures, and Accessories Available
