20000 lb. x 72 outside dimension Avon, Pick & Place Downlayer, 16" to 20" ID, 24" width, 78" roll face, 2003

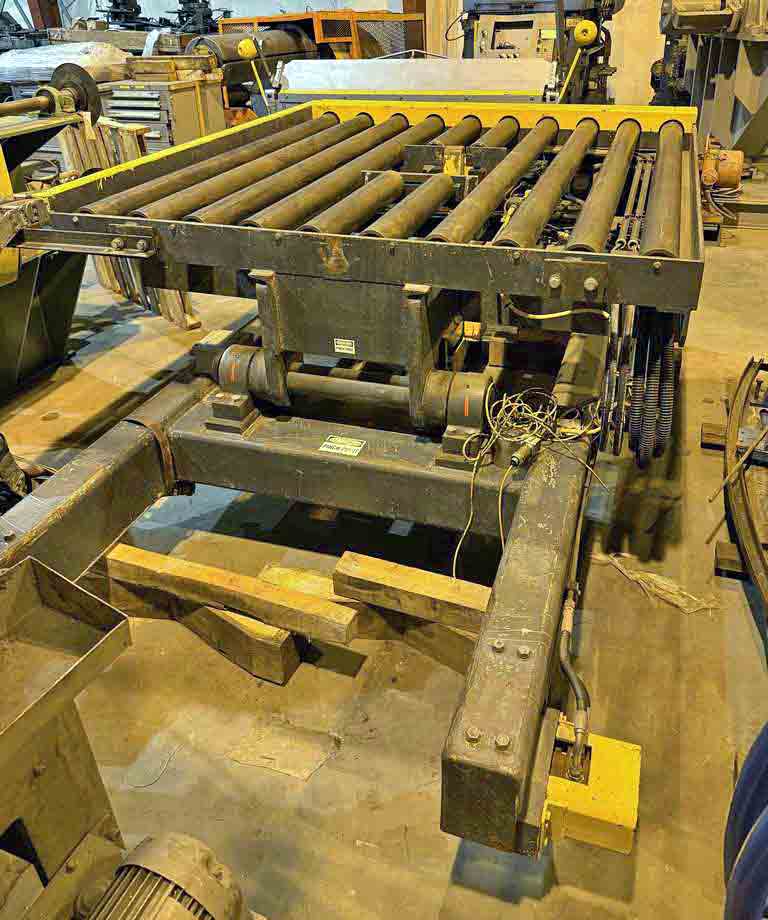

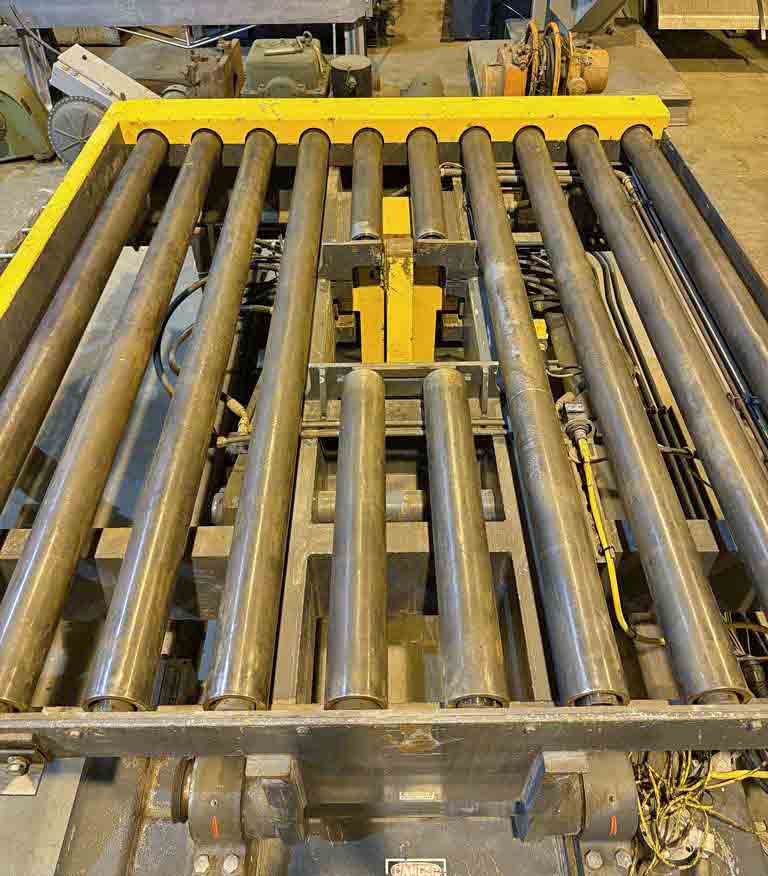

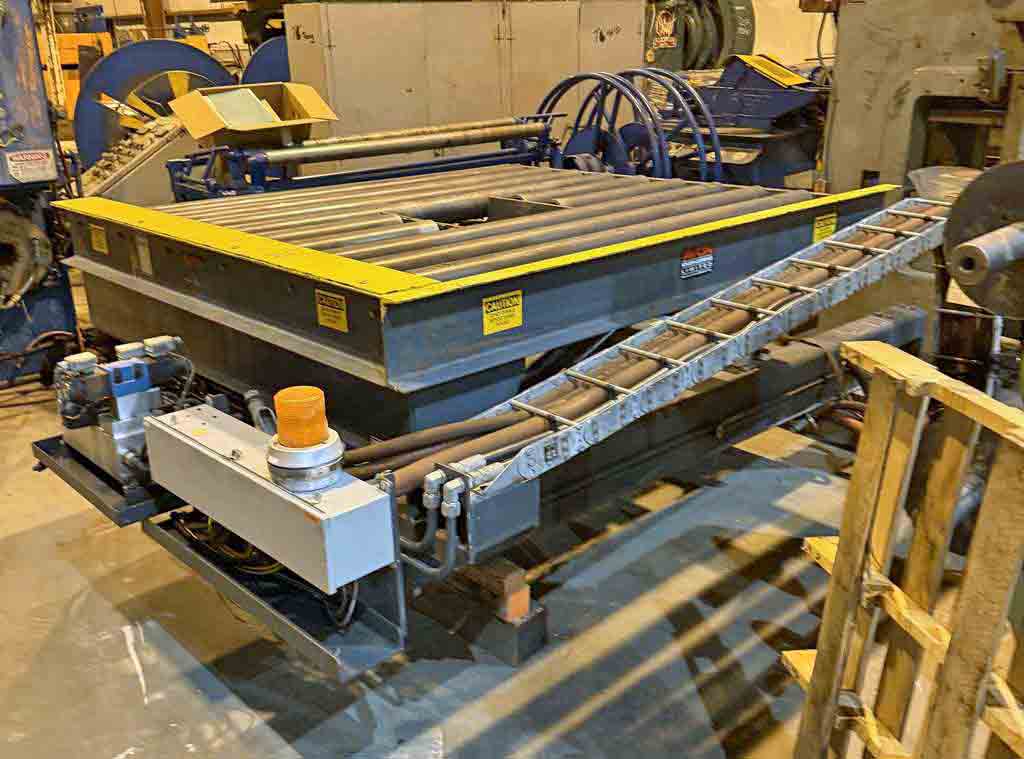

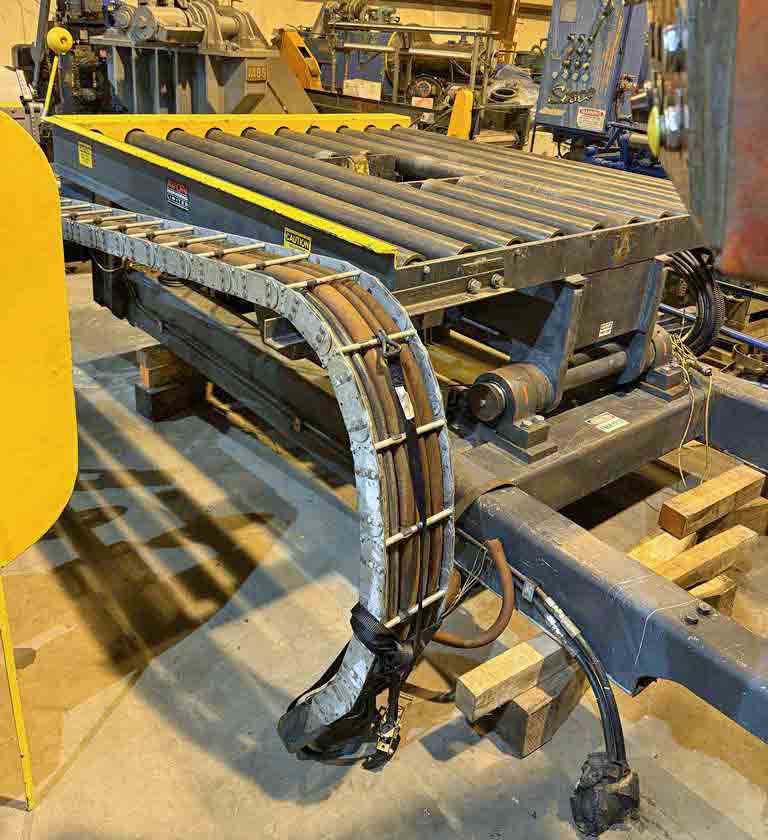

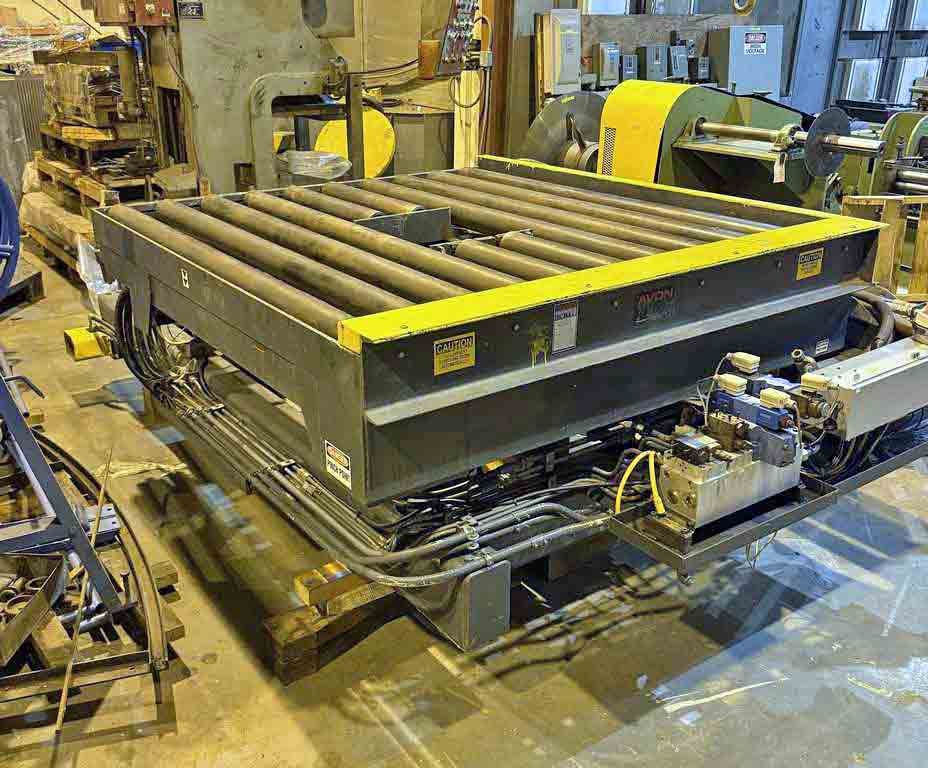

This Avon 72" x 20,000 lbs Pick & Place Downlayer is designed for handling large coils efficiently. Its substantial weight capacity of 20,000 lbs and maximum coil outer diameter of 72" make it suitable for heavy-duty applications. The unit accommodates coil inner diameters ranging from 16" to 20" and a maximum coil width of 24". Key features include a roll diameter of 4", with roll centers positioned 7.5" apart and a roll face spanning 78". The table measures 78" x 85", providing a robust surface area for operation. The horn lifts 4", raising from a down position height of 62.5" from the floor to a raised position height of 66.5". Additionally, with a 2 HP Baldor AC Geared Motor driving the conveyor, the discharge direction is set at 90 degrees with a pass line at 36". This unit operates at 480 V. It’s important to note that controls are not included, offering flexibility for integration with existing systems. This equipment is ideal for those seeking reliability and efficiency in coil handling processes.
20,000 Lbs.72"16" - 20"24"4"7.5"78"78" x 85"4"62.5" From Floor66.5" From Floor36"90 Degrees2 HP Baldor AC Gearmotor480 VNot Included
