For Sale by S & G Press & Machinery Sales
Surplus Record Dealer Since 1996
Location: Shelby Township, MI
Contact Sergio Gasperoni
Phone Number: 586...> Show Phone Number 586-563-5000
Let the seller know you found their listing on Surplus Record!
Description
Coil Weight
20000 pounds
Coil Width
48 inches
Coil Thickness
.175 inches
Standard Specifications
20,000 lbs Max Coil Weight
48" Max. Coil Width
48" Wide x .175" Thickness Capacity @ Full Width
24" Wide x .250" Max. Thickness
Equipment and Features

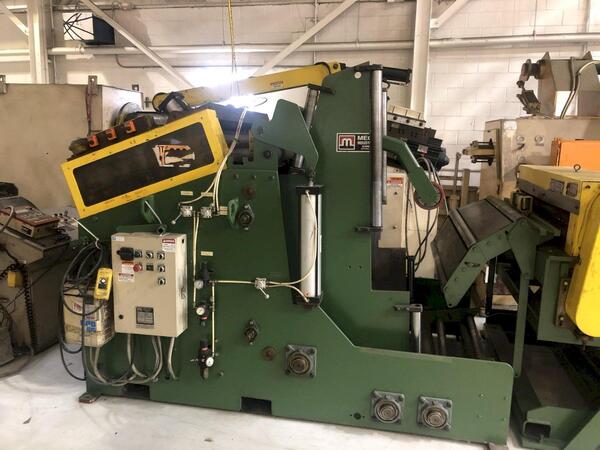

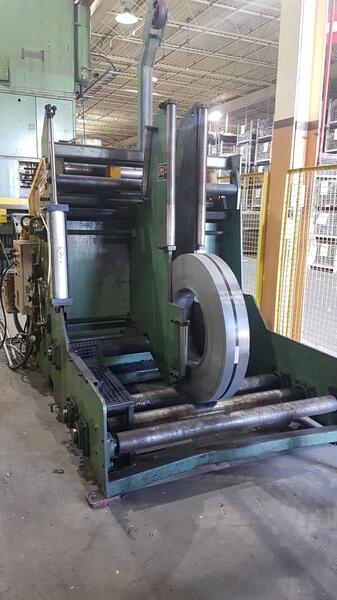

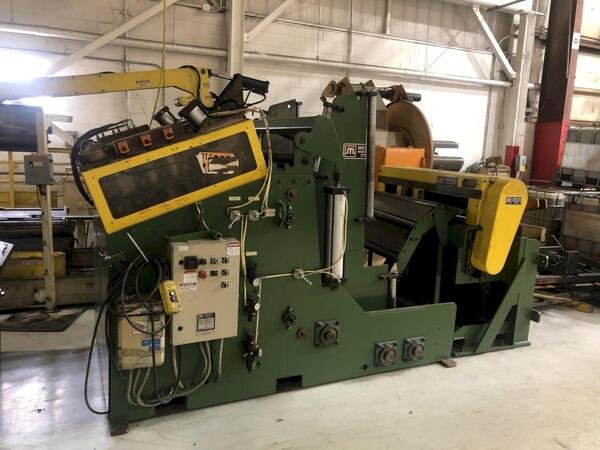

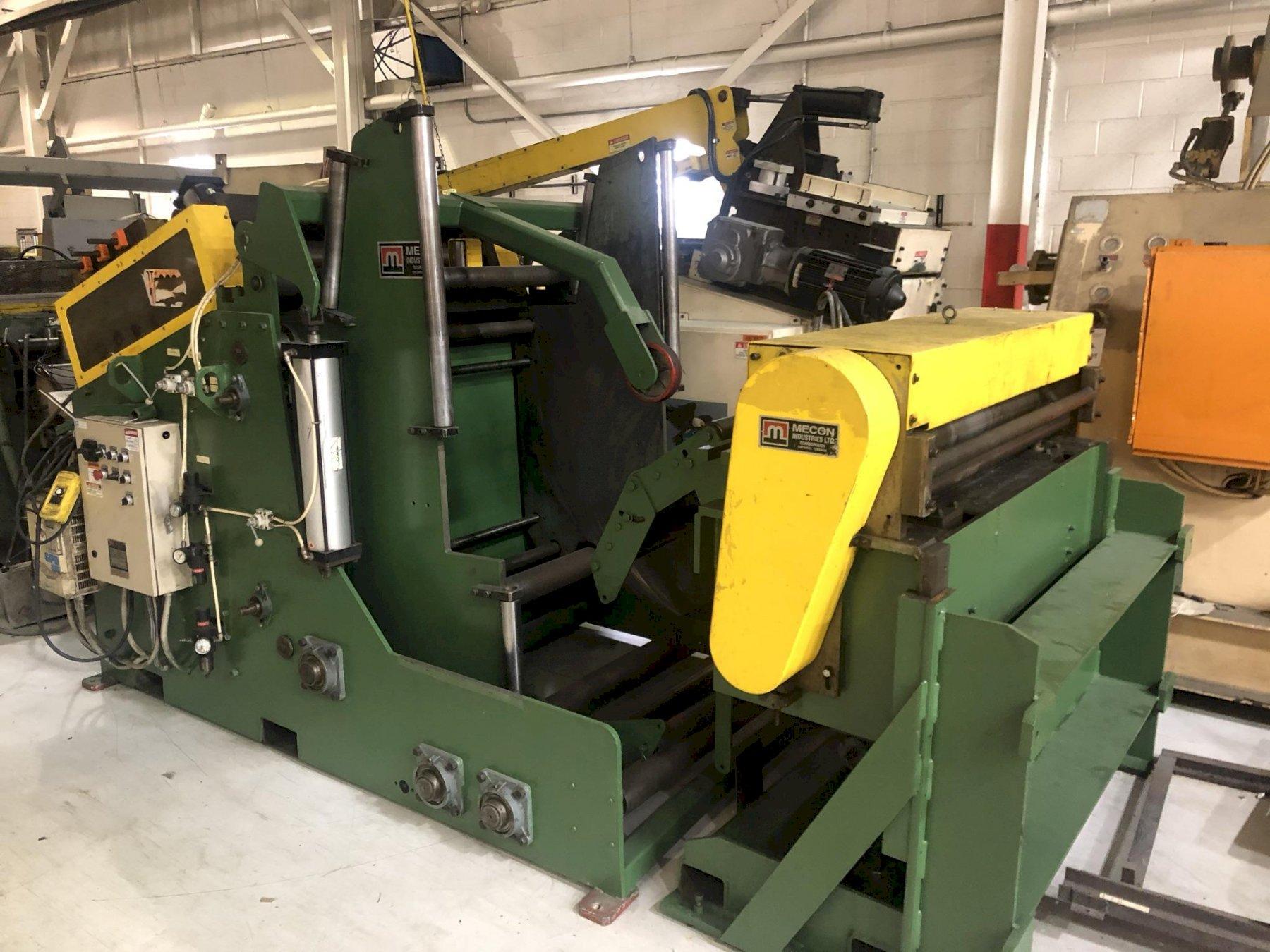

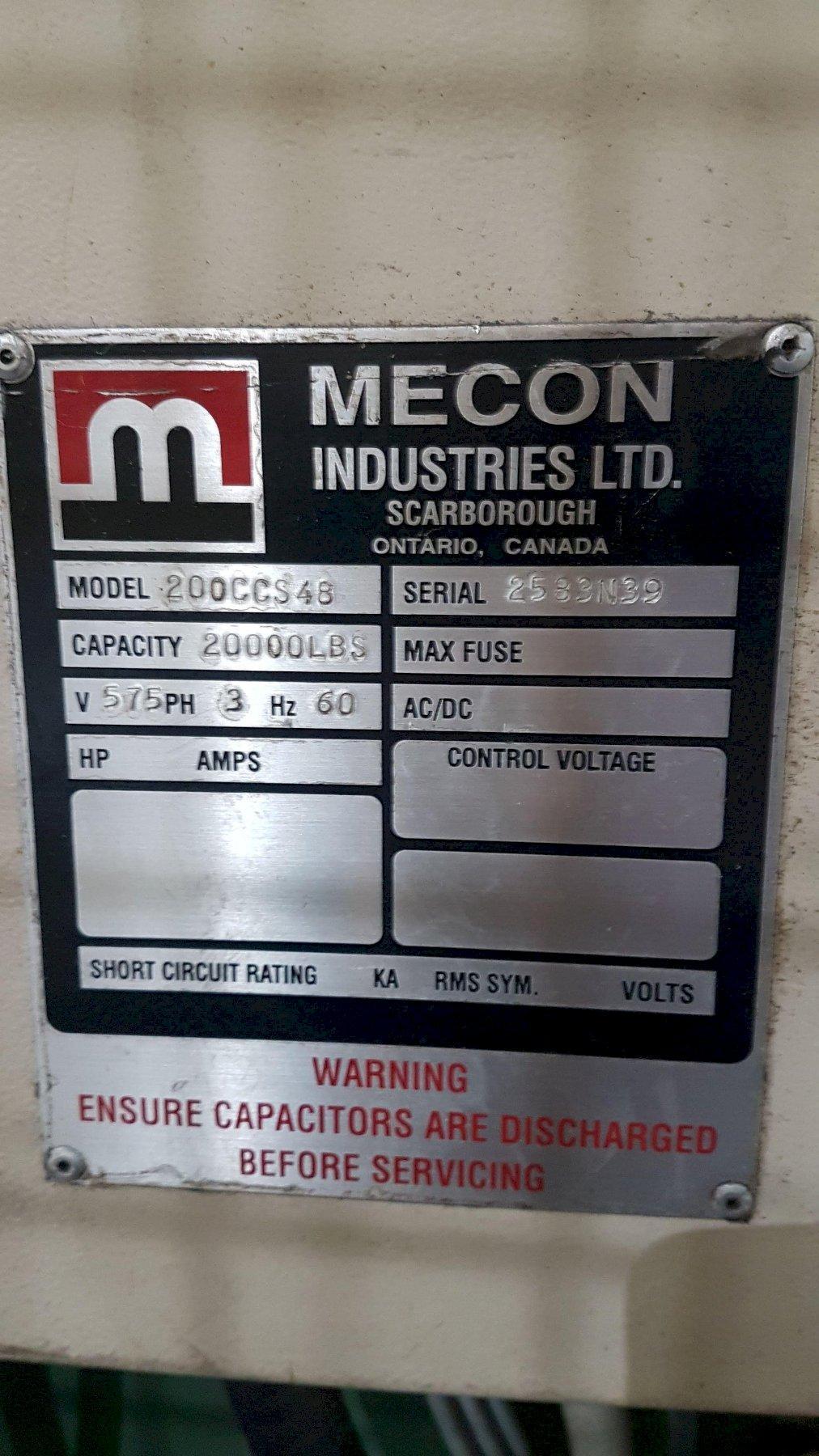

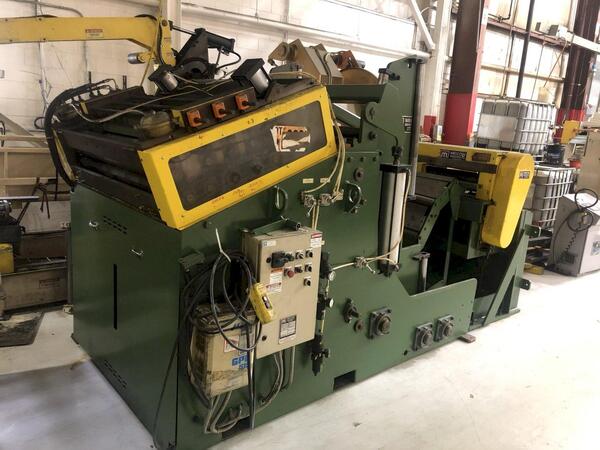

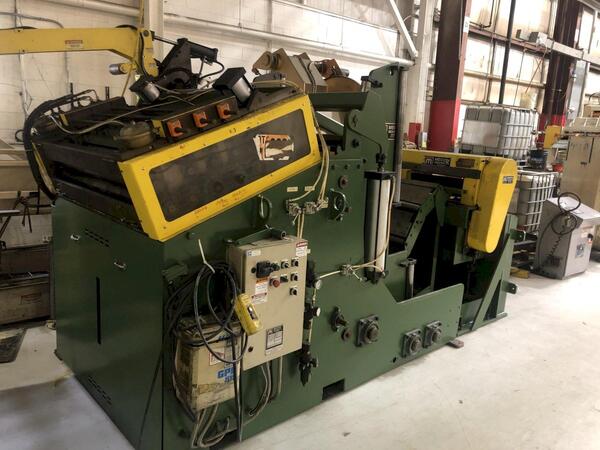

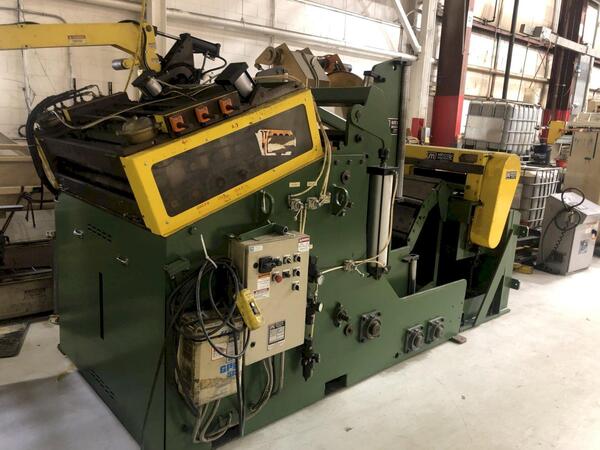

Coil Cradle - Straightener Model No. 200CCS-48
Entry and exit pinch rolls with air operated adjustments
Seven straightening rolls x 4" diameter
Individual upper straightening roll adjustments
Adjustable stock width edge guides
Coil hold down arm - dual cylinder
Adjustable coil side guide plates
Side plate rollers for wear protection
Variable speed payout
Jog forward and reverse
Auto / Run cycle
Loop control
Operator's control station

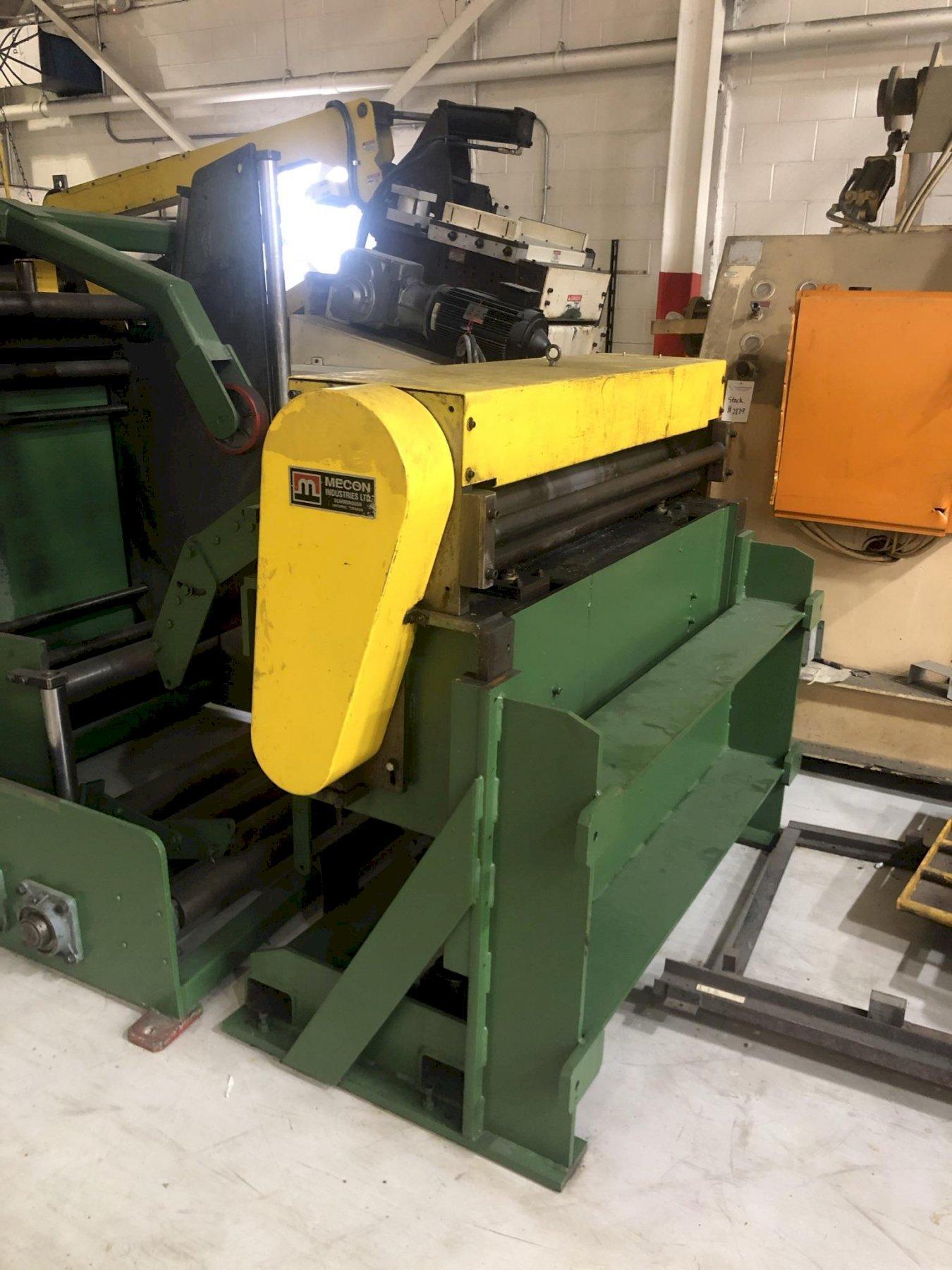

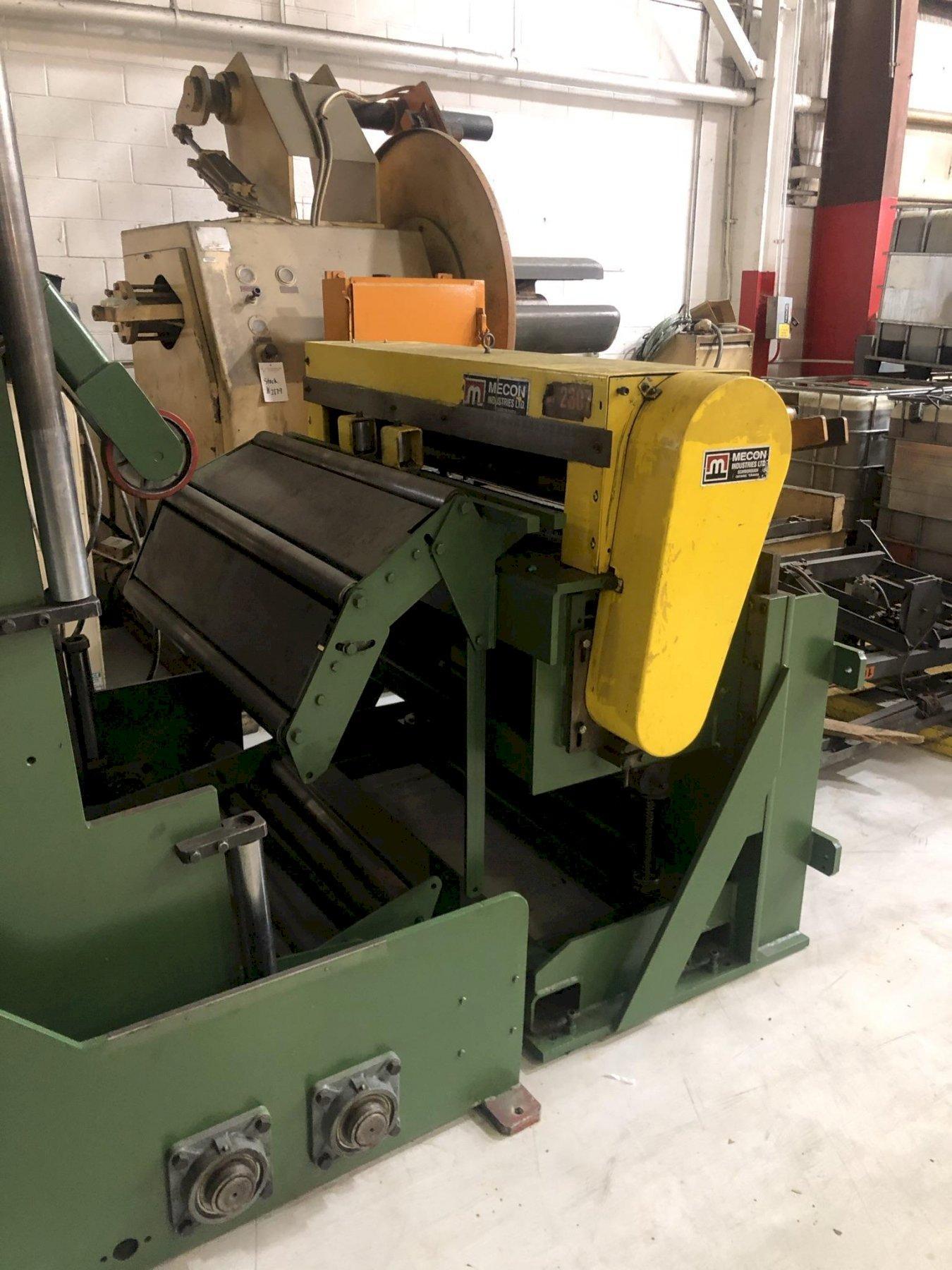

Servo Roll Feed Model No. 500F48HD
Four-inch diameter feed rolls
Matte chrome finish on upper and lower rolls
Pneumatic upper feed roll lift and pilot
Adjustable stock width edge guides
Cascade loop support rollers
Free standing base
Adjustable pass line
New AC Servo drive and control package (consult sales for full details)
Color touch screen HMI
Job memory, micro adjust, full feature menu
Pilot pin mode
480 V
Pricing Includes: One year parts and labor warranty on new Servo Feed Controls
including schematics and operator's manual
Cleaned, painted and 100% cycling
Please know this feed Line can be purchased with its existing controls... Ask your sales representative for "as is" pricing if desired.
20000 pounds
Coil Width
48 inches
Coil Thickness
.175 inches
Standard Specifications
20,000 lbs Max Coil Weight
48" Max. Coil Width
48" Wide x .175" Thickness Capacity @ Full Width
24" Wide x .250" Max. Thickness
Equipment and Features
Coil Cradle - Straightener Model No. 200CCS-48
Entry and exit pinch rolls with air operated adjustments
Seven straightening rolls x 4" diameter
Individual upper straightening roll adjustments
Adjustable stock width edge guides
Coil hold down arm - dual cylinder
Adjustable coil side guide plates
Side plate rollers for wear protection
Variable speed payout
Jog forward and reverse
Auto / Run cycle
Loop control
Operator's control station
Servo Roll Feed Model No. 500F48HD
Four-inch diameter feed rolls
Matte chrome finish on upper and lower rolls
Pneumatic upper feed roll lift and pilot
Adjustable stock width edge guides
Cascade loop support rollers
Free standing base
Adjustable pass line
New AC Servo drive and control package (consult sales for full details)
Color touch screen HMI
Job memory, micro adjust, full feature menu
Pilot pin mode
480 V
Pricing Includes: One year parts and labor warranty on new Servo Feed Controls
including schematics and operator's manual
Cleaned, painted and 100% cycling
Please know this feed Line can be purchased with its existing controls... Ask your sales representative for "as is" pricing if desired.
Get Your Price from S & G Press & Machinery Sales!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
20000 lb. Coe Press Equipment #CPRF-454/CPPS-PO-300-54/CPR-PO-200-54, coil feed line, 54" W x .060" stock, 72" outside dimension, 20"-24" ID
Category: Coil Feed Lines
Seller: Nidec Press & Automation
Location: Macomb, MI
Mfr: Coe Press Equipment
Model: CPRF-454 / CPPS-PO-300-54 / CPR-PO-200-54
Coil weight capacity: 20000 pounds, Stock Width Capacity 54 inches, Max Stock Thickness Capacity At Full Width.060 inches, Stock thickness capacity:.060" x 54" Wide, Stock thickness capacity:.125" x 36", Expansion range: 20" - 24", Coil OD capacity: 72", COE Press Servo Roll Feed Model No. CPRF-454 / Serial No. ...more
JUST ADDED!
20,000 lb. Coe Press Equipment #CPR-PO-20054 / CPPS-PO-54 / CPRF-454, complete servo coil feed line, 54" width
Category: Coil Feed Lines
Seller: Rygate, LLC
Location: Clarkston, MI
Mfr: Coe Press Equipment
Model: CPR-PO-20054 / CPPS-PO-54 / CPRF-454
Coil Weight Capacity: 15,000lbs, Model: CPR-PO-20054, Model Number: CPPS-300-54, Coil Width Capacity: 54”, Stock Thickness Capacity: 54” wide x.060” thick material, Max. Capacity: 36” wide x 0.125” thick, Min. stock Thickness: 0.020” x 54” wide, Coil I.D. Range: 20-24” ...more
20000 lb. CHS #PS-350-18HDX, coil feed line system, 18" width, 72" OD, 20"-24" expansion range, 2017
Category: Coil Feed Lines
Seller: iGAM
Location: Detroit, MI
Mfr: Chs
Model: PS-350-18HDX
Year: 2017
This listing is for a USED CHS PS-350-18 HDX Coil Feed Line System. It is designed for handling and straightening HSLA and similar coil stock in stamping and forming operations. This unit is categorized as a heavyduty coil feed line and includes capabilities such as 20,000 lb coil handling, 18 inch stock width ...more

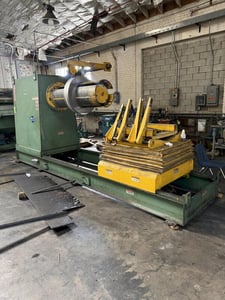

20000 lb. Coe Press Equipment #CPR-PO-20054, servo coil feedline, 54" x .060" stock, 60" OD, powered expansion, powered rotation
