1 / 9
Click to zoom in
1 / 9
For Sale by S & G Press & Machinery Sales
Surplus Record Dealer Since 1996
Location: Shelby Township, MI
Contact Sergio Gasperoni
Phone Number: 586...> Show Phone Number 586-563-5000
Let the seller know you found their listing on Surplus Record!
Description
Specifications | |||
|---|---|---|---|
| Coil Weight | 20000 pounds | ||
| Coil Width | 36 inches | ||
| Coil Thickness | .125 inches | ||

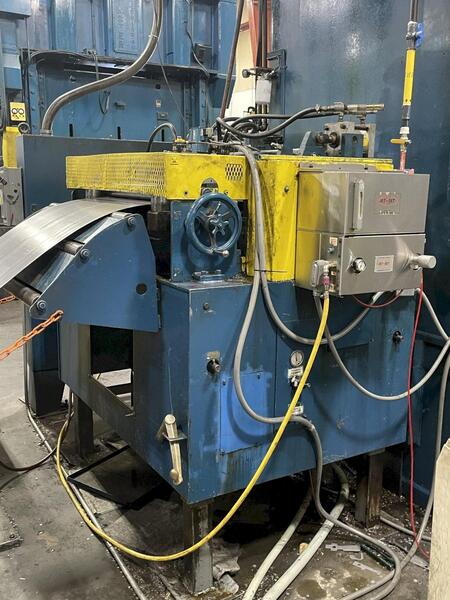

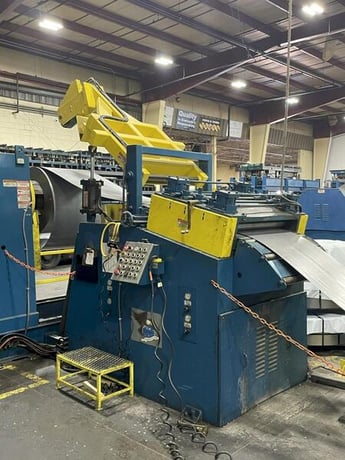

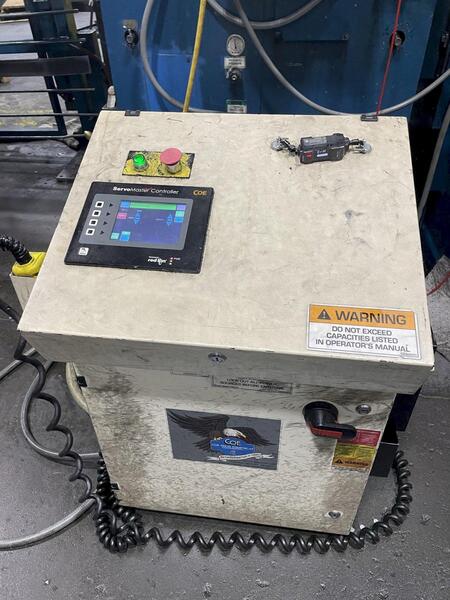

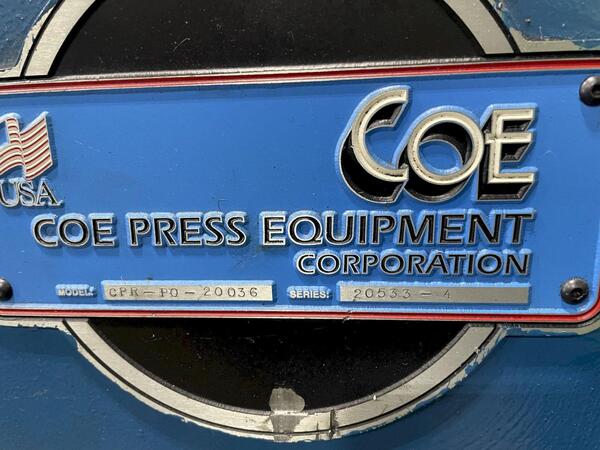

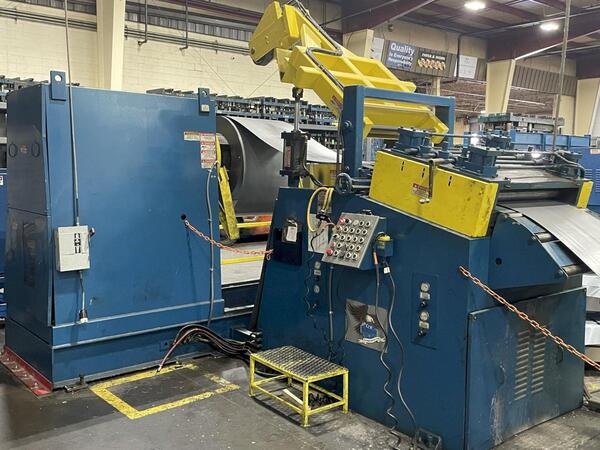

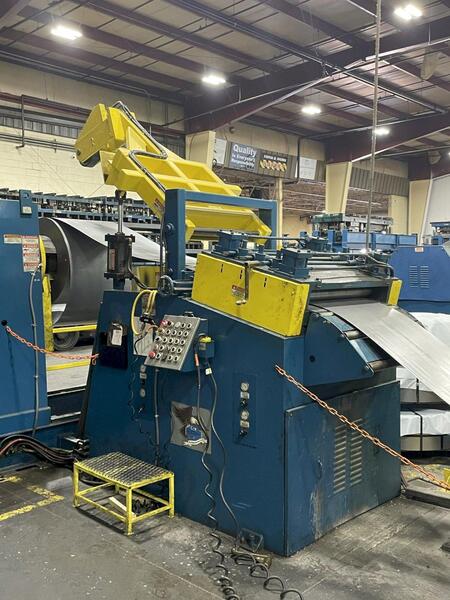

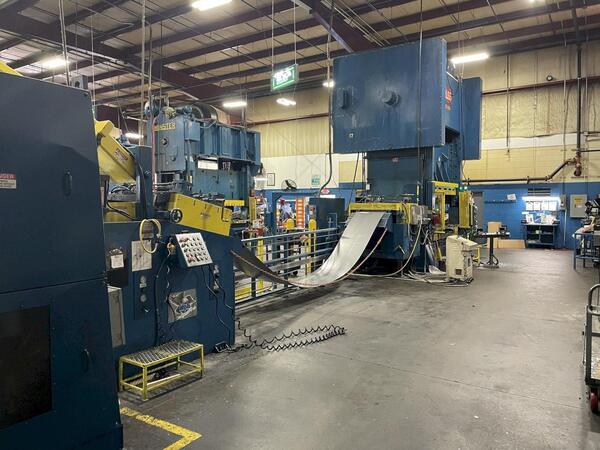

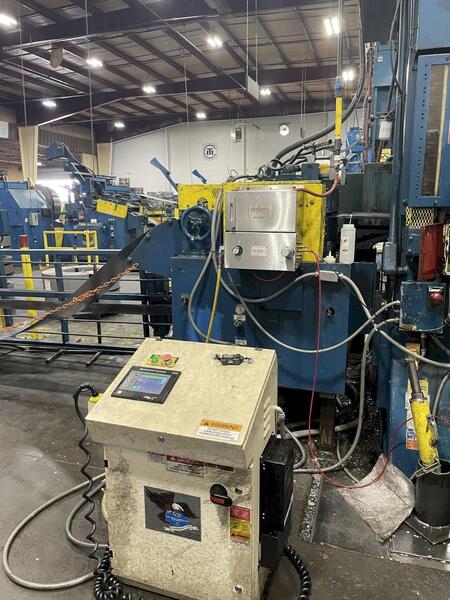

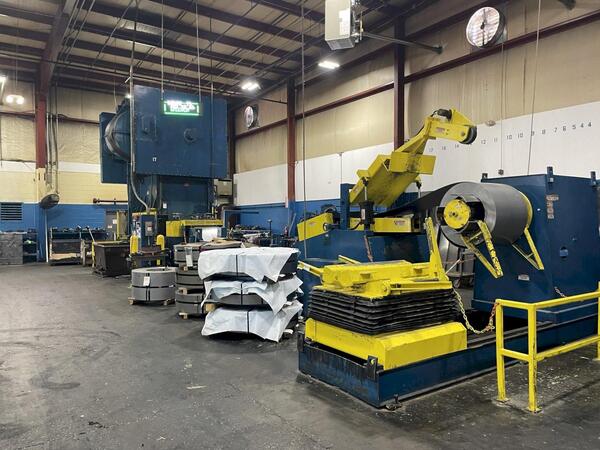

Coe Press Equipment Conventional Servo Feed Line Coe Press Equipment Corporation Coil Reel Model No. CPR-PO-20036 Material Specifications: Maximum Coil Weight: 20,000 lbs. Maximum Coil Width: 36 Inches Maximum Coil O.D.: 72 Inches Mandrel Expansion Range: 18 - 23 Inches Standard Features: “Bearing Tube” support of mandrel 30” diameter heavy duty backplate Three (3) pad mandrel construction One set of (3) narrow coil keepers Material width scales on mandrel pads Heavy duty welded steel construction Hydraulic threading drive feature Hydraulic mandrel expansion feature Jog forward and reverse Air disc brake with dual pressure circuitry to prevent coil over run Coe Press Equipment Hydraulic traveling coil car, Model No. CPTCC-20036 Remote jog pendant for material threading Reel setup to load from back of line (Right to Left) on a Left to Right system Coe Press Equipment Corporation Free Standing Power Straightener Model No. CPPS-350-36 Straightener Material Specifications: Maximum Coil Width: 36 Inches Maximum Material Thickness: .125” at 36 Inches Wide Maximum Material Thickness: .250” at 12 Inches Wide Payoff Rate: Up to 70 FPM Coe Press Equipment Powered Straightener Features: Fully funneled stock path for material threading and operator safety #3 crodon finished upper and lower entrance pinch rolls Air cylinder raise and lower of upper pinch rolls 7 straightener rolls @ 3.5" Diameter Roll Design Upper straightener roll height scales and pointers Independent adjustment of straightening rolls Electrical safety disconnect Central point lubrication system 15 hp. DC variable speed drive 3 roll catenary section with full side plates and funnel Self centering hand crank entrance edge guides Peeler/threader/hold down station Reel to straightener tie in bracket Remote jog pendant for material threading Ultrasonic variable speed loop control Coe Press Equipment Corporation Threading Table Model No. CPTT-3618 Air Operated raise and lower of threading table Heavy duty steel construction Adjustable pass line feature Single sided table construction Based on a 18 foot loop Coe Press Equipment Corporation Servo Drive Roll Feed Model No. CPRF-436 Feed Material Specifications: Material Type: Pre-Straightened MCRS Maximum Material Width: 36 Inches Maximum Material Thickness: .125” at 36 Inches Wide Maximum Material Thickness: .250” at 12 Inches Wide Feed Performance Specifications: Feed Angle: 180-240 Degrees Maximum Speed: 348 Feet/Minute Acceleration: 55 Feet/Sec/Sec Feed Accuracy: +/-.003 Inch Feed Specifications: Number of Feed Rolls: 2 Feed Roll O.D.: 4 Inches Feed Roll I.D.: 0 Inches-Solid Rolls Feed Roll Body Width: 18 Inches Coe Press Equipment Servo Feed Standard Features: AC brushless servo motor Cluster gear driven upper rolls with mating splined shafts and gears Air operated pilot pin mechanism Pivoting upper feed roll to assure full gear mesh Rigid tie bar construction for precise assembly Air pressure regulator for upper feed roll pressure adjustment Free standing sloped front control enclosure C.P.E.C. thumbwheel controller Emergency stop pushbutton Flashing light error diagnostics Fused electrical safety disconnect Single cycle pushbutton for set-up at jog speed Remote jog pendant for material threading Heavy duty cabinet base with 6” of pass line adjustment 3 roll entrance catenary section assures proper material support Dual hand crank entrance edge guides with self centering and independent adjustment 460 volt AC three phase This Used 20,000 lbs. x 36" Coe Press Equipment Conventional Coil Feed Line can be seen under power upon request. Conventional Coil Feed Equipment For Sale, Coe Press Coil Feed Equipment, S&G Press Feed Equipment For Sale, 20,000 lbs. Coil Feed Capacity, 36" Maximum Coil Width Feed Equipment | |||
Get Your Price from S & G Press & Machinery Sales!
