20,000 Lb. Atlas, Bundle Turnover, 84" x162" frame, AB PanelView 550

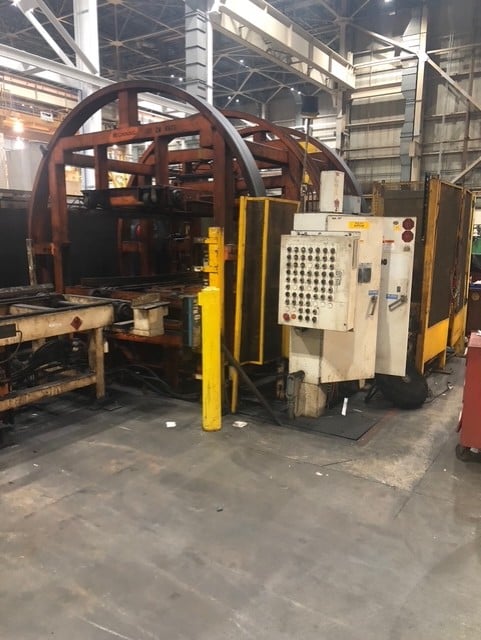

The 20,000 Lb. Atlas Bundle Turnover is a robust and reliable piece of equipment designed for efficient material handling in industrial environments. It boasts a significant capacity of 20,000 pounds, making it suitable for handling large bundles. The turnover features a width between frames of 84 inches at the end and 162 inches on the side, providing ample space for wide materials up to 174 inches when loading from the end. The system is equipped with hydraulically actuated clamping powered by hydraulic motors driving four ball screw jacks, ensuring secure and precise positioning of loads. A maximum gap of 36.5 inches between the upper and lower rolls allows for flexibility in handling varying bundle heights. The durability of the construction is reinforced by a turnover frame length of approximately 16.5 feet, alongside entry and exit conveyors each measuring 15 feet. Additionally, the electrical components include an Allen-Bradley PanelView 550 Terminal for seamless control. The entire setup, with a shipping dimension of 16.5' L x 13' W x 139" H, offers efficient side and end loading capabilities, facilitating adaptability to different workspace configurations.
20,000 lbs.84"162"6" at Each EndHydraulically Actuated80"6"10"Approx. 16.5'174" (When Loading from End)36.5"Hydraulic Motors Driving Four (4) Ball Screw JacksApprox. 16" on Side Opposite Electrical Panels10"15'15'52.75"16.5' L x 13' W x 139" HAllen-Bradley 2711-K5A8X PanelView 550 Terminal & I/O
