Description

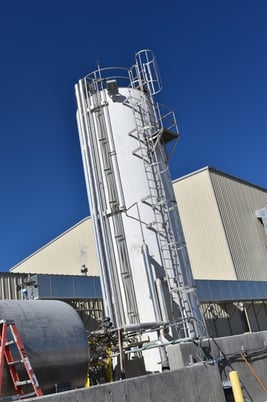

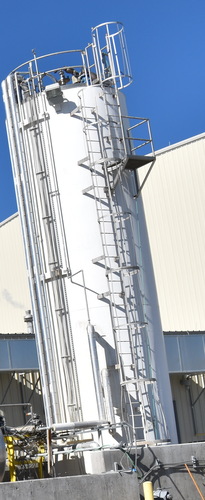

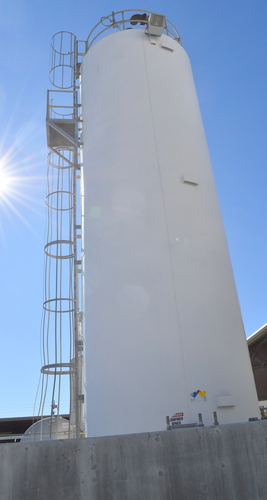

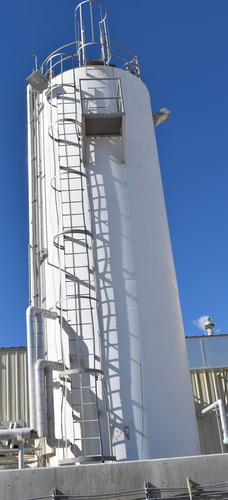

Stainless steel insulated Silo / tank, 20,000 gallon vertical stainless insulated Silo. Heat Transfer dimple jacket

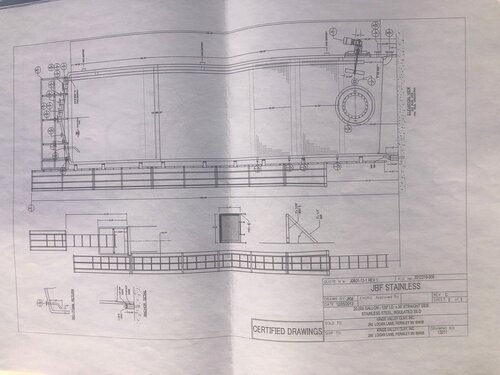

JBF Stainless

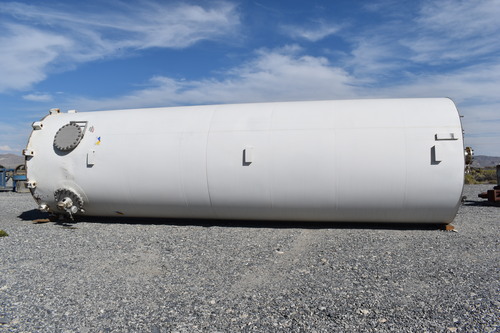

Silo/tank has been removed and is stored in yard
no charge for loading
contact us for a delivered price to your location
Horizontal 24” – 3-Blade turbine agitator, 3HP, 89 RPM.
Dimple sidewall
Heat Transfer dimple jacket
Prior use was industrial ( NOT FOOD GRADE)
Manufactured date: December 2013
Heat Transfer ASME code “UM” Stamped: Pressure: 150 PSIG, Max. Temp: 200 F., Min Temp.: -20 F, Transfer Media Volume: 13 Gallons.,
Heat Transfer Jacket: Dimple Sidewall: SA-240, SS 304, 18 GA (0.048”) Media: (2) zones- 240 SQ. FT total
Diameter: 120” I.D.
Length: strait side 35 ft.
Empty weight approx. 19,500 LBS.
p.o.# 2012219-006
quote# J0801-13-1 REV 1
Silo/tank has been removed and is stored in yard
no charge for loading
contact us for a delivered price to your location
Call for pricing
Price includes loading
Additional tanks available
Get Your Price from Machinery Scene!
