2000 Ton, Ajax, mechanical forging press, 12" stroke, 150 HP

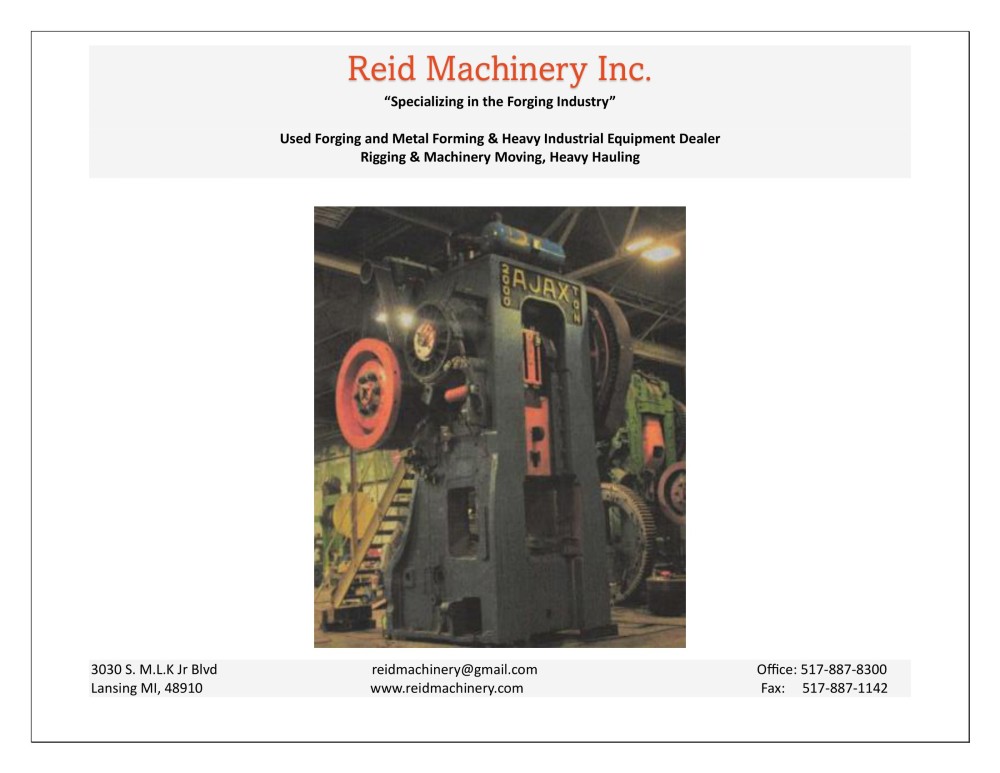

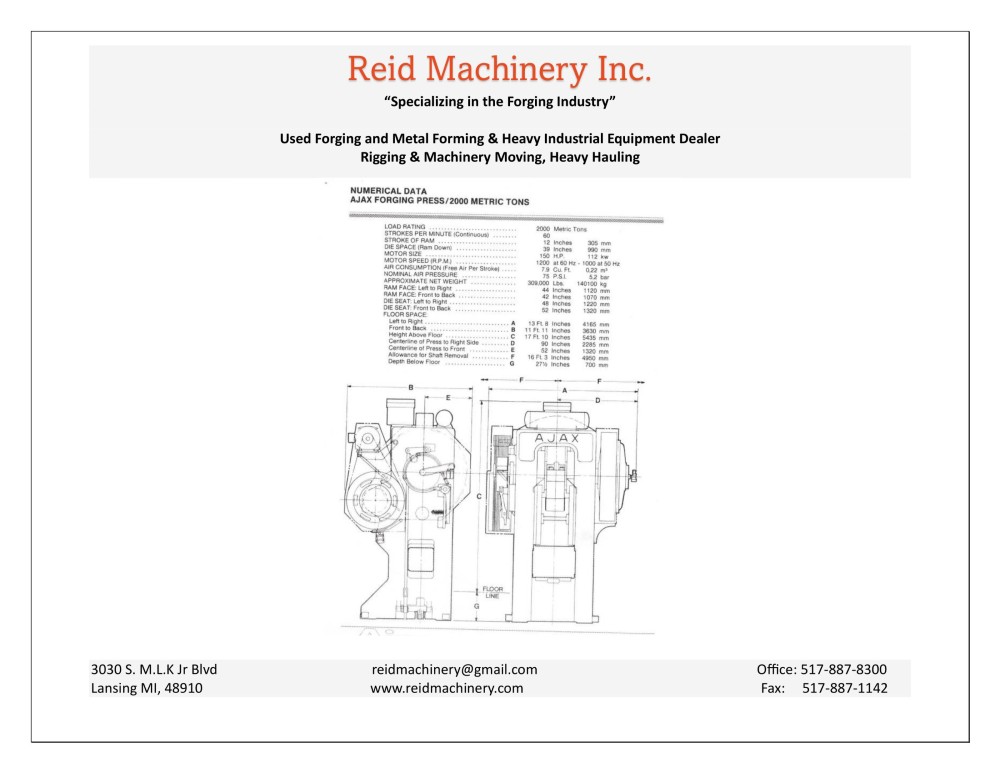

2000 Ton Ajax Mechanical Forging Press

Year: 1974 Asset: L017

Serial Number: 5135

Capacity: 2000 Ton

Stroke: 12”

Die Space (Ram Down): 39"

Motor Size: 150HP

Motor Speed (R.P.M): 1200

Air Consumption (Free Air Per Stroke): 7.9 Cu. Ft.

Ram Face: R to L F to R: 44: x 42"

Die Seat: L to R F to B: 48" x 52:

SPM: 60

Approximate Height Above Floor: 214"

Floor Space: L-R & F-B 164" x 143"

Approximate Weight: 309,000 lbs.

Specifications are correct to the best of our knowledge but are subject to correction upon inspection. All sales are subject to our “Standard Terms and Conditions of Sales" with the exception made only by Reid Machinery Inc and all parties involved in the transaction. Specifications of machine: (Subject to buyer verification)
