Description
🚀 Ready-to-Ship! Contact us now to receive the As-Built Drawings and Test Reports immediately

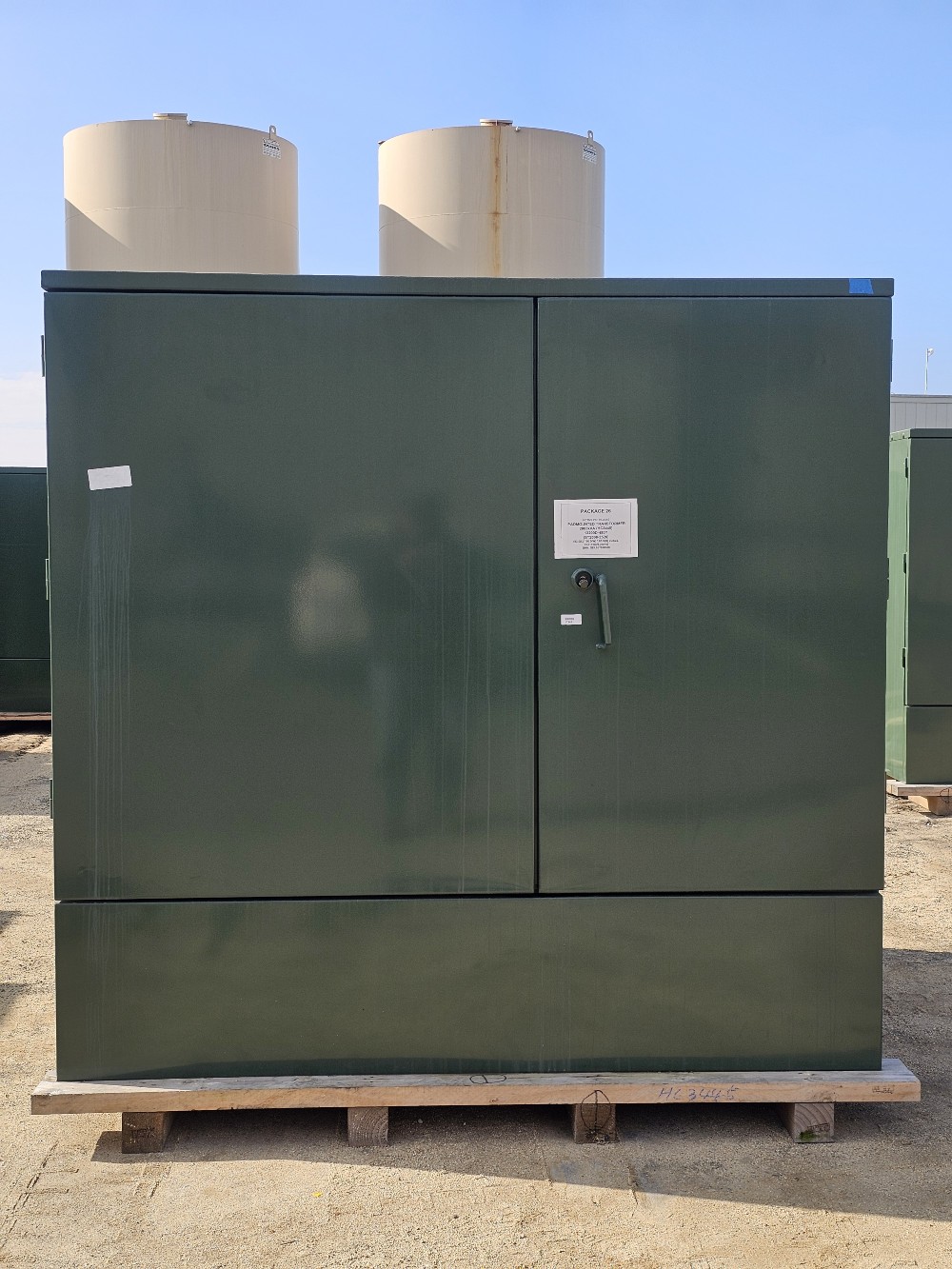

This premium 2000 kVA three-phase pad-mounted transformer is manufactured by HC Transformer & Switchgear (IEN Hanchang) a premier manufacturer with over 50 years of industry experience supplying products to the U.S. power distribution market.
Designed for high-end utility and heavy industrial applications, this unit features an ultra-high-voltage 13,200V Delta primary with a superior 95kV BIL insulation rating.
It is UL Listed and fully compliant with 2016 DOE efficiency standards. Currently in stock and ready for immediate loading with full documentation.
Key Specifications
Capacity : 2000 kVA (Three-Phase, 60Hz, ONAN)
- Voltage : 13,200V Delta primary to 480Y/277V
- Insulation Level : 95 kV BIL (HV) / 30 kV BIL (LV) — Advanced Surge Protection
- Protection System : Bay-O-Net Fuse + Current Limiting Fuse (125A)
Tap Changer : 7-Position De-energized Tap Changer (DETC)
Vector Group : Dyn1 (Optimized for grounding & harmonic mitigation)
Switching : Cooper 4-Position Loadbreak T-Blade Switch
- Efficiency: Fully compliant with DOE 2016 Standard

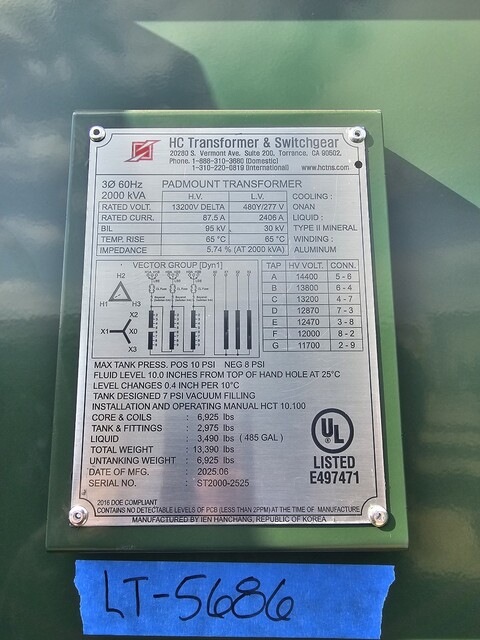

Detailed Specifications
| Feature | Specification |
| Manufacturer | HC Transformer & Switchgear (IEN Hanchang) |
| Cooling / Fluid | ONAN / Type II Mineral Oil (Approx. 480-485 GAL, PCB Free) |
| Winding Material | Aluminum |
| 7-Tap Settings | 14400, 13800, 13200 (Nominal), 12870, 12470, 12000, 11700 V |

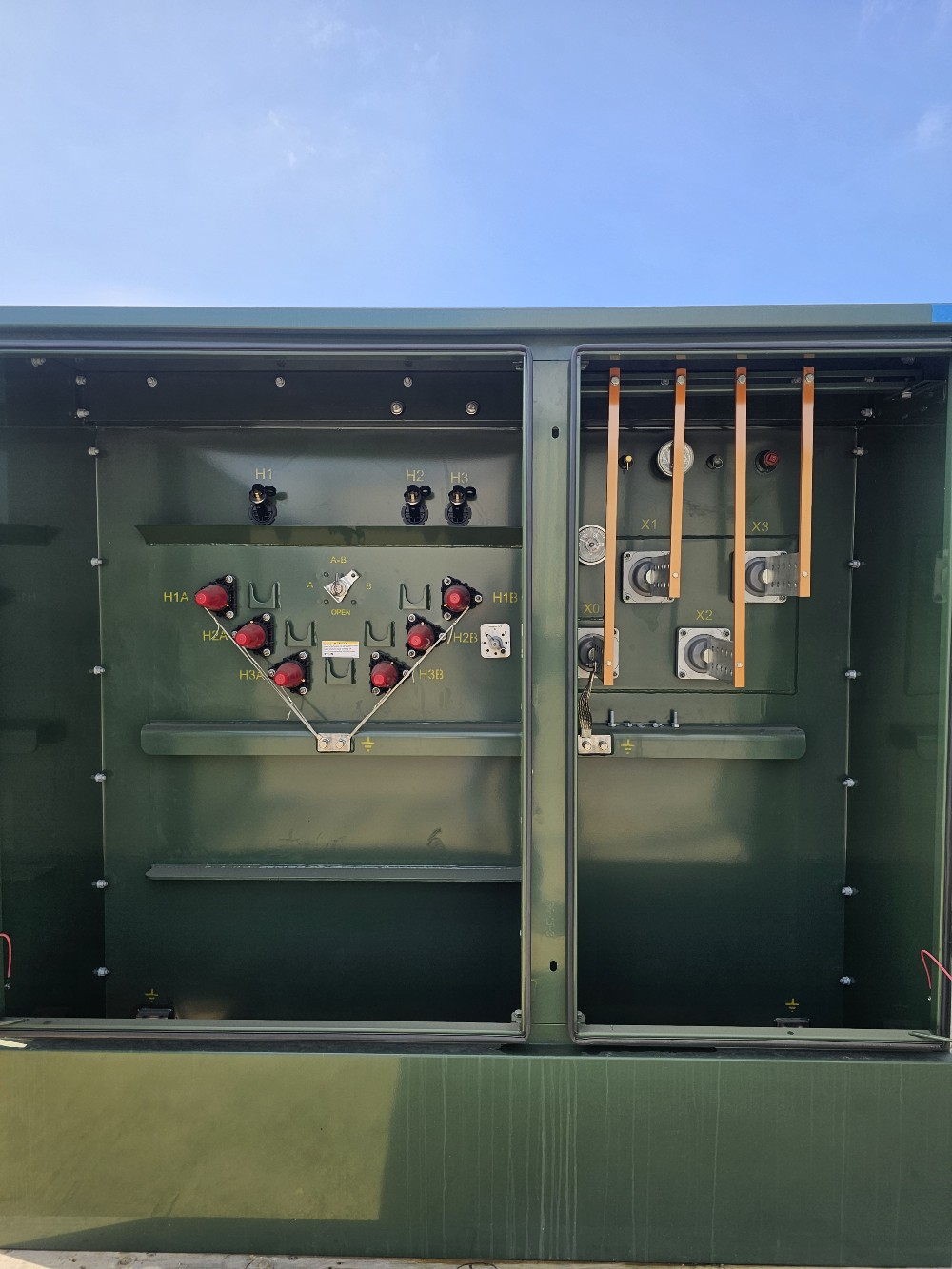

| H.V. Connection | 15kV, 200A Bushing Well & Inserts (6 Qty) |
| L.V. Connection | 2.5kV, 3300A Bushing (10-Hole, 4 Qty) |
| Total Weight | 13,390 lbs (Approx. 6.7 Tons) |
| Enclosure | NEMA 3R Tank with Penta-head security bolts |
| Color | Munsell #7.0GY-3.29/1.5 (Green) |
🌟 Why HC TNS? (Your Trusted Power Partner)
Beyond just a sale—Integrated solutions for your project’s success.
[Ready-to-Ship] Immediate delivery from our extensive stock (300 kVA – 3,750 kVA).
[Fast-Track] Custom-built units with the industry’s shortest lead times for your specific requirements.
[Professional] Expert on-site installation and emergency repair services provided by senior engineers.
[Proven Quality] Over 50 years of U.S. electric expertise, specializing in high-reliability pad-mounted designs and UL Listed (E362009) compliance.
Inquire today for 7-Tap specifications and the fastest delivery schedule!
