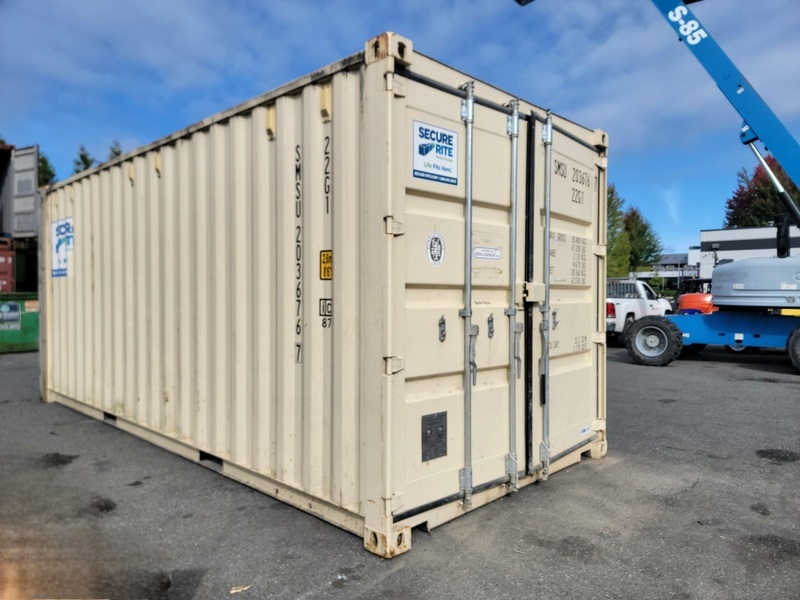

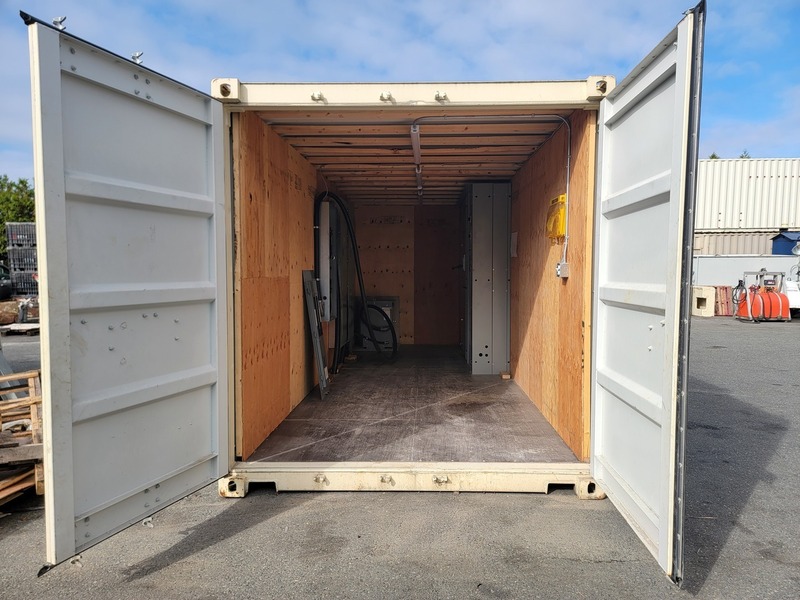

2000 Amps 480Y/277 Volts Eaton Switchgear Power Distribution Center w/ 45 KVA Transformer & Panels (Containerized)

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 142837
Condition: Used
Additional Description:

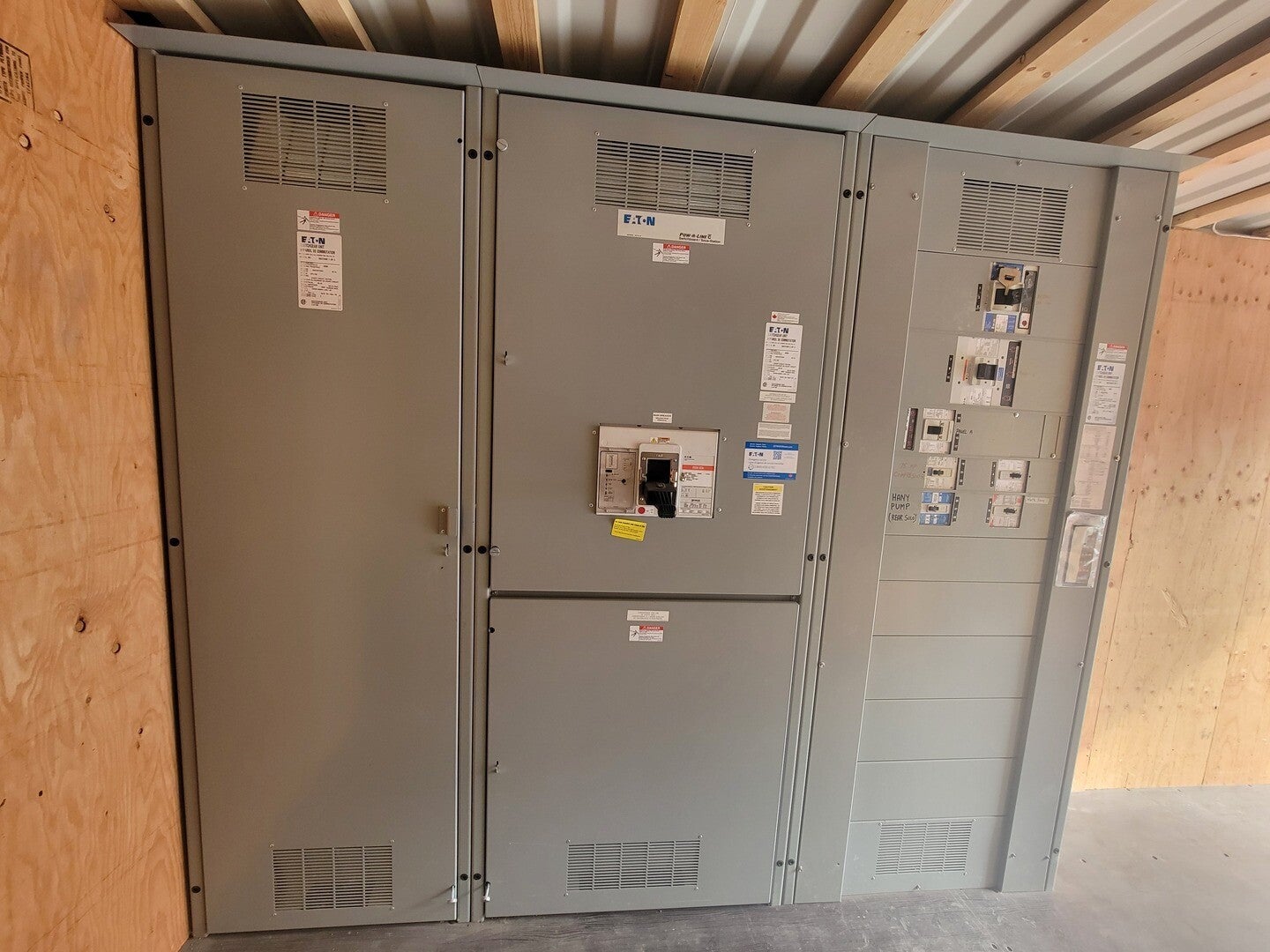

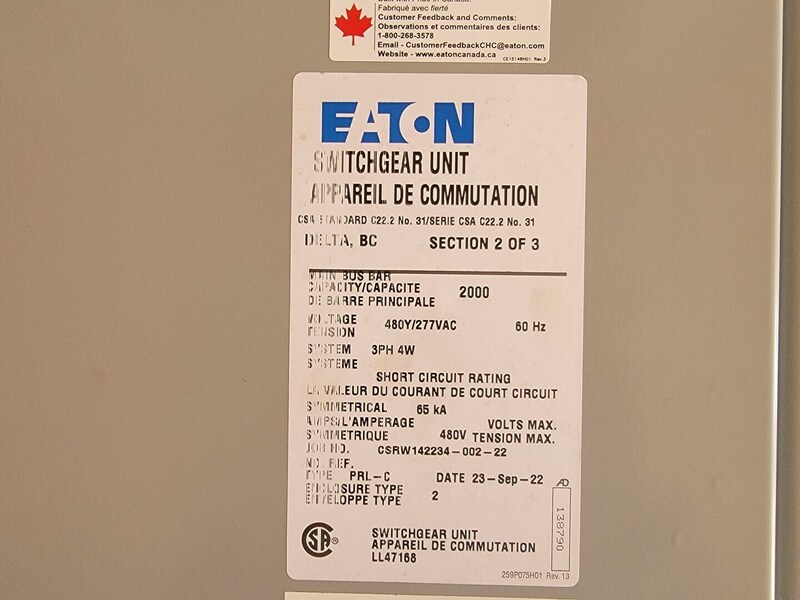

Switchgear (Main Assembly)
- Manufacturer: Eaton
- Type: Low Voltage Switchgear
- Sections: 3 Sections
- Bus Rating: 2000 Amps
- Voltage: 480Y/277V
- Phase: 3 Phase, 4 Wire
- Frequency: 60 Hz
- Short Circuit Rating: 65 kA
- Enclosure Type: Type 2

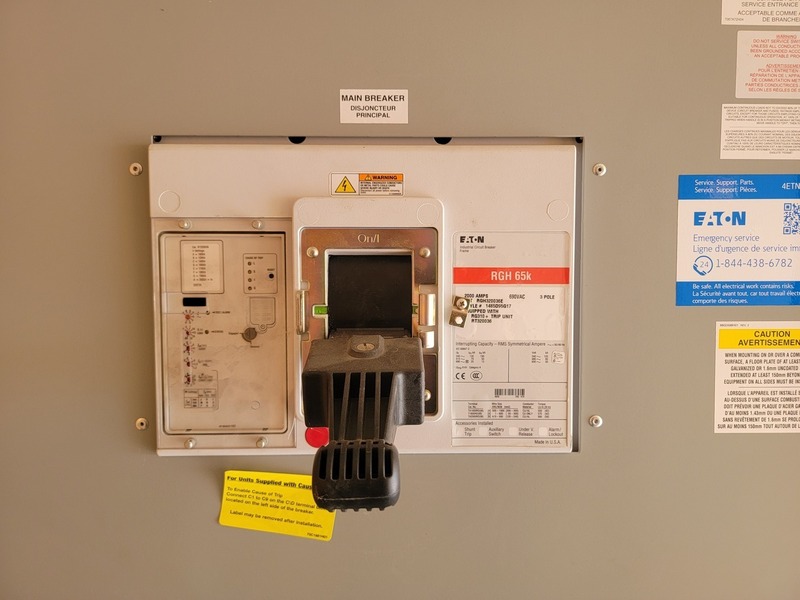

Main Breaker
- Manufacturer: Eaton
- Model: RGH 65k
- Rating: 2000 Amps
- Poles: 3 Pole
- Voltage Rating: Up to 600V
Feeder Breakers (Installed)
- 800A - Eaton Series C (HMDL)
- 400A - Eaton HKD
- 150A - Eaton FD
- 90A - Federal Pioneer
- 60A - Eaton HFD
- 50A - Eaton HFD
- Additional branch breakers installed in panelboards
Transformer
- Manufacturer: Rex Power Magnetics
- Capacity: 45 kVA
- Phase: 3 Phase
- Primary Voltage: 480V Delta
- Secondary Voltage: 208Y/120V
- Frequency: 60 Hz
- Enclosure: Type 3R
- Insulation Class: 220C
Panelboards
- Manufacturer: Square D (Schneider Electric)
- Type: NQ / NQOD Panelboards
- Enclosure: Type 1
- Configuration: Multi-circuit distribution panels
- Application: Branch circuit distribution (lighting, receptacles, equipment)
Additional Components
- Eaton Meter Socket / Service Entry Section
- Pre-installed feeder cabling and conduit
- Grounding and bonding system
- Fully wired and integrated assembly
