Manufacturer: Niagara
Model: SC1-200-30-36
Year: 1966
Ton: 200
Stroke: 10.0
Shut Height: 26.0
Air Clutch: Yes
Stock # 8028
1 / 4
Click to zoom in
1 / 4
For Sale by Alma Machinery Co-Columbia TN
Surplus Record Dealer Since 1960
Location: Columbia, TN
Contact Ken King
Phone Number: 615...> Show Phone Number 615-369-7788
Let the seller know you found their listing on Surplus Record!
Description

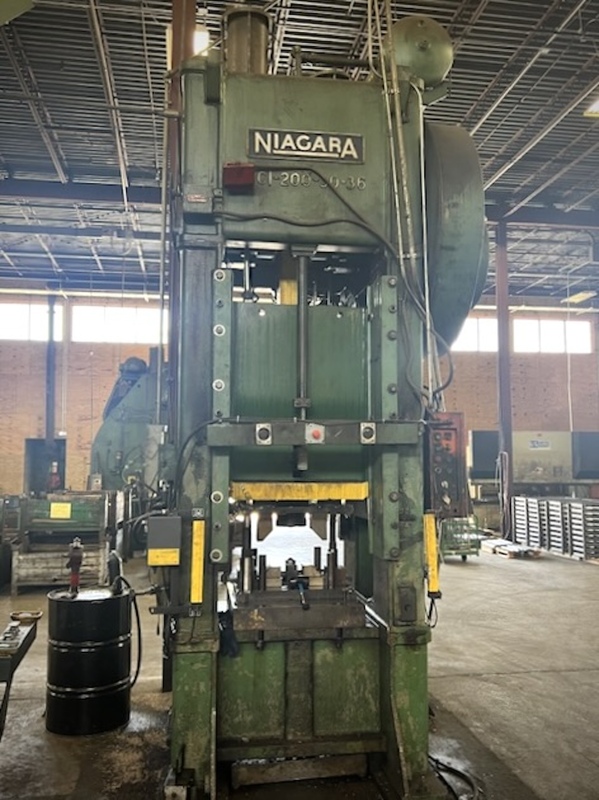

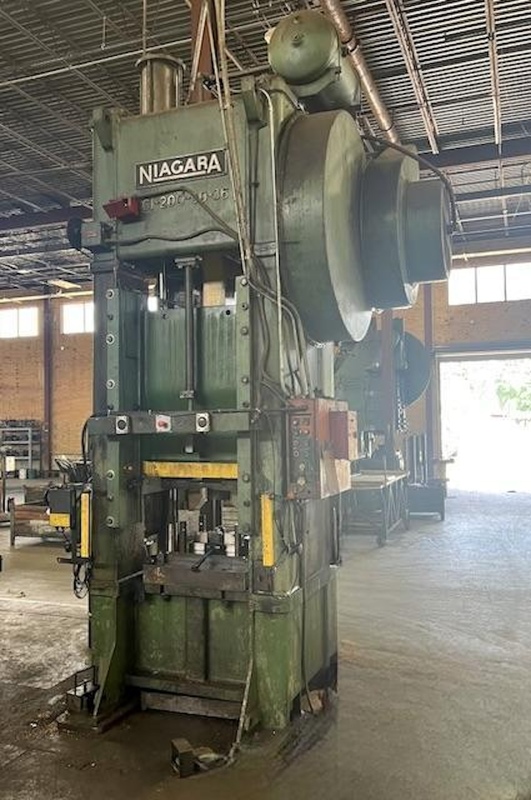

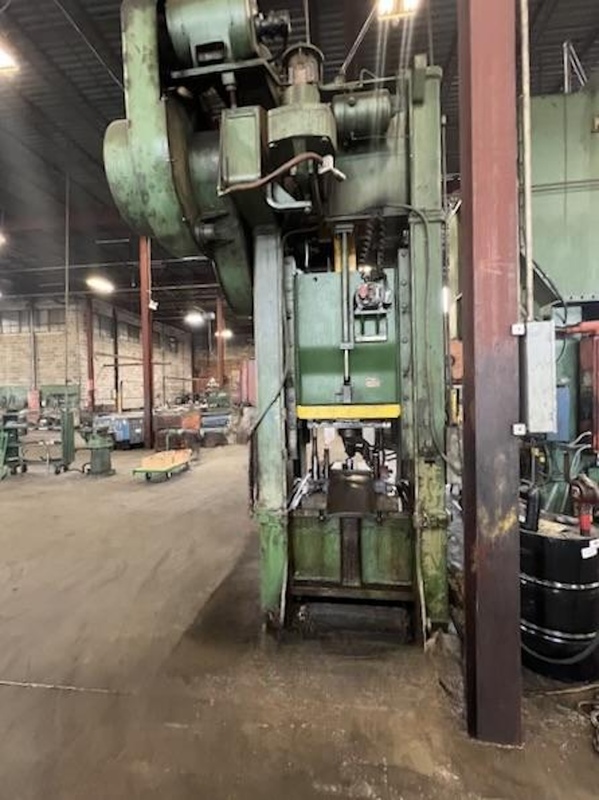

Straight Side Press • Used 200 Ton Press for Sale
Manufacturer: Niagara
Model: Niagara SC1-200-30-36 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1966
Machine #: 8028
| CAPACITY | 200 TON |
|---|---|
| STROKE | 10″ |
| MAX SHUT HEIGHT TO BED | 26″ SDAU |
| BED AREA | 30″ X 36″ (RL X FB) |
| SPEED | 30 SPM |
| SLIDE ADJUSTMENT | 10″ MOTORIZED |
| SLIDE AREA | 30″ RL X 30″ FB |
| BOLSTER PLATE | 5″ H X 30″ RL X 36″ FB |
| DISTANCE BETWEEN UPRIGHTS | APPROX 32″ |
| DISTANCE FLOOR TO BED | 32″ |
| WINDOW SIZE | 21″ |
| CLUTCH | NIAGARA AIR CLUTCH & BRAKE |
| ELECTRICS | 20 HP 1150 RPM 208-240/480V-3-60 MOTOR & NIAGARA RELAY PRESS CONTROL |
| APPROX DIMENSIONS | 183″ H X 104″ RL X 92″ FB |
| APPROX WEIGHT | 48,000 LBS |
| EQUIPPED WITH | SINGLE BACK GEARED DESIGN, FLOOR STANDING, TIE ROD FRAME, DUAL AIR COUNTERBALANCES, TRABON LUBRICATION, FLYWHEEL BRAKE |
| NOTE | __ |
| LOCATION | THIS USED PRESS IS LOCATED IN OUR COLUMBIA, TN WAREHOUSE |
