For Sale by Southern Fabricating Mchy Sales
Surplus Record Dealer Since 2015
Location: Lithia, FL
Contact Dan McCurdy
Phone Number: 813...> Show Phone Number 813-444-4555
Let the seller know you found their listing on Surplus Record!
Description
200 Ton Double Crank Gap Frame Press with Palm Buttons, Air Clutch & Brake, Air Counterbalance, Floor Standing, T-Slotted Ram and Bolster
GENERAL SPECIFICATIONS
Stroke: 10"
Shut Height: 24"
Powered Ram Adjustment: 6"
SPM: 30
Bed: 60" X 30"
Ram: 60" X 30"
Electrical: 480 V / 3 Phase
Dimensions: 124" Lr X 114" Fb X 184" Tall
Estimated Weight: 60,000 Lbs
INCLUDES: Palm Buttons, Air Clutch & Brake, Air Counterbalance, Floor Standing, T– Slotted Ram and Bolster
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
Get Your Price from Southern Fabricating Mchy Sales!
Buyers Who Viewed This Listing Also Viewed:

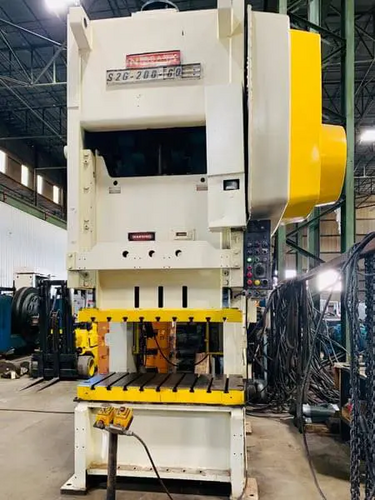

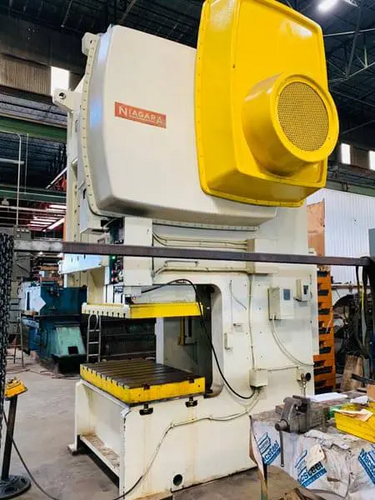

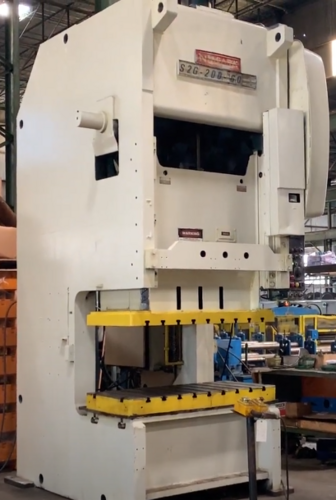

200 Ton, Niagara #S2G-200-60-30, double crank gap frame press, 10" stroke, 24" Shut Height, air clutch, #68195
Category: Gap Frame Double Crank Press Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Niagara
Model: S2G-200-60-30
SERIAL. 50781, MODEL. S2G-200-60-30, CAPACITY. 200 TON, BED DIRECTION L-R. 60", BED DIRECTION F-B. 30", STROKE. 10", STROKES PER MINUTE. 30, SHUT HEIGHT. 24", RAM. 6" ADJUSTABLE, PALM BUTTON. YES, AUR CLUTCH. YES, COUNTER BALANCE. YES, FLOOR STANDING. YES.
JUST ADDED!

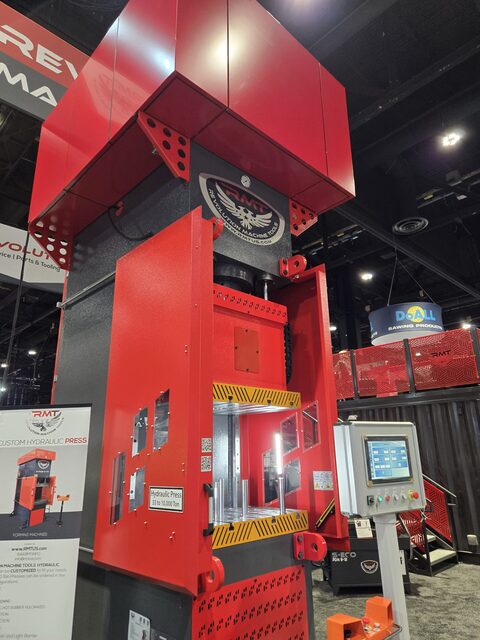

220 Ton, RMT #H-SMART-C220, C frame hydraulic press, 36" x24" table, 20" daylight, 16" stroke, 4" open, 20 HP
