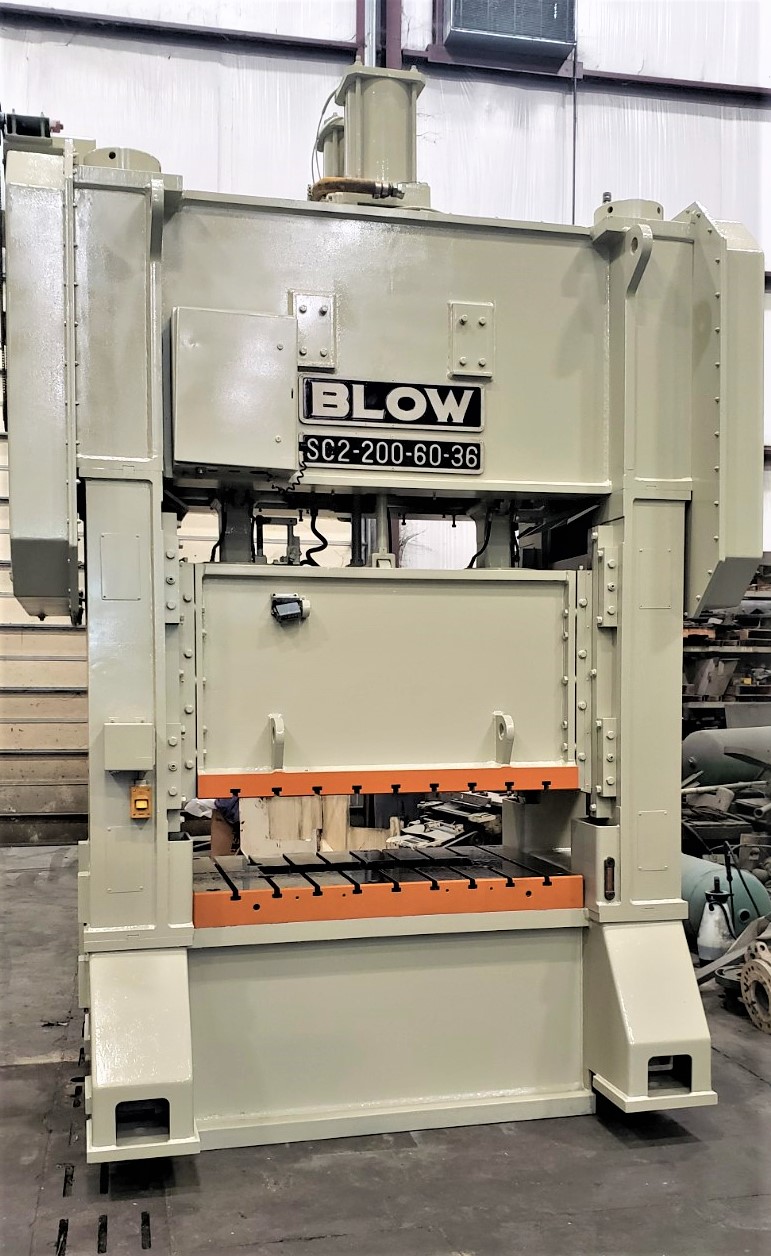

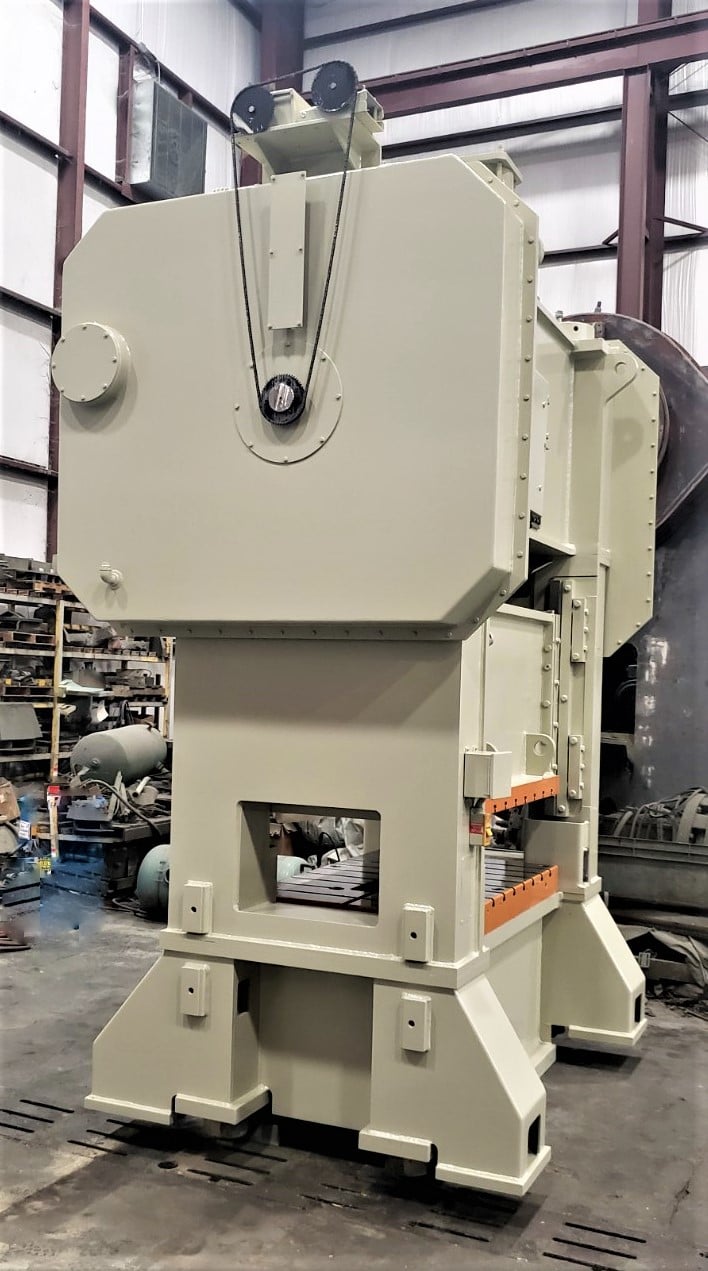

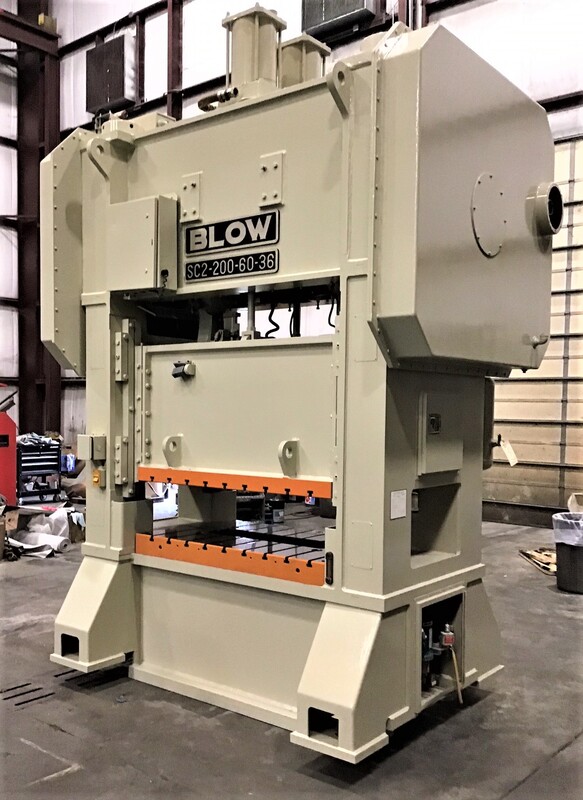

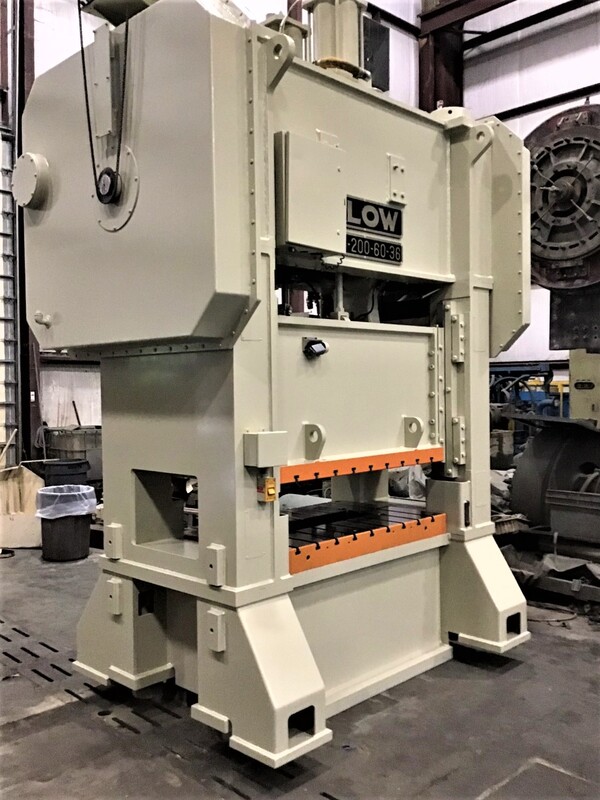

Manufacturer: Blow
Model: SC2-200-60-36
Year: 2001
Ton: 200
Stroke: 5.0
Shut Height: 16.0
Air Clutch: Yes
Stock # 5571
1 / 10
Click to zoom in
1 / 10
For Sale by Alma Machinery Co-Columbia TN
Surplus Record Dealer Since 1960
Location: Columbia, TN
Contact Ken King
Phone Number: 615...> Show Phone Number 615-369-7788
Let the seller know you found their listing on Surplus Record!
Description

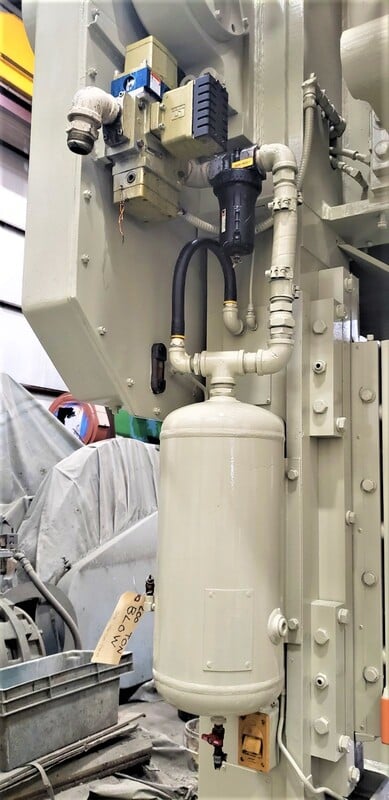

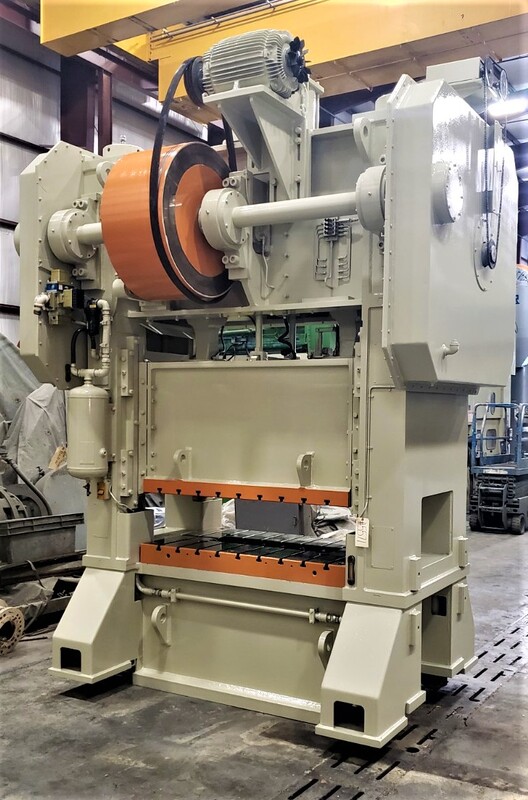

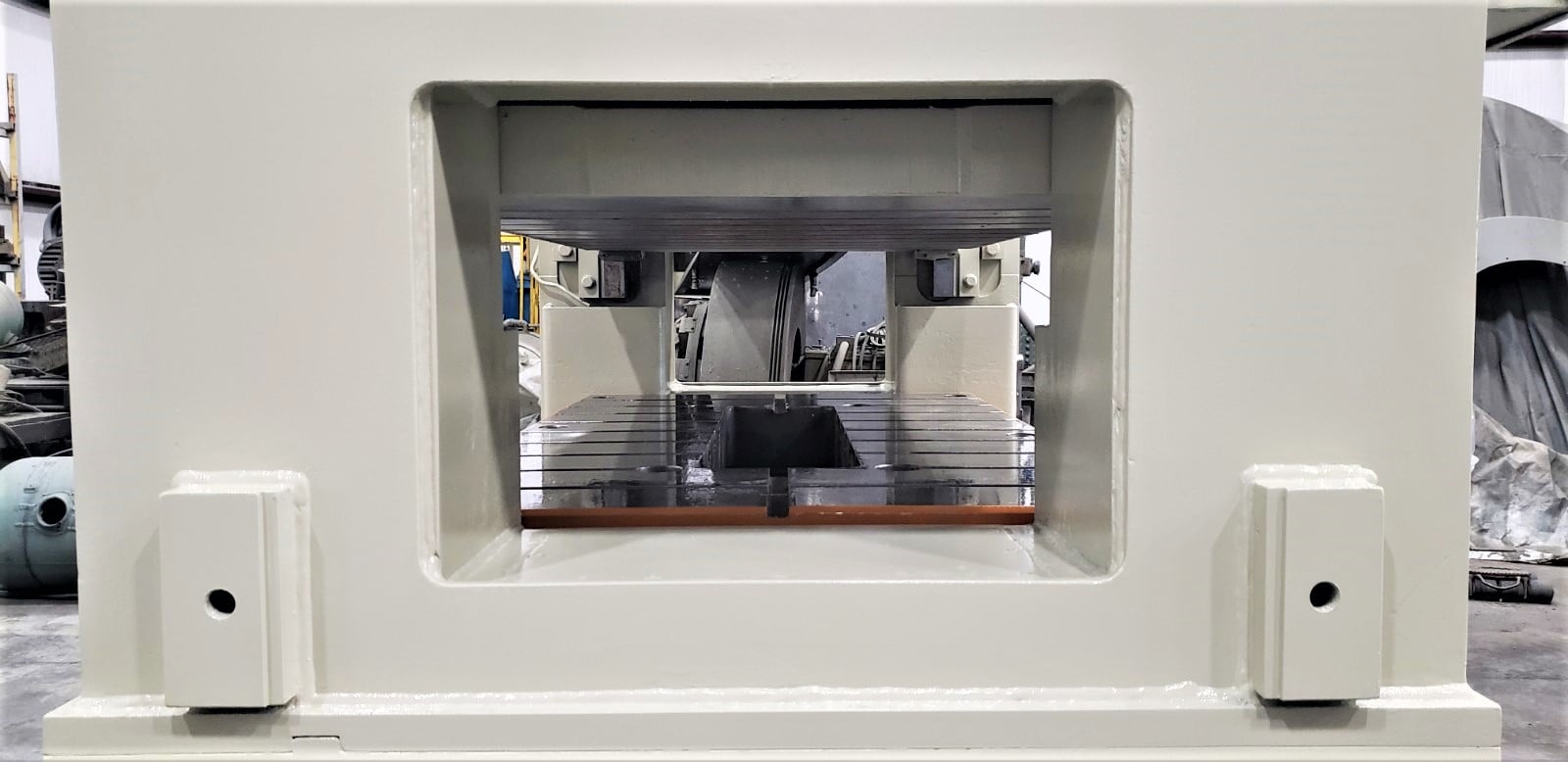

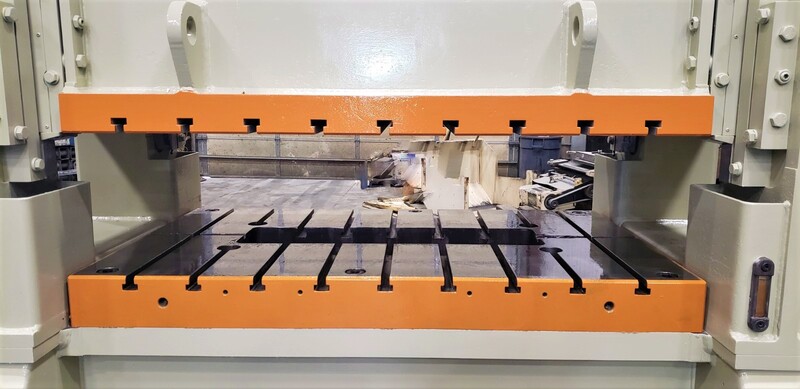

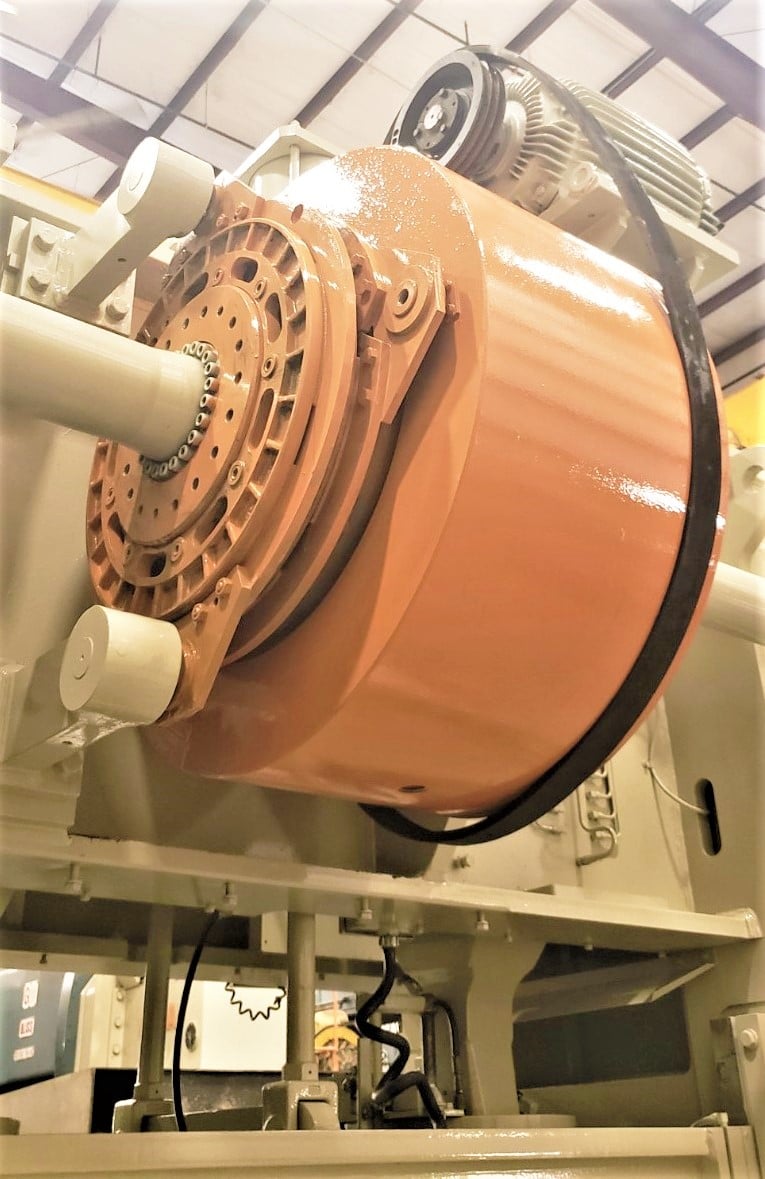

| CAPACITY | 200 TONS | STROKE | 5" | MAX. SHUT HEIGHT | 16" SDAU OVER BOLSTER | BED AREA | 60" X 36" (rl x FB) | SPEED | 30 - 90 SPM | slide adjustment | 6" MOTORIZED | slide area | 60" RL X 36" FB (T-SLOTTED) | BOLSTER PLATE | 5" H X 60" RL X 36" FB (T-SLOTTED) | DISTANCE UPRIGHTS / FLOOR TO BED | 61" / 32.5" | WINDOW SIZE | 22" W X 16" H | CLUTCH | WICHITA COMBINATION AIR CLUTCH / BRAKE | ELECTRICS | 30 HP 1750 RPM 240/480V-3-60 MOTOR W/480V VFD & LINK PRESS CONTROL | APPROX. DIMENSIONS | 13.5' H X 10' RL X 7.5' FB | APPROX. WEIGHT | 60,000 LBS | Equipped With | DUAL AIR COUNTERBALANCED RAM TIE ROD FRAME CONSTRUCTION | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
Get Your Price from Alma Machinery Co-Columbia TN!
