6900 PPH Smith Hughes #RT-200B, RENTAL, 200 HP, 600 psi, Vapor Power Nat Gas, #2 fired, watertube steam generator/boiler, trailer enclosed

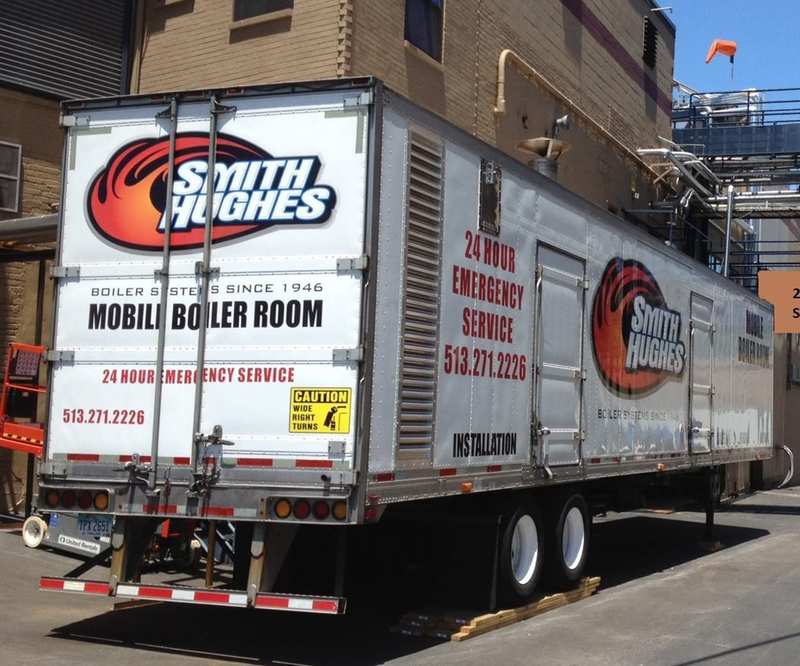

RT-200B Mobile Boiler Room
200 HP, 600 PSIG, Natural Gas,
No. 2 Fuel Oil Fired
Complete boiler room package is designed to be placed in service at customer specified location with minimal
on-site work.
INCLUDES:
• 36' Enclosed semi-trailer
• (1) 200 HP Vapor Power steam boiler
• 600 PSI Design pressure
• 540 PSI max operating pressure
• 6900 pph from and at 212 deg. F
• Natural gas, No. 2 fuel oil fired
• (1) Deaerator feed water system with duplex pumps
• (1) Duplex water softening system
• (1) Blowdown tank with cooling valve
• (2) Chemical metering pumps with chemical injection quills
• Gas pressure regulator
• Exhaust stack (shipped loose)
• Interior lighting
• Operating instructions
• All electric and piping interconnected within trailer
CONNECTION SIZES:
• Natural gas: 3" 150# FLG (1psig required to regulator)
• No. 2 Fuel Oil: 1/2" NPT
• Feedwater: 1.5" NPT
• Steam: 3" 600# FLG
• Condensate Return: 2" 600# FLG
ELECTRICAL REQUIREMENTS:
• 460v, 3ph, 60hz, 100Amp
FUEL CONSUMPTION:
• Natural Gas: 8810 CFH, 10 PSIG Max
• No. 2 Fuel Oil: 60 GPH
SHIPPING WEIGHT:
• 25,000#'s
Freight, installation boiler chemicals are available upon request
