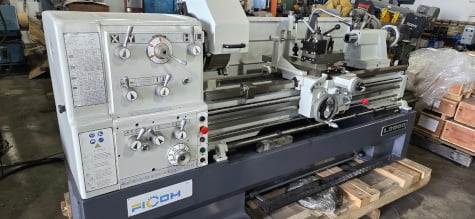

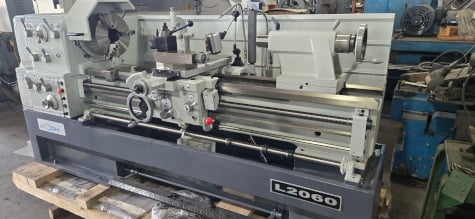

20" x 60" Ficom #L2060, Engine Lathe, 12" swing over cross slide, 3-1/8" bore, 25-1600 RPM, inch/metric thread, tailstock, 10 HP, SINO digital read out, Steady Rest, Follow Rest, new

20” X 60” Engine Lathe with SINO 2 - Axis Digital Readout, 12” 3 - Jaw Chuck, 16” 4 - Jaw Chuck, Faceplate, Thread Dial, Quick Change Tool Post with Holders, Steady Rest, Follow Rest, Work Light, Coolant System, Chuck Guard with Safety Switch, Solid Bed Casting for Maximum Rigidity, Set of Levelling Pads, Full Length Splash Guard and Foot Brake.
GENERAL SPECIFICATIONS
Swing Over Bed: 20”
Swing Over Cross Slide: 12”
Swing in Gap x Width: 28.9” X 6.7”
Distance Between Centers: 60”
Spindle Hole: 3-”
Spindle Nose: D1-8 Camlock
Spindle Speeds: 12
Spindle Speed Range: 25 - 1600 RPM
Inch Thread - Number: 60
Inch Threads - Range: 2 - 112 tpi
Metric Threads - Number: 47
Metric Threads - Range: .2 - 14 mm
Feeds - Number: 35
Feeds Range (Longitudinal): .0022” - .0612”
Tailstock Taper: #5 MT
Tailstock Travel: 7”
Tailstock Diameter: 3”
Main Motor Power: 10 HP
Coolant Pump Motor: HP
Approx. Weight: 5,610 Lbs
Floor Dimensions: 114” X 46” X 67”
INCLUDES: SINO 2 - Axis Digital Readout, 12” 3 - Jaw Chuck, 16” 4 - Jaw Chuck, Faceplate, Thread Dial, Quick Change Tool Post with Holders, Steady Rest, Follow Rest, Work Light, Coolant System, Chuck Guard with Safety Switch, Solid Bed Casting for Maximum Rigidity, Set of Levelling Pads, Full Length Splash Guard and Foot Brake.
