Description
Equipped With
Manufacturer: Yoder / Mill Tech
Pipe Grade Specifications:
API 5L (Grade up to X80), API 5CT (Grade H40, J55 and K55), ASTM, ISO, DNV (OS F101), Specific International /National Standards Specifications
Technical Specifications and Production Data:
Pipe Grade Specifications:
API 5L (Grade up to X80), API 5CT (Grade H40, J55 and K55), ASTM, ISO, DNV (OS F101), Specific International /National Standards Specifications
Technical Specifications and Production Data:
Pipe OD Range: 6 5/8" to 20"
Wall Thickness Range: .157" to .563"
Pipe Length : 20' to 78.5'
Production Capacity: 175,000 Metric Tons Per Annum
Mill Speed:
- 10-14mpm API X70
- 20mpm other grades
Mill Speed:
- 10-14mpm API X70
- 20mpm other grades
Complete Pipe Mill Line with the Following Components:
- Uncoiler
- Powered Hold Down Roll
- 5 Roll Flattener
- Entry Crop Shear
- Coil Shear End Joining Station
- Horizontal Accumulator
- Entry Edge Guides
- Transition Section with (1) Break Down Roll, Edge Bending Pass, Cage Forming Section
- Yoder Forming Mill Section with (3) Fin Pass Rolls with Motorized Single Point Adjustment, 10" Diameter Shaft, (4) Roll Design, (1) Seam Guide
- 1200 kW Thermatool HF SS HTZ Welder
- 5 Roll /4 Roll Squeezing Weld Box
- ID Scarfing Unit
- OD Chopper Unit
- (3) Seam Annealers
- Cooling Section

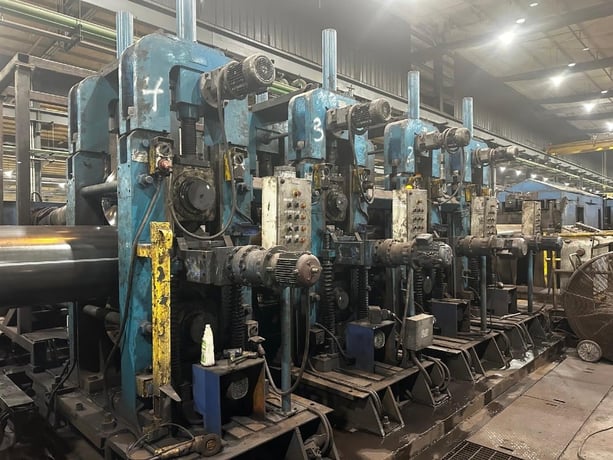

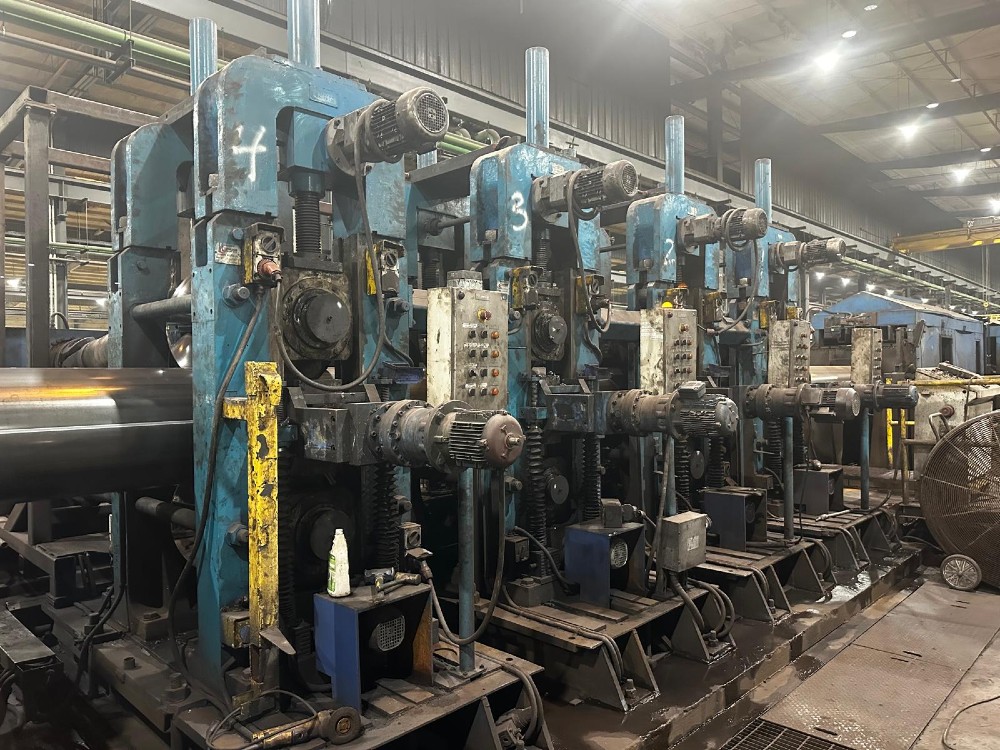

- Sizing Section with (4) Sizing Stands, 10" Diameter Shaft
- (2) Turks Heads
- Online Dimensional Ovality Measuring Machine
- Linsinger Pipe Milling Saw Cut Off
- Pipe Identification Marking System
- Pre-Visual Inspection Conveyors Area:
- Pipe End Beveling System
- Hydro Tester
- Seam and Body Ultrasonic Tester
- Pipe Weighing Scale
- Final Inspection Area
-Offline Dimensional Machine
- Automatic ID/OD Pipe Marking System
Siemens Touch Screen Controls
Parker AC Variable Speed Drives 690+ Series Integrator
Siemens Sinamics Digital Drives
Fanuc PLC
Siemens PLC S7-300
Mechanical , Electrical and Component Upgrades in year 2012 ( Over $10 Million USD Upgrade )
Complete with Hydraulics, Electrics, Controls, Tooling, Manuals
Installed and in Operation
