20" x 40" Kent #KGS-510AHD, automatic hydrauic horizontal spindle surface grinder, electromagnetic chuck

Estimated monthly payment valid upon approved credit.

Request Formal Quote

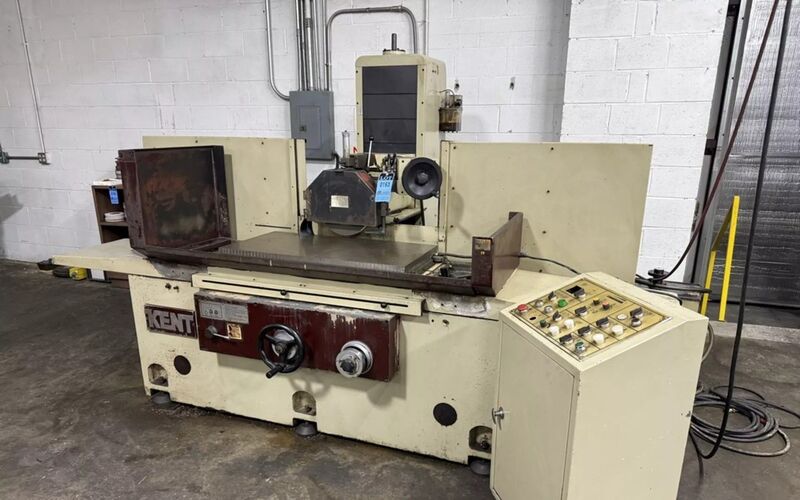

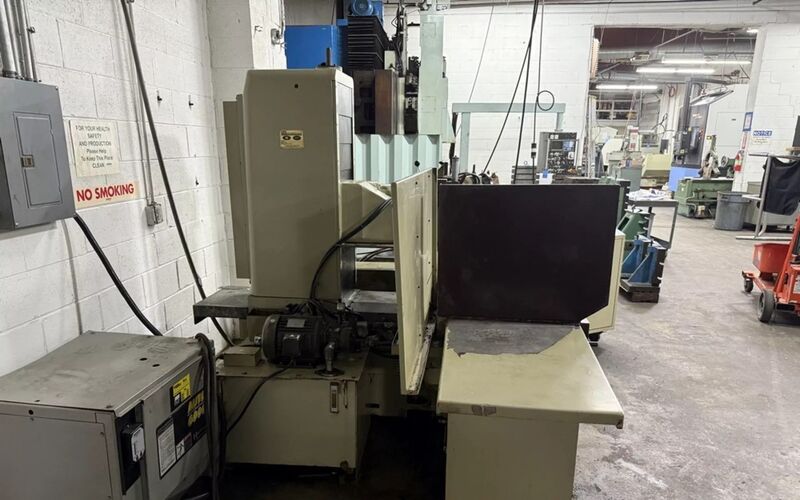

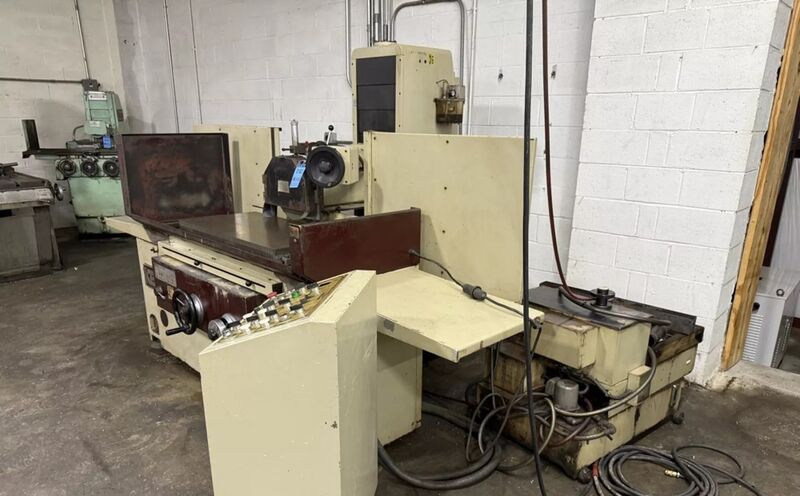

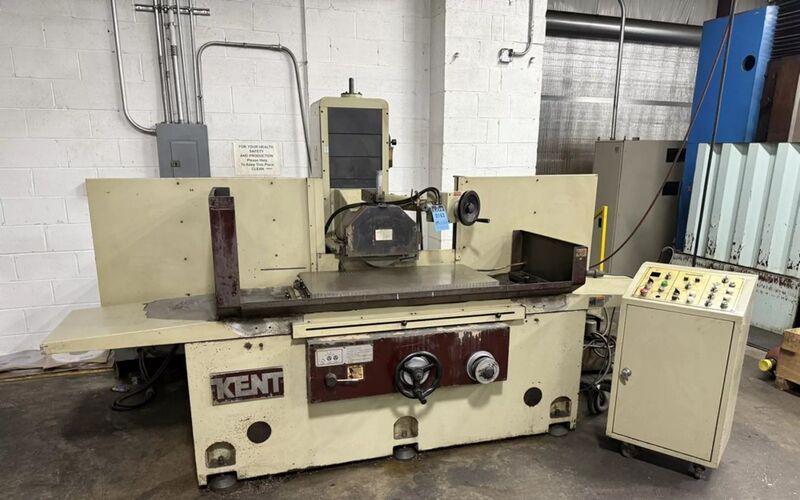

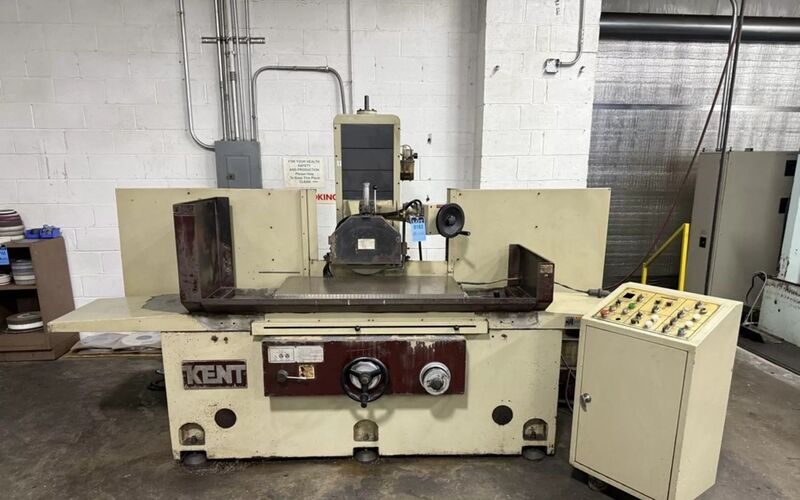

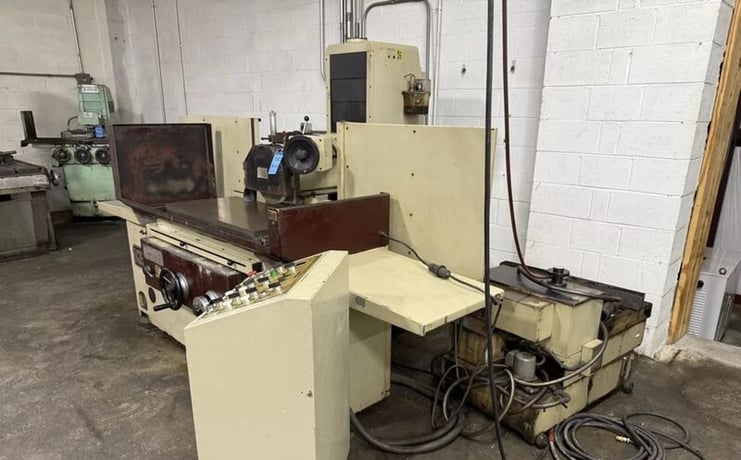

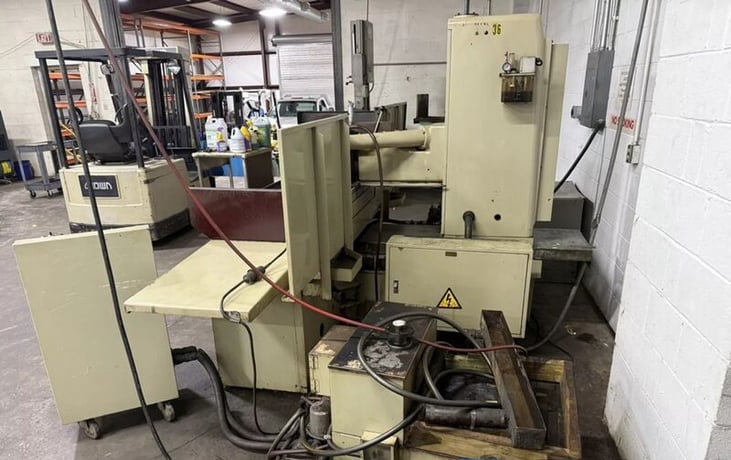

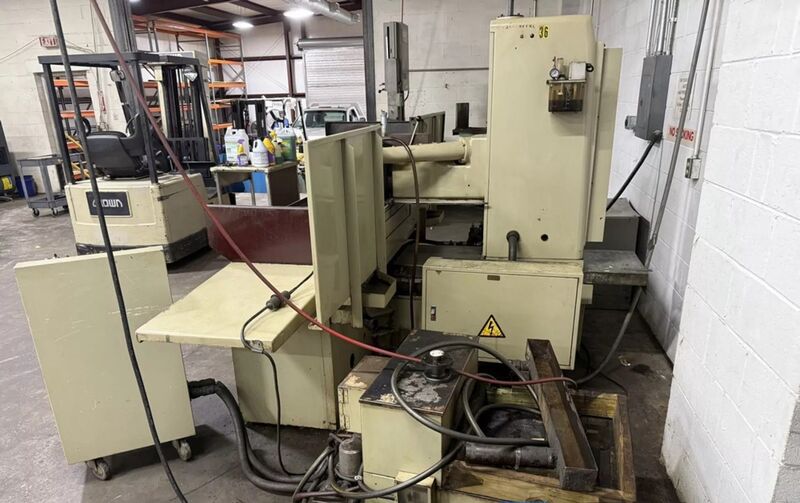

20" X 40" KENT "KGS-510AHD" AUTOMATIC HYDRAULIC HORIZONTAL SPINDLE SURFACE GRINDER - Incremental Power Down Feed - Stand Alone Control Console - Overhead Wheel Dresser - Coolant System
20" x 40" KENT HYDRAULIC-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER

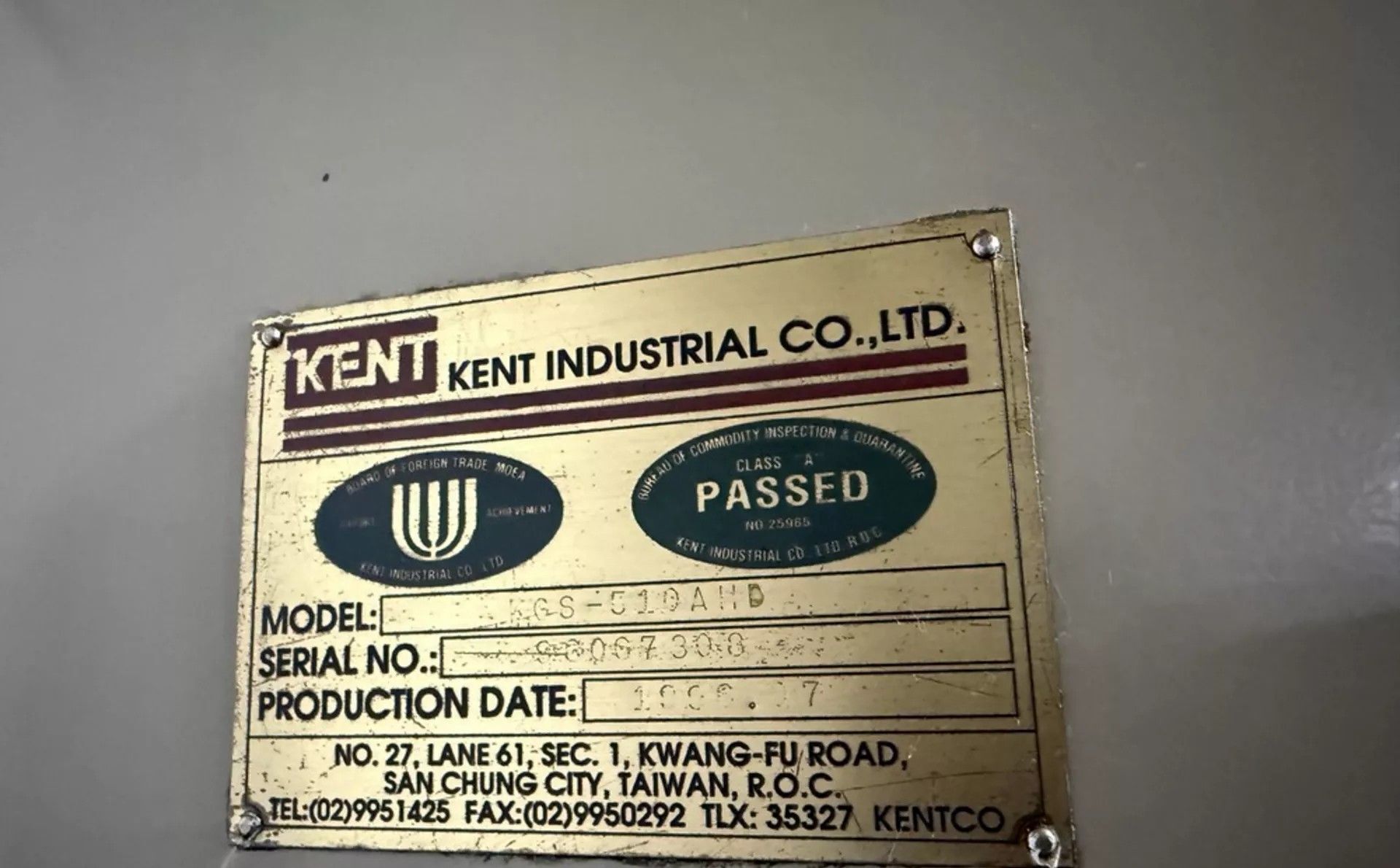

Serial No 96067308, Model KGS510AHD
EQUIPPED WITH:

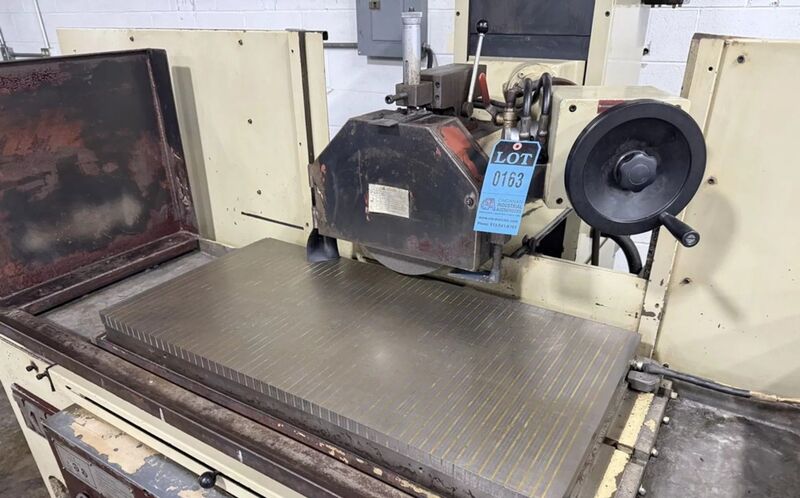

20" x 40" Electro-Magnetic Chuck
Over-The-Wheel-Dresser
Automatic Incremental Power Down Feed
Auto Lube System - Coolant System

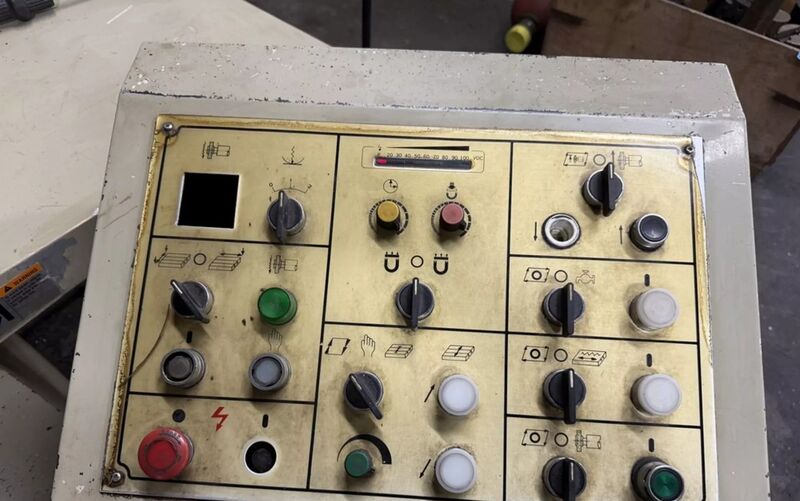

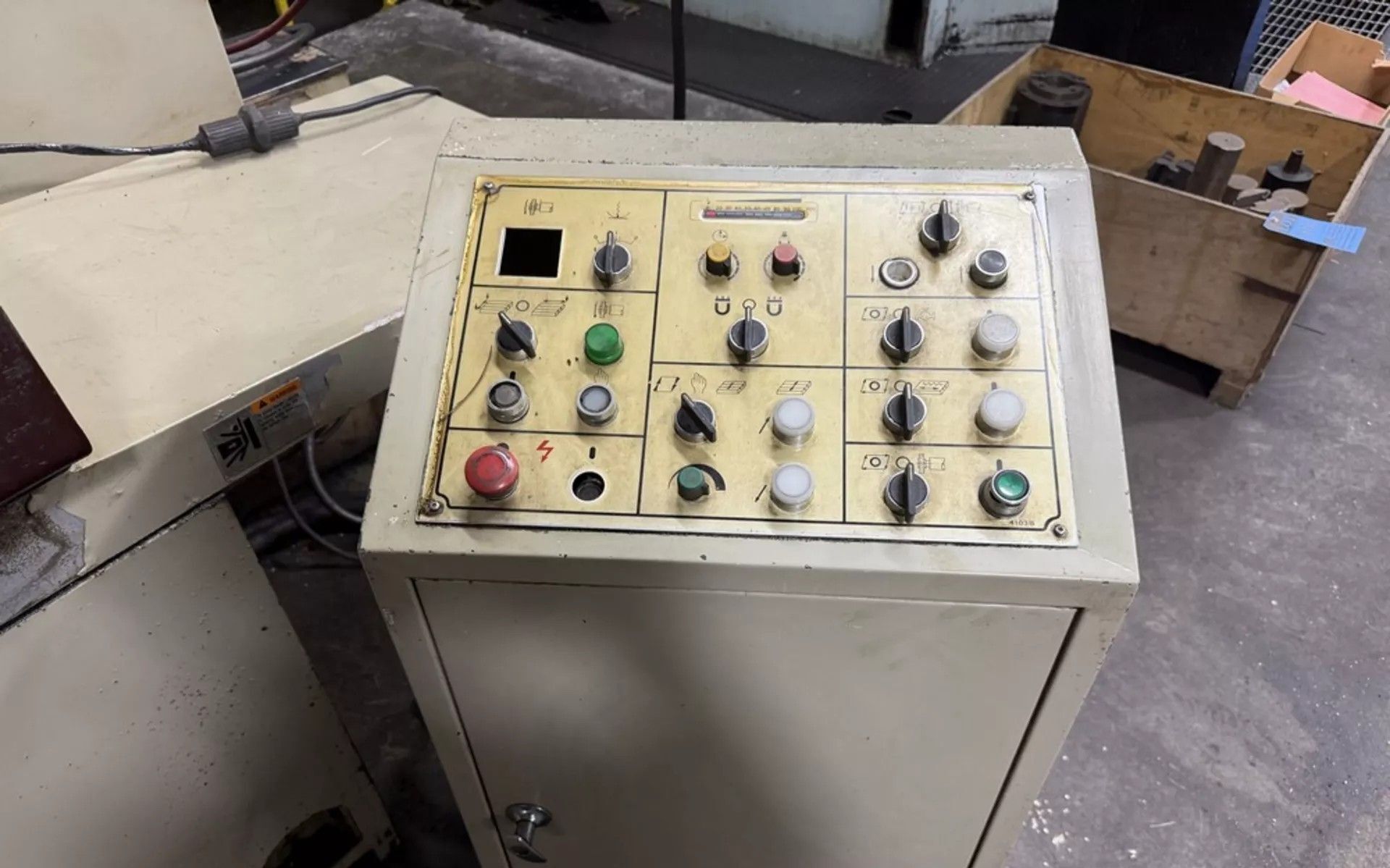

Stand Alone Control Console
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 19.75" x 39.5"
Grinding Width Capacity, Maximum 20.125"
Grinding Length Capacity, Maximum 40.125"
Spindle Center to Table, Maximum 23"
Grinding Wheel Diameter, Standard 12"
Grinding Wheel Width, Standard 1.5"
Grinding Wheel Hole Diameter 5"
Grinding Wheel Speed 1740 RPM
Table Longitudinal Feeds, Range 13 to 73 FPM
Incremental Power Down Feeds, Range .0002 to .0016 IPR
Power Column Cross Feed 60 IPM
Spindle Motor Horsepower 5 HP
Hydraulic System Motor 3 HP
Overall Dimensions, L x W 130" x 83"
Overall Height 83"
Weight, Approximately 11000 LBS
F.O.B. OUR WAREHOUSE
