20" x 32" Metso-Outotec 2-Stage crush and screen package

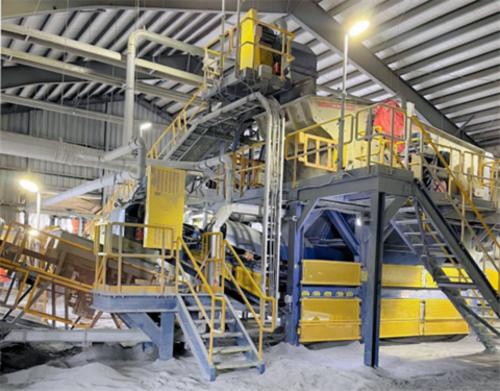

Metso-Outotec 2-Stage crush and screen package:

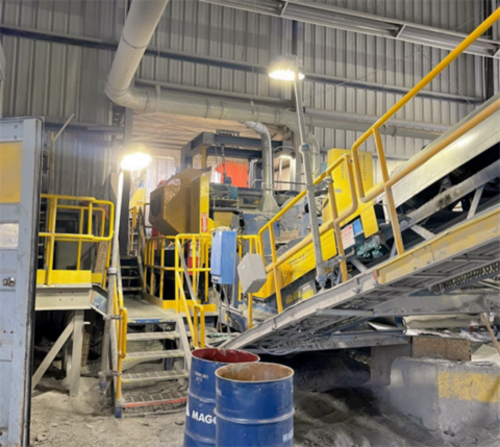

-Metso C80 Jaw Crusher
-20" x 32" feed opening
-55mm Closed side setting
-75 kW (100 HP) Motor, 1800 RPM, Squirrel Cage

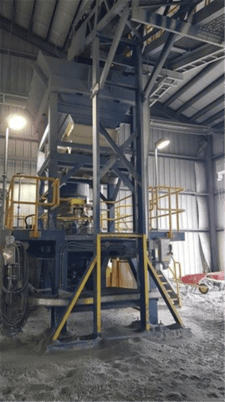

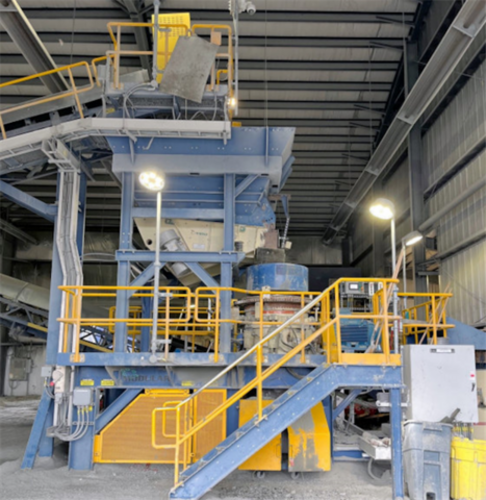

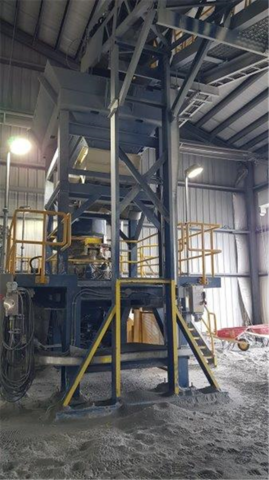

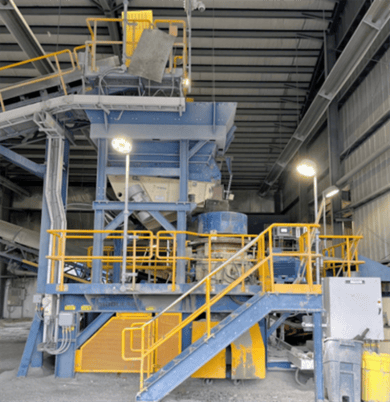

-Metso HP100 Cone Crusher
-Standard Cone with coarse liners
-16mm Closed side setting
-90 kW (120 HP) Motor

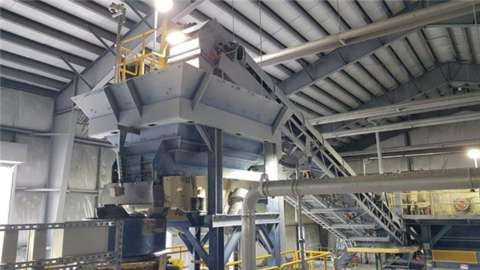

-Metso Vibrating Grizzly Feeder
-TKF8-32-2V model
-800mm W x 3200mm L
-2 Grizzly Sections in Cascade, 50mm (2") bar spacing
-37mm Grizzly Aperture

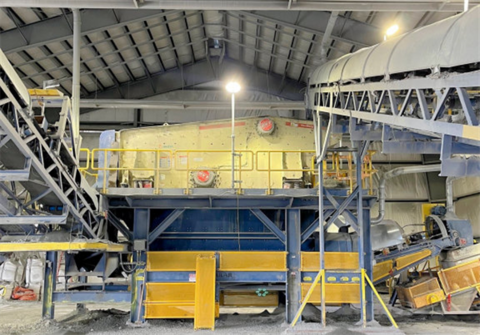

-Metso ES202 Vibrating Sizing Screen
-1.87m W x 4.9m L
-Double Deck
-Top Deck 38mm Apertures
-Bottom Deck 15mm Apertures

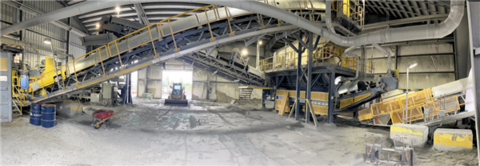

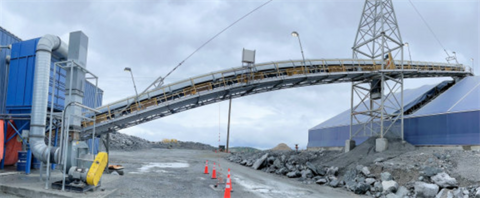

-Modular Fabrication Conveyors
-Transfer to Screen Deck Conveyor CV-035
-24" W x 58' L
-Truss Frame
-3-ply belt, 1/4" Top Cover
-15 HP Motor, 575 Volt

-Cone Feed Conveyor CV-065
-24" W x 46' L
-Truss Frame
-3-ply belt, 1/4" Top Cover
-15 HP Motor, 575 Volt

-Under Jaw Sacrificial Conveyor CV-155
-36" W x 25' L
-Heavy Duty Truss Frame
-3-ply belt, 3/8" Top Cover, 330 PIW
-15 HP Motor, 575 Volts

-Discharge Conveyor CV-115
-24" W x 78' L
-Truss Frame
-3-ply belt, 1/4" Top Cover
-15 HP Motor, 575 Volt

-Recycle Conveyor CV-105
-24" W x 46' L
-Truss Frame
-3-ply belt, 1/4" Top Cover
-15 HP Motor, 575 Volt

-Eriez Self Cleaning Magnet
-MG-165
-36x48x23
-Self-Cleaning Electromagnet with Rectifier

-Metal Detector
-MDI XR-3000 Series
-Model XR-36-S Metal Detector System
-CR-85 3000 Control Chassis
