20" x 25" Amada Marvel #VT5063MW, Manual Vertical Tilt Frame Band Saw, 40" H Table, 218" x 1.5" x 0.05" Blade, 0-350 lbs. Feed Force, 30-650 FPM, 7.5 HP, new

Description

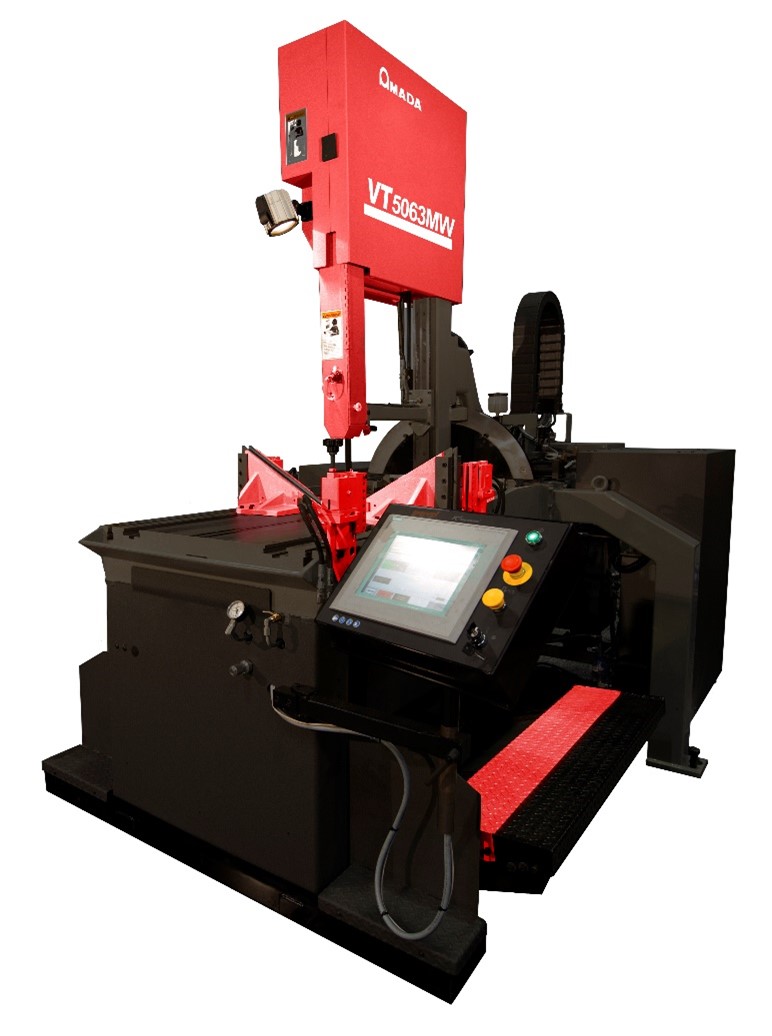

Amada Marvel 20″ x 25″ Manual Vertical Tilt Frame Band Saw, VT5063MW (Formerly 2150M)

Inventory # 7791

Model: VT5063MW

Made in USA

Specifications:

Capacity:

Nominal:

Rectangular: 20″ x 25″

Round: 20″

@ 45°:

Rectangular: 20″ x 17″

Round: 17″

@ 60°:

Rectangular: 20″ x 11 1/4″

Round: 11 1/4″

Table Height: 40″

Speed Range: 30 – 650 FPM

Feed Force: 0 – 350 lbs.

Blade Size: 218″ x 1 1/2″ x .05″

Blade Guides: Combination Roller Bearing / Carbide

Blade Tension: 45,000 PSI

Blade Motor: 7.5 HP

Standard Features:

Position accuracy of +/- .005″ per index

Feed Force: Direct force sensing electric ball screw

The 3° forward canted column reduces cutting times on structural shapes and extends blade life

Blade Guides: Rotating easy load combination carbide and ball bearing roller guides with self tensioning design

Blade Tension: Hydraulically controlled, 45,000 PSI maximum

Machine equipped with automatic blade break, blade stall shut-off switch

Vises: Hydraulic, full stroking with 9 1/2″ x 15″, 60° faceplates

Coolant System: Built-in flood system, with optional drop lubrication system

Easy Load Blade Guide:

Marvel’s patented easy-load blade guides make blade changes easier than ever

The blade change mode selector switch locks out all other saw functions while the blade is being changed

Hydraulic Vise Jaws:

Full stroke hydraulic vises help simplify set-up and material positioning for easy operation

The optional Second Machine Vise helps eliminate burs and align crooked material

Hydraulic Pack:

The compact self-contained hydraulic pack provides feed pressures up to 350 lbs. and blade tension up to 45,000 PSI. The system is equipped with a low fluid sensor that shuts the machine down if the hydraulic fluid level drops below a safe operating level

Contact us for special pricing and availability

FOB Factory
