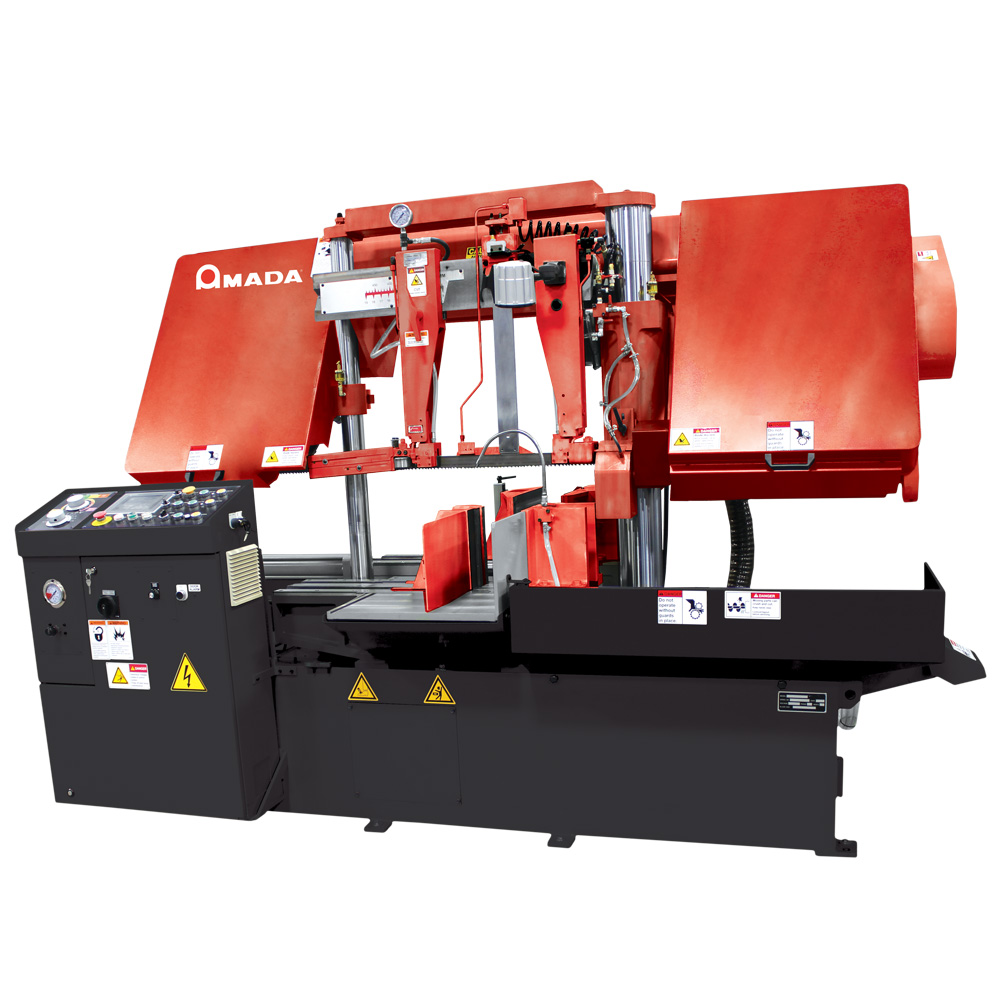

20" x 18" Amada Marvel #HFA460P, Horizontal Automatic Band Saw, Heavy-Duty, Post Style, 17.9' x 1.5" x 0.05" Blade, 70-330 SFPM, 10 HP, 230 V, new

Description

Marvel Spartan 20″ x 18″ Heavy-Duty “Post Style” Horizontal Automatic Band Saw, HFA460P

Inventory # 6693

Model: HFA460P

Specifications:

Capacity:

Rectangular: 20″ x 18″

Round: 18″

Blade Size: 17′ 11″ x 1 1/2″ x .050″

Blade Tension: 34,000 PSI

Speed Range: 70 – 330 SFPM

Hydraulic Shuttle Feed: 0 – 20″

Repeatability: +/- .005″ per Index

Main Motor: 10 HP / 230v / 3ph

Standard Features:

Hydraulic Down Feed: Feed rate and feed pressure can be controlled independently for fast, accurate cutting. Set-up is simplified by the color-coded dial that allows the operator to select the optimum setting for the type of material being cut. Both settings are made at the operator’s control station

Operator’s Control Panel: Conveniently mounted on the left hand side of the machine and offers full control of all machine functions such as; vises, blade speed, saw frame, bundle clamping, parts counter, shuttle advance and retract, coolant and work light

N/C Control: Touch screen programmable controller allows operator to program up to 9 different jobs. Each job includes settings for number of cuts and cut length. The blade speed is displayed on the N/C control screen. Automatic kerf compensation and self-diagnostics allow for quick, accurate set-ups

Out-of-Stock Switch: The machine will shut off automatically when material is no longer present in the rear vise jaws, allowing for truly automatic operation

Blade Guides: The combination roller bearings and carbide blade guides reduce heat and blade stress providing longer blade life and accuracies of +/- .002 per inch of cut material. Large anti-vibration rolls help to increase blade life

Vibration Dampening Unit: Designed to minimize vibration as the saw blade enters the cut. Reduces noise level while cutting and increases blade life

Fast Approach: Work height is automatically set allowing the head to return just enough to clear the work piece, reducing cycle times

Chip Brush: Powered from the main blade drive shaft, the brush changes speed along with the blade to assure that chips are being removed from each gullet of the blade, improving cutting performance and blade life

Rear Vise: The rear vise jaw floats hydraulically to accommodate crooked stock assuring straight cuts and accurate indexing

Work Light: Positioned directly over the work area to provide better illumination of the cutting area, the work light is controlled by a selector switch on the operator’s control panel

Full Stroking Hydraulic Vise Jaws: The front vise jaws are split to reduce the remnant length to as little as 3″. The split vise jaws also help to reduce burrs left on the material and are ideal for bundle cutting. Holding the work piece on both sides of the blade also reduces vibration, providing more accurate cuts and longer blade life

Automatic Chip Removal: The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator for more productive operations. Coolant is allowed to drain back into the tank before chips are removed from the machine

Coolant System: 21-gallon coolant tank and multiple coolant nozzles enhance blade life and performance. The high-capacity coolant pump for maximum coolant efficiency

FOB Factory – Contact us for Availability
