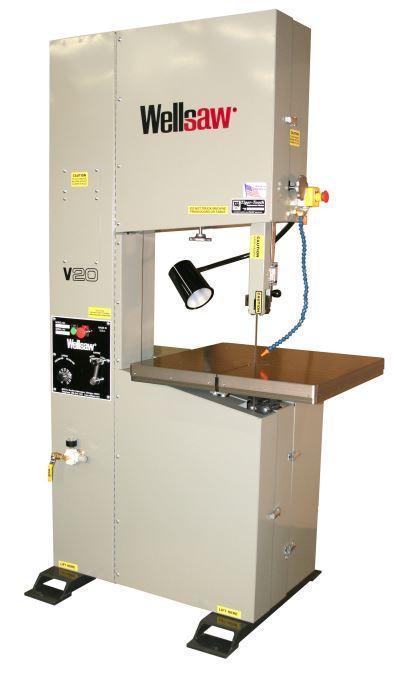

Manufacturer: Wellsaw
Model: V20F
Max Throat or Width: 20.00
Max Height / Under Guide: 16.00
Stock # 85374
Click to zoom in
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| CAPACITY | THROAT: 20" DEEP x TABLE TO GUIDE: 16" HIGH |
| TABLE TO GUIDE | Standard Width: 3/16" through 3/4", Optional Width: 1/2" through 1", Length: 14-9" |
| Wheel Travel | 3.5 inches |
| Band Wheels | 21" Cast Aluminum with replaceable rubber tires |
| Blade Guides | Six Sealed Roller Bearings w/ 90 Rotation Feature |
| Table Size | 26" x 26" Cast Iron |
| TABLE TILT | 5 Inside and 45 Outside |
| Table Height | 37.5 inches |
| Drive Motor Option | 208/230/460 Volt Three Phase, 3 HP: 208/230 Volt Single Phase, 2 HP: 115 Volt Single Phase, 1.5 HP |
| Blade Speed SFPM (Infinitely Variable) | Low Range: 45-400, High Range: 325-3,000 |
| Gear Transmission | Two Speed Oil Bath |
| Dimensions | 48" L X 32" W X 83" T |
| Shipping Weight | 915 pounds |
Equipped With
Equipped With
FEATURES:
Heavy Tube Steel Frame
Precision Ground Cast Iron Table with replaceable throat plate
Unique Heavy Duty Rollers Guides
Blade Guides Rotate 90° to accommodate long materials not used with 1” blade option
Baldor® High Efficiency Motor
115 Volt at Controls
Powered rotary blade brush
VFD Variable Blade Speed Motor Controller
Two Speed Oil Bath Gearbox with Helical Gears for Quiet Operation
Blade Speed Indicator
Blade Tension Indicator
Flexible Arm Work light
Under Voltage and Overload protection
Chip Blower / Removable Chip Tray
1/2" Bi Metal Blade standard
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Combination Rip Fence & Miter Gauge ........................................................................ $1,058.00
Rip Fence only 26” ....................................................................... $561.00
Miter Gauge only ......................................................................... $705.00
1" blade Option, includes wider guide rollers and blade ................................................ $101.00
Sealed Electrical Enclosure for Sawing Graphite and Aluminum .................................... $935.00
Vacuum Nozzle ................................................................................................................ $175.00
Blade Welder, Grinder and Shear (made in Germany) ................................................. $3,497.00
Leveling/ Vibration Mounts / set of four ........................................................................... $91.00
Table Extension, side, 26” x 26” w/ leg ........................................................................... $415.00
Table Extension (shelf), front, 26” x 12” * ..................................................................... $305.00
* Not used with Rip Fence/Miter Gauge Option
Spare Parts Kit .............................................…………………………………………………………………$423.00
Spare Blades, Bi-Metal, package of six, ½″ ..................................................................... $483.78
Fused Disconnect/ Lever Type/ NEMA 1 ......................................................................... $837.00
OR
Fused Disconnect/ Rotary Type/ NEMA 12 ..................................................................... $897.00
Gravity Roller Conveyor, 18” x 5' .................................................................................. $795.00
Gravity Roller Conveyor, 18” x 10' ............................................................................. $1,447.00
Stock Stand, single roller 18” ........................................................................................... $217.00
Lubrication
Spray Mist Lubricant System (water based) .................................................................... $887.00
Lubricant for Spray Mist (one gallon, water soluble) ........................................................ $38.57
OR
Micro Lubricant System (oil only system) ........................................................................ $960.00
Lubricant for Micro System / one gallon ........................................................................... $71.00
Stick Lubricant .................................................................................................................... $25.05
DELIVERY:
SUBJECT TO STOCK
Heavy Tube Steel Frame
Precision Ground Cast Iron Table with replaceable throat plate
Unique Heavy Duty Rollers Guides
Blade Guides Rotate 90° to accommodate long materials not used with 1” blade option
Baldor® High Efficiency Motor
115 Volt at Controls
Powered rotary blade brush
VFD Variable Blade Speed Motor Controller
Two Speed Oil Bath Gearbox with Helical Gears for Quiet Operation
Blade Speed Indicator
Blade Tension Indicator
Flexible Arm Work light
Under Voltage and Overload protection
Chip Blower / Removable Chip Tray
1/2" Bi Metal Blade standard
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Combination Rip Fence & Miter Gauge ........................................................................ $1,058.00
Rip Fence only 26” ....................................................................... $561.00
Miter Gauge only ......................................................................... $705.00
1" blade Option, includes wider guide rollers and blade ................................................ $101.00
Sealed Electrical Enclosure for Sawing Graphite and Aluminum .................................... $935.00
Vacuum Nozzle ................................................................................................................ $175.00
Blade Welder, Grinder and Shear (made in Germany) ................................................. $3,497.00
Leveling/ Vibration Mounts / set of four ........................................................................... $91.00
Table Extension, side, 26” x 26” w/ leg ........................................................................... $415.00
Table Extension (shelf), front, 26” x 12” * ..................................................................... $305.00
* Not used with Rip Fence/Miter Gauge Option
Spare Parts Kit .............................................…………………………………………………………………$423.00
Spare Blades, Bi-Metal, package of six, ½″ ..................................................................... $483.78
Fused Disconnect/ Lever Type/ NEMA 1 ......................................................................... $837.00
OR
Fused Disconnect/ Rotary Type/ NEMA 12 ..................................................................... $897.00
Gravity Roller Conveyor, 18” x 5' .................................................................................. $795.00
Gravity Roller Conveyor, 18” x 10' ............................................................................. $1,447.00
Stock Stand, single roller 18” ........................................................................................... $217.00
Lubrication
Spray Mist Lubricant System (water based) .................................................................... $887.00
Lubricant for Spray Mist (one gallon, water soluble) ........................................................ $38.57
OR
Micro Lubricant System (oil only system) ........................................................................ $960.00
Lubricant for Micro System / one gallon ........................................................................... $71.00
Stick Lubricant .................................................................................................................... $25.05
DELIVERY:
SUBJECT TO STOCK
Get Your Price from Smith Machinery Co!
