For Sale by Hildebrand Machinery Co Inc
Description

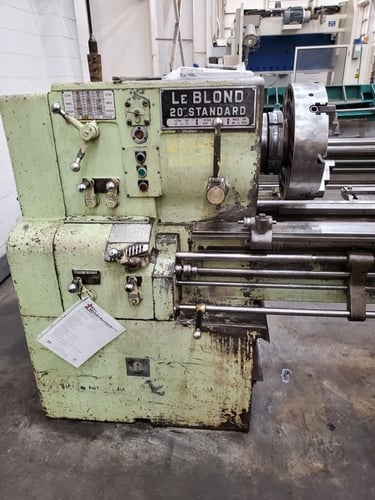

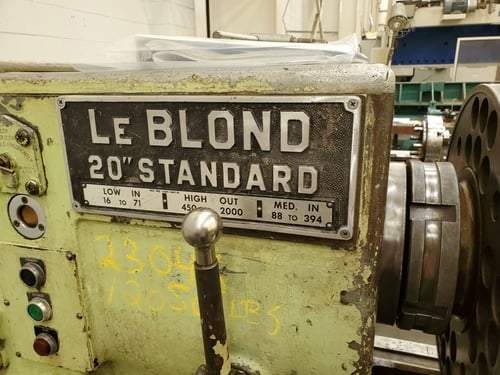

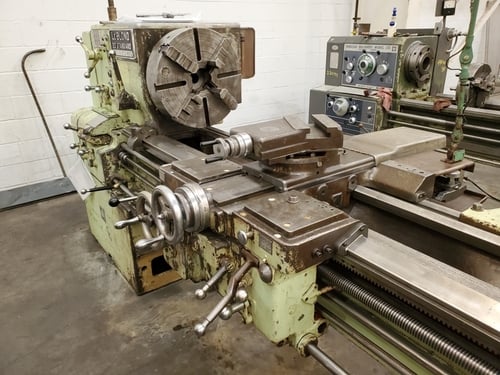

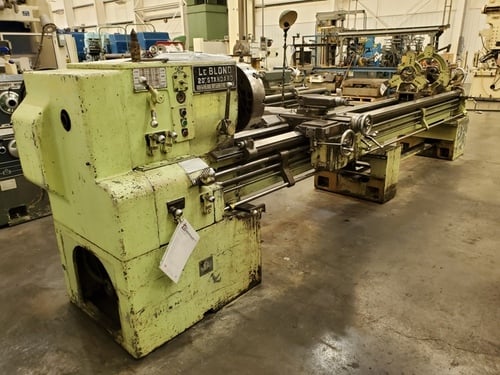

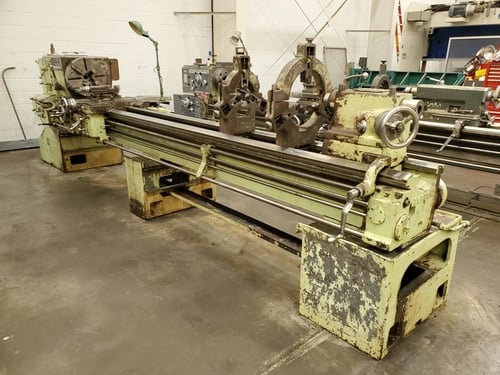

20" X 144" LEBLOND ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $19,500.00
HMC Stock # 23045
Machine Serial No.: 2NE712
Machine Model No.: 2013 Standard
New Date: 1958
Swing Over Bed: 26"
Swing Over Carriage: 20"
Swing Over Cross Slide: 13"
Distance Between Centers: 144"

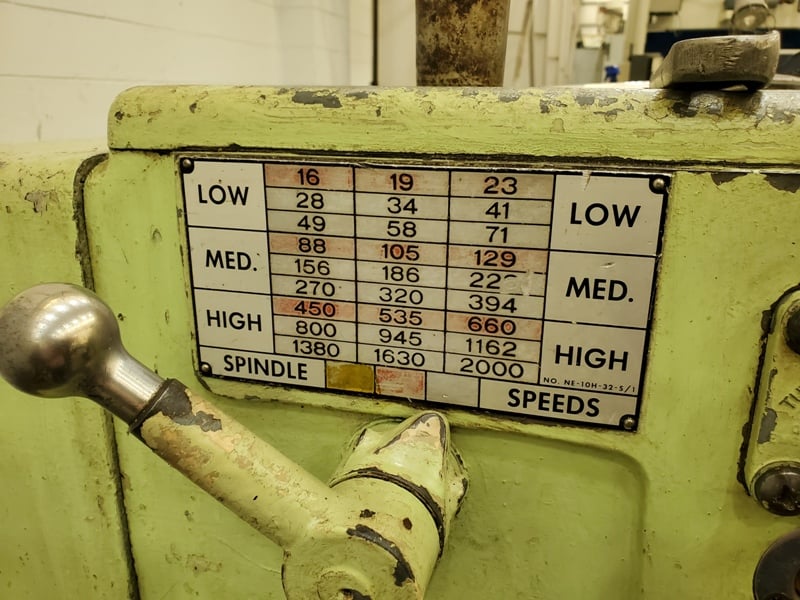

(27) Spindle Speeds: 16 to 2,000 RPM
Spindle Center: #4 Morse
Spindle Mount: L-1
(109) Feeds: .0011 to .205 IPR
(60) Threads: 2 to 120 TPI
Lead Screw Diameter: 1-7/16"
Lead Screw Pitch: 4
Taper in Tailstock: #4 Morse
Tailstock Spindle Travel: 11-1/2"
EQUIPPED WITH:

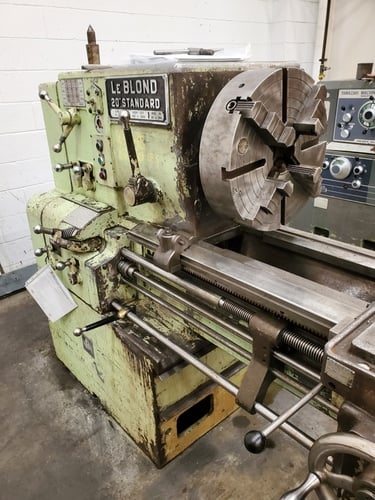

18" 4-Jaw Cushman Chuck

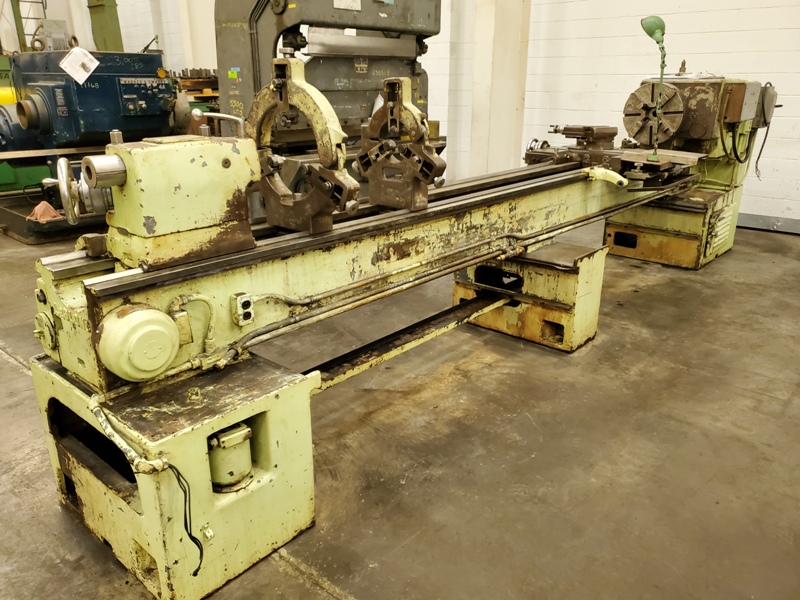

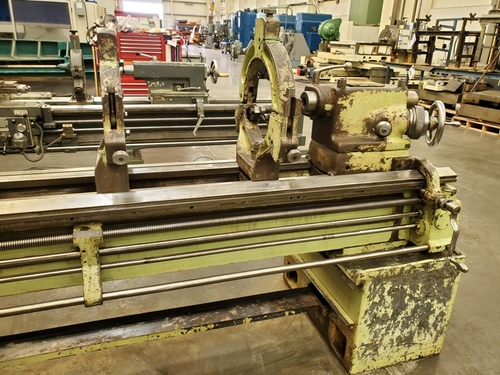

12" Roller Type Steady Rest (needs repair, new bushing)
6" Roller Type Steady Rest
Hard Replaceable Bed Ways

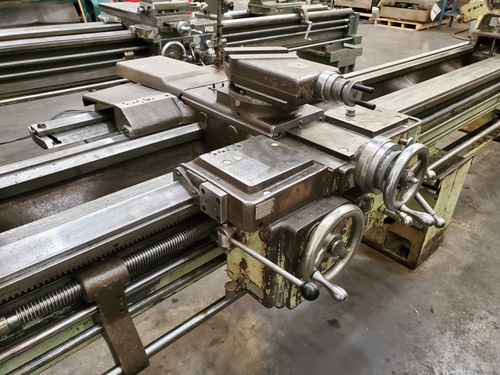

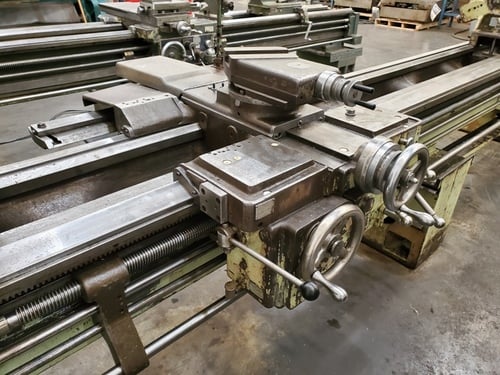

Soft Ways on Cross Slide Saddle (Fair Condition)
Taper Attachment
Micrometer Carriage Stop
Rapid Travers to Carriage
Two-Speed Tailstock Quill
NO Coolant Pans
20 HP Main Motor (updated motor, unknown year of replacement but much newer than original)
Wired for 3 Phase, 60 Cycle, 220 Volts Only
Overall Size: 228" LR x 60" FB x 60" High x 12,100 Lbs.
Inquire Further with Hildebrand Machinery Co Inc!
