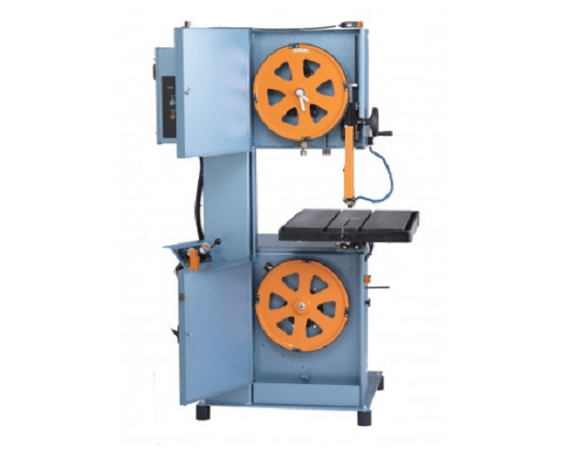

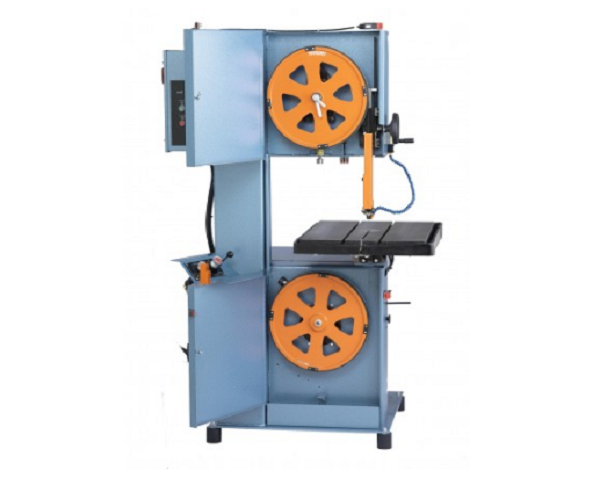

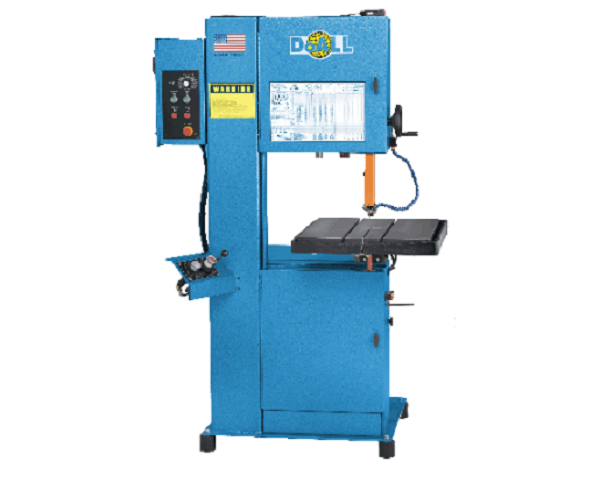

20" x 12" DoAll #2012-VH, vertical contour band saw, 154" x 1/8"-1" blade, 3 HP, new

20″ x 12″ Band Saw with One Set of Saw Guide Blocks w/Carbide Backup for Bands 1/8" to 1" One Set of 3/4" and 1" Carbide-Faced Inserts One Set of Metal Saw Guide Inserts for Bands 1/4", 3/8" and 1/2" Mist Coolant—Plant Air Variable Frequency AC Drive Chip Pan Job Selector Band Speed Indicator Wheel Brush Assembly Band Tension Indicator Post Elevating Hand Wheel Dual-Range Transmission Table Trunnion Wrench Complimentary Coolant Package Wrench for Saw Guides Transmission Oil One DoALL Bi-Metal Saw Blade Instruction and Parts Manuals on CD or USB Data Stick.

GENERAL SPECIFICATIONS

• Band Speed: 30-5,500 fpm
• AC Motor Drive: 3-hp
• Machine Weight (net): 1,1650 lbs
• Throat, Band to Column: 20″
• Maximum Work Height: 12”
• Band Width Capacity: 1/8″ - 1″
• Band Length: 154″
• Table: 26-1/2″ x 33-1/2″ Tilts 45R, 10L
• Table to Floor Height: 40″
• Table Stroke: 12″
• Table Feed: 0-6 fpm
• Table Feed Force: 0-175 lbs
• Table Capacity: 500 lbs
• Upper Wheel Adjustment: 3”
• Wheels: Flanged with Steel Backed Rubber Tires
• Hydraulic Reservoir: 4-1/2 gal.
• Height, Max: 81″
• Floor Area Required: 54-1/4″ x 58″

INCLUDES: Mist Coolant—Plant Air, Variable Frequency AC Drive, Chip Pan, Job Selector, Band Speed Indicator, Wheel Brush Assembly, Band Tension Indicator, Post Elevating Hand Wheel, Dual-Range Transmission, Table Trunnion Wrench, Complimentary Coolant Package Wrench for Saw Guides, Transmission Oil, One DoALL Bi-Metal Saw Blade, Instruction and Parts Manuals on CD or USB Data Stick.
