Description

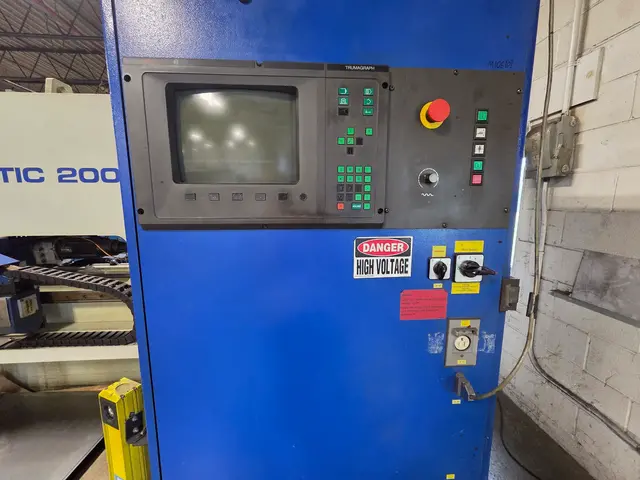

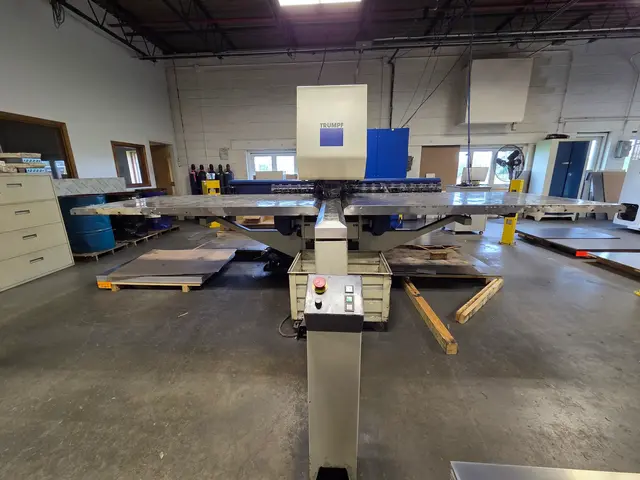

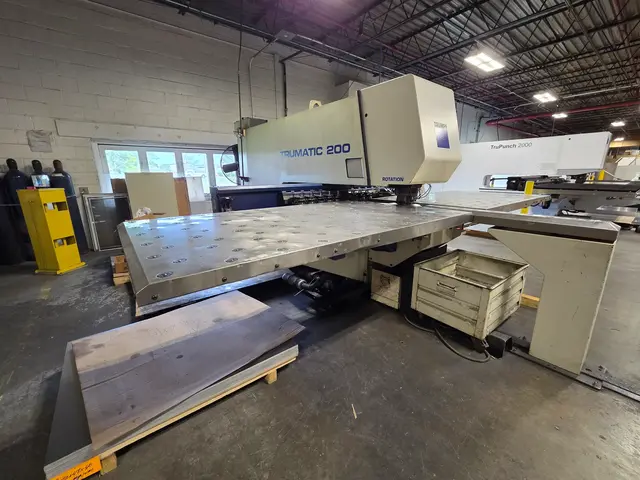

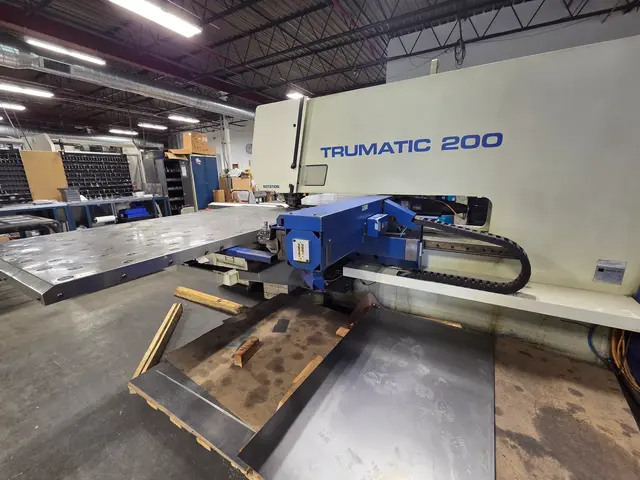

Used Trumpf Trumatic 200 (1998) Turret Punch for Sale. This machine offers 20 ton punching capacity with a maximum sheet thickness of .250″ and a maximum punch diameter of 3″. Sheet size is 4.2′ x 6.8′, with X-axis travel of 81.5″, Y-axis travel of 50.4″, a 9.45″ throat depth and 50.4″ sheet width. Control is a Bosch Trumagraph CC220 CNC, and the machine is equipped with a 15-station automatic tool-change turret, programmable punch-head rotation, and a support table with programmable shoot. Power requirement is 460V/60Hz, approximate machine weight is 17,600 lbs., and maximum workpiece weight is 330 lbs. The machine can be seen under power for an inspection. Compare it against our other used turret punches and used Trumpf machines, then Activate Pricing or use the Inquire Now button.
Stock #: 131260021, Brand: Trumpf, Model: Trumatic 200R, Year: 1998, Punch Capacity: 20 Tons, Max Sheet Metal Thickness: 6.4 mm, Max Workpiece Weight: 150 kg, Max Punching Diameter: 76.2 mm, X-Axis Range: 2070 mm, Y-Axis Range: 1280 mm, Number Of Tool Stations: 15 ATC, Trumagraph CNC Control With Monitor And Manual ...more
