For Sale by Advanced Machinery Concepts Inc
Surplus Record Dealer Since 2002
Location: Dayton, OH
Contact Bob Gibson
Phone Number: 937...> Show Phone Number 937-278-7337
Let the seller know you found their listing on Surplus Record!
Description
Specifications:
Screen Diameter - 20"
Table Size - 8" x 32"
Table Load Capacity - 550 Lbs.
Table Horizontal Travel - 15"
Table Vertical Travel - 9"
Focus Adjustment - 3"
Throat Clearance - 18.38"
XY Scale Resolution - 1 um (.00004")
Electrics - 1/60/115 vac, 22 amp
Approx Dimensions - 67" FB x 38" LR x 75" H
Approx Net Weight - 1600 Lbs.
Equipped with:

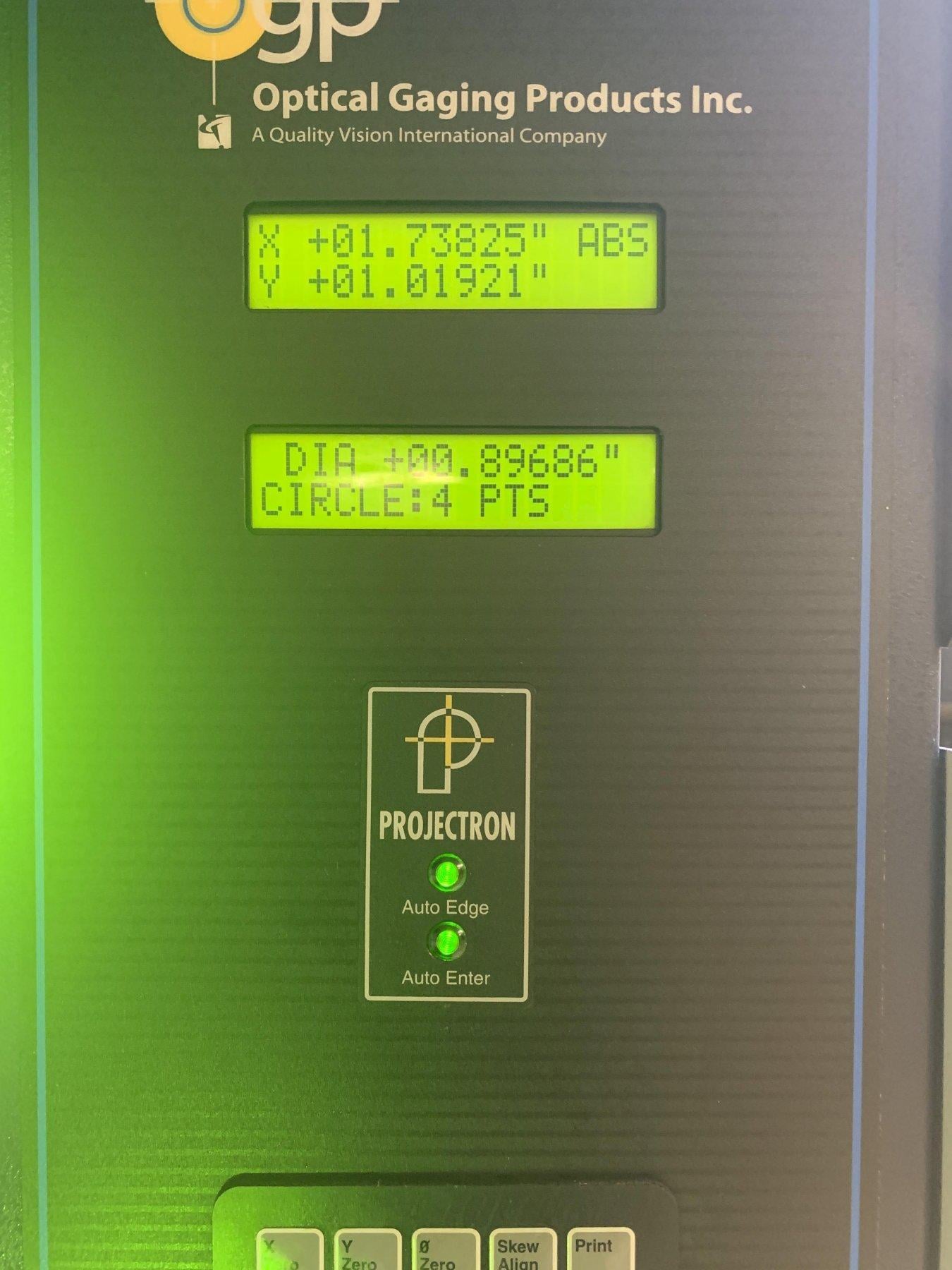

OGP Geometric Measuring Processor (DRO)
Projectron Internally Mounted Automatic Edge Detection
Digital Angle Display
Power Table Travels with DC Servos and Joystick Control
Mercury Arc Projection
Mercury Arc Surface Reflection
Power Lens Turret with 10, 20, 50x Lenses
Unreversed Image
All Necessary Manuals
Notes:
New arrival, availability pending
Specifications subject to independent verification by the buyer.

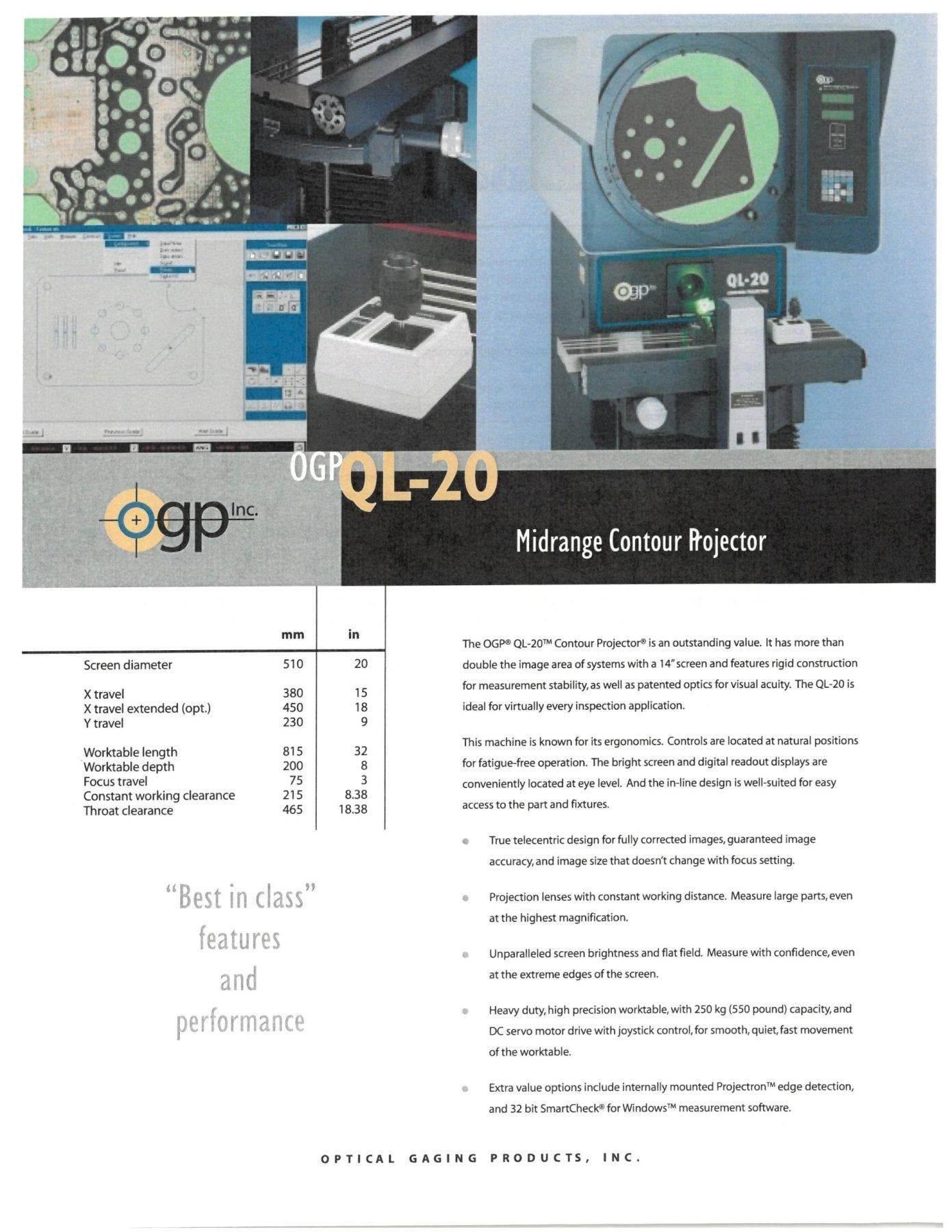

Factory Literature is for reference only. There may be discrepancies.
Shipping quotes available on request.
Number of OGP QL machines previously sold by AMC - 29
Screen Diameter - 20"
Table Size - 8" x 32"
Table Load Capacity - 550 Lbs.
Table Horizontal Travel - 15"
Table Vertical Travel - 9"
Focus Adjustment - 3"
Throat Clearance - 18.38"
XY Scale Resolution - 1 um (.00004")
Electrics - 1/60/115 vac, 22 amp
Approx Dimensions - 67" FB x 38" LR x 75" H
Approx Net Weight - 1600 Lbs.
Equipped with:
OGP Geometric Measuring Processor (DRO)
Projectron Internally Mounted Automatic Edge Detection
Digital Angle Display
Power Table Travels with DC Servos and Joystick Control
Mercury Arc Projection
Mercury Arc Surface Reflection
Power Lens Turret with 10, 20, 50x Lenses
Unreversed Image
All Necessary Manuals
Notes:
New arrival, availability pending
Specifications subject to independent verification by the buyer.
Factory Literature is for reference only. There may be discrepancies.
Shipping quotes available on request.
Number of OGP QL machines previously sold by AMC - 29
Get Your Price from Advanced Machinery Concepts Inc!
