Description

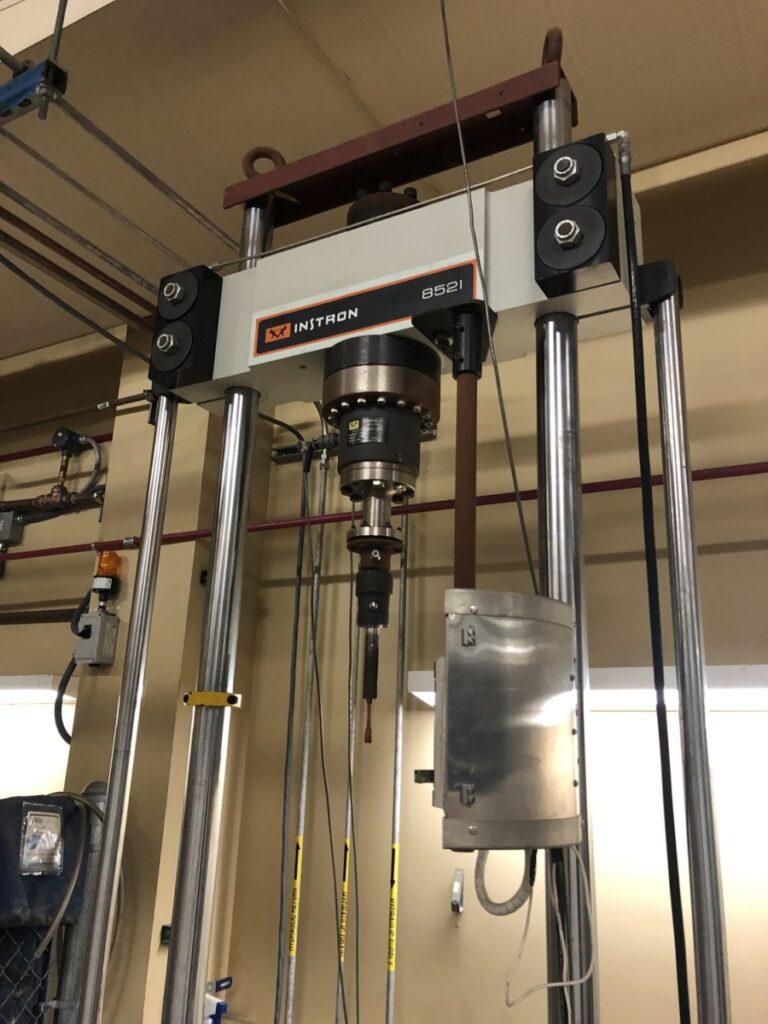

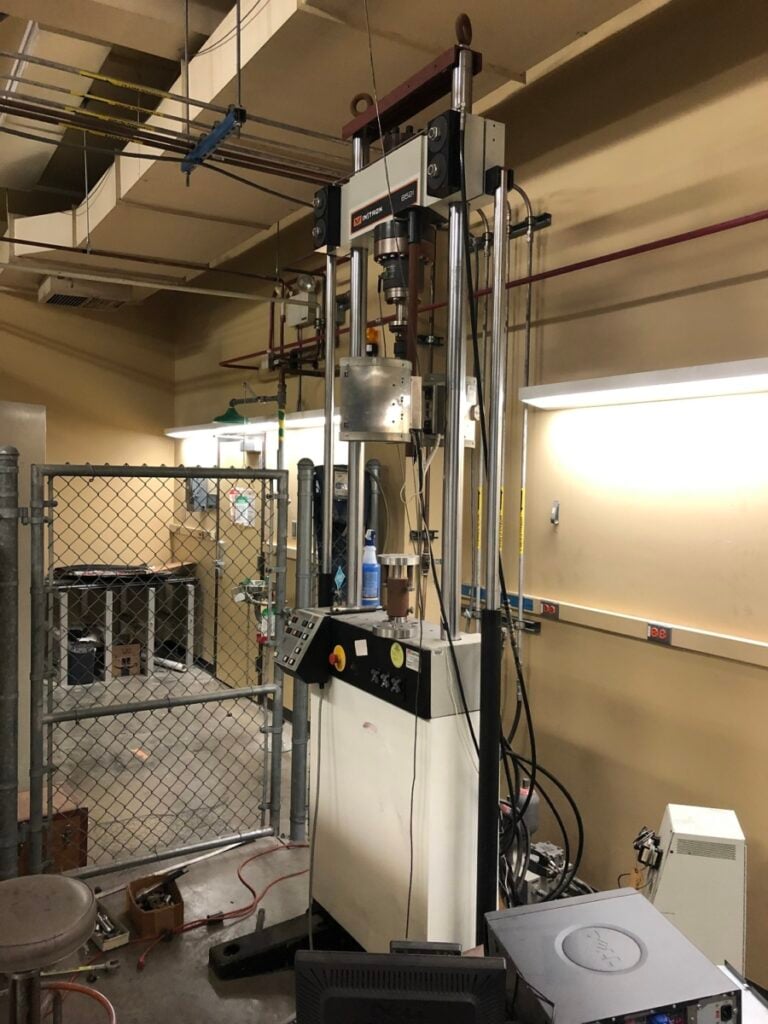

Instron 20KIP Axial 10,000 in-LBS Torsional Model 8521
(1) USED Instron 110 kN (25 KIP) Axial & 1000 N-m (10kip-in) Torsional Capacity, Model 8521S Axial-Torsion Servo-hydraulic Fatigue Testing System. S/N 003
Instron Axial & Torsion Model 8521S
SPECIFICATIONS:
System ID Number: 8521-C7652 / AW3844-4
Force Capacity: 110 kN (25KIP)
Torque Capacity: 1000 N-m (10 kip-in)
Number of Columns: 2
Distance Between Columns: 22"
Maximum distance between load cell and table: 65”
Column Diameter: 2.5”
Approximate Overall Dimensions (W x D x H): 41" x 39" x 120" max hgt
Approximate Weight (lbs): 2,000 lbs
EQUIPPED WITH:
- Hydraulic Lifts and Controls
- Instron 3000 PSI 110 kN, 100 mm Stroke, Hydrostatic Actuator, Model A484-236, LVDT, S/N 1044, Area = 8.24 in2, Moog servo valve Model 760-1000A S/N 120
- ROTAC 10,950 in/lbs, 100 0 rotation, Rotary Actuator, Model 2610-5582, S/N 97 0716 03, Vol. 62.61cm³/Rad, Moog servo valve Model 760-1000A, S/N 122
- Instron Model A440 83A 3000 PSI 6.9 GPM 15 HP Hydraulic Power Supply, S/N 97 9337 with 1,200 Hours
FOB Warren, MI
Reconditioned with 90 Day Parts and Labor Warranty
| #12817-02
DOWNLOAD SPEC SHEET
