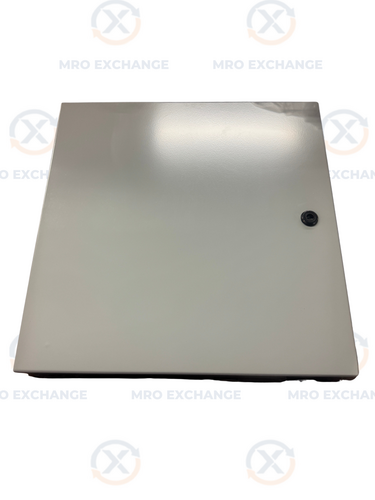

20" H x 20" W x 8" D Hammond #EN4SD20208GY, Eclipse Single Door Wall Mount Enclosure, Type 4/12, IP66, Gray

Product Specifications

• Manufacturer: Hammond Manufacturing
• MPN / Model: EN4SD20208GY
• Product Type: Industrial Control Panel Enclosure, Wall Mount
• Series: Eclipse
• Enclosure Type: Type 4, 12 (Meets Type 3R when provided with drain hole)
• Ingress Protection: IP66
• Dimensions (H x W x D): 20.0 x 20.0 x 8.0 In. (508 x 508 x 203 mm)
• Configuration: 1 Door, Wall Mount
• Color: Gray
• Weight: 28.00 Lb (12.70 kg)
• Certifications: UL Listed (E65324 A-825, E71072 R-5148), CSA (LR21001, LL21312), CE, RoHS Compliant

Product Description

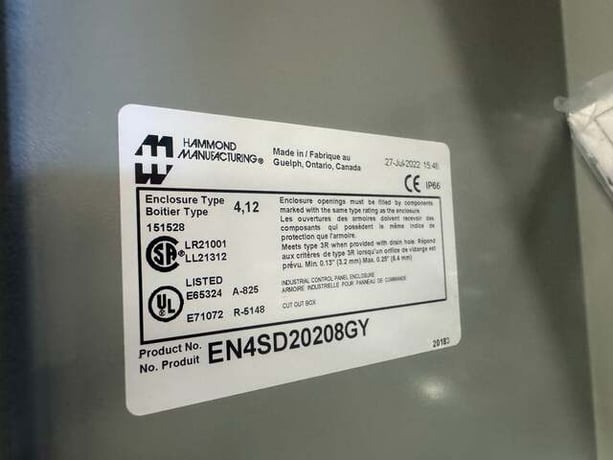

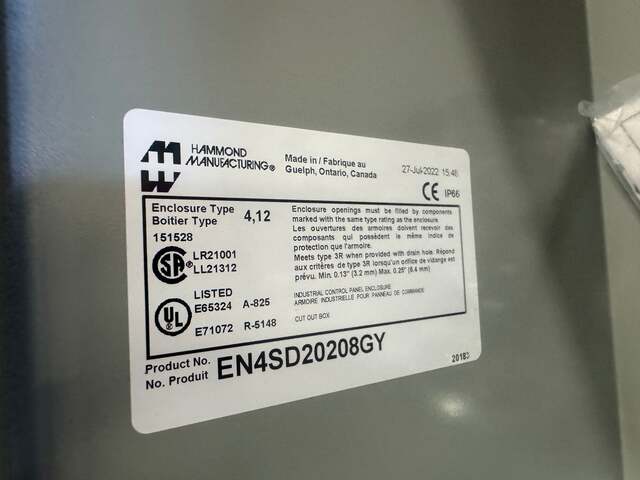

Hammond Manufacturing EN4SD20208GY is an Eclipse series industrial control panel enclosure built for single door wall mount installation. The unit measures 20.0 by 20.0 by 8.0 inches (508 x 508 x 203 mm) and carries a Type 4, 12 enclosure rating with IP66 ingress protection, meeting Type 3R when fitted with a drain hole. Buyers matching the exact Hammond catalog number EN4SD20208GY for replacement, spare inventory, or new project sourcing can confirm the gray finish, included mounting hardware, and CSA, UL, CE, and RoHS markings shown on the product label. The enclosure ships with a gasketed door and gland fitting for cable entry, useful for buyers comparing surplus availability against current distributor stock.
