Description

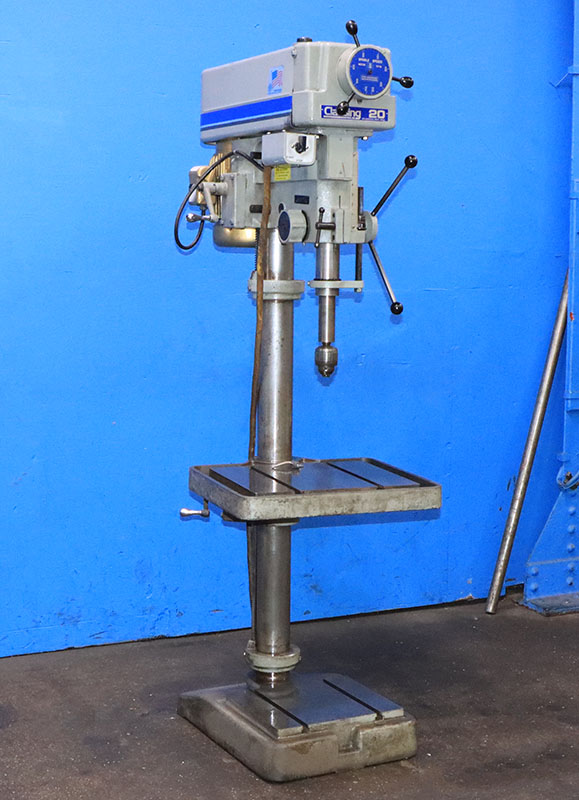

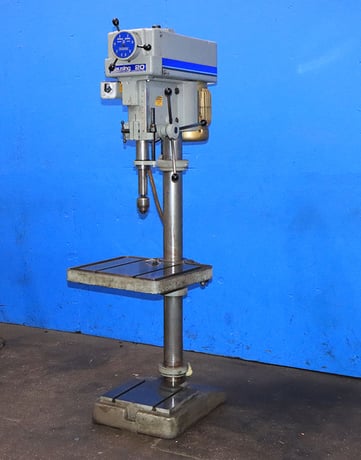

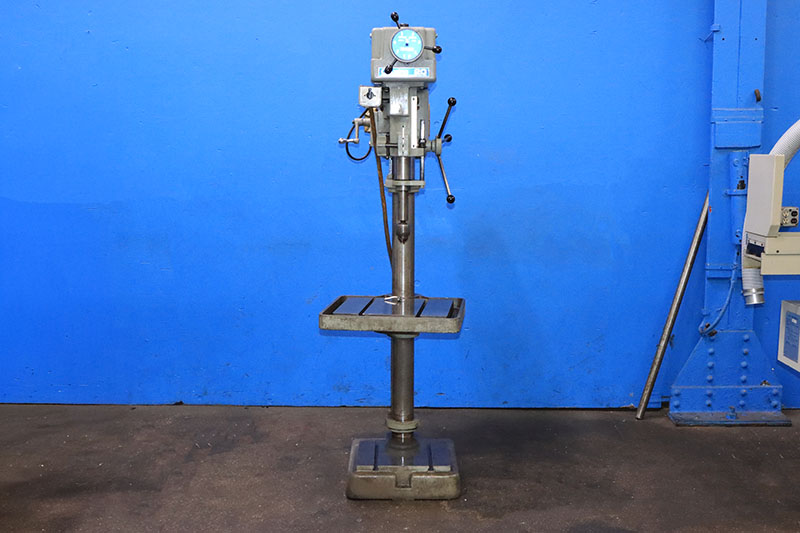

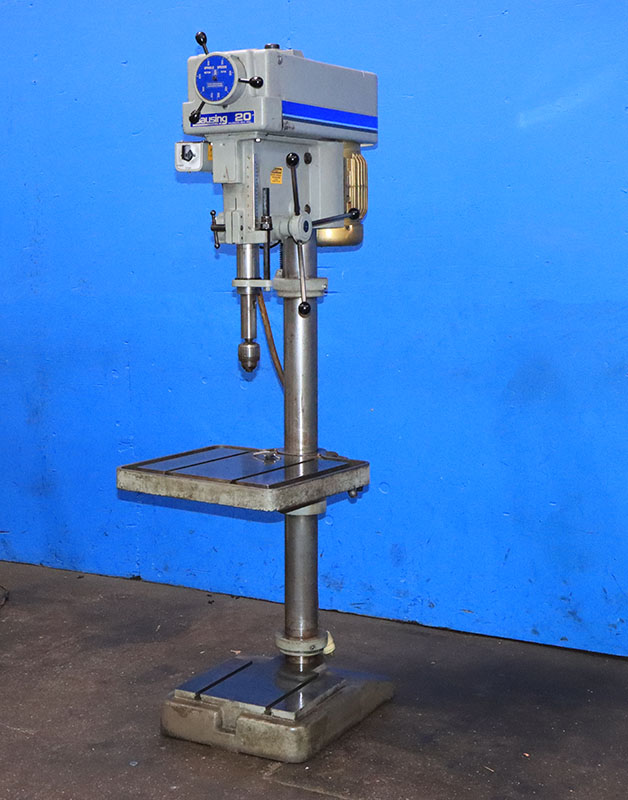

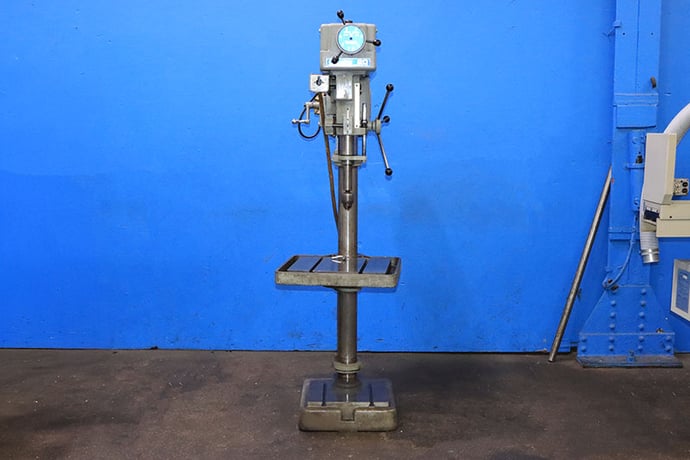

20" CLAUSING VARIABLE SPEED DRILL PRESS
MODEL: 2275, S/N: 20 533843, NEW: 2000's
SPECIFICATIONS:
CAPACITY, HAND FEED ................... 1-1/4" DIA
DRILLS TO CENTER OF CIRCLE ............ 20" DIAMETER
OVERALL SIZE OF TABLE ................. 19-1/2" X 22"
WORKING SURFACE OF TABLE .............. 15-1/2" X 18"
SPINDLE TAPER ......................... #3 MORSE
SPINDLE TRAVEL ........................ 6-1/2"
MAX DISTANCE SPINDLE TO TABLE .........″3-1/8"
MAX DISTANCE SPINDLE TO BASE .......... 43-3/8"
BASE WORKING SURFACE .................. 13" X 15-1/2"

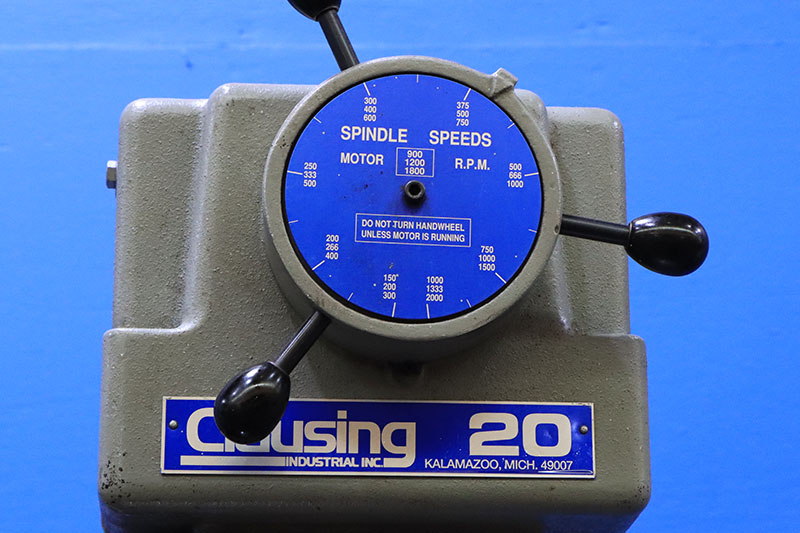

SPINDLE SPEED INFINITELY VARIABLE ..... 200 - 1333
APPROXIMATE WEIGHT .................... 700 LBS.
EQUIPPED WITH:
* MANUALLY OPERATED RATCHET-TYPE MECHANISM FOR RAISING/LOWERING OF TABLE

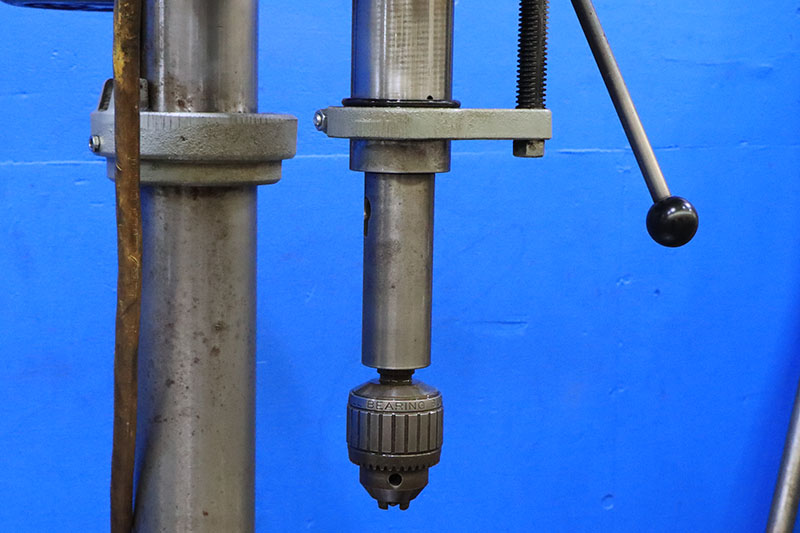

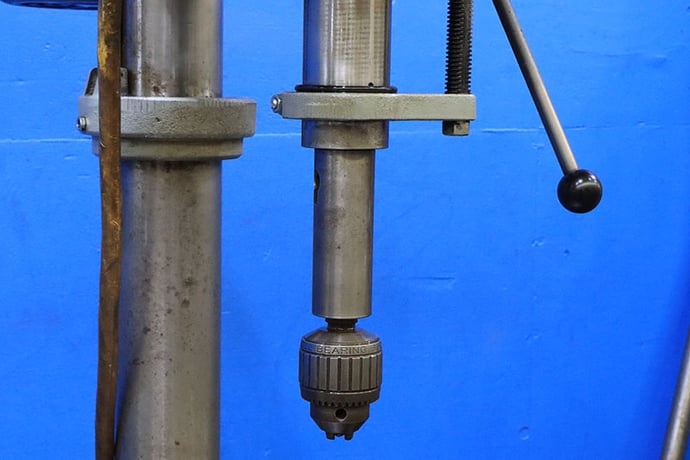

* 1/2" CAPACITY JACOBS DRILL CHUCK

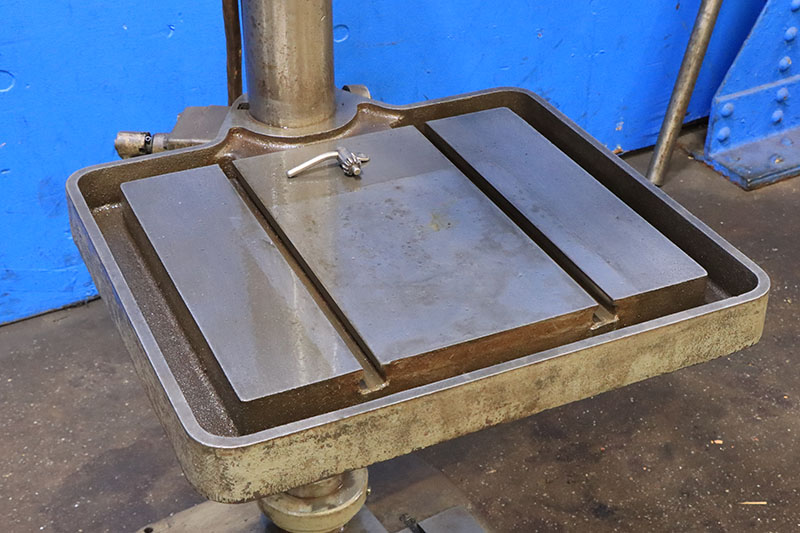

* T-SLOTTED TABLE… BASE
* 1-1/2 HORSE POWER″/60/208-230/460 VOLT MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
