For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Location: Cincinnati, OH
Contact Mr. Secord
Phone Number: 513...> Show Phone Number 513-771-1952
Let the seller know you found their listing on Surplus Record!
$6,950 USD
Description

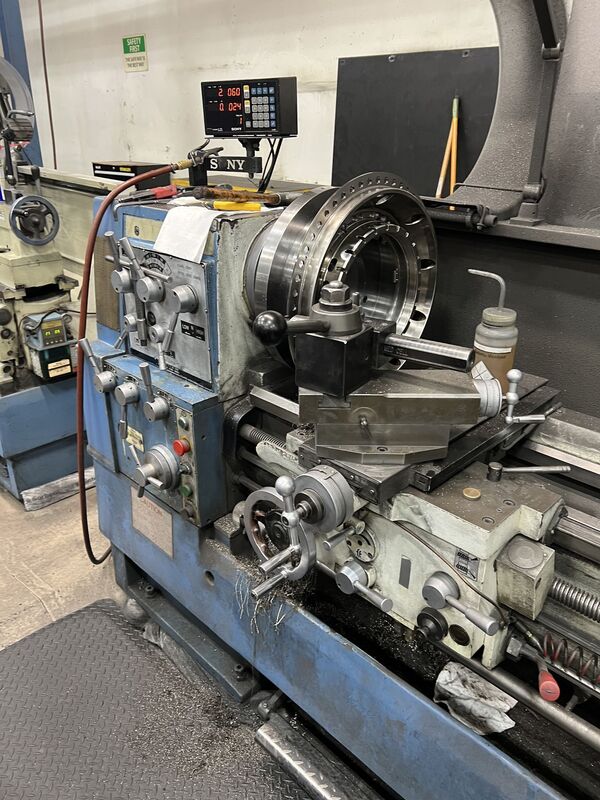

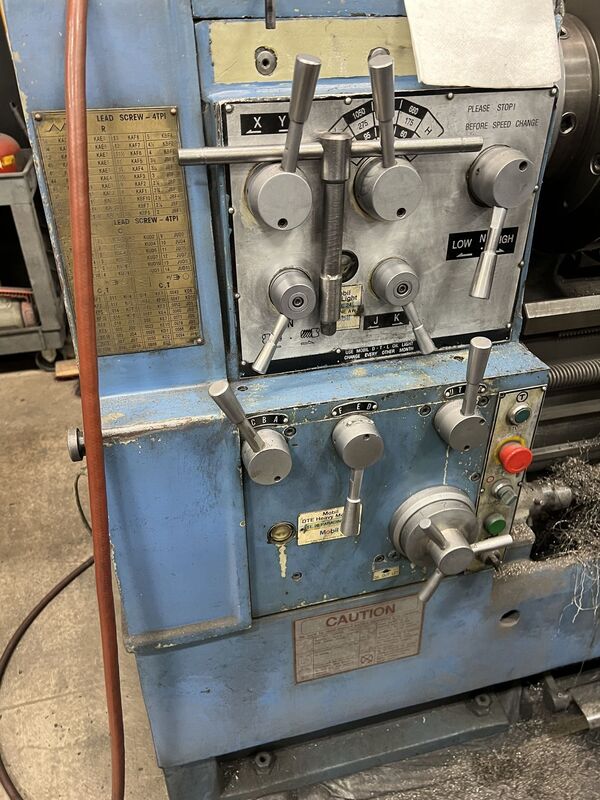

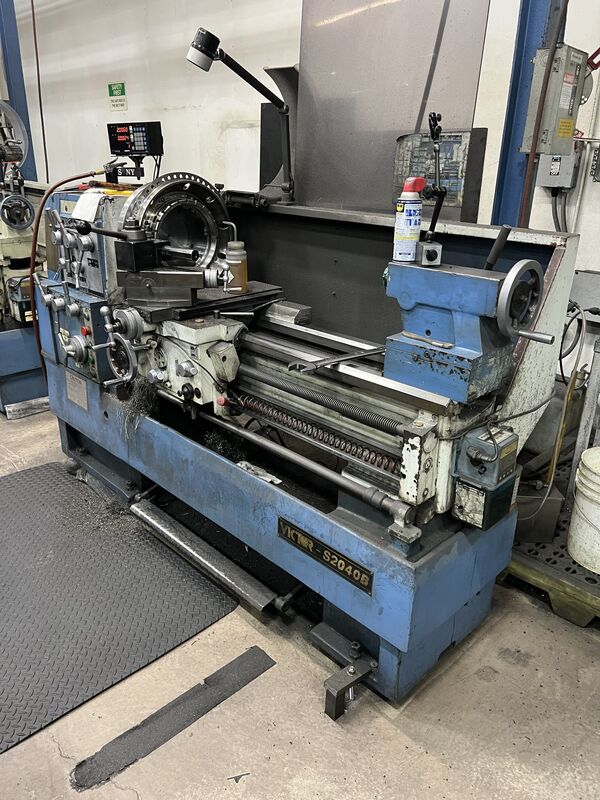

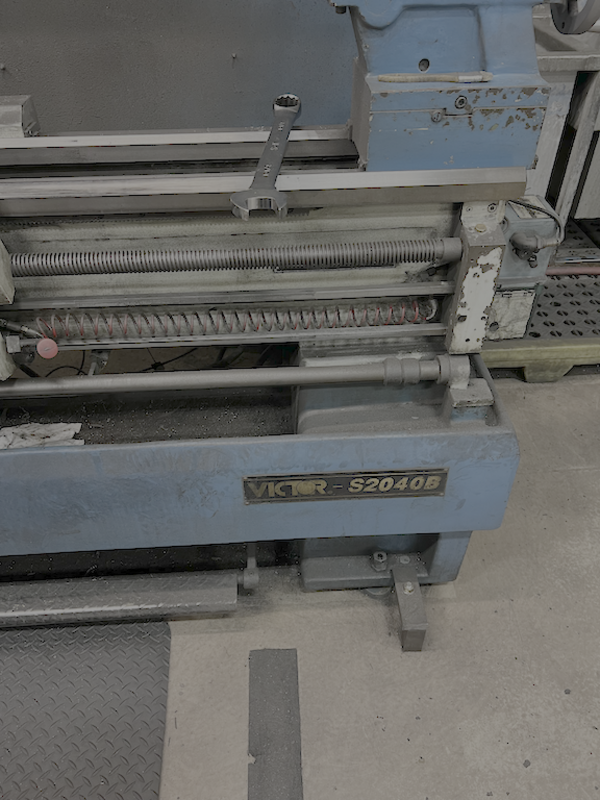

20/28" x 40" VICTOR "S2040B" PRECISION HIGH-SPEED GAP-TYPE ENGINE LATHE - Inch/Metric - Tool Post - Coolant System
20/28" x 40" VICTOR PRECISION HIGH SPEED
GAP-TYPE ENGINE LATHE
Serial No 50041349, Model S2040B,
EQUIPPED WITH:
16" Faceplate
Hardened & Ground Bed Ways
Inch/Metric Threading
Steady Rest - Follow Rest - Tool Post
Full Length Foot Treadle
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Hole Thru Spindle 3.2"
Swing Over Bed Ways 20"
Swing thru Gap 27.5"
Swing Over Cross-Slide 12.59"
Distance Between Centers 40"
Spindle Nose D1-8 CAMLOCK
Tailstock, Spindle Taper #5 MT
(12) Spindle Speeds, Range 15 to 1500 RPM
Carriage Longitudinal Feeds .002 to .032 IPR
Cross-Slide Cross Feeds .001 to .0094 IPR
Thread Changes, Range 2 to 56 TPI
Metric Thread Changes, Range 0.5 to 14 MM
Main Motor, Horsepower 10 HP
Floor Space Required, L x D 98" x 44"
Overall Height 65"
Weight, Approximately 4465 LBS
F.O.B. OUR WAREHOUSE
20/28" x 40" VICTOR PRECISION HIGH SPEED
GAP-TYPE ENGINE LATHE
Serial No 50041349, Model S2040B,
EQUIPPED WITH:
16" Faceplate
Hardened & Ground Bed Ways
Inch/Metric Threading
Steady Rest - Follow Rest - Tool Post
Full Length Foot Treadle
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Hole Thru Spindle 3.2"
Swing Over Bed Ways 20"
Swing thru Gap 27.5"
Swing Over Cross-Slide 12.59"
Distance Between Centers 40"
Spindle Nose D1-8 CAMLOCK
Tailstock, Spindle Taper #5 MT
(12) Spindle Speeds, Range 15 to 1500 RPM
Carriage Longitudinal Feeds .002 to .032 IPR
Cross-Slide Cross Feeds .001 to .0094 IPR
Thread Changes, Range 2 to 56 TPI
Metric Thread Changes, Range 0.5 to 14 MM
Main Motor, Horsepower 10 HP
Floor Space Required, L x D 98" x 44"
Overall Height 65"
Weight, Approximately 4465 LBS
F.O.B. OUR WAREHOUSE
Inquire Further with Mohawk Machinery Inc!
