Manufacturer: Summit
Model: 20-4X80
Swing: 20.0
Centers: 80.0
Stock # 7370
Price: $14,500 USD - Finance for as low as $294/mth
For Sale by Wheeler Machinery Sales
Surplus Record Dealer Since 1998
Dan Wheeler
909-34...> Show Seller's Phone Number 909-348-5610 Let the seller know you found their listing on Surplus Record!
Description

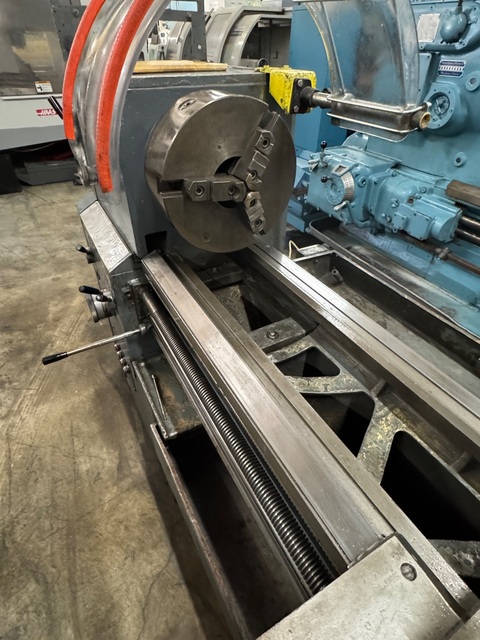

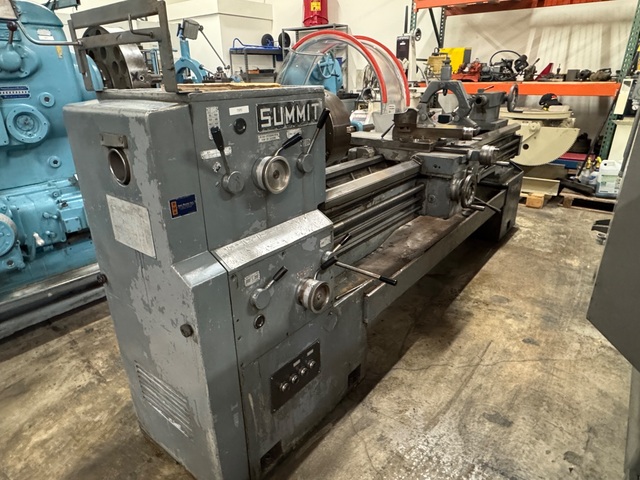

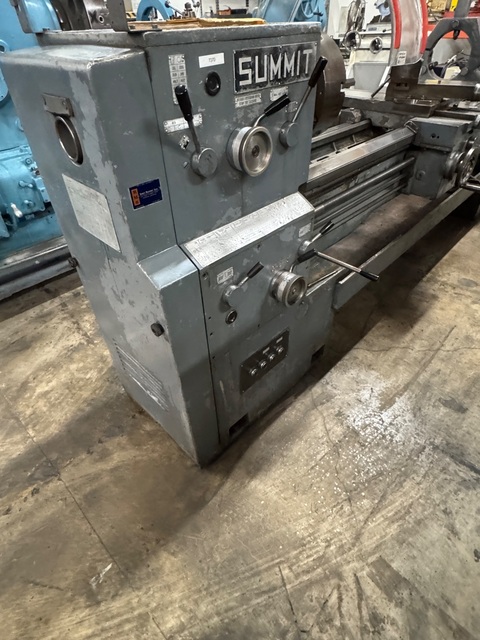

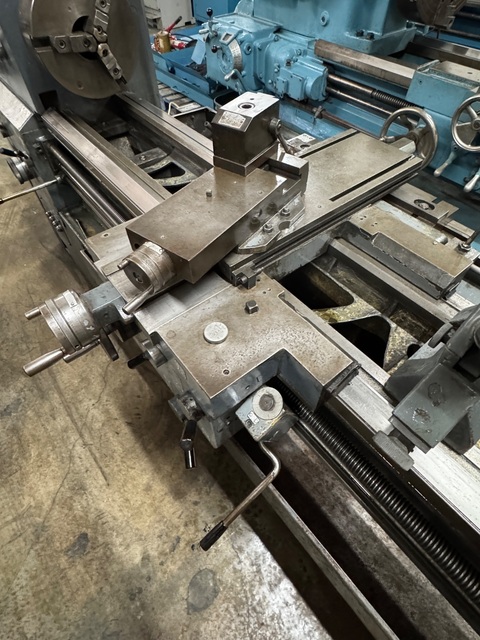

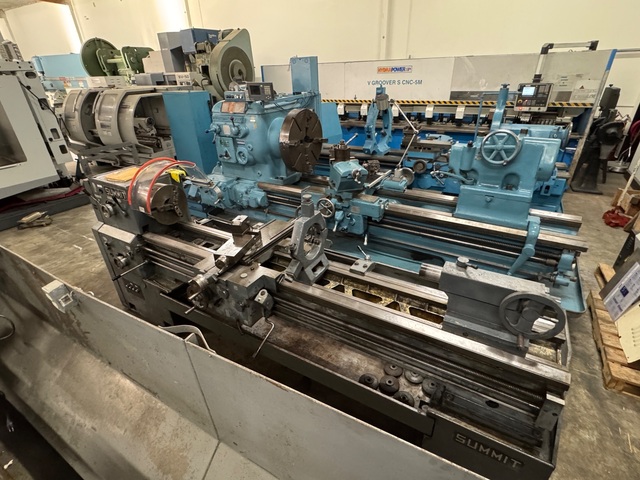

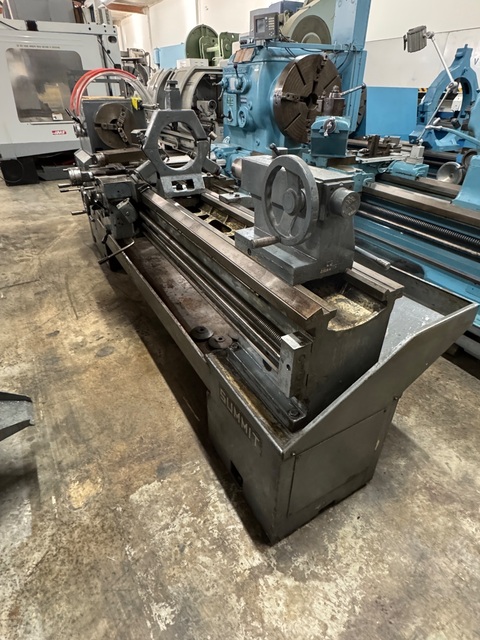

Summit 20-4 x 80 Gap Bed Engine Lathe #7370 #2
GENERAL SPECIFICATIONS:
Swing Over Bed: 20-1/4"
Swing Over Gap: 27-5/8"
Swing Over Cross Slide: 11-7/8"
Distance Between Centers: 80"
Spindle Speeds: (15) 11.5 - 1400 RPM
Hole Through Spindle: 4-1/8"
Spindle Nose: D1-8 Camlock
Threads: (64) 1/4 - 60 TPI
Metric Threads: (64) .5 - 120
Longitudinal Feeds: (124) .00145 - .44474
Cross Feeds: (56) .0007 - .22237
Cross Slide Travel: 11-3/8"
Compound Rest Travel: 5-3/8"
Tailstock Spindle Travel: 9-1/2"
Tailstock Spindle Taper: No. 4 M.T.
Bed Width: 15-3/4"
EQUIPPED WITH:
10 HP Motor
Inch/Metric Threads w/Single Switch Lever
Hardened and Ground Bed Ways
12" 3-Jaw Chuck w/2 Piece Jaws
Taper Attachment, +/- 10 Degrees, 15-3/4" Maximum Turning Length Per Setting
Thread Dial
Four Way Rapid Traverse
Two Speed Tailstock
Force Lubrication To Headstock, Carriage, and Bedways
Coolant System
Full Length Splash Guard
GENERAL SPECIFICATIONS:
Swing Over Bed: 20-1/4"
Swing Over Gap: 27-5/8"
Swing Over Cross Slide: 11-7/8"
Distance Between Centers: 80"
Spindle Speeds: (15) 11.5 - 1400 RPM
Hole Through Spindle: 4-1/8"
Spindle Nose: D1-8 Camlock
Threads: (64) 1/4 - 60 TPI
Metric Threads: (64) .5 - 120
Longitudinal Feeds: (124) .00145 - .44474
Cross Feeds: (56) .0007 - .22237
Cross Slide Travel: 11-3/8"
Compound Rest Travel: 5-3/8"
Tailstock Spindle Travel: 9-1/2"
Tailstock Spindle Taper: No. 4 M.T.
Bed Width: 15-3/4"
EQUIPPED WITH:
10 HP Motor
Inch/Metric Threads w/Single Switch Lever
Hardened and Ground Bed Ways
12" 3-Jaw Chuck w/2 Piece Jaws
Taper Attachment, +/- 10 Degrees, 15-3/4" Maximum Turning Length Per Setting
Thread Dial
Four Way Rapid Traverse
Two Speed Tailstock
Force Lubrication To Headstock, Carriage, and Bedways
Coolant System
Full Length Splash Guard
Inquire Further with Wheeler Machinery Sales!
