Description

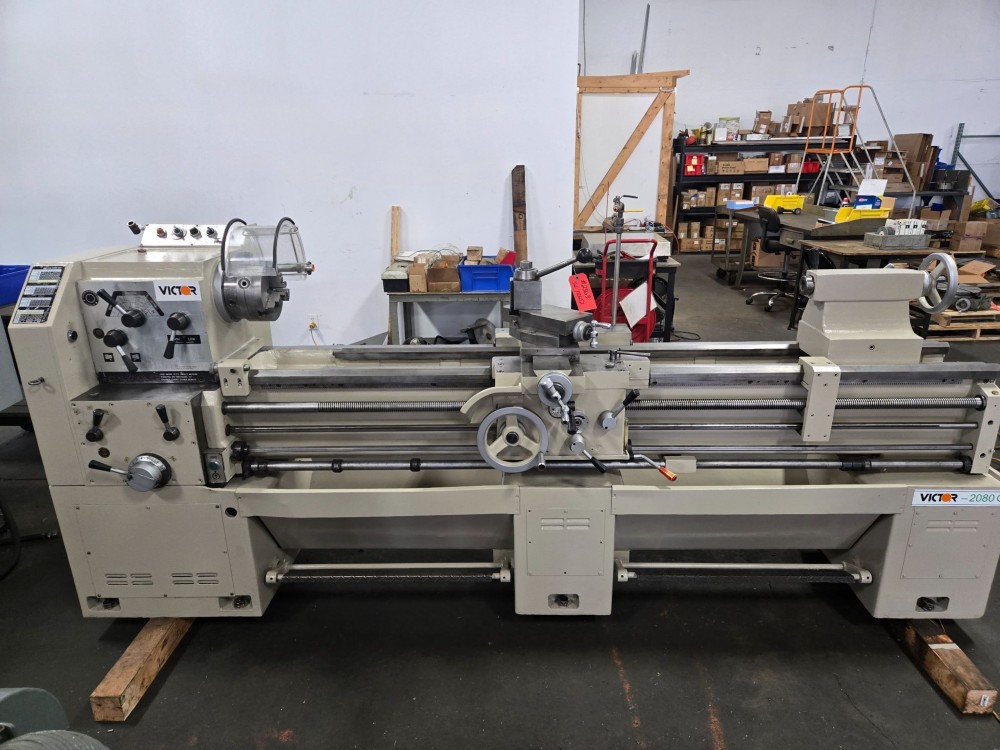

Spec Sheet: The Victor 2080G is a heavy-duty gap bed engine lathe designed for precision, featuring a 20-inch swing over the bed and 80 inches between centers, often found in industrial, maintenance, and toolroom environments. The "G" designation indicates a removable gap section, allowing for a larger, short-length capacity (typically 26-30" diameter) for flange turning. Key Technical Specifications Swing Over Bed: 20" Swing in Gap: Approx. 26-3/8" Swing Over Cross Slide: 12-1/2" to 13" Distance Between Centers: 80" Spindle Bore: 3-1/8" Spindle Nose: D1-8 Camlock Spindle Speeds: 30 to 1800RPM Main Motor: 10 HP(3 Phase, 220V) Bed Width: 12" (Hardened and Ground) Tailstock Quill Travel: 5-1/8" Tailstock Taper:MT5 Weight: Approx. 6,870 lbs Standard Features and Equipment 8 3-Jaw Chuck, Quick Change Tool Post, Tailstock, Thread Capacity: Inch (60 kinds, 2-112 TPI) and Metric (41-60 kinds, 0.1-14mm) Feeds: Longitudinal and Cross Safety: Emergency foot brake Volts: 220
2025 GMC GML-2080 GAP BED ENGINE LATHE AS NEW #8201, DISCLAIMER, Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to ...more
GMC 20″ x 80″ Heavy Duty Gap Bed Lathe, GML-2080, Inventory # 9355, Model: GML-2080, Max. Swing Over Bed: 20″, Max. Length of Workpiece: 80″, Max. Swing Over Cross Slide: 12 1/2″, Max. Swing in Gap: 29 1/8″, Width of Bed: 12″, Effective Length in Gap to Spindle: 6″ ...more
